Hatco GRA-72D6 Glo-Ray® Heat Lamps
Description
Hatco GRA-72D Glo-Ray® 72" Dual Infrared Strip Heater
Standard-Watt • 6" Spacer • 2550 W • NSF & cULusKeep every plate “just-made” hot and appetizing across an extra-wide, 72-inch serving line. The Glo-Ray® GRA-72D couples two tubular metal heat rods with a 6" center spacer, pushing a powerful 2550 watts of pre-focused infrared heat evenly over deeper holding areas—without cooking the food further.
Why you’ll love it
- Even, edge-to-edge heat—no “cold spots” thanks to Hatco’s pre-focused infrared pattern.

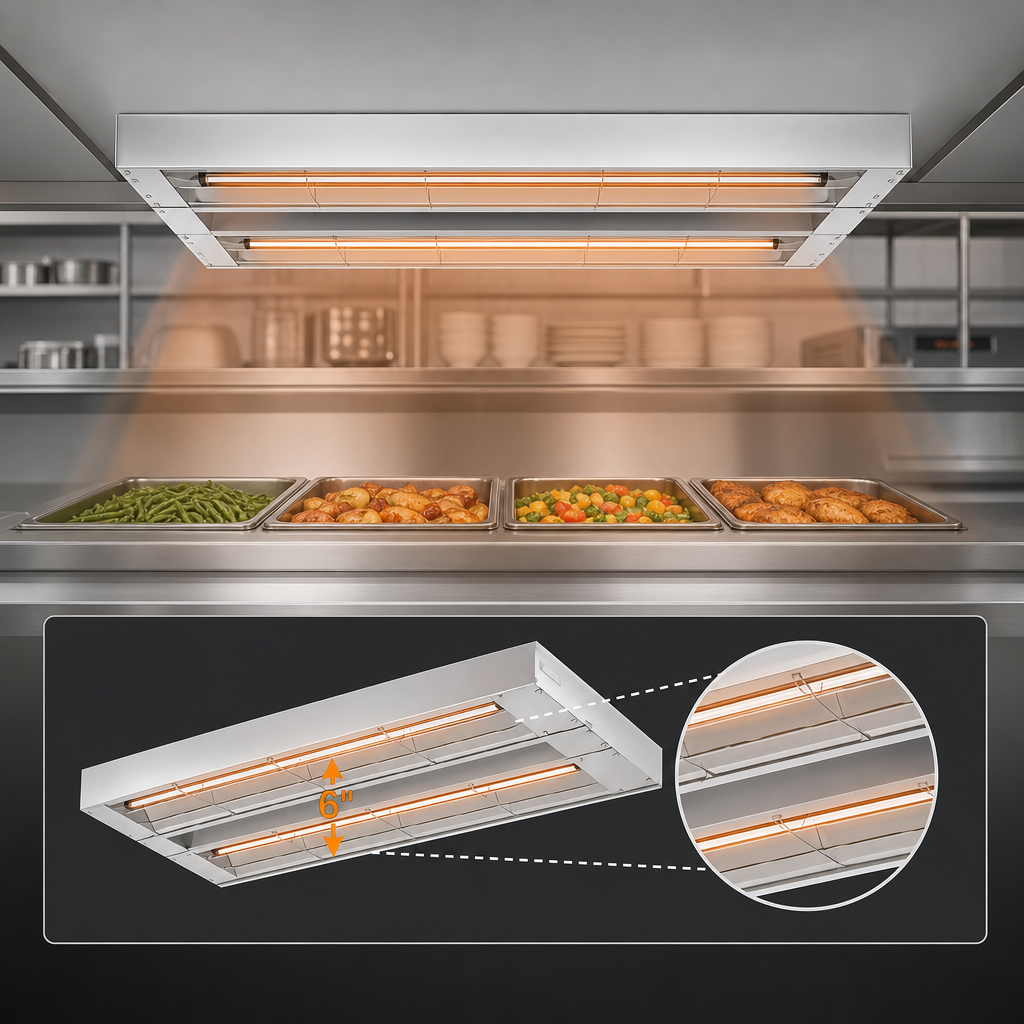

- 6" (152 mm) spacer between heater banks creates a deeper heat envelope for tall plates or piled-high platters.
- Dual tubular metal sheathed elements are backed by a 2-year burnout/breakage warranty.
- Rigid, extruded aluminum housing will not sag—even at 72"—and is fully insulated to minimize heat loss.
- Reinforced wire guard protects staff without blocking heat.
- Ships with 36" (914 mm) flexible metal conduit & 42" (1067 mm) leads for quick hook-up.
- NSF certified, cULus listed and proudly Made in the USA.
At-a-glance specs
| Model | GRA-72D (dual, standard watt) |
|---|---|

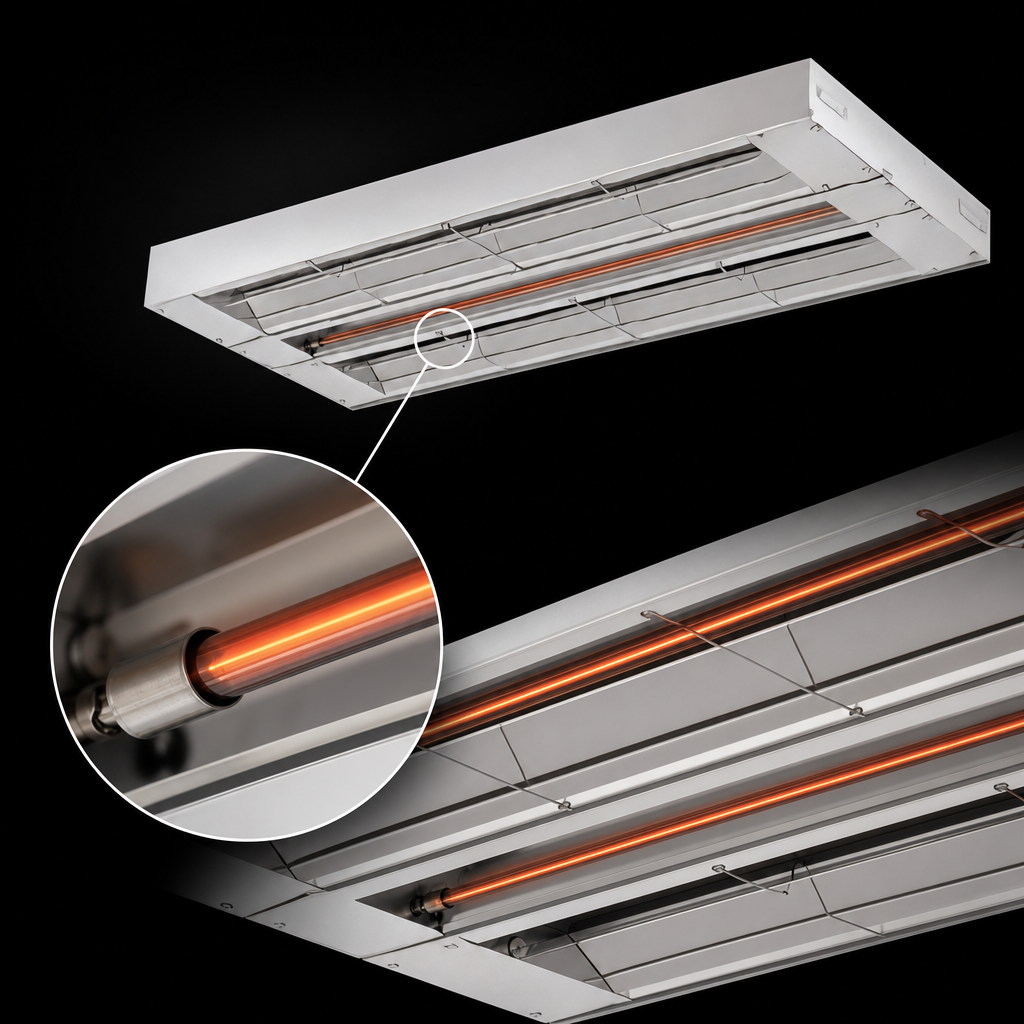

| Heat source | 2 × tubular metal sheathed infrared rods |
| Wattage | 2550 W |
| Voltage / Amps |
120 V ⏐ 21.3 A 208 V ⏐ 12.3 A 220 V ⏐ 11.6 A 240 V ⏐ 10.6 A |
| Overall size | 72" W × 18" D × 2.5" H (1829 × 457 × 64 mm) |
| Mounting clearance | 10"–14" (254–356 mm) above target surface (standard watt units with 6" spacer) |
| Shipping weight | 36 lb (17 kg) |
| Construction | Clear anodized aluminum housing, heavy-duty insulation, wire guard |
| Electrical connection | 36" flexible metal conduit with 42" leads, left-hand end |
| Certifications | NSF, cULus |
| Country of origin | USA |
Compatible accessories (sold separately)
- Adjustable or non-adjustable tubular stands (10"–16" clearance).
- Angle brackets, chain suspension kits or ceiling mounts.
- Acrylic sneeze guards in 9-3/8" or 14" depths (one- or two-sided).
- Remote toggle or infinite control boxes (RMB series) for multi-unit setups.
Need a different length, finish or wattage? Explore the full Hatco Glo-Ray® lineup or message us — we’ll quote the perfect heater for your line.
