Hatco  |  Glo-Ray®  |  SKU: GRA-72D3

Hatco GRA-72D3 Glo-Ray® Heat Lamps

$1,070.49
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Electrical rating Catalog brochure Parts list Owner's manual Color chart
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® GRA-72D Dual Infrared Strip Heater – 72″

Standard-watt • 2550 W • NSF & cULus • Made in USA

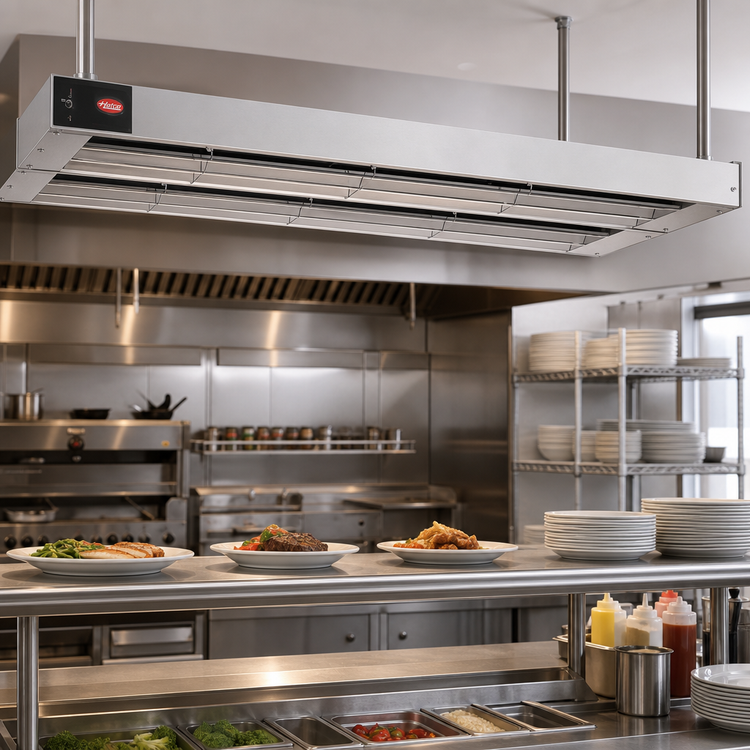

Give every plate the just-out-of-the-kitchen taste and temperature your guests expect. The 6-ft GRA-72D spreads a uniform blanket of infrared heat across long pass-throughs, buffets and plating stations—holding food hot without drying it out.

Key benefits

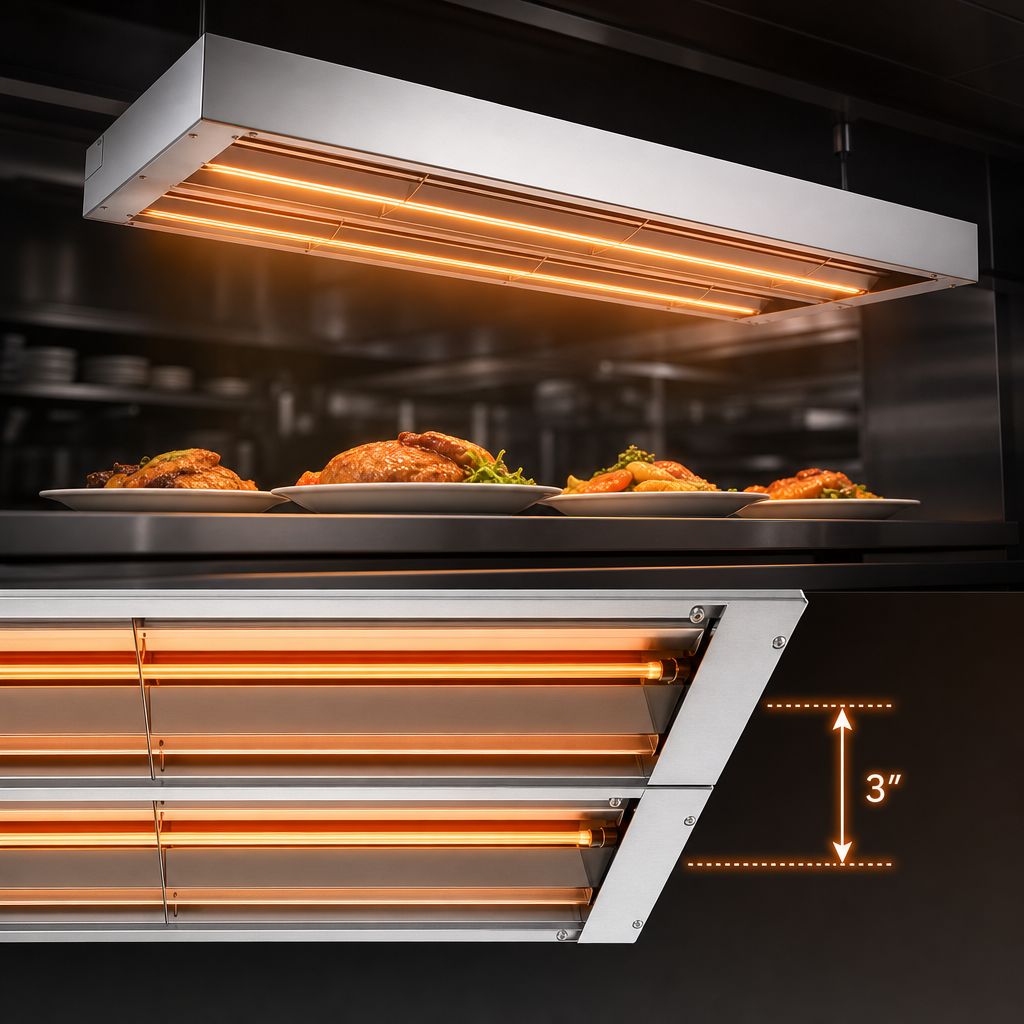

  • Dual tubular metal heater rods mounted side-by-side with a 3″ (76 mm) spacer create a deeper, more even heat zone.
  • Pre-focused infrared pattern eliminates “cold spots” and maintains safe serving temperatures longer.
  • Extruded aluminum housing will not sag and is packed with high-density insulation to minimise heat loss.
  • Polished reflector resists blackening, ensuring consistent output for years.
  • Reinforced wire guards improve operator safety without blocking heat.
  • Ships with a 36″ (914 mm) flexible conduit & 42″ (1067 mm) leads for fast hard-wire installation.
  • Metal-sheathed elements carry Hatco’s 2-year no-burnout warranty and are supported by 24/7 U.S.-based service.

Specifications

Model GRA-72D
Overall width 72″ / 1829 mm
Depth × height 15″ × 2.5″ (381 × 64 mm) – with 3″ spacer

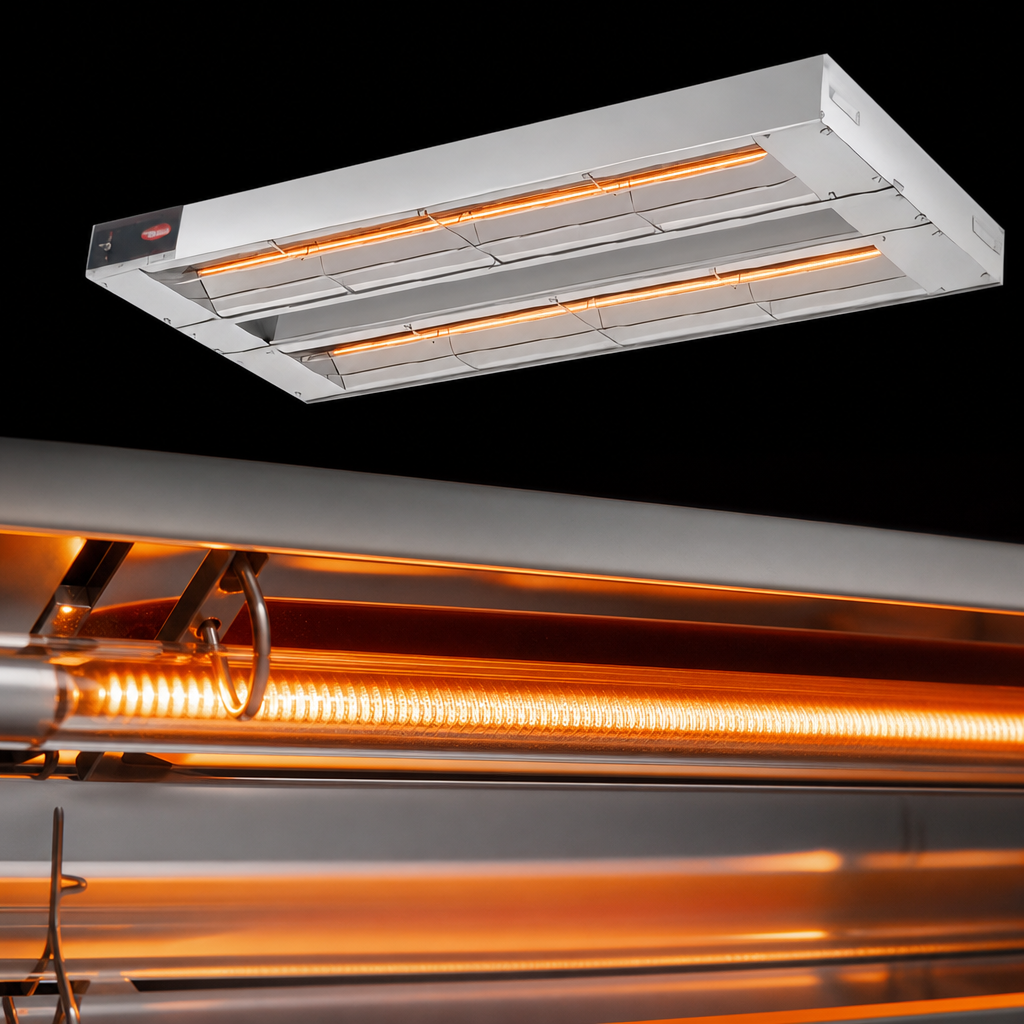

Heating elements 2 × tubular metal rods, 3″ (76 mm) apart
Wattage 2550 W (standard)
Voltage / amps 120 V – 21.3 A
208 V – 12.3 A
220 V – 11.6 A
240 V – 10.6 A
1-phase
Construction Clear-anodized extruded aluminum with high-efficiency insulation
Power connection 36″ flexible conduit with 42″ leads (field-wired)
Certifications NSF, cULus
Origin Proudly made in the USA
Approx. ship weight 36 lb / 17 kg

Popular options (sold separately)

  • Sneeze guards – 9.375″ or 14″ high, one- or two-sided clear acrylic
  • Remote toggle or infinite control boxes (RMB series)
  • Adjustable or fixed tubular stands (10″–16″)
  • Chain suspension kit or angle brackets for overhead mounting
  • Designer powder-coat colours & antimicrobial finishes
Installation note: If you use a remote control box, mount it outside the heat zone to prevent heat damage and follow all local electrical codes.

Looking for a different length or wattage? The full Hatco Glo-Ray® line runs from 18″ to 144″— contact us for a custom quote.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

72.0in

Depth

15.0in

Shipping Weight

36.0lbs

Finish

aluminum

Size

double

Length

67 - 72"

Type

unlighted

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 72" W, standard wattage, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 2550 watts, NSF, cULus, Made in USA
