Hatco  |  Glo-Ray®  |  SKU: GRA-66D6

Hatco GRA-66D6 Glo-Ray® Heat Lamps

$980.64
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

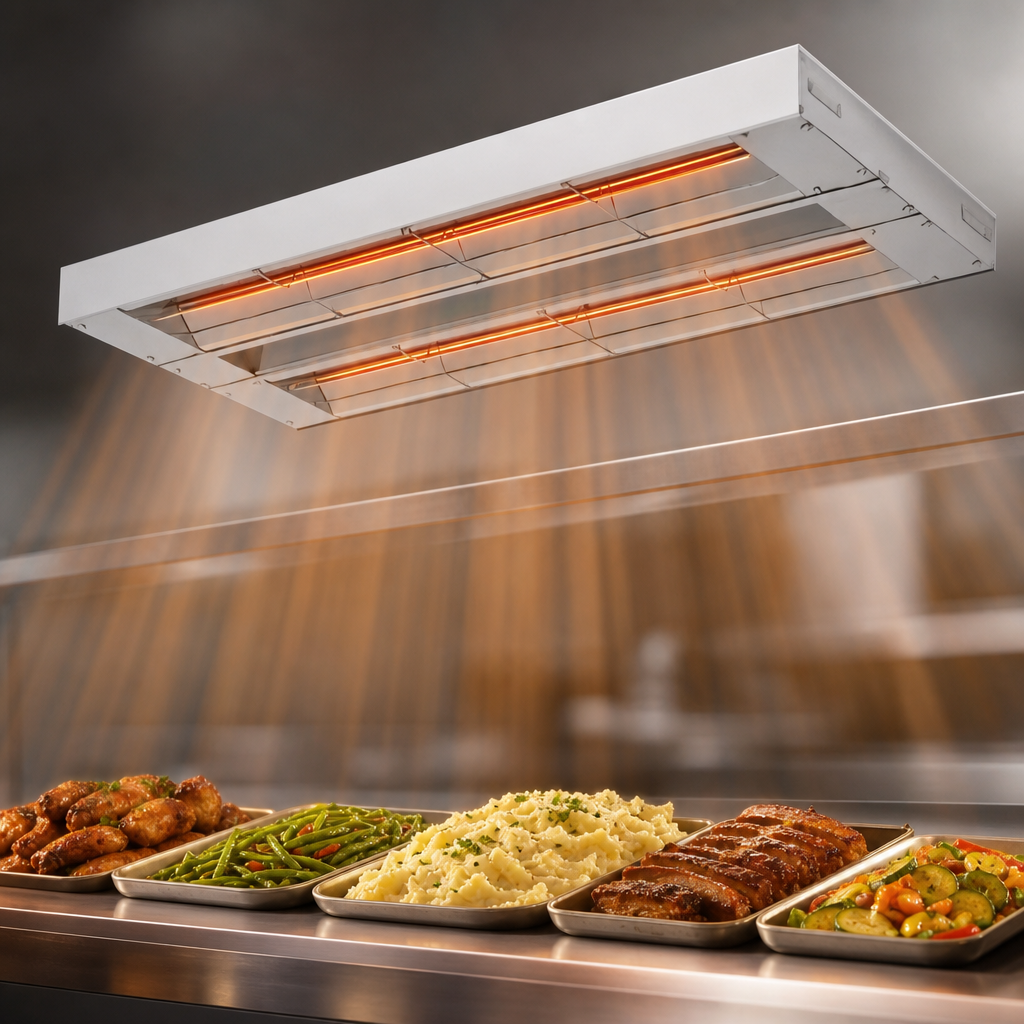

Hatco Glo-Ray® 66" Dual Infrared Strip Heater

Model GRA-66D • Standard Watt • 2320 W

Designed for high-volume service lines, the 66-inch Glo-Ray® dual strip heater blankets pans, platters and plates with consistent infrared warmth—so every order reaches customers at the perfect serving temperature.

Key Features
  • Dual tubular metal-sheathed elements deliver uniform heat—no cold corners.

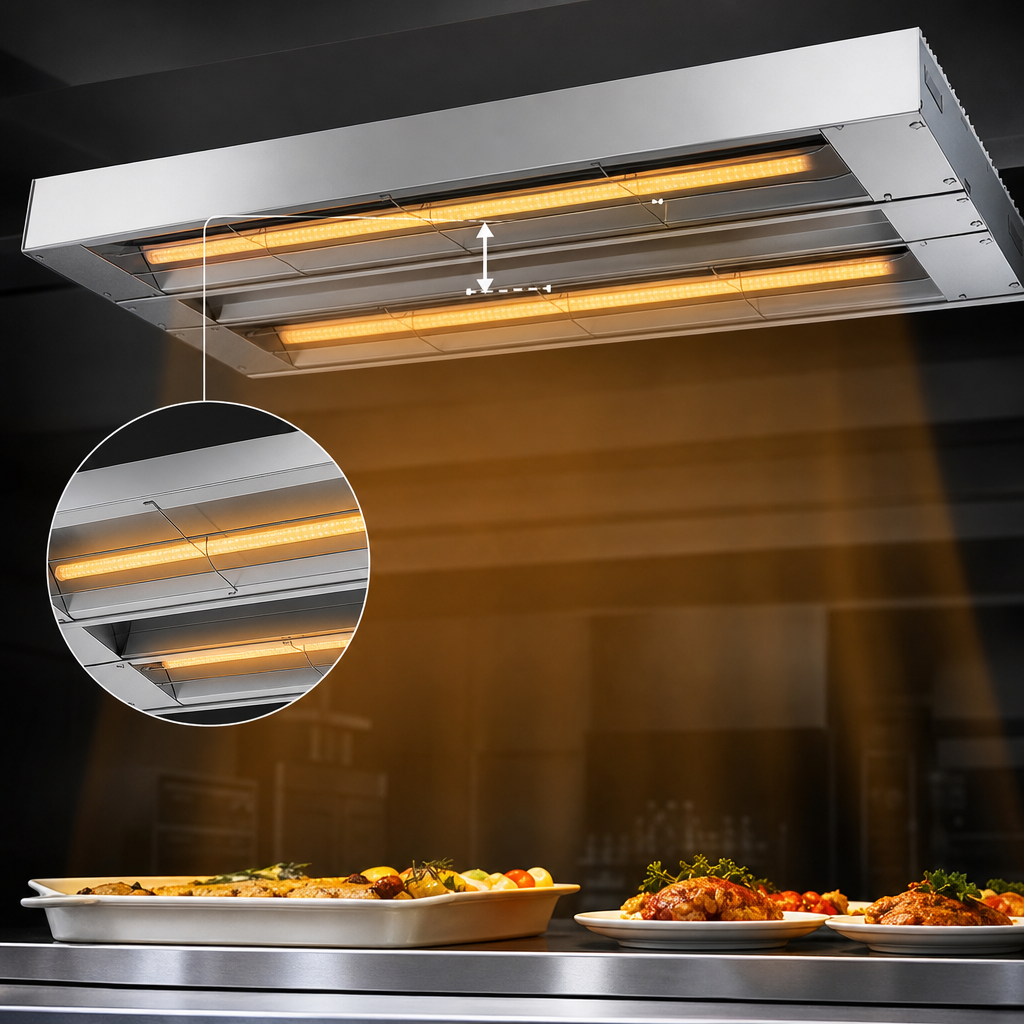

  • 6" (152 mm) center spacer creates a deeper heat field for taller pans and elevated shelves.
  • Polished reflector resists blackening, maintaining peak performance for years.
  • Reinforced wire guards protect elements without obstructing heat flow.
  • Extruded aluminum housing will not sag or corrode; heavy insulation minimizes energy loss.
  • Simple onboard toggle switch and indicator light (120–240 V models) for instant control.
  • Metal-sheathed elements carry a 2-year no-burnout/breakage warranty.
  • NSF listed, cULus certified and proudly Made in the USA.
Ideal Applications
  • Buffet lines & self-serve counters
  • Pass-through windows
  • Pizza, fry or carving stations
  • Back-of-house plating areas
Technical Specifications
Overall width 66" (1676 mm)
Depth × height 18" × 2.5" (457 × 64 mm)  — 6" spacer
Heat source Dual tubular metal elements, 6" (152 mm) spacing
Total wattage 2320 W
Voltage / amps 120 V – 19.3 A
200 V – 11.6 A
208 V – 11.2 A
220 V – 10.5 A
240 V – 9.7 A
Power lead 36" (914 mm) flex conduit with 42" (1067 mm) leads
Shipping weight Approx. 36 lb (17 kg)
Certifications NSF • cULus • CE (export)
Popular Accessories (sold separately)
  • Acrylic sneeze guards – 9⅜" or 14" depths, single or double-side coverage
  • T-Leg or C-Leg countertop stands (10"–16" clearances)
  • Adjustable angle brackets or chain kits for overhead suspension
  • Remote toggle or infinite control boxes for chef-side mounting
Installation tip: Maintain at least 10" (254 mm) clearance from combustible surfaces and follow all Hatco mounting and wiring instructions provided with the unit.

Need another size or finish? The Glo-Ray® line is available from 18" to 144" in multiple wattages and designer colors—contact us for details.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

66.0in

Depth

18.0in

Shipping Weight

36.0lbs

Finish

aluminum

Type of element

metal heating rod

Size

double

Length

61 - 66"

Type

unlighted

Specifications

Glo-Ray® Infrared Strip Heater, 66" W, standard wattage, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, 2320 watts, NSF, cULus, Made in USA
