Hatco GRA-66D3 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infrared Strip Heater – 66" (GRA-66D)

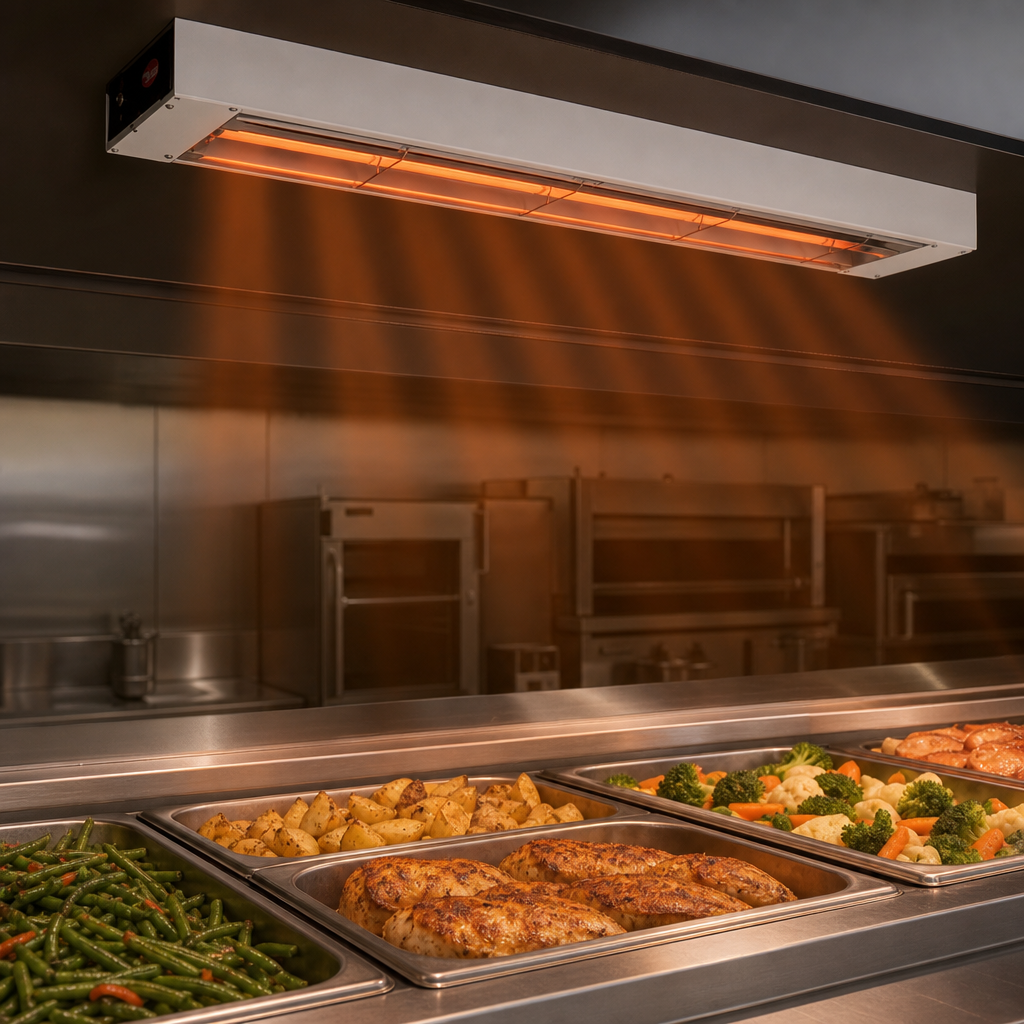

Standard watt • 3" spacer • 2320 W • Aluminum housingHold every order at the perfect serving temperature with the industry-leading Glo-Ray® dual strip heater from Hatco. Its 66 inch span and dual tubular elements blanket a wider, deeper area with even infrared heat—eliminating cold corners and soggy plates on the busiest lines.
Why you’ll love it

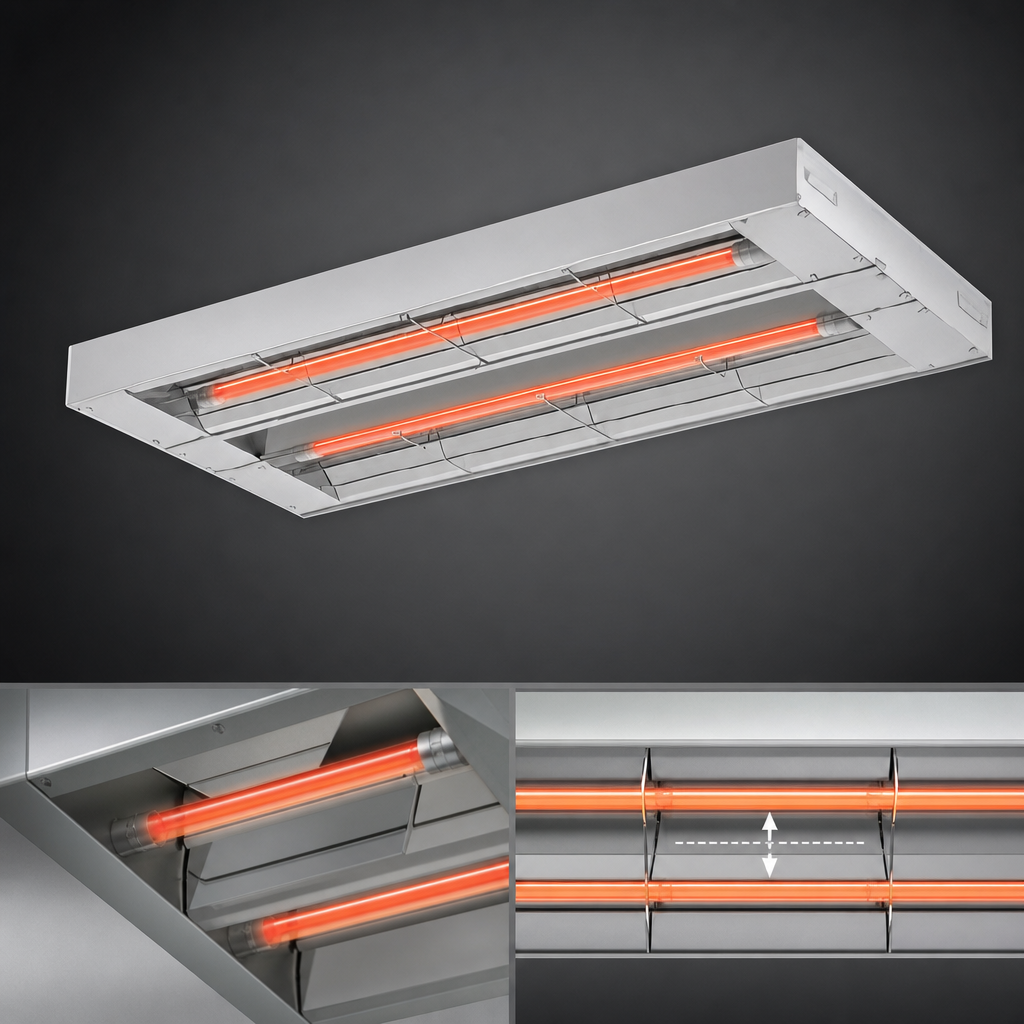

- Dual tubular metal heater rods deliver focused, high-intensity heat across the entire holding surface.
- 3" (76 mm) spacer between elements widens the heat pattern to a generous 15" (381 mm) depth.
- Rigid, clear-anodized aluminum housing resists corrosion and will not sag over time.
- Reinforced wire guards protect elements without interrupting heat flow or visibility.
- Dense internal insulation minimises heat loss and keeps exterior surfaces cooler.
- Metal-sheathed elements carry a 2-year burnout/breakage warranty; full unit backed by Hatco’s 24/7 service network.
- NSF listed, cULus certified, and proudly Made in the USA.
Perfect for

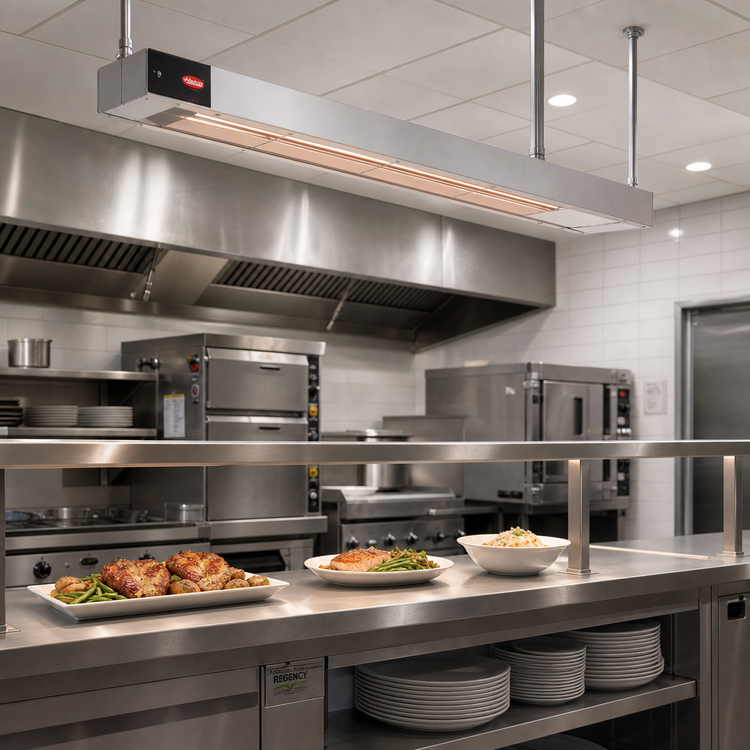

- 66" pass-thru windows and pickup counters
- Buffets, carving stations, and banquet lines needing deeper coverage
- Quick-service & convenience store hot holding kiosks
- Catering operations maintaining multiple full-size pans
Technical specifications
| Model | GRA-66D |
|---|---|
| Overall width | 66" (1676 mm) |
| Depth × height | 15" × 2.5" (381 × 64 mm) |
| Heating elements | Dual tubular metal rods, standard watt density |
| Total wattage | 2320 W |
| Voltage options | 120 V, 208 V, 220–240 V, 50/60 Hz, 1-phase |
| Typical amps | 120 V = 19.3 A • 208 V = 11.2 A • 240 V = 9.7 A |
| Housing material | Clear-anodized extruded aluminum |
| Certifications | NSF, cULus |
| Shipping weight | ≈ 36 lb (17 kg) |
| Country of origin | USA |
Optional accessories include designer colors, remote control boxes, sneeze guards, tubular stands, chain suspension kits, and extended leads—contact us for details.
