Hatco GRA-120D6 Glo-Ray® Heat Lamps
Description

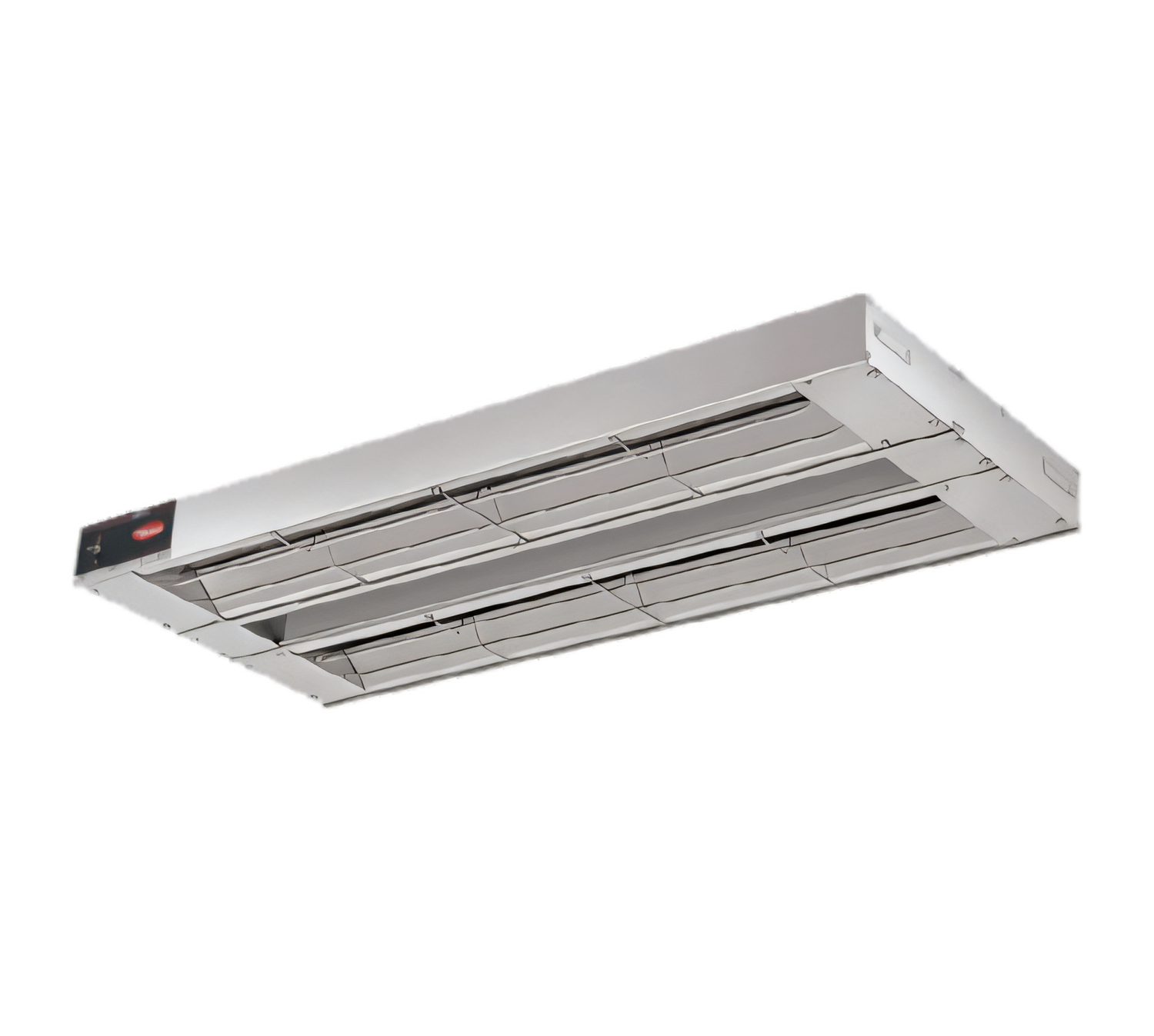

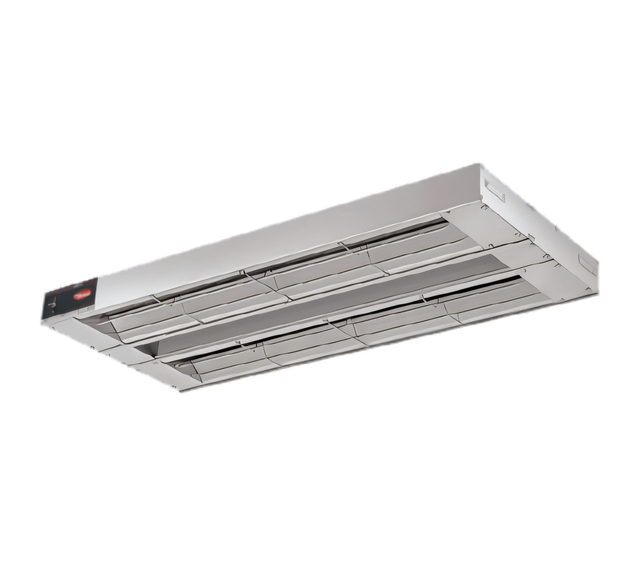

Hatco Glo-Ray® 120" Dual Infrared Strip Heater
Model GRA-120D • 4,200 W Standard Watt • Aluminum HousingStretch your serving line the full length of a 10 ft counter while keeping every portion hot, appetising and ready to serve. Hatco’s Glo-Ray® Dual Infrared Strip Heater delivers a perfectly balanced blanket of radiant heat across wide pans and platter lines without continuing to cook the food.
Why operators love it
- Even, pre-focused infrared heat means no cold spots—ideal for buffets, pass-throughs and expo lines.

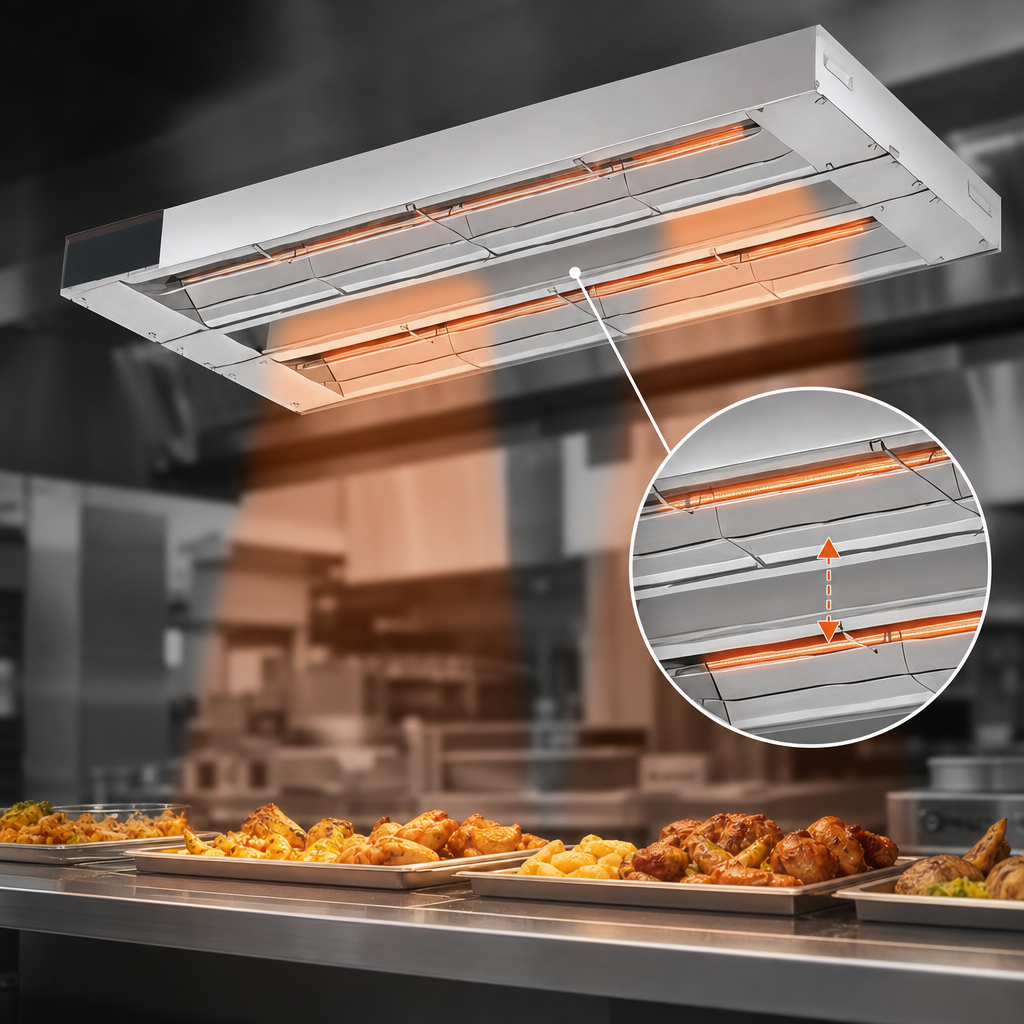

- Dual tubular metal-sheathed elements are mounted side-by-side with a 6" (152 mm) spacer, creating a deeper holding cavity for taller menu items.
- Heavy-duty extruded aluminum housing will not sag over time and resists corrosion in steamy kitchens.
- Reinforced wire guards protect the elements without disrupting heat distribution.
- Tandem (end-to-end) elements ensure consistent output along the entire 120" span.
- Heavy insulation minimises heat loss and reduces energy consumption.
- NSF & cULus listed and proudly Made in the USA.
Technical specifications
| Overall length | 120" / 3048 mm |
|---|---|
| Heating elements | Dual tubular metal-sheathed rods, tandem configuration |
| Center spacer | 6" / 152 mm between heater banks |
| Total wattage | 4,200 W (Standard Watt) |
| Voltage / amps |
120 V 1Ø – 35 A 208 V 1Ø – 20.2 A 240 V 1Ø – 17.5 A |
| Construction | Extruded aluminum housing & end caps, reinforced wire guards |
| Recommended mounting height | 10"–14" (254–356 mm) above the surface for combustible & non-combustible installations |
| Certifications | NSF, cULus |
| Approx. ship weight | 66 lb / 30 kg |
| Country of origin | USA |
Popular factory options (order with unit)
- Designer colors or gloss finishes to match your brand palette.
- Acrylic sneeze guards – 9⅜" or 14" deep, single or double-sided.
- Remote control enclosures (RMB) with toggle or infinite switches.
- Extended lead lengths: 1 ft – 20 ft flexible metal conduit.
- Adjustable or fixed tubular stands (10"–16" clearance).
- Chain suspension kits & angled mounting brackets.
Installation notes
- Unit ships with 36" (914 mm) flexible conduit and 42" (1067 mm) leads.
- Toggle switch and power entry are located on the wiring end (chef’s side).
- Minimum 1" (25 mm) clearance is required above the heater housing.
Need a different length, voltage or control style? Chat with our equipment specialists—Hatco offers Glo-Ray® models from 18" to 144" in both standard and high watt configurations.
