Hatco GRA-120D3 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infrared Strip Heater – 120″

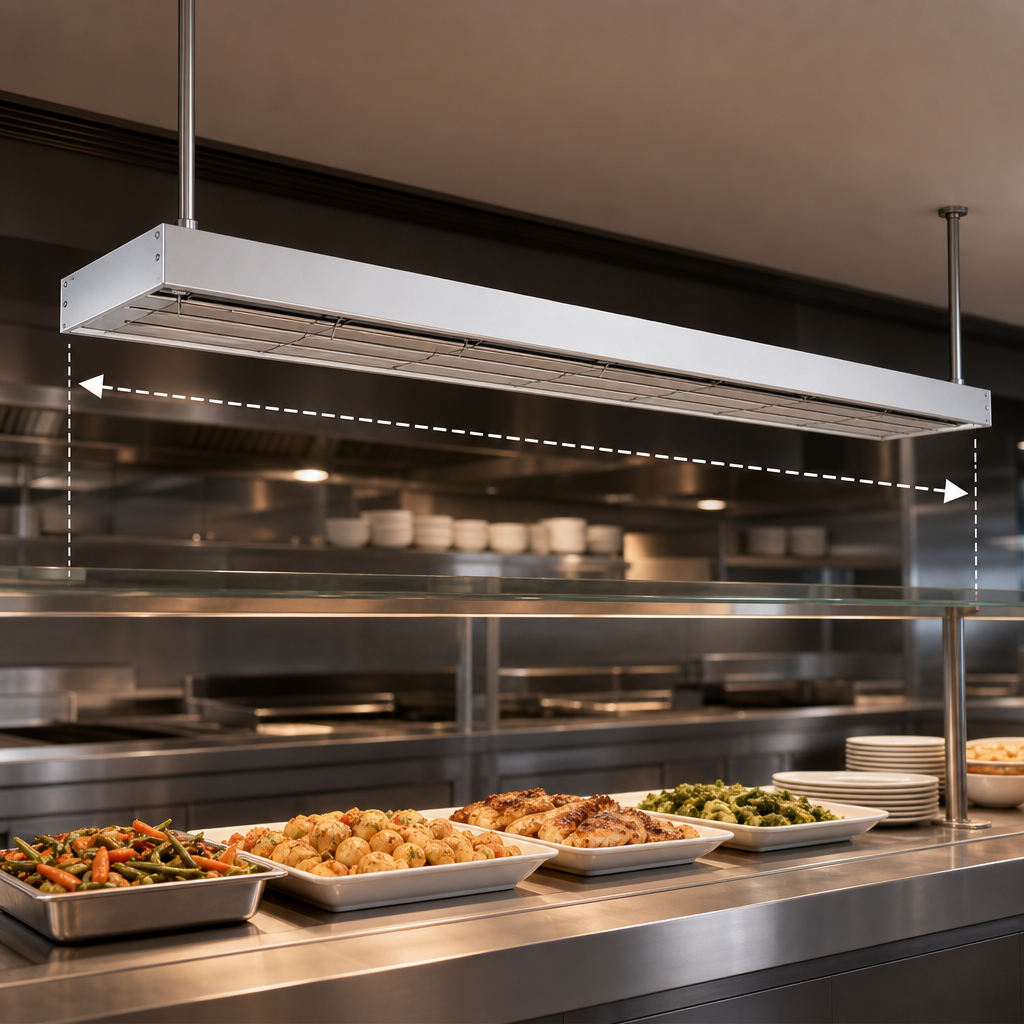

Model GRA-120D | Standard Watt | 4,200 W Total OutputGive every inch of your 10-ft service line the consistent, high-performance heat only Hatco can provide. The Glo-Ray® 120″ Dual Infrared Strip Heater combines two tubular metal heating rods with a 3″ spacer, creating a deep, even heat zone that keeps entrées, sides and baked goods at safe, flavorful serving temperatures.
Key Benefits

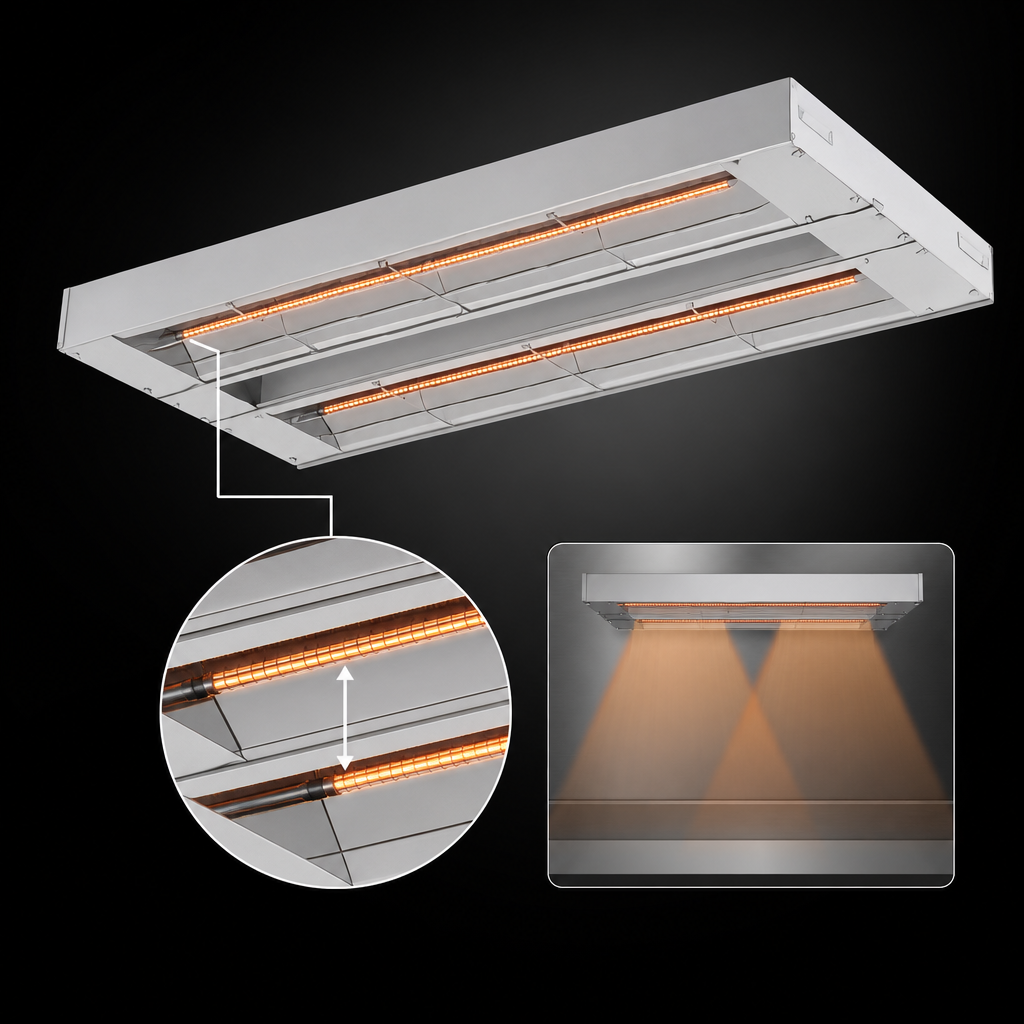

- Dual tubular heating elements with 3″ (76 mm) center spacer for a larger holding area.
- Pre-focused infrared pattern eliminates “cold spots” across the entire 120″ span.
- Standard-watt 4,200 W power handles high-volume demands without over-drying food.
- Continuous, extruded aluminum housing will not sag – even at 10 ft lengths.
- Highly polished reflector resists blackening, maintaining peak efficiency.
- Reinforced wire guards protect staff while allowing full heat flow.
- Heavy-duty internal insulation minimizes heat loss and keeps kitchens cooler.
- Metal-sheathed elements carry a two-year warranty against burnout/breakage.
- NSF & cULus listed – built to the latest sanitation and electrical safety standards.
- Proudly engineered and manufactured in the USA.
At-a-Glance Specifications
| Overall Width | 120″ (3,048 mm) |
|---|---|
| Depth × Height | 15″ × 2.5″ (381 × 64 mm) |
| Heating Elements | Dual tubular metal rods • Tandem (end-to-end) |
| Total Wattage | 4,200 W (standard watt) |
| Typical Amperage | 20.2 A @ 208 V • 17.5 A @ 240 V |
| Electrical Connection | 36″ (914 mm) flexible metal conduit with 42″ (1,067 mm) leads |
| Housing Material | Clear anodized aluminum |
| Certifications | NSF, cULus, CE* |
| Country of Origin | Made in USA |
*CE mark applies to specific voltage configurations. Ask us for details.
Factory Options & Accessories
- Remote toggle or infinite control boxes (single or multi-unit).
- Designer powder-coat and gloss finishes in 15 signature colors.
- Sneeze guards – one- or two-sided, 9 ⅜″ or 14″ heights.
- Adjustable or fixed tubular stands (10″–16″ clearances).
- Chain-suspension kit for overhead mounting.
- Extended lead lengths up to 20′ (6,096 mm).
From stadium concessions to banquet kitchens, the Hatco Glo-Ray® 120″ Dual Strip Heater delivers the reliable heat your operation demands. Order today and keep every plate looking and tasting its best!
