Hatco GR5AL-66 Glo-Ray® Heat Lamps
Description

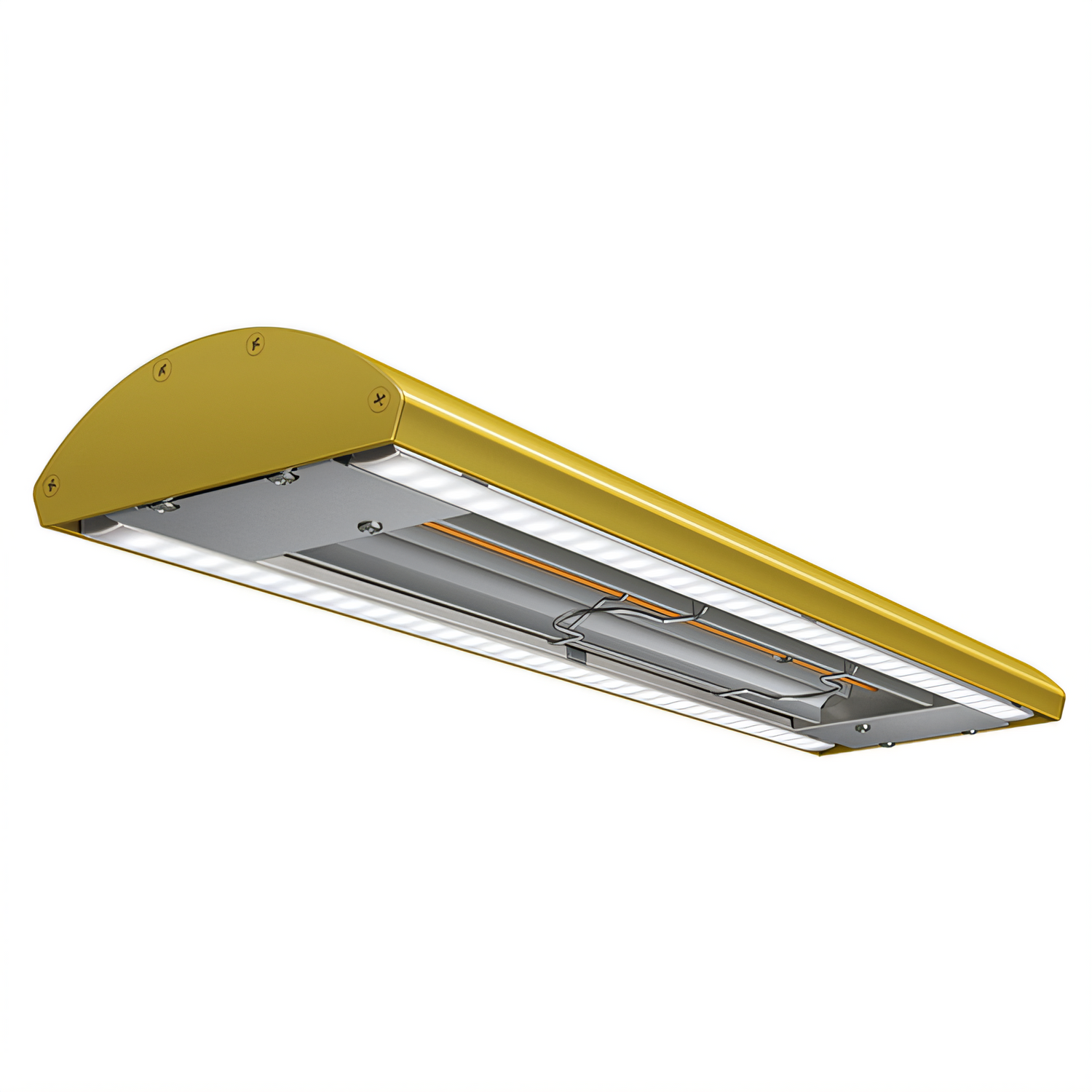

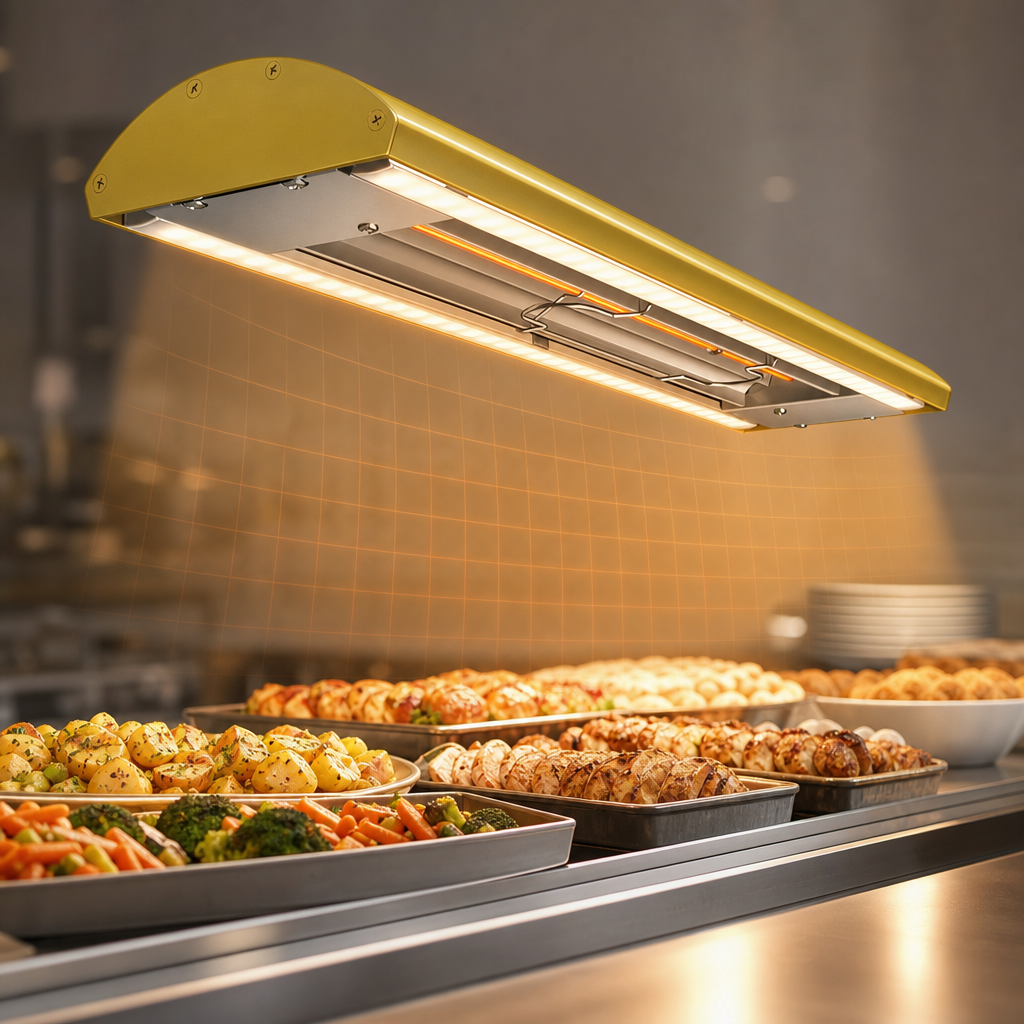

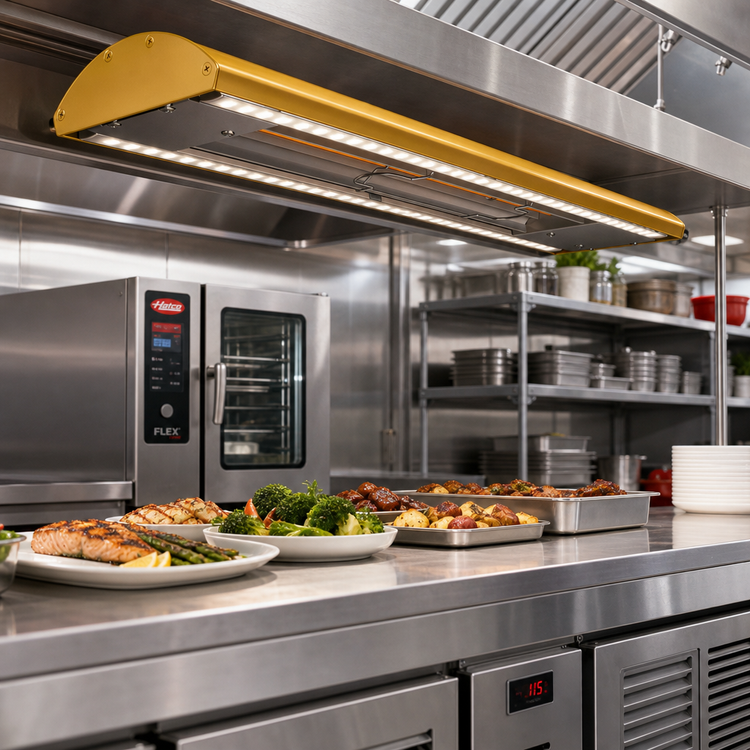

Hatco Glo-Ray® Curved Infrared Strip Heater – 66"
Model GR5AL-66 • Standard 1177 W • Dual LED Lights • Remote Infinite ControlBring buffet lines, pass-throughs and carving stations to life with brilliant lighting and consistent, even heat – all from an ultra-slim 2" profile that keeps customer sight-lines clear.
Key Benefits
- Patented 2" H × 6" D curved housing reaches the full 66" span without bulky overhead equipment.
- 1177 W tubular infrared element provides uniform “no-cold-spot” holding temperatures without continuing to cook food.

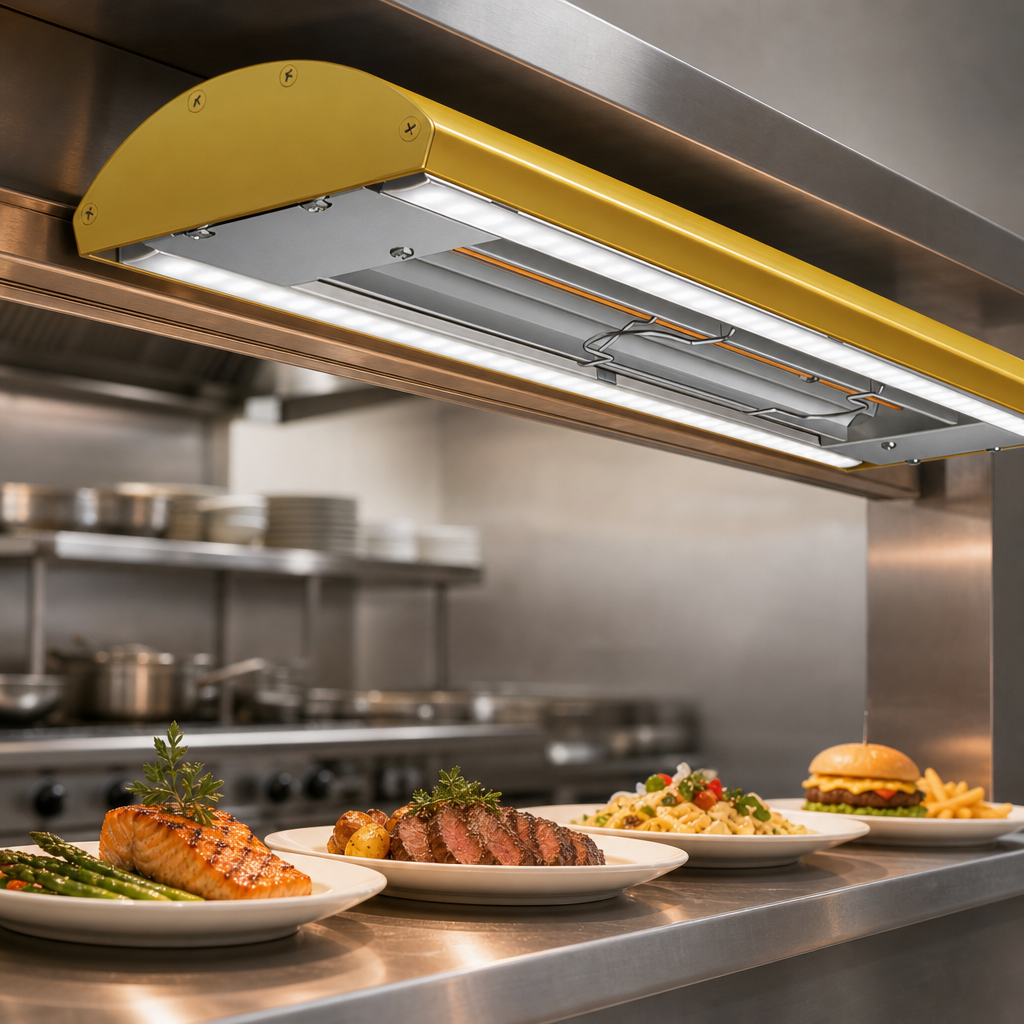

- Energy-saving dual warm-white LEDs (field-replaceable) enhance food presentation while using up to 85 % less energy than incandescent bulbs.
- RMB5-1R remote box features electronic infinite control (0 – 100 %) plus a dedicated power toggle and indicator light.
- Heat and lights can be operated together or independently for flexible day-part use.
- Factory-installed angle brackets, 3' conduit and 5' power lead simplify installation under shelves or ceilings.
- Metal-sheathed element is backed by a 2-year Hatco warranty for worry-free performance.
Perfect For
- Buffet & cafeteria lines
- Quick-service pass-through windows
- Carving & action stations
- Hot or cold wells (lights-only mode for refrigerated wells)
Specifications
| Model | GR5AL-66 |
|---|---|
| Overall Length | 66 in (1675 mm) |
| Housing Size | 2 in H × 6 in D (51 × 150 mm) |
| Heat Output | 1177 W (standard wattage) |
| Electrical | 120 V 10.0 A • 208 V 5.7 A • 220 V 5.4 A • 240 V 5.0 A, 1-phase |
| Lighting | Dual warm-white LEDs (2700-3200 K), field-replaceable |
| Controls | Remote RMB5-1R box with electronic infinite control & on/off switch |
| Included Mounting | Angle brackets, 3' conduit, 5' power lead |
| Shipping Weight | ≈ 36 lb (17 kg) |
| Certifications | cULus • ANSI/NSF 4 • CE |
What’s in the Box
- GR5AL-66 curved strip heater with dual LEDs
- RMB5-1R remote control enclosure
- Mounting angle brackets
- 3’ (914 mm) flexible conduit
- 5’ (1524 mm) power lead
Optional accessories include tubular stands, curved tempered-glass sneeze guards, Cool-White or dual-color LEDs, designer housing finishes, and extended lead lengths.
Warm White LED range: 2700-3200 K • Cool White: 4000-4300 K.
Made in the USA by Hatco Corporation. Ships fully assembled and factory wired.
