Hatco  |  Glo-Ray®  |  SKU: GR5AL-54

Hatco GR5AL-54 Glo-Ray® Heat Lamps

$2,223.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Owner's manual Parts list Color chart
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

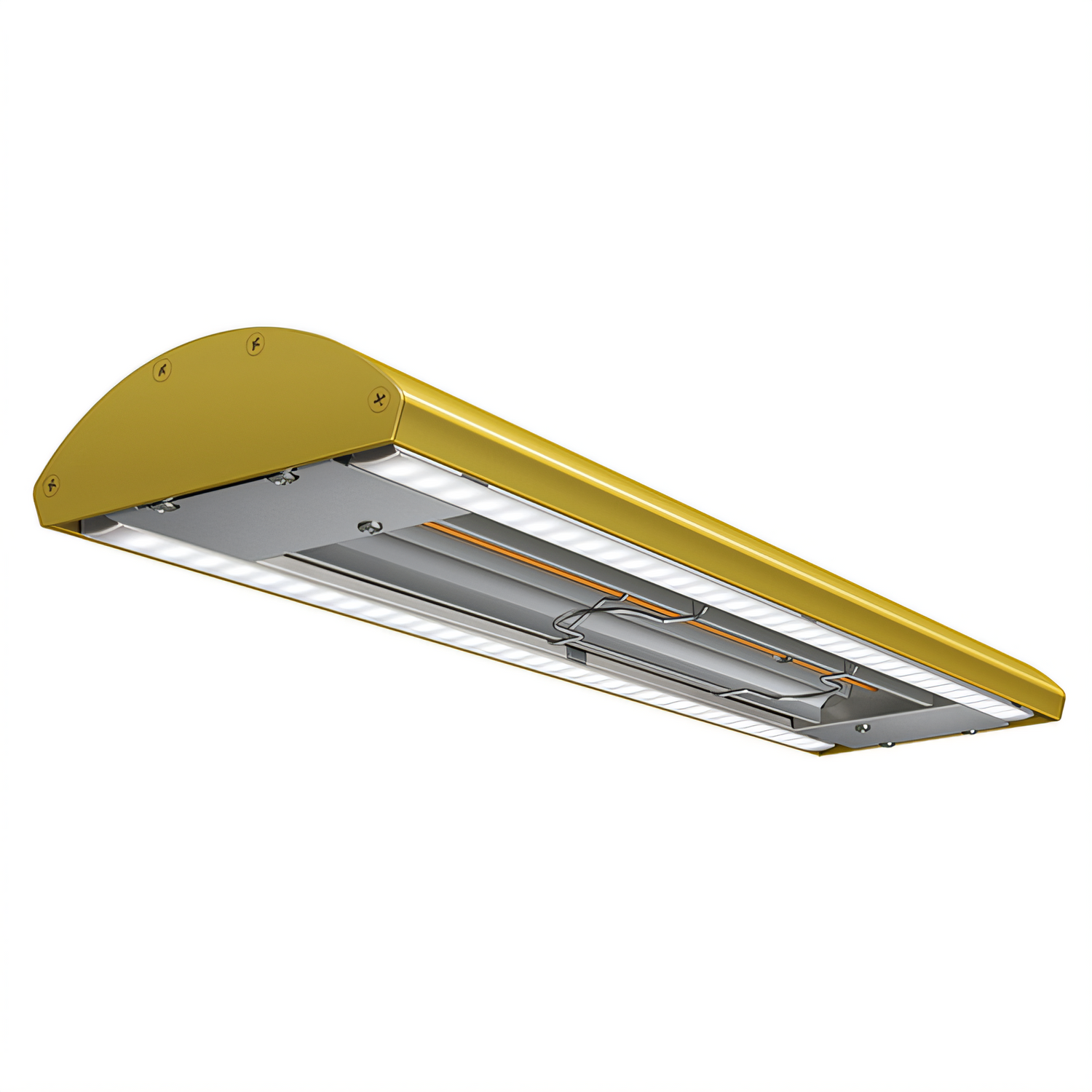

Hatco Glo-Ray® Curved Infrared Strip Heater — 54" (GR5AL-54)

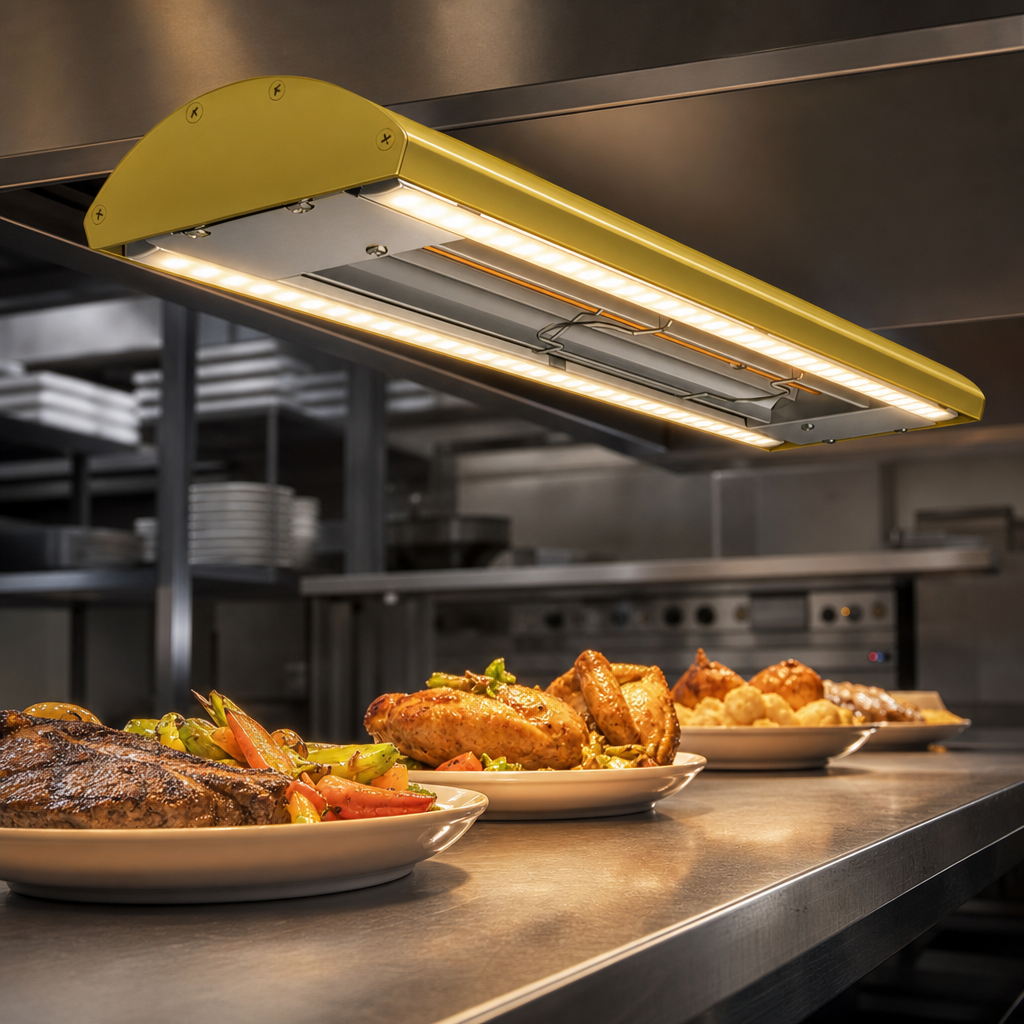

Standard watt • Dual LED lighting • 939 W

Give every entrée the spotlight it deserves while holding it at a safe, delicious serving temperature. The Hatco Glo-Ray® GR5AL-54 pairs pre-focused infrared heat with energy-saving LED illumination in a sleek, front-of-house–ready housing that’s just 2" tall.

Top benefits at a glance

  • Uniform infrared heat across the entire 54" span—no “cold spots.”

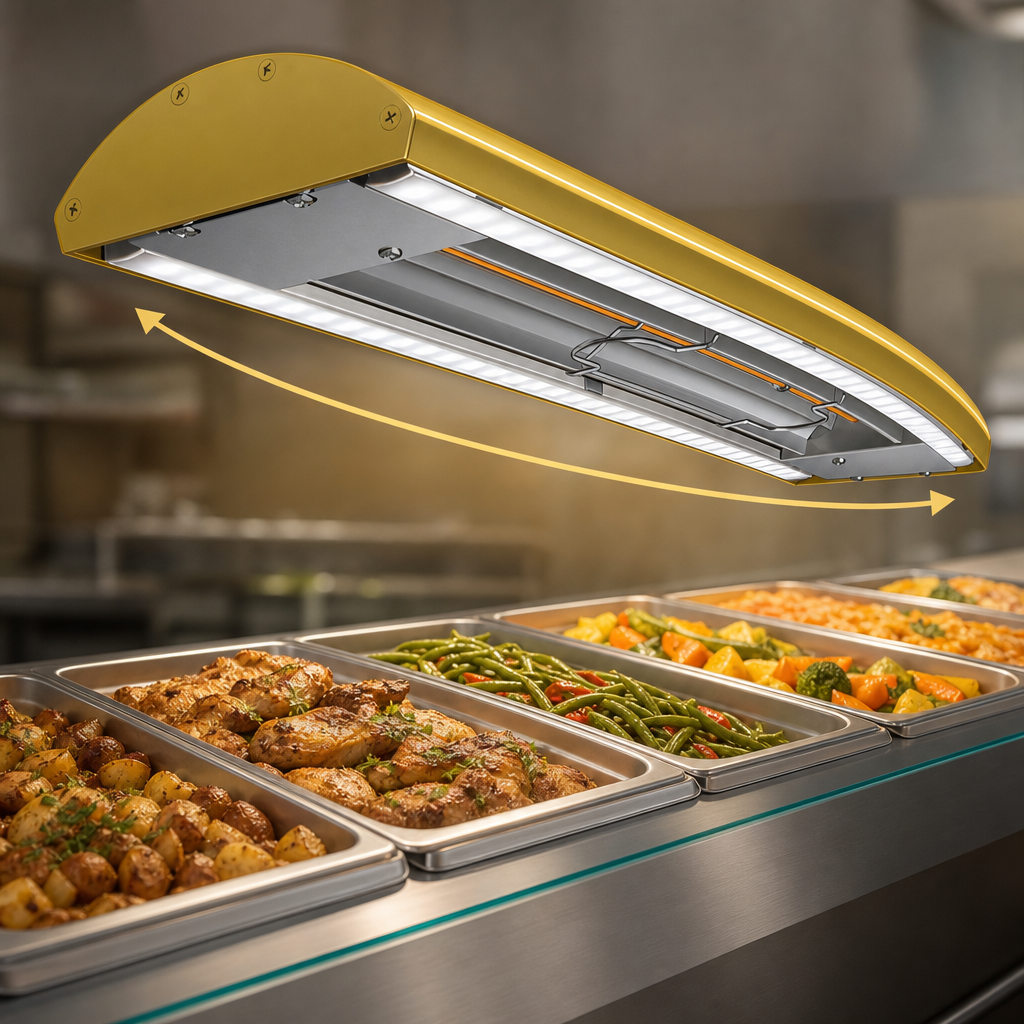

  • Ultra-slim 2" H × 6" D curved design frees up vertical space and blends with any décor.
  • Integrated dual warm-white LED strips (field-replaceable) slash energy use vs. incandescent bulbs.
  • Remote RMB5-1R control box with electronic infinite control (0–100%) and dedicated on/off switch.
  • Mounting brackets, 3' conduit and 5' power/LED leads included for quick installation.
  • Metal-sheathed element backed by a 2-year burnout warranty for worry-free operation.
  • NSF, UL, CE certified—ready for commercial kitchens worldwide.

Perfect for

  • Buffet or self-serve lines
  • Pass-thru shelves & service windows
  • Carving stations & chef action areas
  • Hot side of combination hot/cold bars
  • Holding pans over refrigerated wells (heat only section)

Always follow the clearance guidelines detailed in the installation manual.

Technical specifications

Model GR5AL-54
Overall length 54" / 1372 mm
Housing size (H × D) 2" × 6" (51 × 150 mm)
Wattage 939 W (standard watt)
Voltage & Amp draw 120 V / 7.9 A  |  208 V / 4.6 A  |  240 V / 4.0 A (single-phase)
Heat control Electronic infinite (0–100%) in remote RMB5-1R control box
Lighting Dual warm-white LED (2700–3200 K) standard; cool-white or dual-color optional
Included hardware Angle mounting brackets, 3' conduit, 5' power & LED leads
Shipping weight 27 lb / 12 kg
Certifications NSF • UL • CE

Popular options (sold separately)

  • Designer Color or Gloss Finish housings to match your brand palette.
  • Cool-white or dual-color (warm/cool) LED modules.
  • Non-adjustable tubular stands (bottom-mount or side-mount, 10"–16" clearances).
  • Curved tempered-glass sneeze guards.
  • RMB5-2R control box for simultaneous control of two GR5A(L) units.
Important: Install the remote control box outside of the heat zone (ambient ≤ 104 °F / 40 °C) to prevent damage.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Height

3.0in

Width

54.0in

Depth

6.0in

Shipping Weight

27.0lbs

Type

lighted

Finish

aluminum

Type of element

metal heating rod

Size

single

Length

49 - 54"

Specifications

Glo-Ray® Infrared Strip Heater, curved, 54" W, standard watt, dual LED lights, remote box with electronic infinite control, power on/off switch, mounting brackets, 939 watts
