Hatco  |  Glo-Ray®  |  SKU: GR5AL-36

Hatco GR5AL-36 Glo-Ray® Heat Lamps

$1,760.37
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Color chart Parts list
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

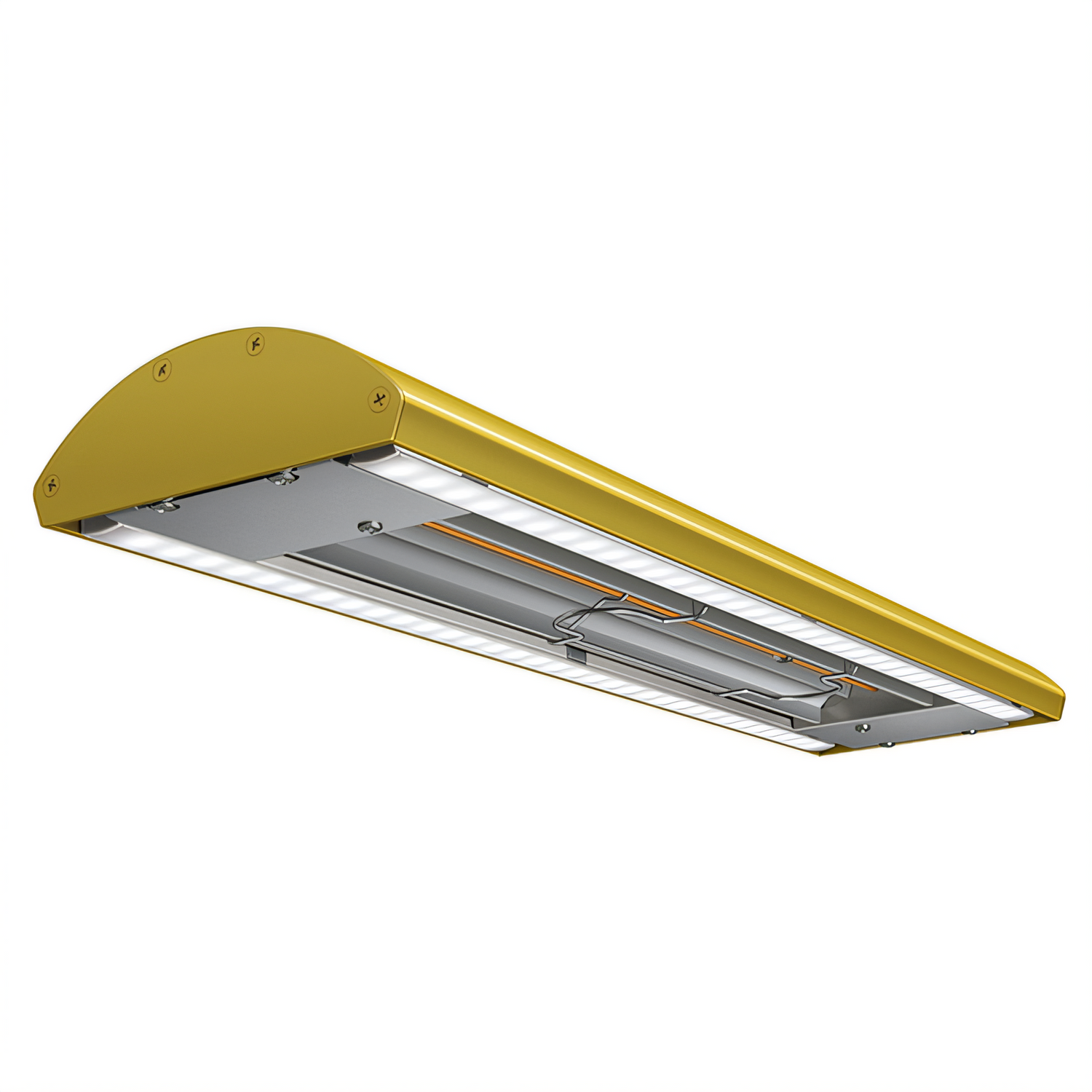

Hatco Glo-Ray® GR5AL-36 Curved Infrared Strip Heater – 36"

Standard Watt • 584 W • Dual LED Lighting

Serve every dish at its flavourful best. Hatco’s patented Glo-Ray® curved strip heater delivers even, pre-focused infrared heat across a 36 inch holding zone while energy-saving LEDs showcase your food in its most appetising light.

Key advantages

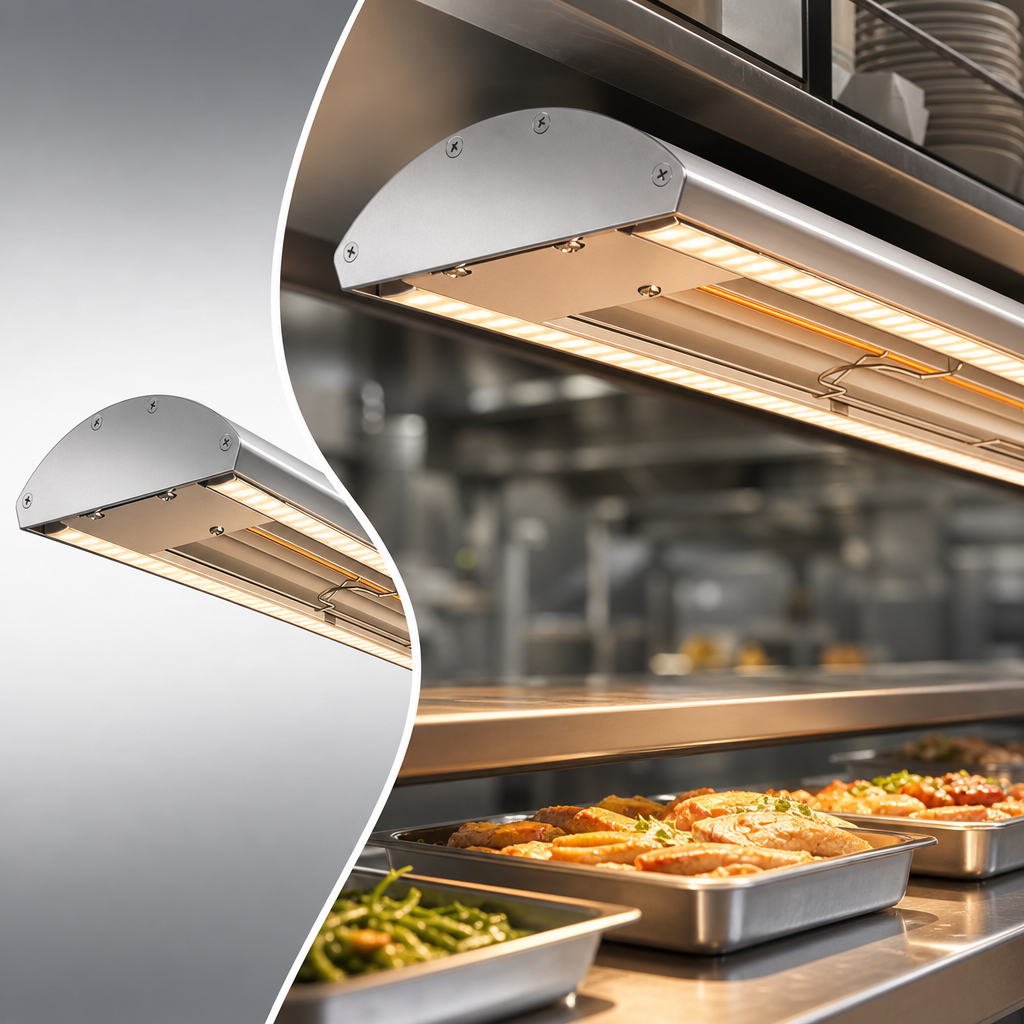

  • Ultra-slim 2" H × 6" D curved housing preserves sight-lines on buffet, pass-through or carving station.
  • Dual warm-white LED strips (field-replaceable) use just 3.5–15.2 W each and emit minimal heat.
  • Hatco tubular infrared element heats the full length—no “cold spots.”
  • Remote RMB5-1R control box with 0-100 % electronic infinite control and light/heat power switch.
  • Pre-focused heat maintains safe holding temps without continuing to cook food.
  • Factory-installed mounting brackets, 3' conduit & 5' power lead for fast installation.
  • Element backed by a 2-year burnout & breakage warranty.

Technical specifications

Model GR5AL-36
Overall width 36" (919 mm)
Dimensions (W × D × H) 36" × 6" × 2" (919 × 150 × 51 mm)
Wattage 584 W
Voltage / Amp draw 120 V / 4.9 A  •  208 V / 2.9 A  •  220 V / 2.7 A  •  240 V / 2.5 A (single-phase)
Heating element Metal-sheathed tubular infrared
Lighting Dual warm-white LED bars (cool-white or dual-color optional)
Controls Remote electronic infinite control, power & light switch
Housing Clear anodized aluminium (designer & gloss colours available)
Shipping weight Approx. 21 lb (10 kg)
Certifications cULus, CE, NSF

What’s in the box

  • GR5AL-36 curved heater strip
  • Mounting brackets & hardware
  • RMB5-1R remote control enclosure with 5' power lead
  • Installation & operating manual

Optional accessories (sold separately)

  • Fixed-height tubular stands (counter-top or ceiling mount)
  • Curved tempered-glass sneeze guard
  • Designer colours, gloss finishes & antimicrobial powder coat
  • Cool-white or dual-colour LED light bars
  • Extended power / LED lead lengths
Installation note: Mount the remote control box outside the heat zone and maintain at least 11" (279 mm) clearance between the heater and food surface. Refer to the supplied manual for full instructions.

Warm-white LEDs = 2700–3200 K • Cool-white LEDs = 4000–4300 K

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Height

3.0in

Width

36.0in

Depth

6.0in

Shipping Weight

21.0lbs

Size

single

Type

lighted

Finish

aluminum

Length

31 - 36"

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, curved, 36" W, standard watt, dual LED lights, remote box with electronic infinite control, power on/off switch, mounting brackets, 584 watts
