Hatco  |  Glo-Ray®  |  SKU: GR5AL-30

Hatco GR5AL-30 Glo-Ray® Heat Lamps

$1,674.88
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Catalog brochure Owner's manual Parts list
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

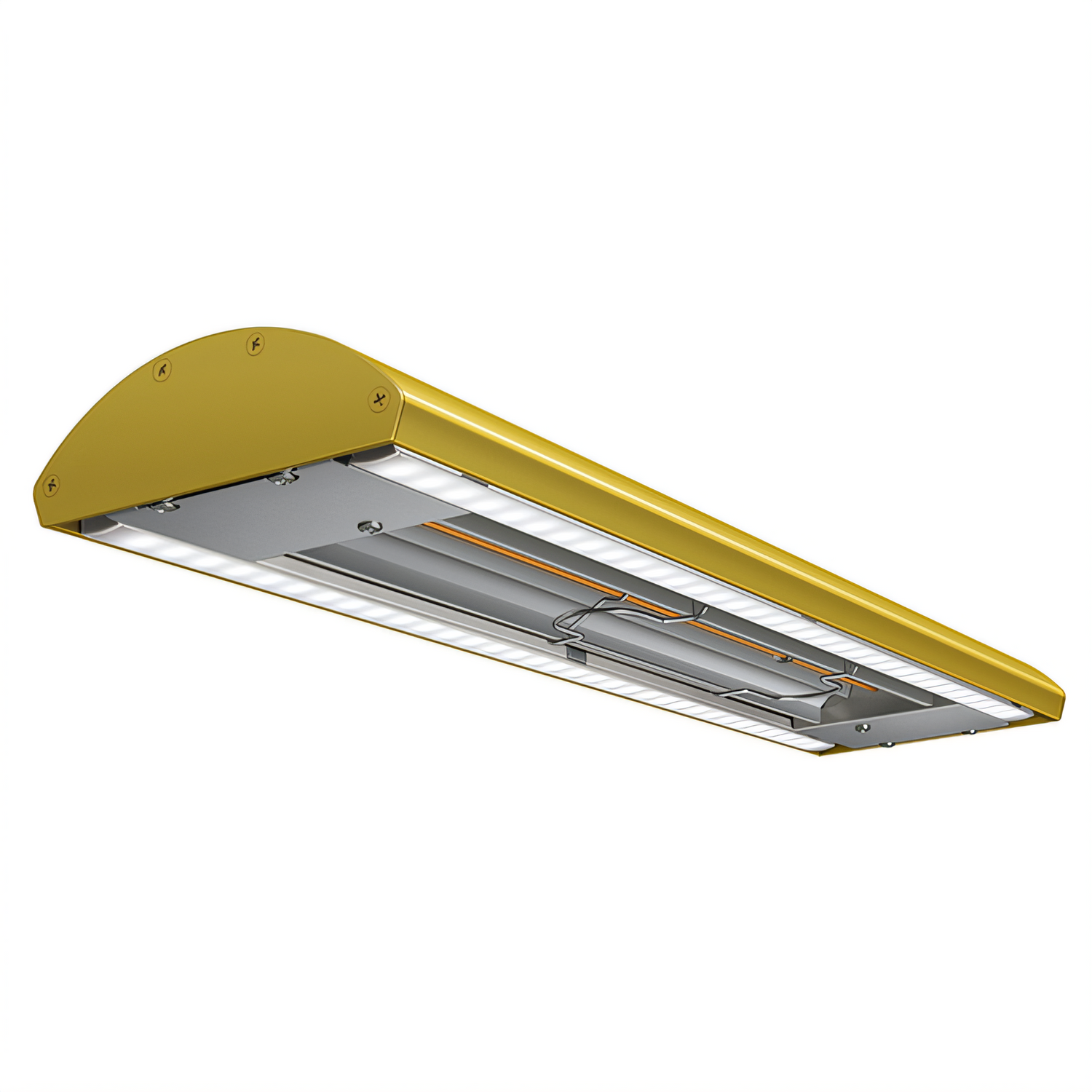

Hatco Glo-Ray® GR5AL-30 Curved Infrared Strip Heater

30" • Standard Watt • Dual LED Lights • 458 W

Give every plate the “just-served” look. The GR5AL-30 combines Hatco’s trusted infrared holding technology with brilliant, energy-saving LED illumination in a slim, front-of-house friendly profile.

Key features & advantages

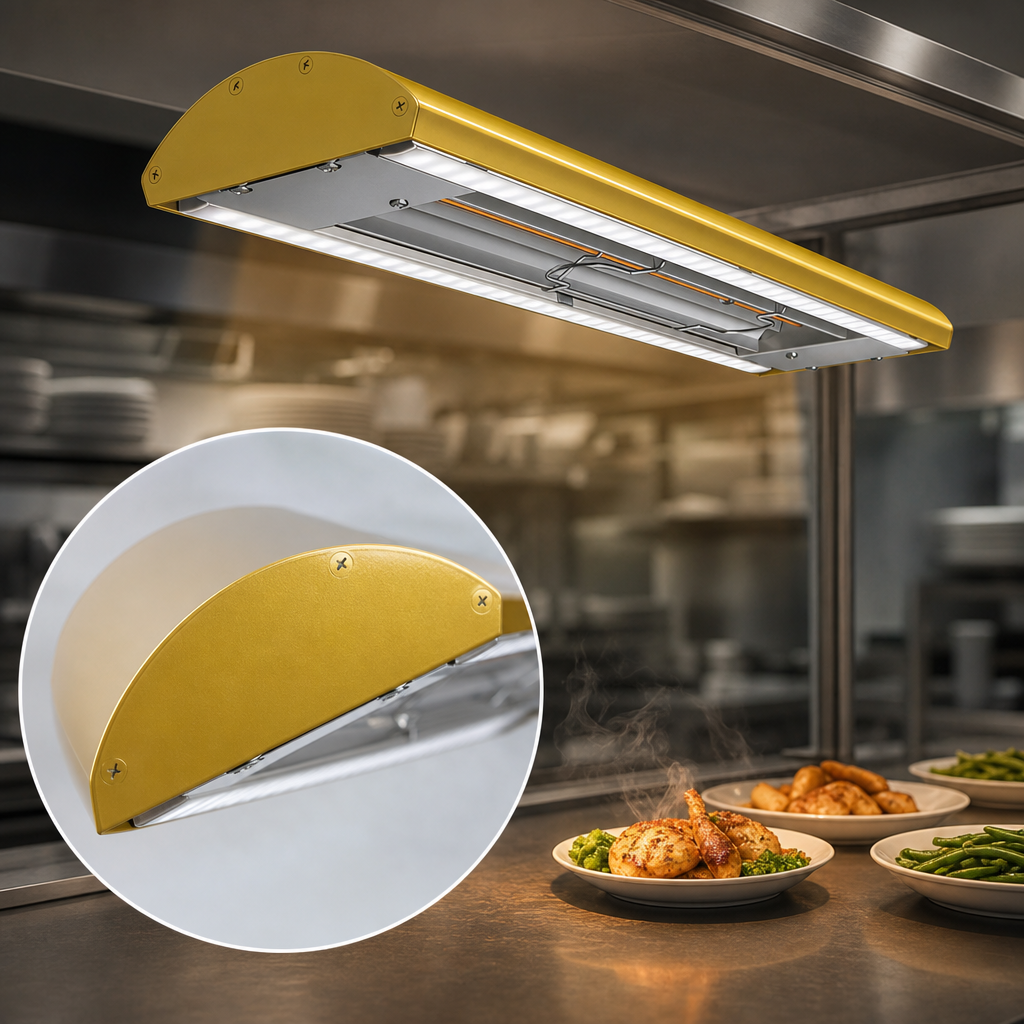

  • Space-saving curved housing measures only 2" H × 6" D, keeping sight lines clear.
  • Standard-watt tubular infrared element (458 W) delivers consistent, pre-focused heat that holds foods safely without overcooking.

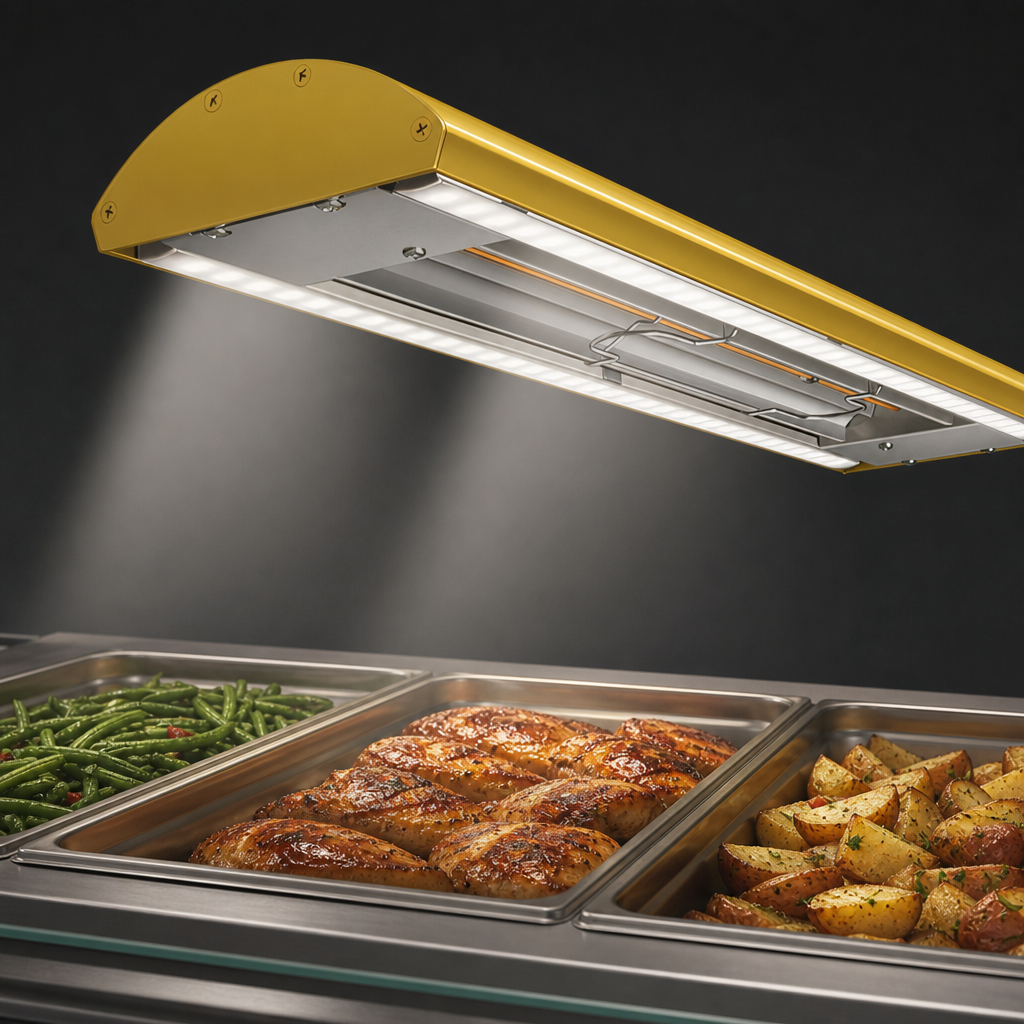

  • Patented full-length dual LED light bars (warm white standard) enhance product appearance while cutting energy use by up to 80 % vs. incandescent bulbs.
  • Remote control enclosure (RMB5-1R) provides true 0–100 % electronic infinite heat control plus dedicated on/off switching for both heat and lights.
  • Ships ready to install with mounting brackets, 3' (914 mm) flexible conduit and 5' (1524 mm) power/LED leads.
  • Field-replaceable LEDs and a metal-sheathed element backed by a 2-year burnout/breakage warranty lower lifetime ownership costs.
  • NSF/ANSI 4 and cULus listed; proudly made in the USA.
What’s included
  • GR5AL-30 curved infrared strip heater
  • RMB5-1R remote control box with electronic infinite control
  • Factory-installed warm-white dual LED light bars
  • Universal mounting brackets
  • 3' conduit & 5' power/LED leads
Specifications
Overall width 30" (762 mm)
Depth × height 6" × 2" (150 × 51 mm)
Heating element rating 458 W (standard watt)
Voltage / amps (1 φ) 120 V — 3.9 A
208 V — 2.2 A
220 V — 2.1 A
240 V — 1.9 A
LED lighting Warm white 2700–3200 K (cool white or dual-color optional)
Construction Clear-anodized aluminum housing; metal-sheathed tubular element
Shipping weight ≈ 23 lb (11 kg)
Certifications NSF/ANSI 4, cULus

Looking for designer colors, tubular stands, sneeze guards or extended lead lengths? Contact us for factory-configured options.

Installation reminder: Mount the supplied remote control box outside the heat zone and in an area where ambient temperature does not exceed 104 °F (40 °C) to prevent damage to electronic components.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Height

3.0in

Width

30.0in

Depth

6.0in

Shipping Weight

23.0lbs

Length

25" - 30"

Finish

aluminum

Type

lighted

Size

single

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, curved, 30" W, standard watt, dual LED lights, remote box with electronic infinite control, power on/off switch, mounting brackets, 458 watts
