Hatco GR5AL-24 Glo-Ray® Heat Lamps
Description

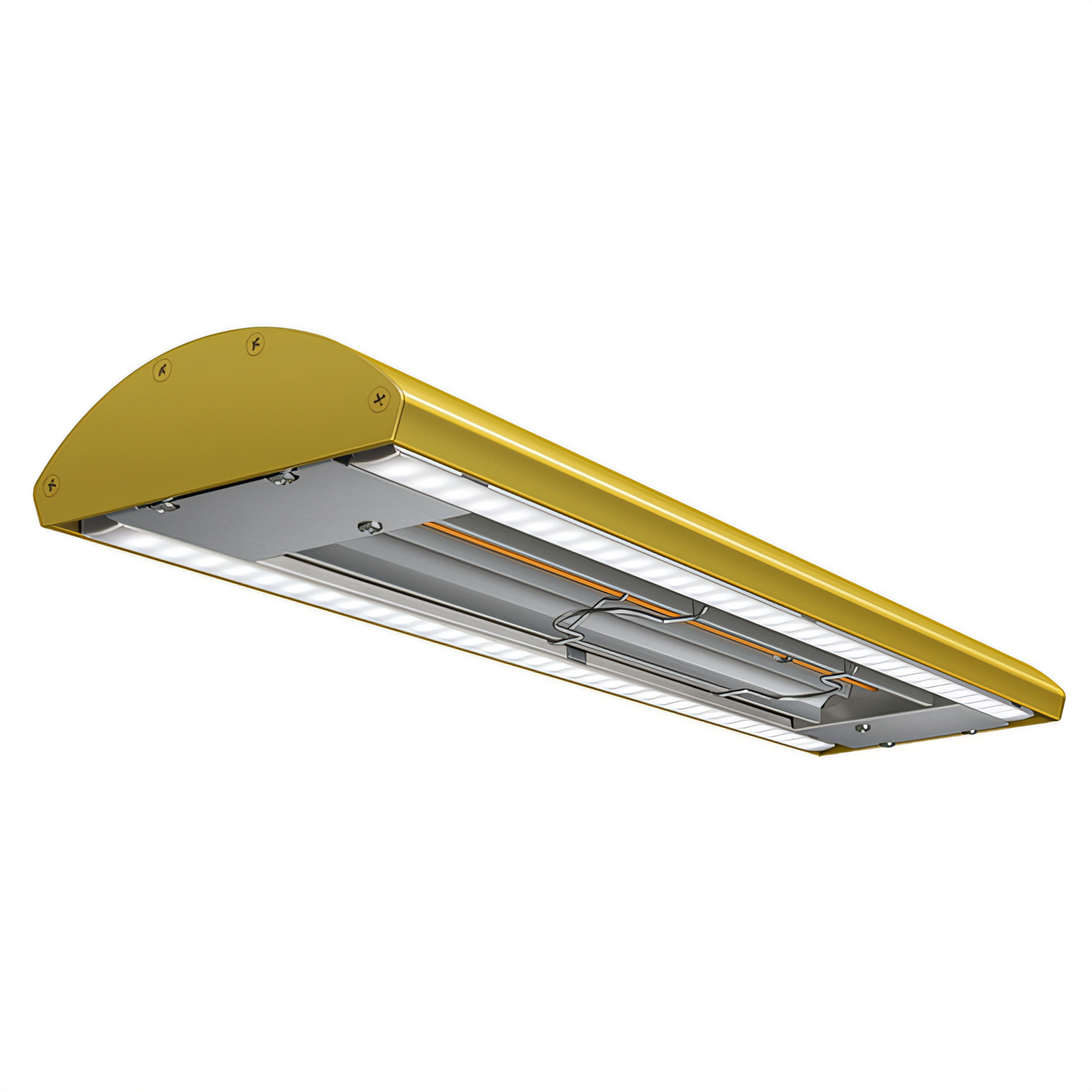

Hatco Glo-Ray® GR5AL-24 Curved Infrared Strip Heater – 24"
Standard-Watt • 356 W • Dual LED Merchandising LightsElevate the look, taste and holding performance of any buffet, carving station or pass-through window with Hatco’s patented curved Glo-Ray® strip heater. The GR5AL-24 pairs legendary infrared heat with energy-saving LED lighting in an ultra-slim 2"-high housing that disappears into your décor while keeping food hot and visually irresistible.
Why You’ll Love It

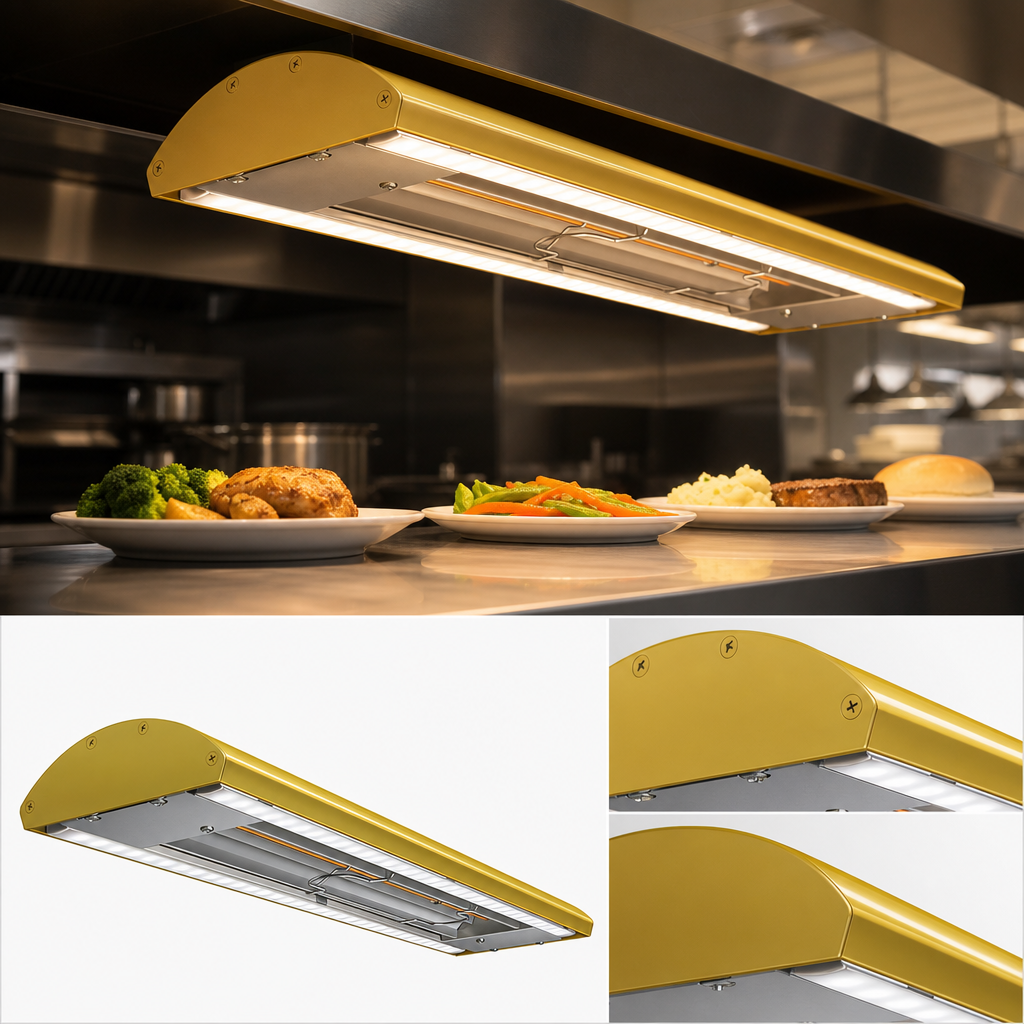

- Patented 2" H × 6" D curved profile maximizes sightlines and merchandising space.
- Hatco tubular infrared element delivers even, pre-focused heat with no “cold spots”.

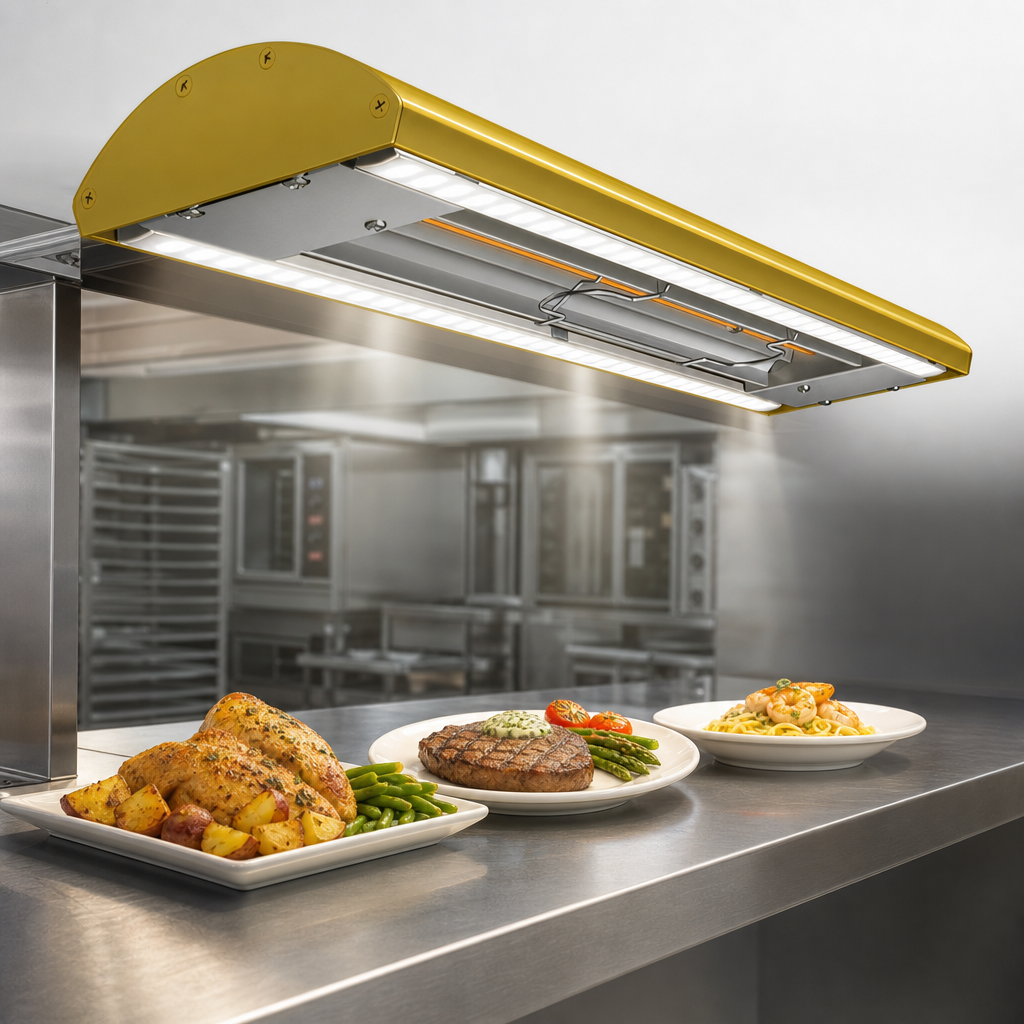

- Dual warm-white LEDs (field-replaceable) illuminate the entire holding zone while using a fraction of the energy of incandescent bulbs.

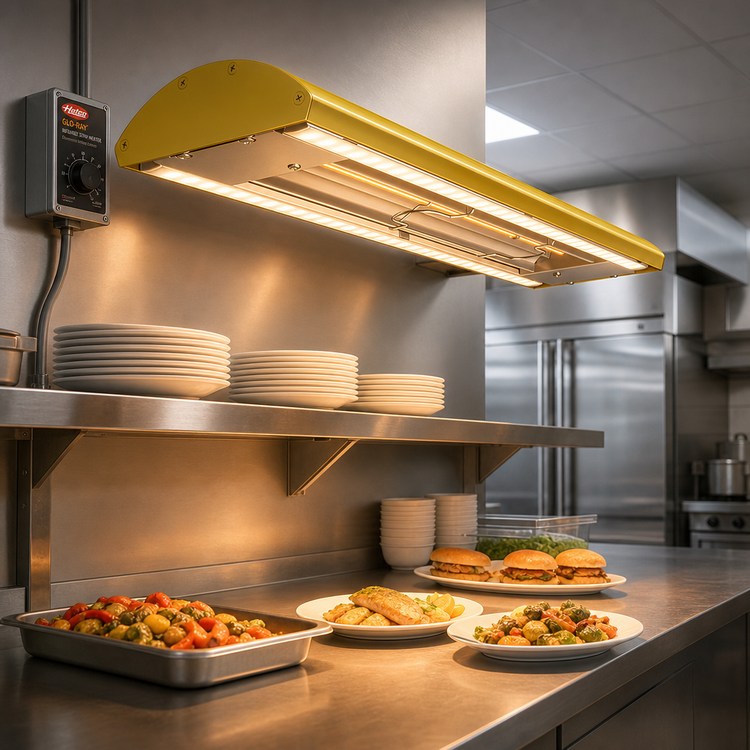

- Remote RMB5-1R control enclosure (included) provides 0-100 % infinite heat adjustment, LED driver, and light/heat on-off switch—all away from the heat zone.
- Run heat only, lights only or both to match changing service needs.
- Factory-installed mounting brackets, 3' flexible conduit and 5' power leads make installation fast and clean.
- Metal-sheathed element is guaranteed for 2 years against burnout/breakage (1-year parts & labor overall warranty).
- Clear-anodized aluminium housing is standard; dozens of Designer Colors, Gloss Finishes and optional sneeze guards/tubular stands are available at time of order.
Technical Specs
| Model | GR5AL-24 |
|---|---|
| Heat Type | Infrared (standard watt) |
| Heat Output | 356 W |
| Strip Dimensions | 24" W × 6" D × 2" H (610 × 150 × 51 mm) |
| Electrical (1-ph) |
120 V / 3.0 A 208 V / 1.7 A 220 V / 1.6 A 240 V / 1.5 A |
| Shipping Weight | ≈ 18 lb (8 kg) |
| Included |
• Dual LED light strips • RMB5-1R remote control box • Mounting brackets & hardware • 3' conduit & 5' power leads |
Recommended Mounting Clearances*
- Below overshelf (combustible): 1" (25 mm)
- Unit to surface below: 11" (279 mm)
- Back of unit to wall: 1" (25 mm)
*Refer to the Installation & Operating Manual for full details.
Important: Always install the remote control box outside the heat zone to prevent component damage.
Warm-white LED (2700–3200 K) is standard. Cool-white or dual-color LEDs and custom finishes are factory options and are non-returnable.
