Hatco GR5AHL-72 Glo-Ray® Heat Lamps
Description

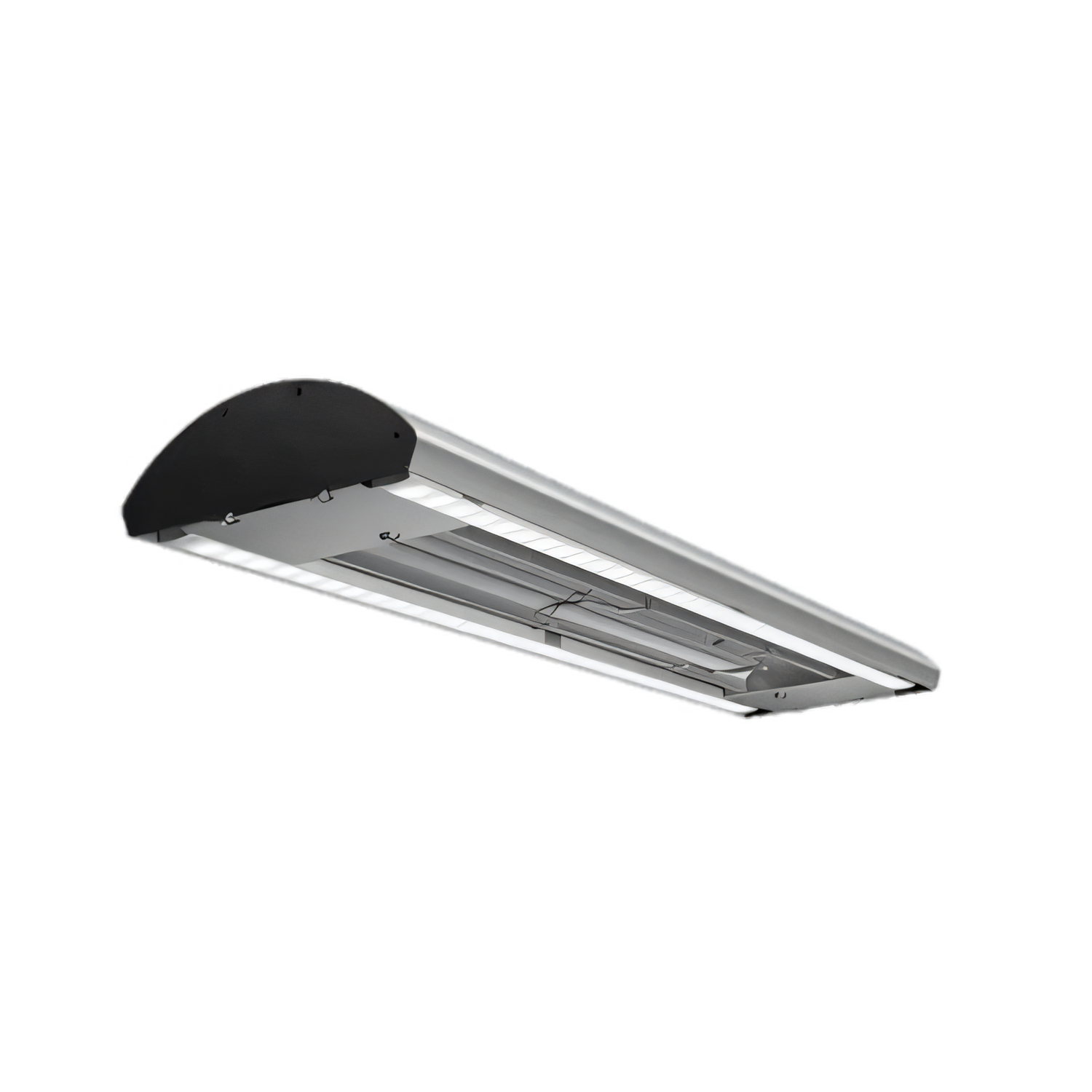

Hatco Glo-Ray® GR5AHL-72 Curved Infrared Strip Heater
72" • High-Watt • Dual LED Lighting • 1744 WGive every pan on your buffet or pass-through the same eye-catching glow and food-safe holding temperature. Hatco’s patented, front-of-house Glo-Ray® GR5AHL-72 couples a full-length infrared element with energy-saving dual LED lights in a sleek 2"-high curved housing—so you warm food, not guests’ sightlines.
Why You’ll Love It
- High-watt design (1744 W) blankets the entire 72" strip with pre-focused infrared heat—no “cold spots.”

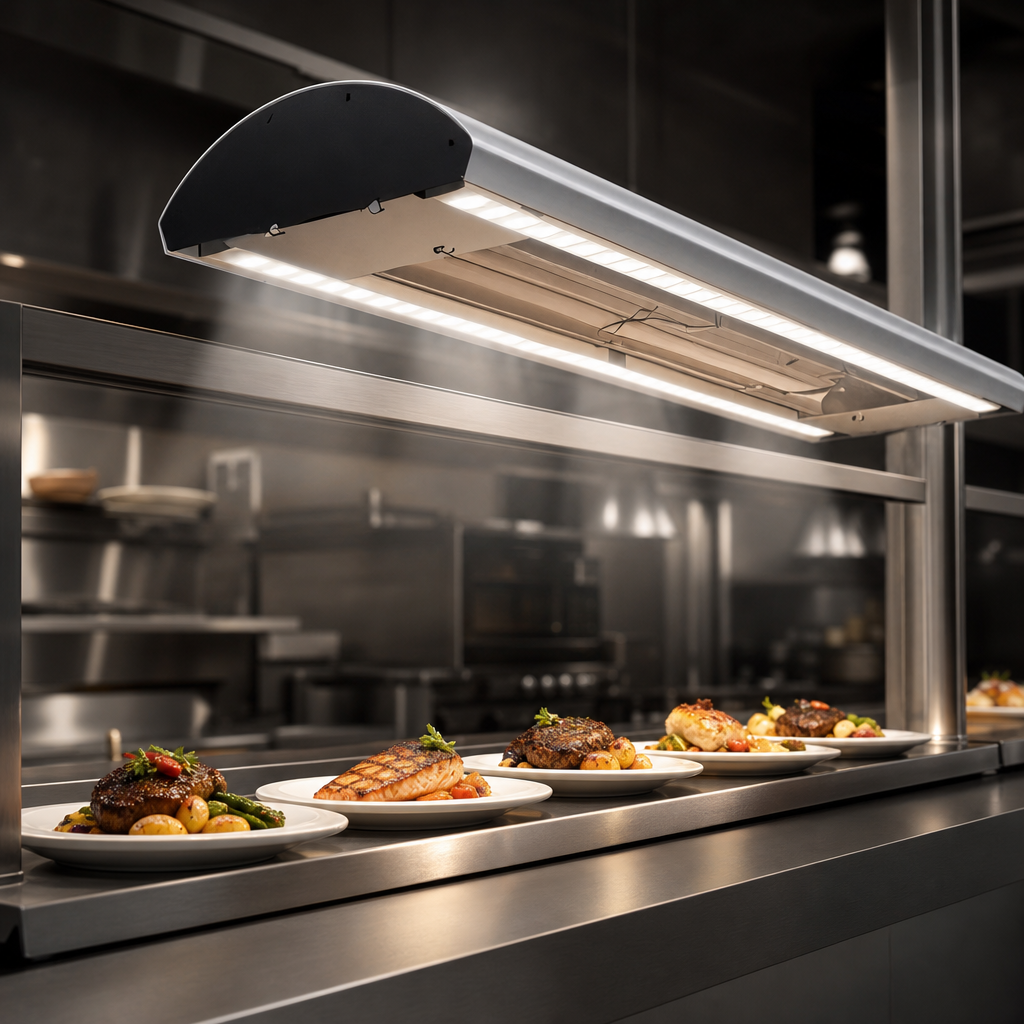

- Dual warm-white LED arrays draw only 3.5-15.2 W (per length) while rendering foods in natural, appetizing color.

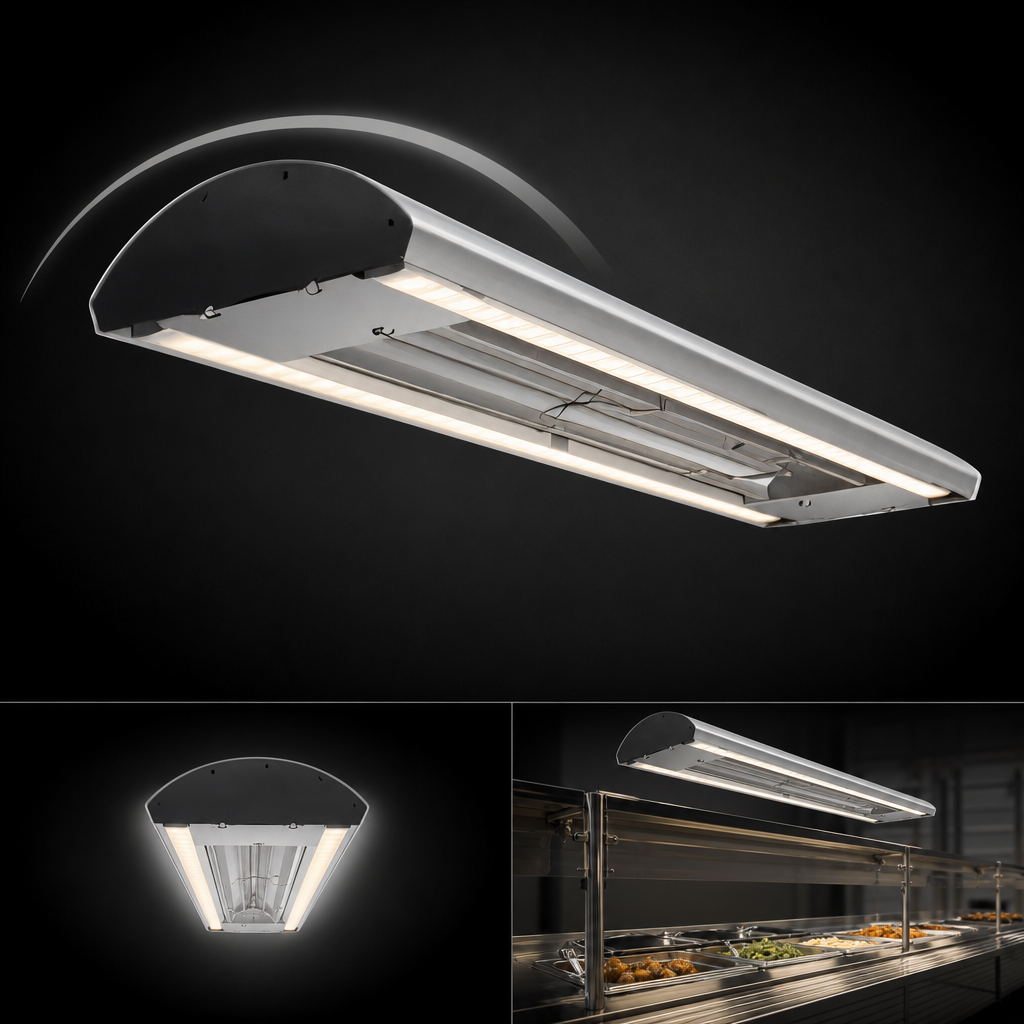

- Ultra-slim 2"H × 6"D curved aluminum housing keeps sightlines clean and maximizes serving space.
- Remote RMB5-1R control box provides 0-100 % electronic infinite heat adjustment, on/off toggle and integral LED driver—place it out of the heat zone for long component life.
- Factory-supplied mounting brackets, 3' flexible conduit and 5' power leads for quick installation.
- Field-replaceable LED modules and a two-year element burnout warranty lower lifetime cost of ownership.
- cULus, CE & NSF/ANSI 4 listed for global peace of mind.
Perfect Above
- Buffet lines & carving stations
- Refrigerated or ambient drop-in wells (add warmth & light)
- Hot/cold combination bars

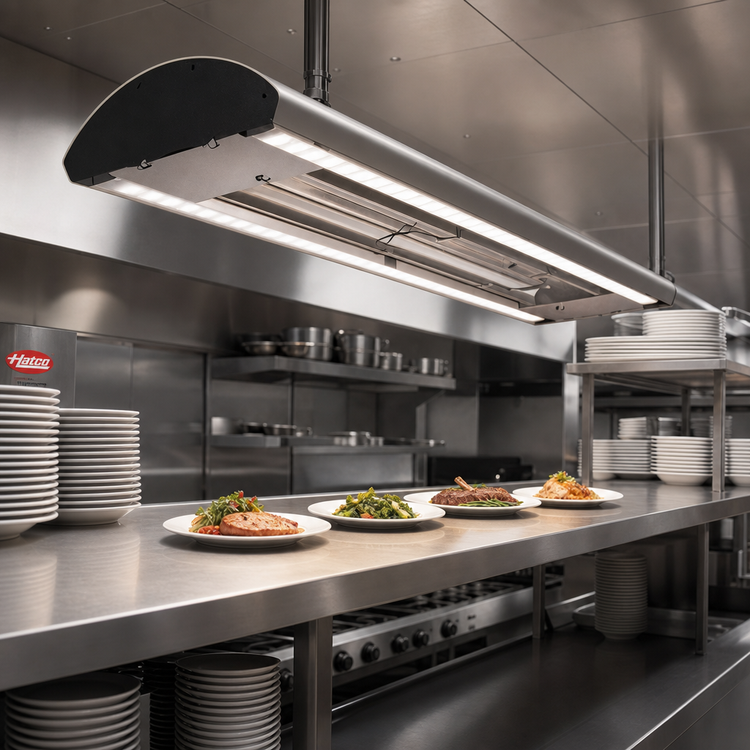

- Pass-through shelves on the expo line
Specification Snapshot
| Model | GR5AHL-72 (High Watt) |
|---|---|
| Overall Dimensions | 72" W × 6" D × 2" H (1829 × 150 × 51 mm) |
| Housing | Clear-anodized aluminum, curved profile |
| Wattage | 1744 W |
| Voltage / Amps |
120 V 1ph 14.7 A 208 V 1ph 8.5 A 220-230 V 1ph 8.0 A 240 V 1ph 7.3 A |
| Heating Element | Metal-sheathed infrared, 2-year burnout warranty |
| Lighting | Dual warm-white LEDs (field replaceable) |
| Controls | Remote RMB5-1R box with electronic infinite dial & toggle switch |
| Included Hardware | Mounting brackets, 3' (914 mm) conduit, 5' (1524 mm) power leads |
| Shipping Weight | Approx. 30 lb (14 kg) |
Installation Notes
- Minimum clearance (non-combustible surroundings): 10" (254 mm) from strip to food surface.
- Install the remote control enclosure in an area where ambient temperature does not exceed 104 °F (40 °C).
- Suitable for over steam tables, hot/cold wells, or ambient shelving.
Looking for designer colors, sneeze guards, or tubular stands? Contact us before ordering—these factory options are only available at the time of purchase.
