Hatco GR5AHL-60 Glo-Ray® Heat Lamps
Description

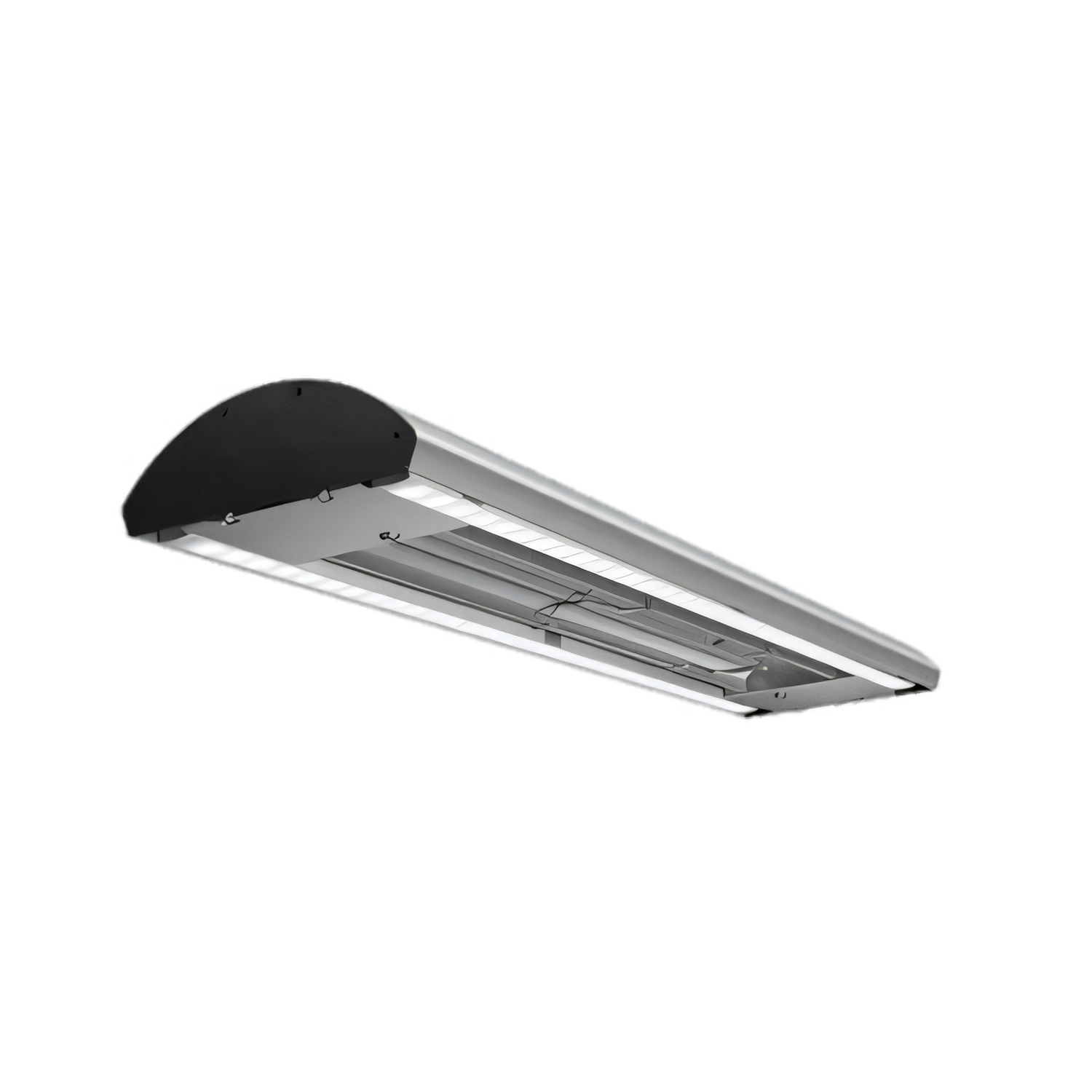

Hatco Glo-Ray® GR5AHL-60 Curved Infrared Strip Heater
60 in • High-Watt • Dual LED Lighting • 1 416 WGive every dish the presentation – and holding temperature – it deserves. The 60 inch Hatco Glo-Ray® GR5AHL-60 couples proven infrared heat with energy-saving dual LED lights to keep entrées, sides, and baked goods warm, appetizing, and perfectly lit on any buffet, pass-through, or carving station.
Key Advantages
- High-watt tubular infrared element delivers 1 416 watts of even heat – no “cold” spots.

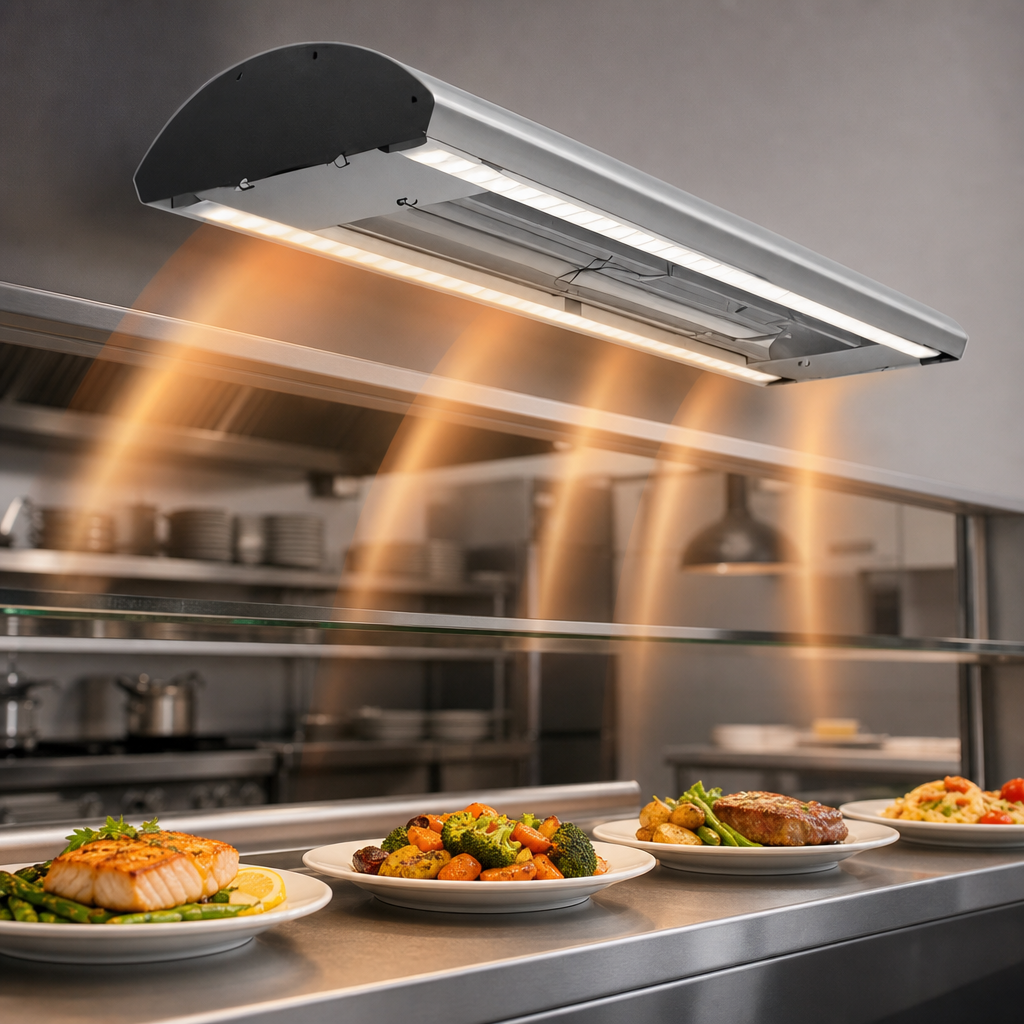

- Patented 2 in H × 6 in D curved aluminum housing fits tight spaces and looks sleek front-of-house.

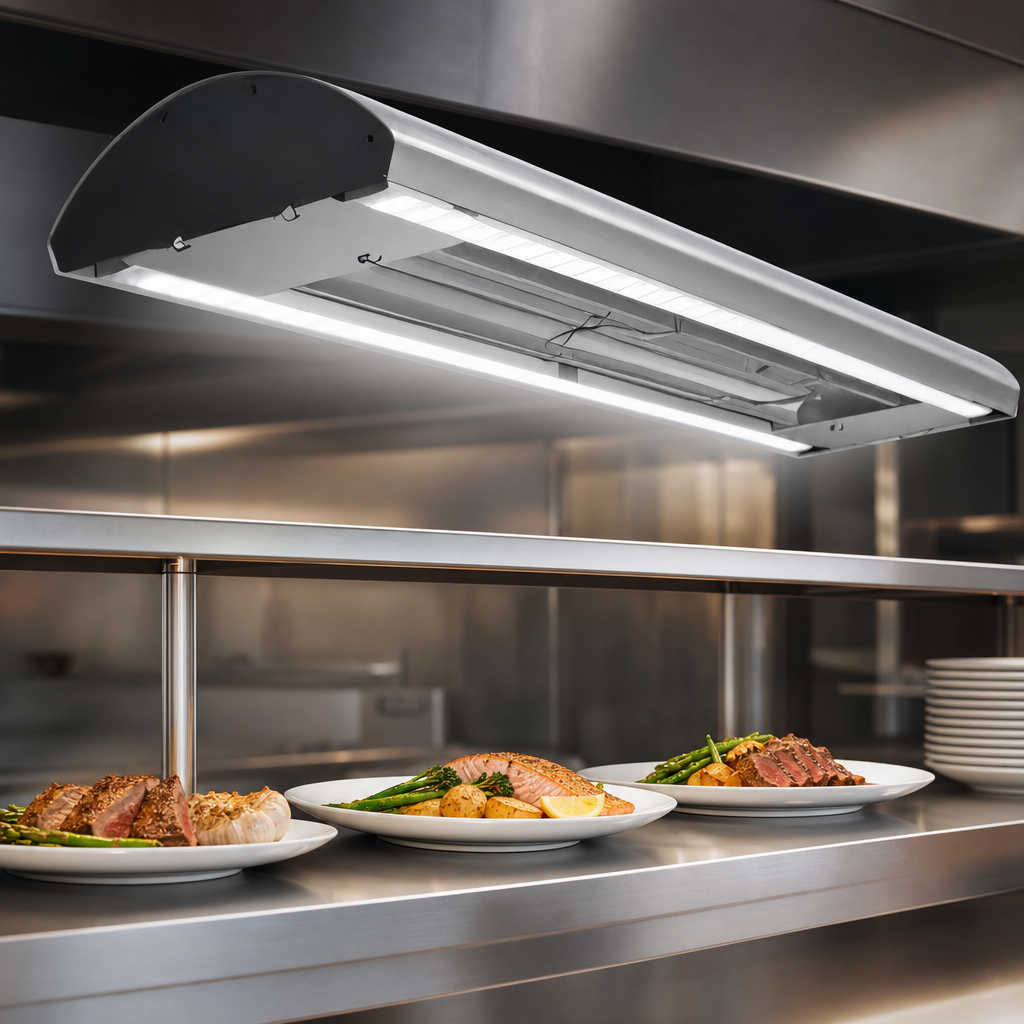

- Dual LED light strips span the full length for bright, even coverage while using just 3.5 – 15.2 W of light power (far less than incandescent bulbs).
- Field-replaceable LEDs: choose Warm White (2700 – 3200 K) or toggle to Cool White (4000 – 4300 K) when displaying different foods.
- Remote control enclosure (RMB5-1R) with electronic infinite control lets you fine-tune heat from 0-100 % and includes a lighted on/off rocker.
- Includes mounting brackets, 3 ft conduit and 5 ft power leads for quick installation.
- Metal-sheathed element is guaranteed 2 years against burnout.
At-a-Glance Specs
| Model | GR5AHL-60 |
|---|---|
| Overall width | 60 in / 1 524 mm |
| Housing profile | 2 in H × 6 in D curved aluminum |
| Heat output | 1 416 W (high-watt) |
| Voltage / phase | 120, 208, 220-230, or 240 V single-phase |
| Current draw | Up to 11.9 A (120 V) – see manual for full data |
| Lighting | Dual channel LED, Warm White & Cool White selectable |
| Control box | Remote RMB5-1R, electronic infinite, lighted rocker switch |
| Included hardware | Mounting brackets, 3 ft conduit, 5 ft power & LED leads |
| Shipping weight | ≈ 29 lb / 14 kg |
| Certifications | cULus, NSF/ANSI 4 |
Recommended Clearances
- Above non-combustible surfaces: 1 in (25 mm)
- Unit to food surface: 10 in (254 mm) minimum
Always install the remote control box outside the heat zone (< 104 °F / 40 °C ambient).
Why Choose Hatco?
- Industry-leading infrared technology trusted worldwide.
- Energy-efficient LEDs reduce operating costs and maintenance.
- Proudly made in the USA with 24/7 factory technical support.
Warranty: 2 years parts & labor. Consult the Installation & Operating Manual for complete electrical and mounting details.
