Hatco  |  Glo-Ray®  |  SKU: GR5AHL-48

Hatco GR5AHL-48 Glo-Ray® Heat Lamps

$1,936.79
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Color chart Owner's manual Catalog brochure
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

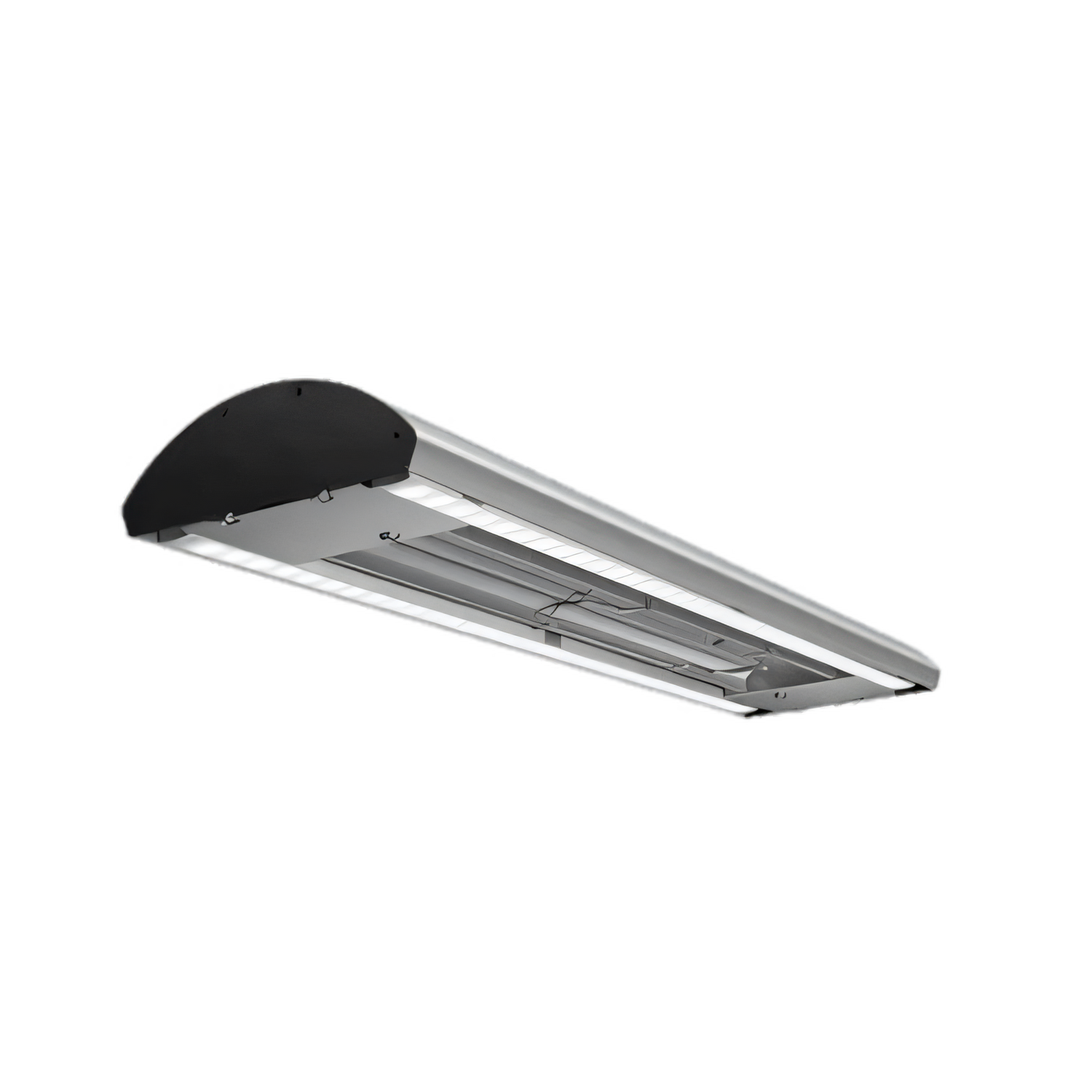

Hatco Glo-Ray® Curved Infrared Strip Heater – 48" High Watt

Model GR5AHL-48 • 1112 W • Dual LED Lighting

Elevate any buffet, serving line or pass-through with the patented Hatco Glo-Ray® curved strip heater. Its slim 2"-high aluminum profile blends seamlessly into front-of-house décor while delivering uniform, edge-to-edge infrared warmth and brilliant LED illumination that shows food at its appetizing best.

Key Features
  • High-watt 1112 W tubular infrared element for fast recovery and longer holding times

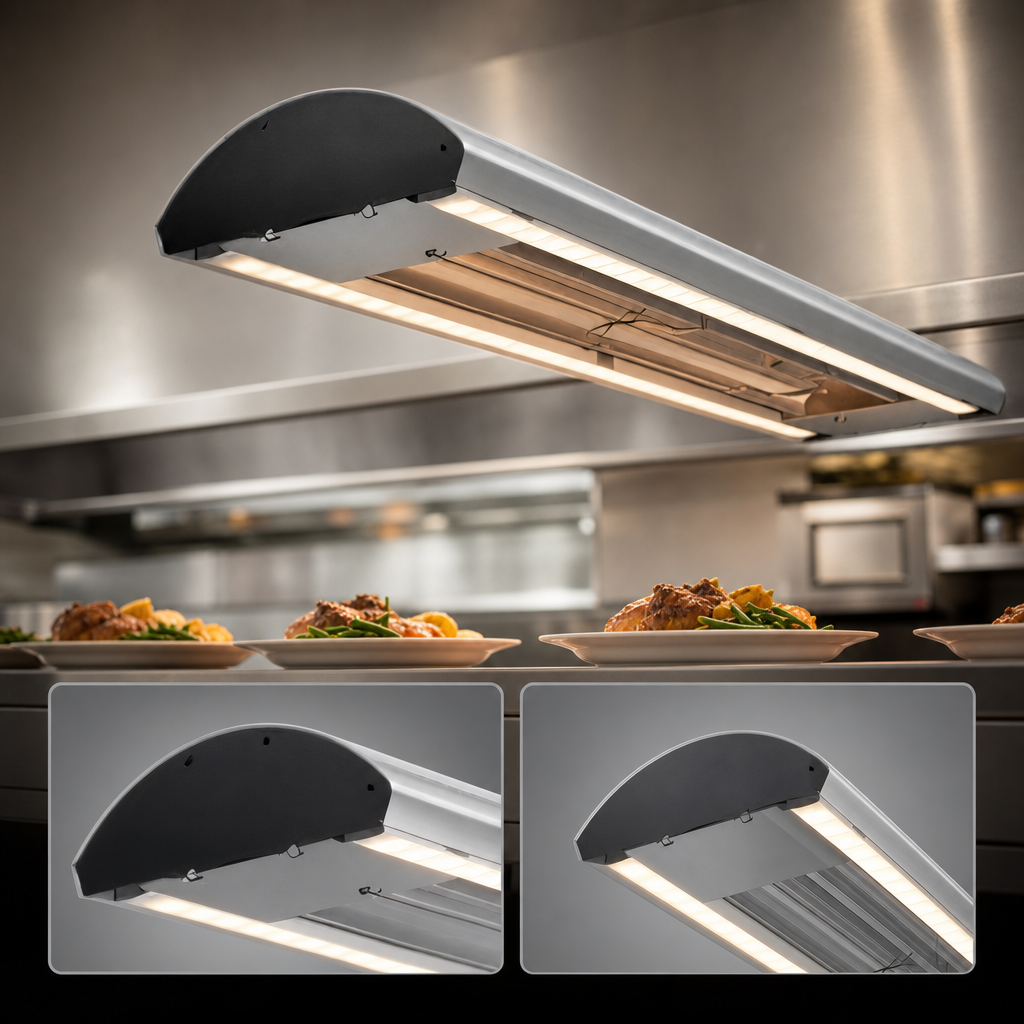

  • Patented curved housing – only 2"H × 6"D – maximizes sight-lines in customer-facing areas

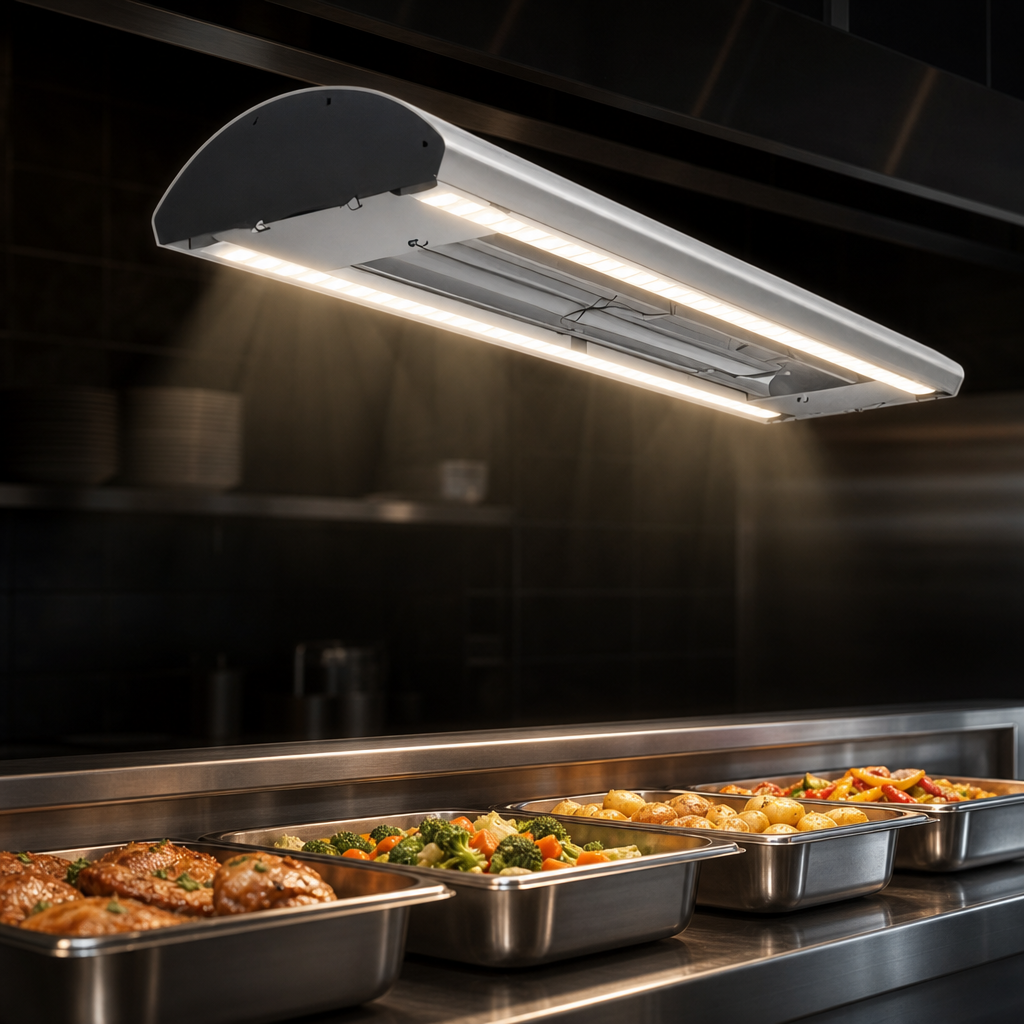

  • Energy-saving dual warm-white LED light strips (field-replaceable) across the full 48" length
  • Remote RMB5-1R control box with 0–100 % electronic infinite control, pilot light & on/off toggle
  • Mounting brackets, 3' (914 mm) conduit and 5' (1524 mm) power/LED leads included
  • Metal-sheathed element backed by Hatco’s two-year burnout & breakage warranty
  • NSF, UL, CE certified – proudly made in the USA
Performance Benefits
  • Pre-focused infrared heat eliminates “cold spots” for consistent food holding
  • Heat and lights operate together or independently for flexible merchandising
  • LED technology slashes lighting energy use by up to 80 % vs incandescents
  • 100 % linear control lets operators fine-tune holding temperature to prevent over-cooking
Specifications
Overall Width 48" / 1219 mm
Depth × Height 6" × 2" (150 × 51 mm)
Wattage 1112 W (high-watt model)
Voltage / Amps 120 V 9.4 A • 208 V 5.4 A • 220-230 V 5.1-5.3 A • 240 V 4.7 A
Light Type Dual Warm-White LED (2700–3200 K)
Housing Finish Clear anodized aluminum (designer & gloss colors available)
Included Controls Remote electronic infinite control box with power switch
Included Mounting Angle brackets (standard); optional tubular stands & tempered-glass sneeze guard
Shipping Weight 25 lb / 12 kg
Installation Note: Mount the RMB5 control box outside the heated zone and maintain a minimum 11" (279 mm) clearance between the strip heater and countertop surfaces.

Need a different length, wattage or LED color? The Hatco Glo-Ray® GR5 series ranges from 18" to 72" with multiple options—contact us for details.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Height

3.0in

Width

48.0in

Depth

6.0in

Shipping Weight

25.0lbs

Length

43 - 48"

Finish

aluminum

Type

lighted

Size

single

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, curved, 48" W, high watt, dual LED lights, remote box with electronic infinite control, power on/off switch, mounting brackets, aluminum housing, 1112 watts
