Hatco GR5AHL-42 Glo-Ray® Heat Lamps
Description

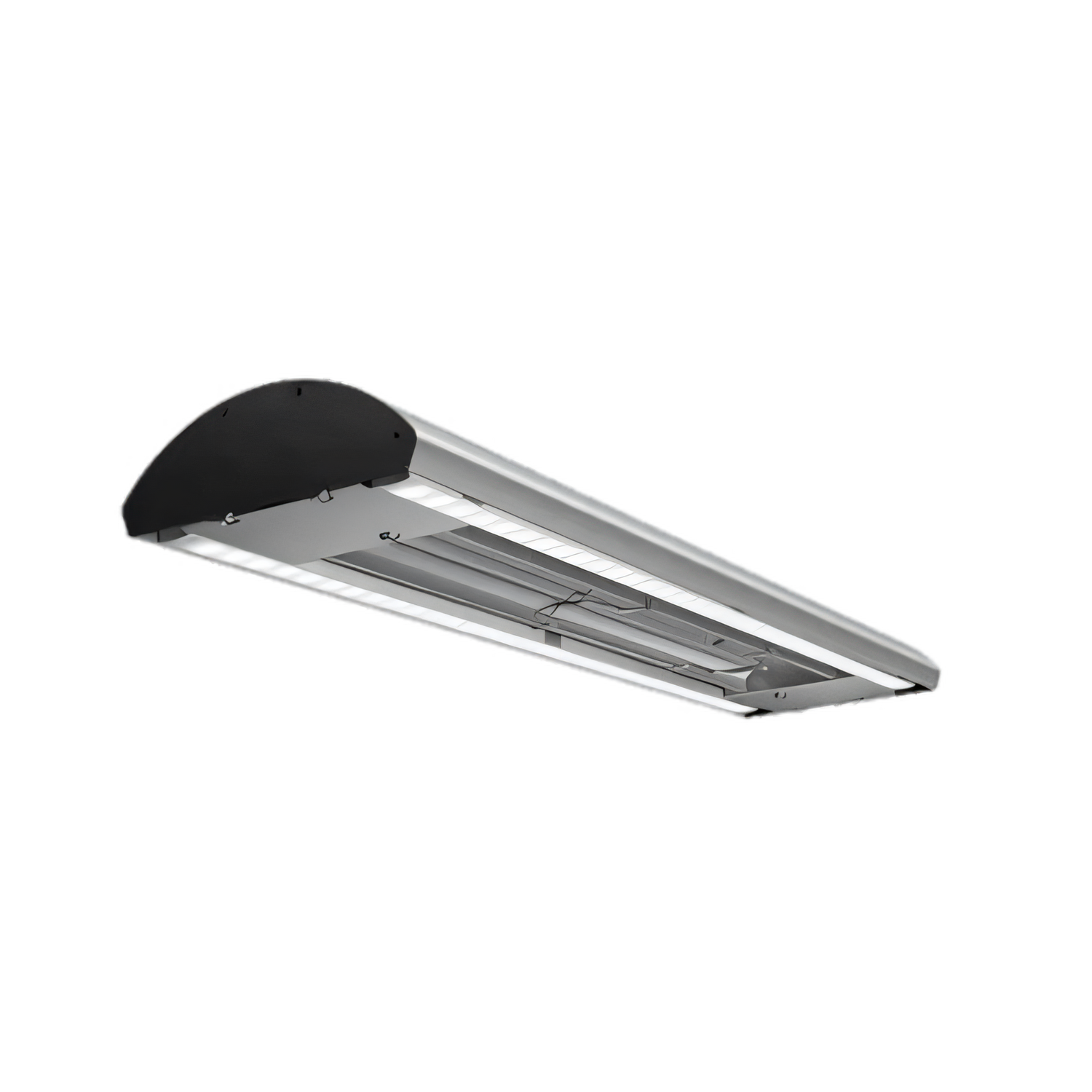

Glo-Ray® Curved Infrared Strip Heater – 42" (GR5AHL-42)
High-watt • 961 W • Dual LED LightingGive every dish the “just-made” look and taste. The Hatco Glo-Ray® GR5AHL-42 delivers powerful, even infrared heat in a sleek 2"-high, 6"-deep curved housing that disappears into your front-of-house décor while its energy-saving dual LED lights showcase product color and texture.
Key benefits
- High-watt tubular infrared element (961 W) maintains safe serving temperatures without continuing to cook the food.

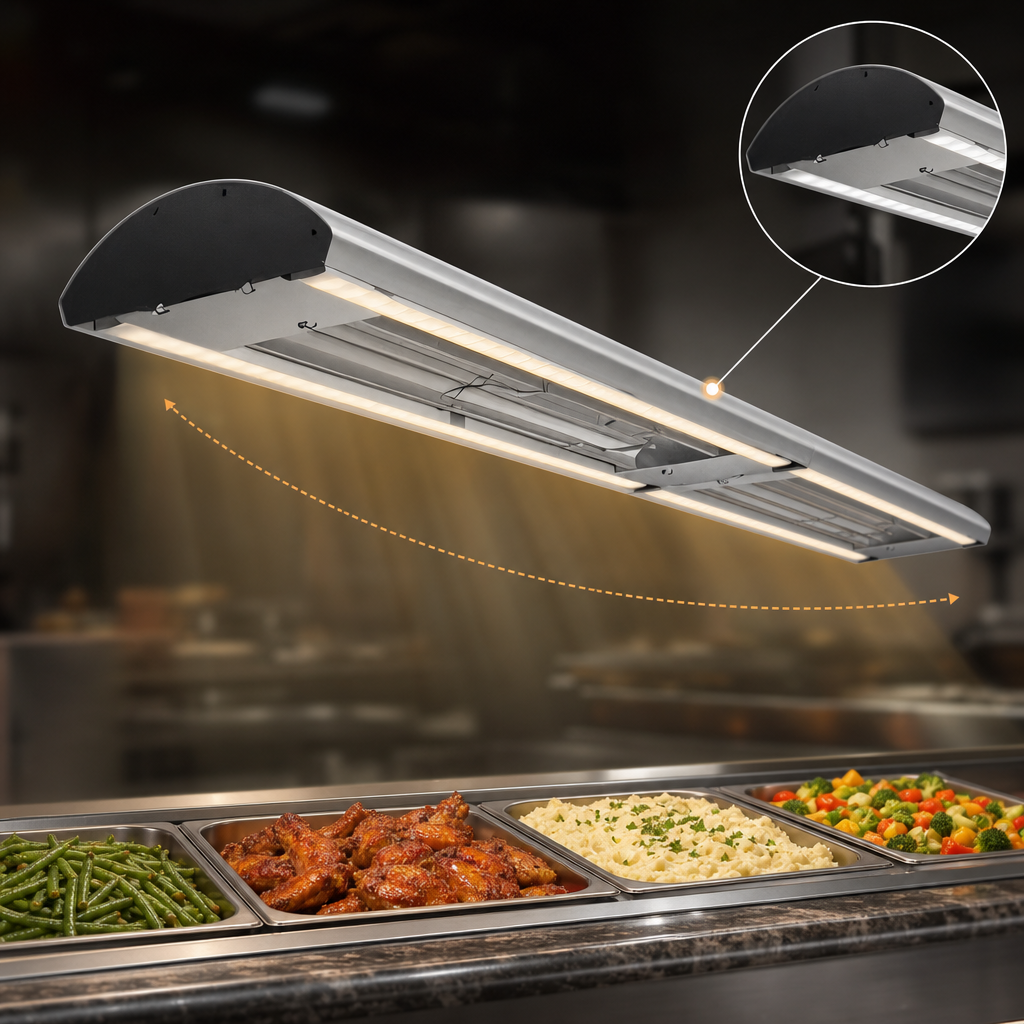

- Patented curved profile (2"H × 6"D) reduces visual footprint yet maximizes heat coverage— no “cold spots.”

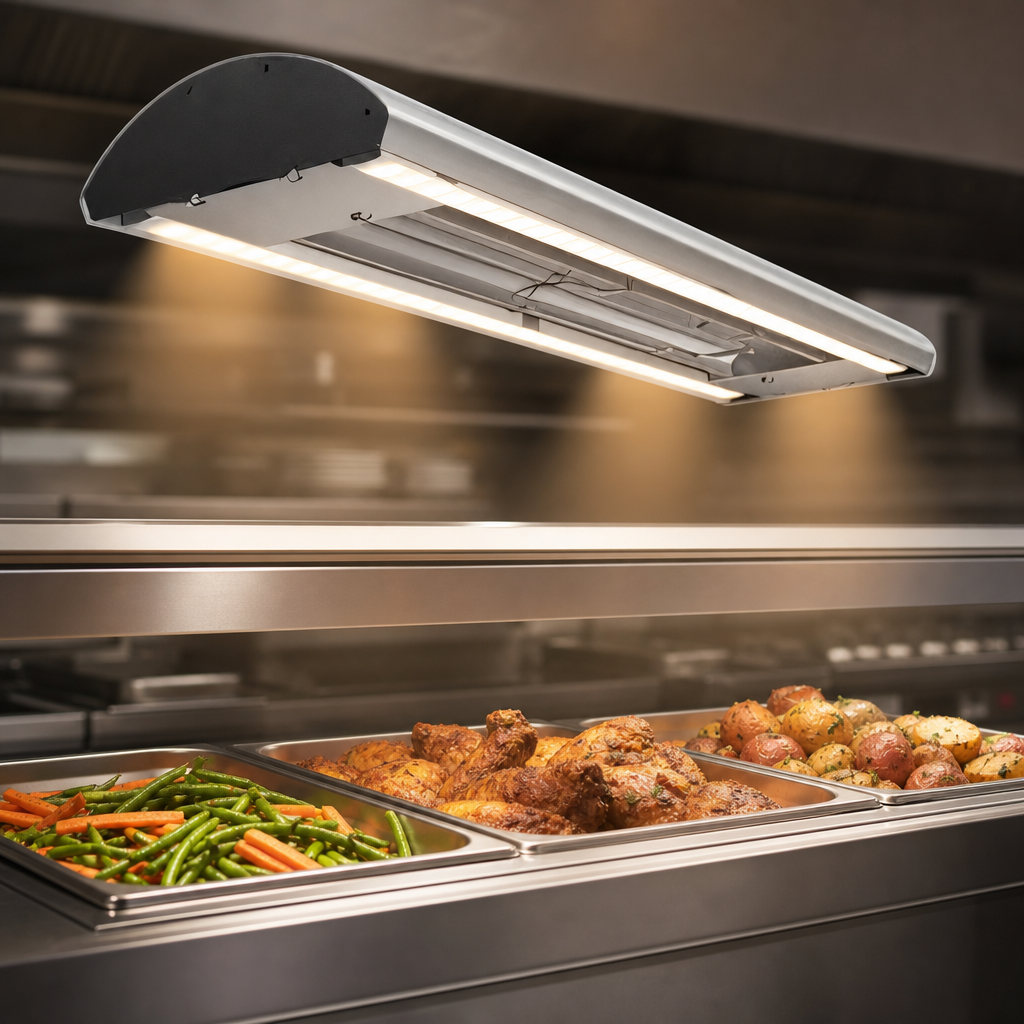

- Factory-installed dual warm-white LEDs (field-replaceable) use only 3.5-15.2 W and last far longer than incandescent bulbs.
- Remote control box (RMB5-1R) with electronic infinite control (0–100 %) plus light/heat power switch lets operators dial in the perfect holding environment.
- Pre-focused heat pattern designed for buffet lines, pass-thrus, carving stations, refrigerated or ambient wells, and hot/cold shelves.
- Aluminum housing with clear anodized finish; mounting brackets, 3' flexible conduit, and 5' power/LED leads are included for quick installation.
- Metal-sheathed element backed by Hatco’s two-year burnout & breakage warranty.
Technical specifications
| Overall width | 42" / 1067 mm |
|---|---|
| Depth × height | 6" × 2" (150 mm × 51 mm) |
| Watts | 961 W (high watt) |
| Voltage / amps |
120 V 1-ph 8.1 A 208 V 1-ph 4.7 A 220 V 1-ph 4.4 A 240 V 1-ph 4.0 A |
| LED type | Dual warm-white (2700–3200 K) – field replaceable |
| Control enclosure | Remote RMB5-1R (5.5"H × 11"W × 4.75"D) |
| Ship weight | Approx. 22 lb / 10 kg |
| Housing finish | Clear anodized aluminum (Designer & Gloss colors available to order) |
| Certifications | cULus, NSF/ANSI 4, CE (where applicable) |
| Warranty | 2-year parts & labor (U.S. & Canada) |
Installation & clearance
- Mounting brackets supplied as standard; non-adjustable tubular stands, sneeze guards, and custom colors are factory options.
- Provide 11" (279 mm) minimum clearance from heater to surface below when installed over combustible countertops.
- Remote control box must be located outside the heat zone (ambient ≤ 104 °F / 40 °C).
Looking for a custom color, cool-white LEDs, or dual-color (warm/cool) lighting? Contact us before ordering—non-standard finishes are made to order and non-returnable.
