Hatco GR5AHL-24 Glo-Ray® Heat Lamps
Description

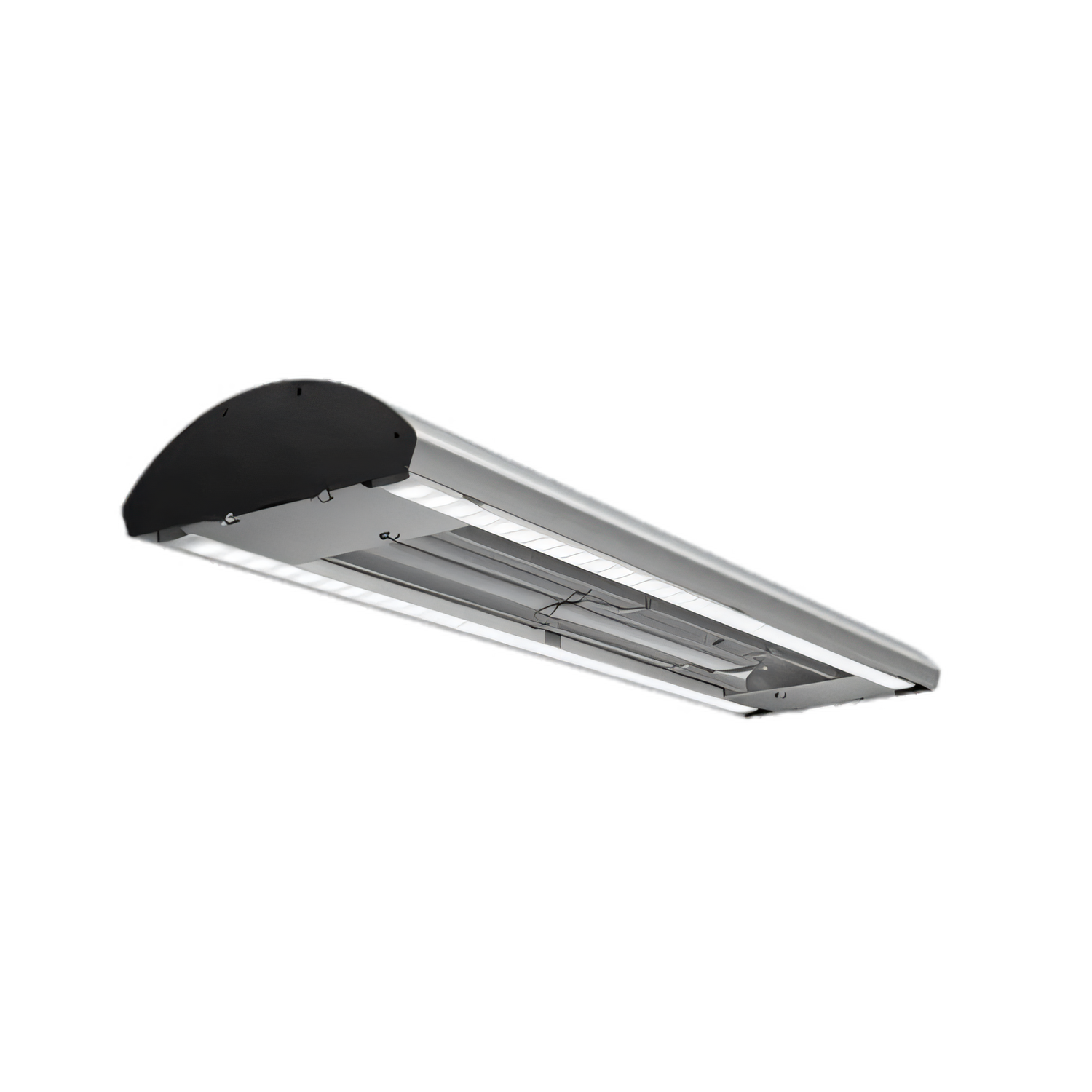

Hatco Glo-Ray® GR5AHL-24 Curved Infrared Strip Heater
24" wide • High-Watt (506 W) • Dual LED LightingBring chef-grade holding power to your front-of-house displays. Hatco’s patented Glo-Ray® GR5AHL-24 couples focused infrared heat with energy-saving dual LEDs, keeping entrées, sides, and breads service-ready without sacrificing appearance or flavor.
Key Advantages
- High-watt tubular element (506 W) delivers even, pre-focused infrared heat—no “cold spots.”
- Dual LED light strips (Warm White standard) showcase food in natural color while using up to 80 % less energy than incandescent bulbs.
- Narrow, curved profile—only 2" H × 6" D—minimizes visual bulk and maximizes merchandising space.
- Remote control box with 100 % linear infinite control lets you fine-tune heat output from 0–100 % at the flip of a knob.
- Independent light/heat switching: run lights only for display or heat only for prep lines.
- Field-replaceable LEDs and a 2-year element warranty reduce lifetime operating costs.
- Factory-included mounting brackets, 3' (914 mm) flexible conduit and 5' (1524 mm) power leads for fast installation.
- Clear-anodized aluminum housing resists corrosion; optional designer colors available at time of order.
Perfect For
- Buffets, carving stations & banquet lines
- Quick-service pass-through windows
- Grab-and-go self-service counters
- Pizza, fry or appetizer holding areas
Essential Specs
| Model | GR5AHL-24 |
|---|---|
| Heat Type | High-Watt Curved Infrared (tubular sheathed element) |
| Wattage | 506 W |
| Voltage / Amps | 120 V / 4.3 A • 208 V / 2.5 A • 240 V / 2.1 A (single-phase) |
| Overall Dimensions | 24" W × 6" D × 2" H (610 × 150 × 51 mm) |
| Control | Remote RMB5-1R box – electronic infinite (0–100 %) with power & light switches |
| Housing | Clear anodized aluminum (designer color & gloss finishes optional) |
| Included Items | Mounting brackets, conduit, power leads, dual Warm White LED assemblies |
| Warranty | 2 yrs parts & labor on element; 24/7 Hatco service assistance (U.S./Canada) |
Installation & Clearance
- Recommended surface-to-heater clearance: 11" (279 mm) minimum.
- Back-to-wall clearance: 1" (25 mm).
- Suitable over steam tables, hot/cold wells, or solid countertops rated for hot food holding temperatures.
Warm White LEDs (2700–3200 K) supplied standard. Cool White (4000–4300 K) or dual-color Warm/Cool toggle assemblies, tubular stands, sneeze guards, and designer housing colors are factory options—contact us prior to ordering.
