Hatco GR5AHL-18 Glo-Ray® Heat Lamps
Description

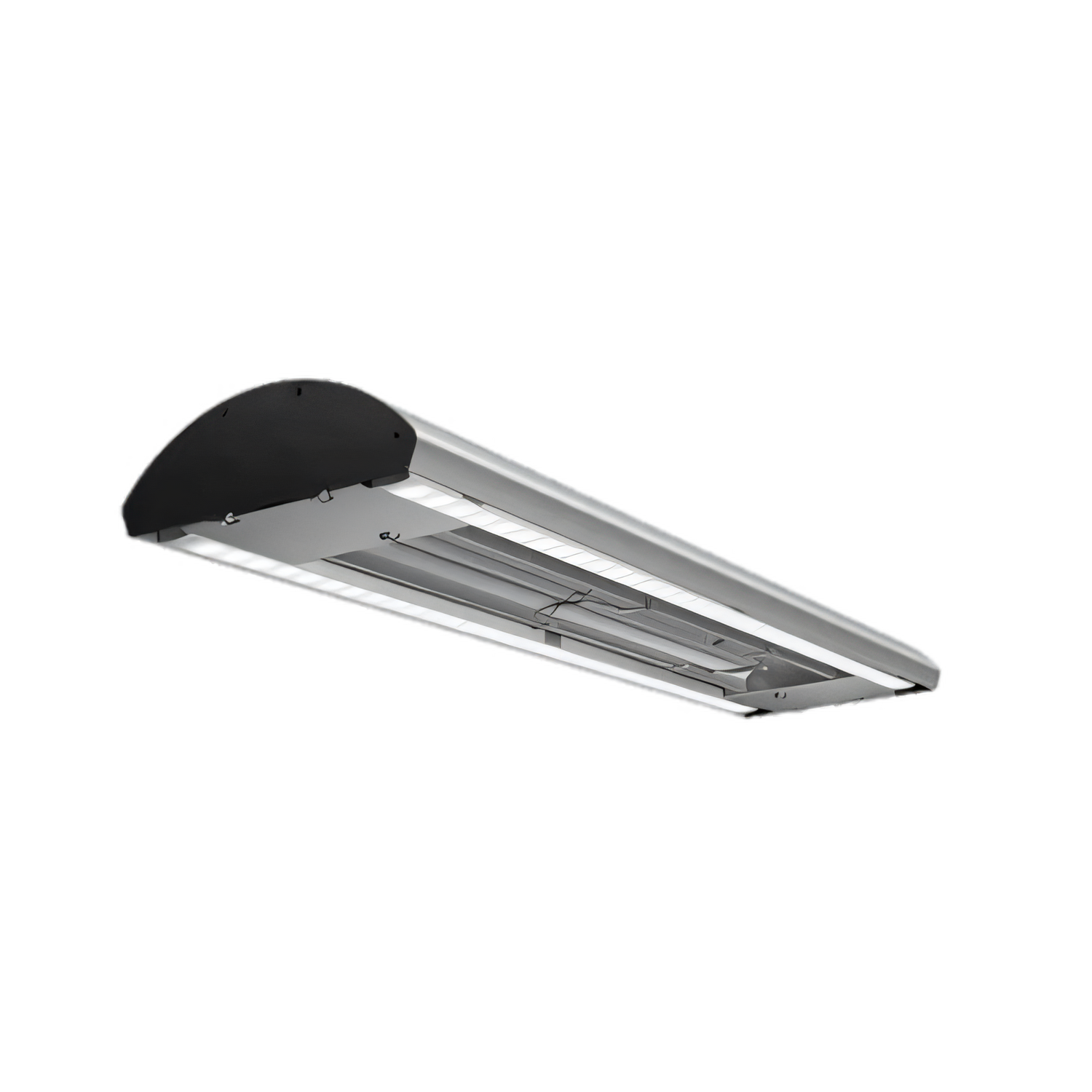

Hatco Glo-Ray® Curved Infrared Strip Heater
18" High-Watt • Model GR5AHL-18 • 354 WGive your buffet, pass-through, or self-serve line the professional edge it deserves. The compact 18-inch Glo-Ray® GR5AHL-18 combines Hatco’s legendary infrared warming with energy-saving dual LED lighting, holding food safely at serving temperature while showcasing it in its best light.
Why you’ll love it
- Narrow 2" H × 6" D curved aluminum housing keeps sight-lines clear for front-of-house applications.
- High-watt tubular infrared element delivers even, “cold-spot-free” heat across the entire 18" pan area.
- Dual warm-white LED light strips (2700–3200 K) enhance food color while reducing energy use up to 80 % vs. incandescent bulbs.
- Remote RMB5-1R control box with 0–100 % electronic infinite control lets staff fine-tune holding temps without leaving the line.
- Pre-focused heat maintains product quality longer without further cooking.
- Field-replaceable LEDs and a 2-year element warranty minimize lifetime cost of ownership.
What’s in the box
- GR5AHL-18 curved infrared strip heater with warm-white dual LEDs
- Remote RMB5-1R control enclosure (toggle power & lights, infinite heat control, indicator light)
- Pair of mounting angle brackets
- 3' (914 mm) flexible conduit & 5' (1524 mm) power lead
- Installation & operating manual
Key specifications
| Model | GR5AHL-18 |
|---|---|
| Overall size (W × D × H) | 18" × 6" × 2" (457 × 150 × 51 mm) |
| Heat output | 354 W (high-watt element) |
| Voltage / Amps |
120 V / 3.0 A 208 V / 1.7 A 220 V / 1.6 A 240 V / 1.5 A |
| Lighting | Dual warm-white LED strips, field-replaceable |
| Controls | Remote electronic infinite control, power & light switch, indicator light |
| Construction | Clear-anodized aluminum housing, metal-sheathed tubular element, wire guard |
| Shipping weight | 16 lb (8 kg) |
| Certifications | cULus, CE, NSF/ANSI 4 |
Recommended clearances
For combustible surroundings: keep a minimum of 11" (279 mm) from the surface below and 1" (25 mm) from the back wall. Refer to the installation manual for full mounting height guidelines.
Need counter or ceiling stands, sneeze guards, or alternate LED colors? Reach out to our team and we’ll configure the perfect Glo-Ray® setup for your line.
