Hatco

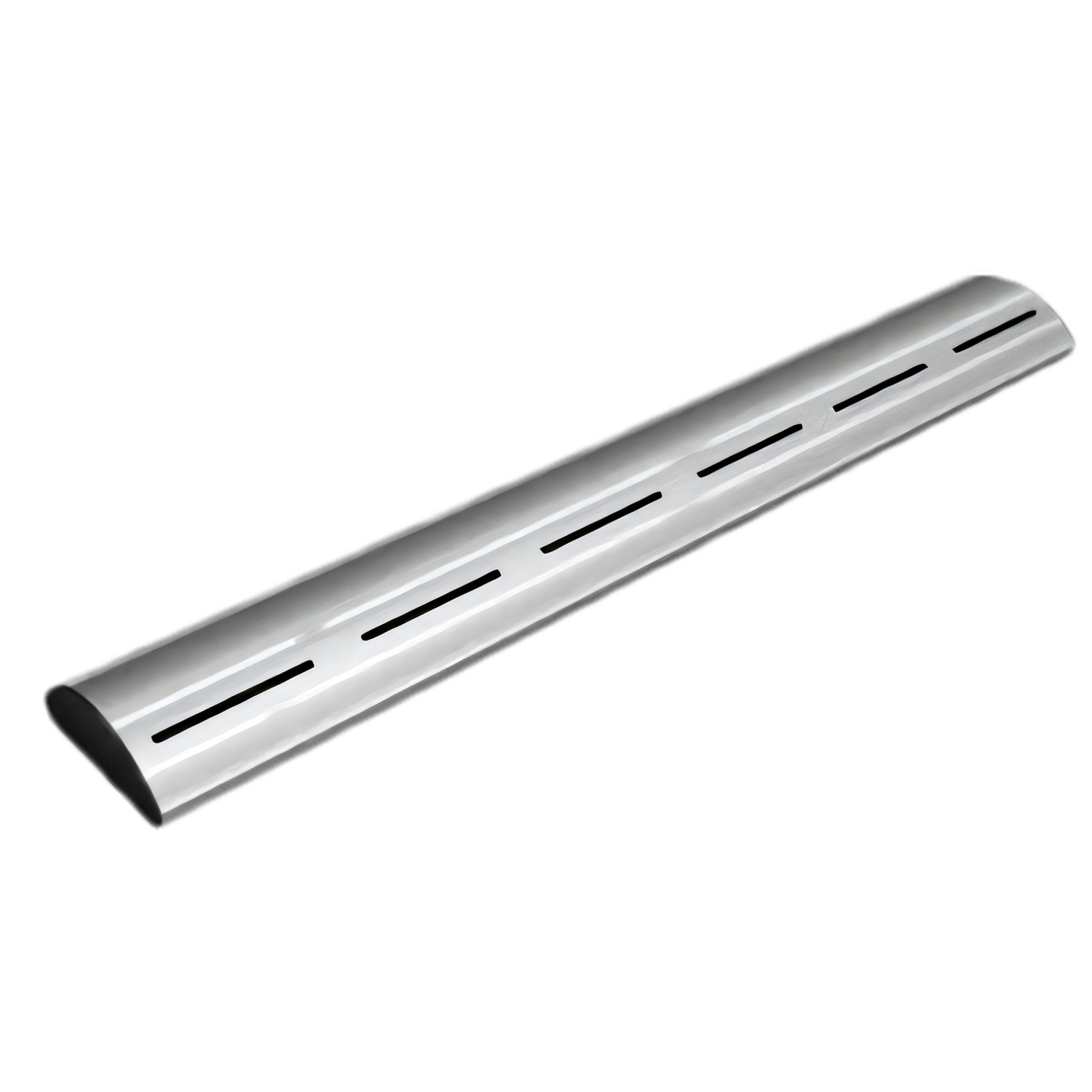

Hatco Glo-Ray Curved Unlighted Infrared Strip Heater, 18 Inch, 350 Watt, Aluminum Housing

SKU: GR5AH-18
$462.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Hatco Glo-Ray Curved Unlighted Infrared Strip Heater, 18 Inch, 350 Watt, Aluminum Housing

120 Volts, Single Phase, Standard Mounting Brackets Included

A compact curved heater that delivers evenly distributed infrared warmth across the entire holding surface without taking up much overhead space.

  • Curved 18-inch design creates a small footprint for front-of-house holding applications.
  • High-watt infrared heating helps maintain even temperatures across the full holding surface.
  • Unlighted design keeps attention on the food presentation.
  • Includes mounting brackets, 3-foot conduit, and 5-foot power leads as standard.
  • Pre-focused heat helps hold food at safe serving temperatures longer without overcooking.
  • Optional color finishes, tubular stands, extended lead lengths, and a curved sneeze guard are available.

Overall Dimensions:

18.0"W x 6.0"D x 2.0"H

Product Weight:

16.0 lb

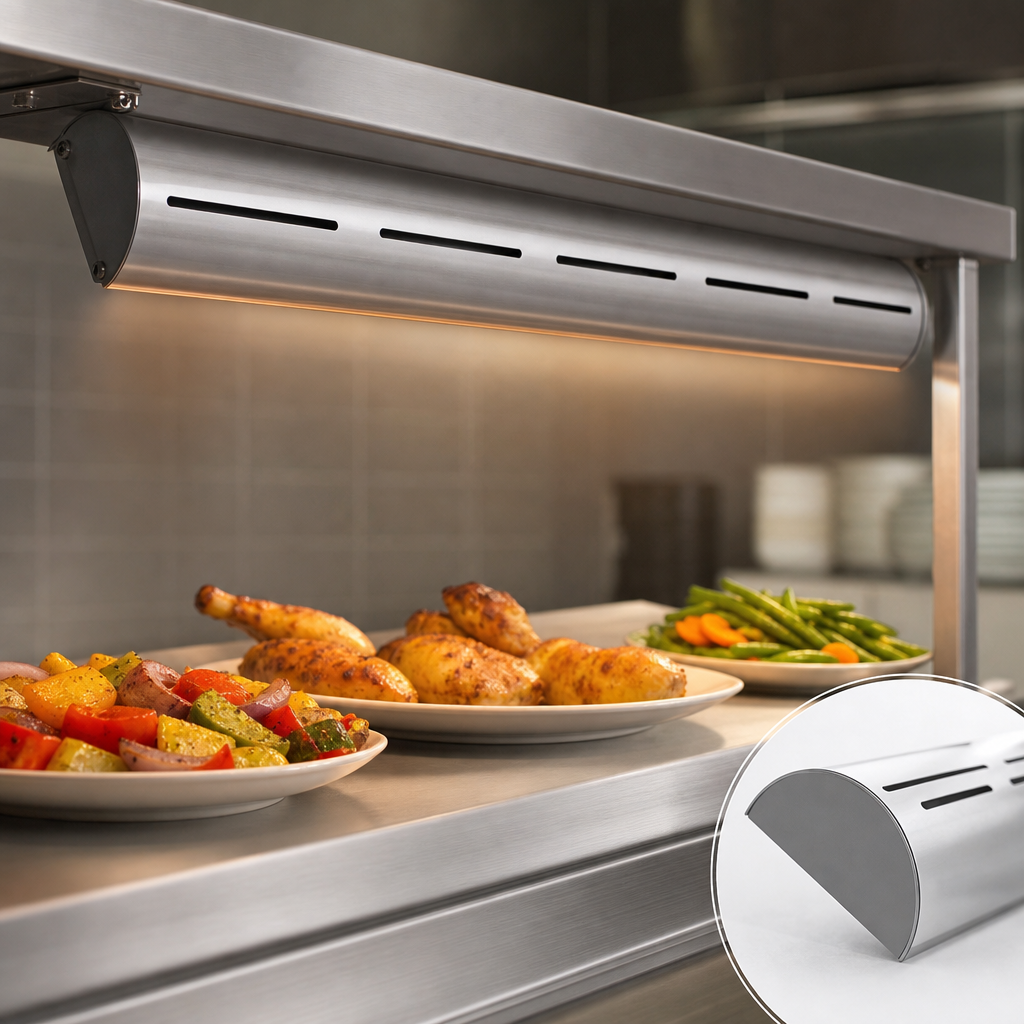

Curved Patented Housing

Stylish curved housing minimizes the unit's footprint while warming products below.

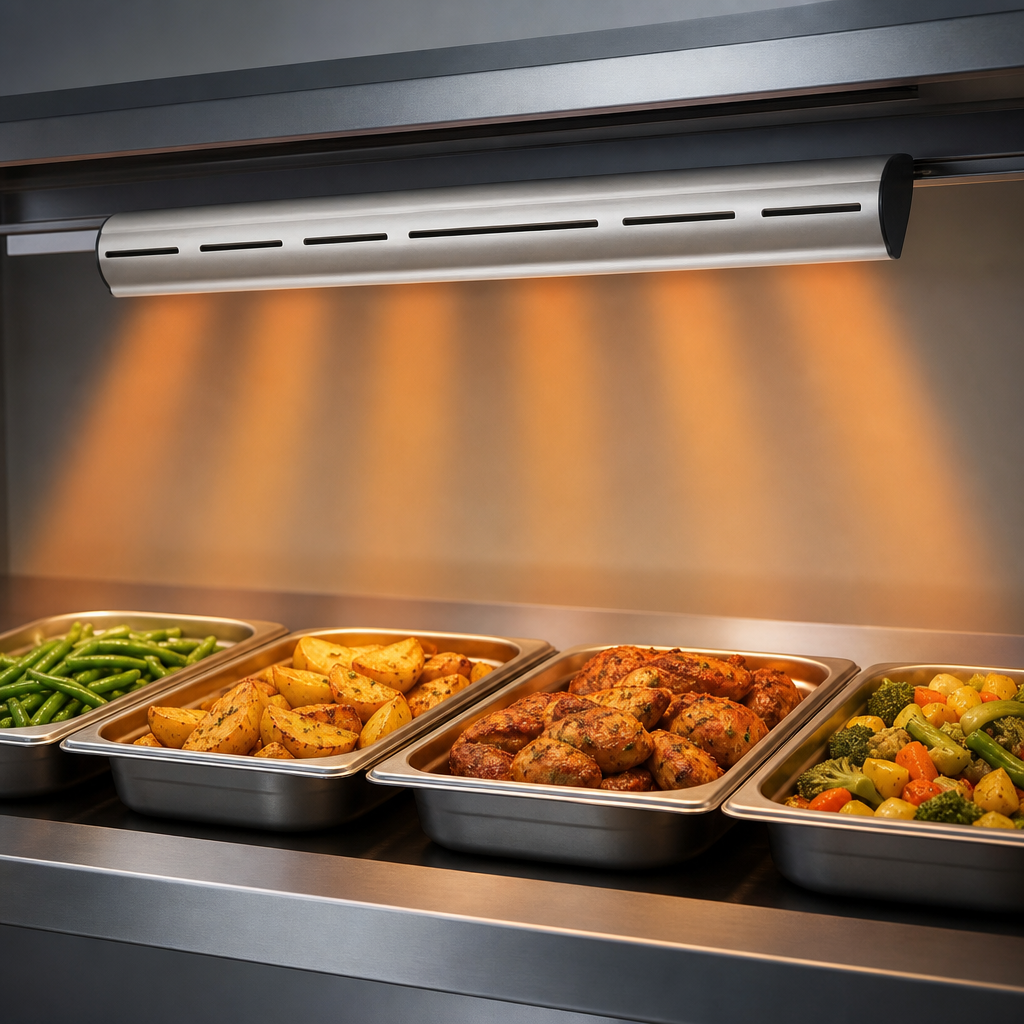

Even Infrared Heating

Dependable infrared element technology heats the entire holding surface evenly with no cold spots.

High-Watt Output

The 18-inch high-watt model delivers 350 watts for strong holding performance.

Compact Profile

The 2-inch height and 6-inch depth help it fit tight buffet and serving-line spaces.

Standard Mounting Kit

Mounting brackets, 3-foot conduit, and 5-foot power leads are included.

Long-Life Element

The metal-sheathed element is guaranteed against burnout and breakage for two years.

Factory Assembled

Ships assembled and ready for electrical installation.

Commercial Compliance

Documentation lists the unit as cULus classified and UL EPH Classified.

Type Unlighted Infrared Strip Heater
Style Curved
Installation Type Wall Mounted
Material Aluminum
Finish Clear Anodized
Voltage 120 Volts
Amps 2.9 Amps
Watts 350 Watts
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 6 Inches
Shipping Height 2 Inches
Shipping Weight 16 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year element burnout and breakage guarantee

Frequently Asked Questions

The series is shown with 120, 208, 220, 240, 220-230 (CE), and 230-240 (CE) volt options; the 18-inch high-watt model is listed at 120V, 350W, 2.9A, single phase.
Yes. Mounting brackets, a 3-foot conduit, and 5-foot power leads are standard.
The curved housing minimizes the unit's footprint while heating the holding surface evenly, which is ideal for buffet and serving lines.
Yes. The GR5A series can be installed over a steam table, provided the clearance requirements in the installation manual are followed.
Optional non-adjustable tubular stands, a curved tempered glass sneeze guard, extended power lead lengths, and housing color options are available.
The metal-sheathed element is guaranteed against burnout and breakage for two years.
