Hatco GR2S-66 Heated Cabinets & Holding Shelves
Description

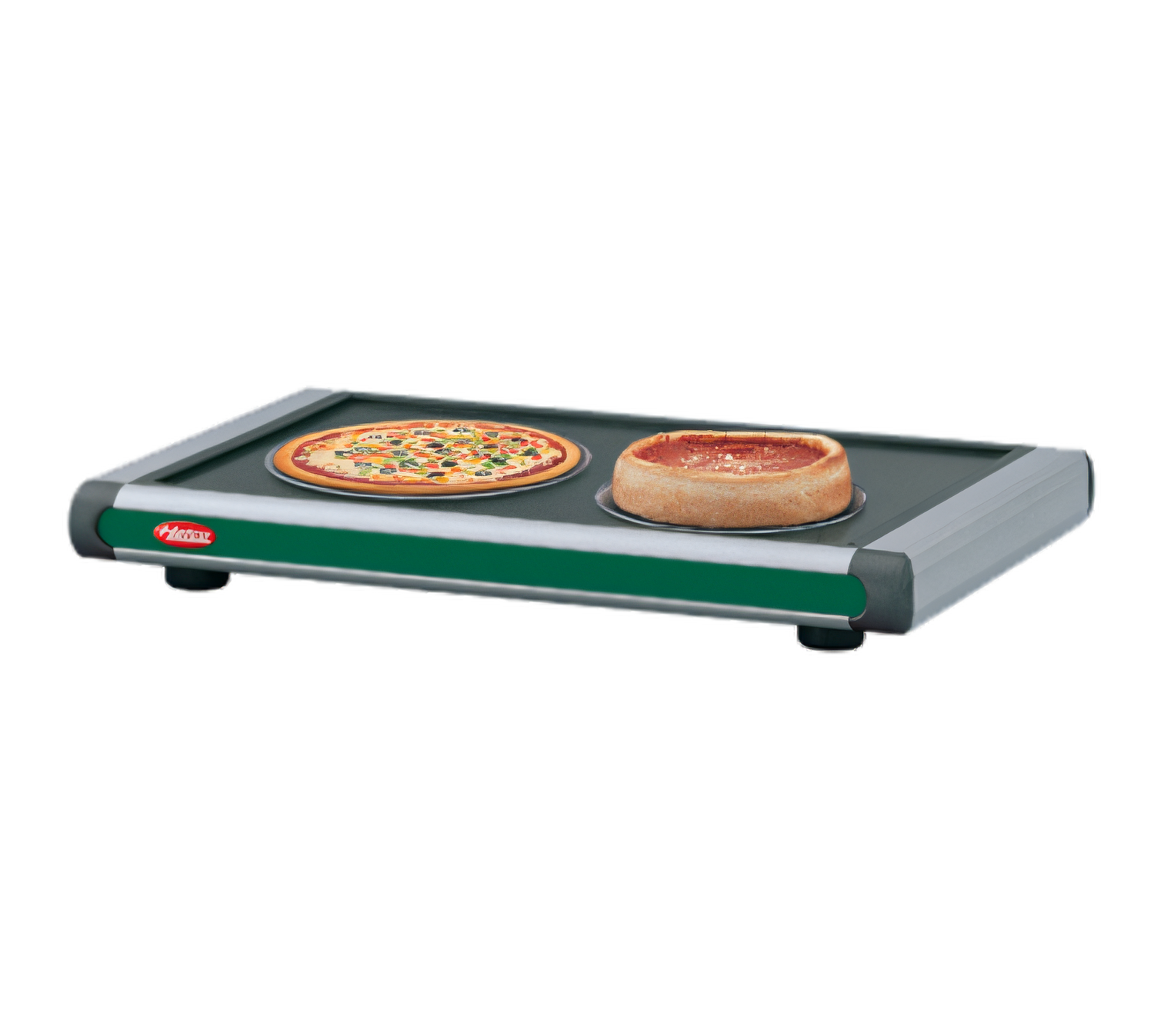

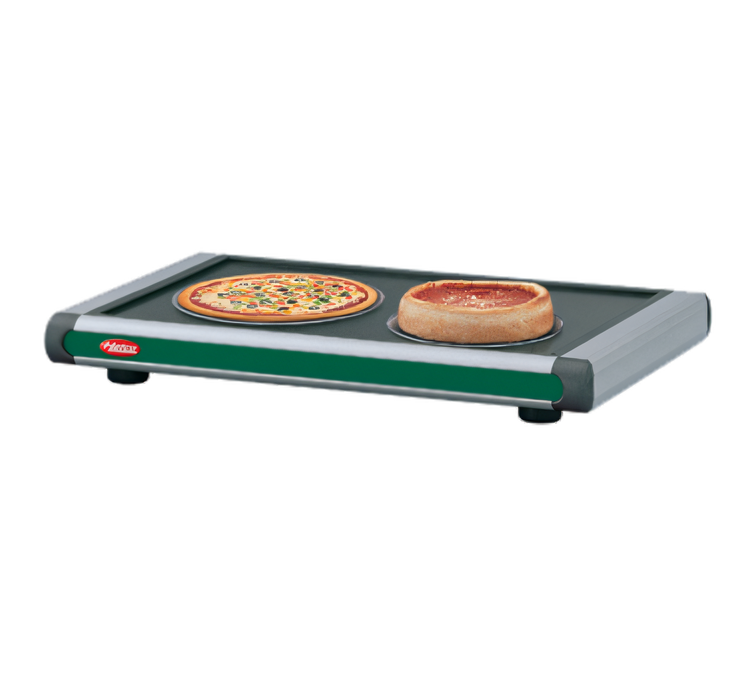

Hatco Glo-Ray® Designer Portable Heated Shelf – 5 Pan
Model GR2S-66 | Made in USAGive every dish the presentation – and the holding power – it deserves. The Hatco GR2S-66 Designer Heated Shelf keeps up to five full-size 12" × 20" pans at a perfect serving temperature with uniform, blanket-style heat—all inside a sleek, front-of-house-ready package.
Key benefits

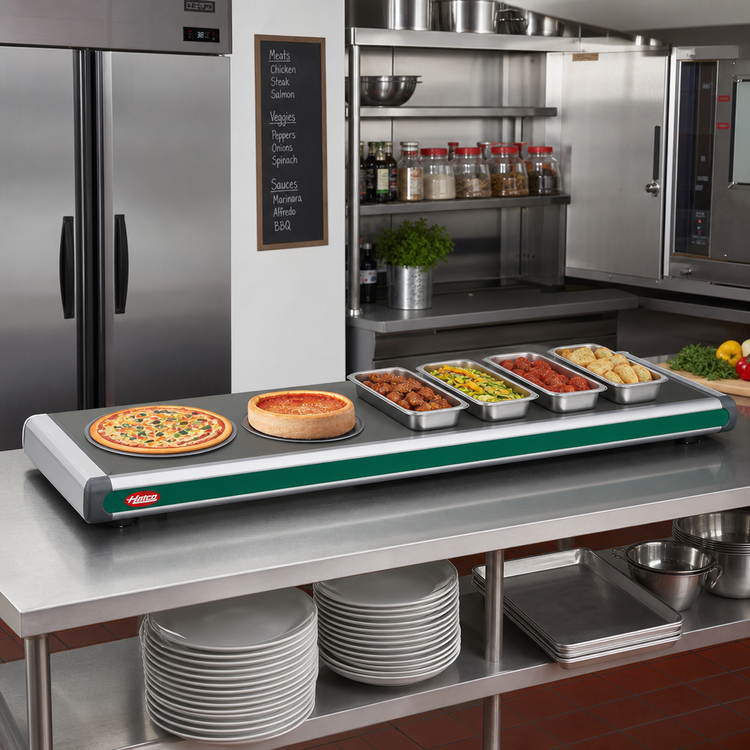

- True 5-pan capacity: 65.75" × 21.75" heated surface fits (5) full-size steam-table pans side-by-side.

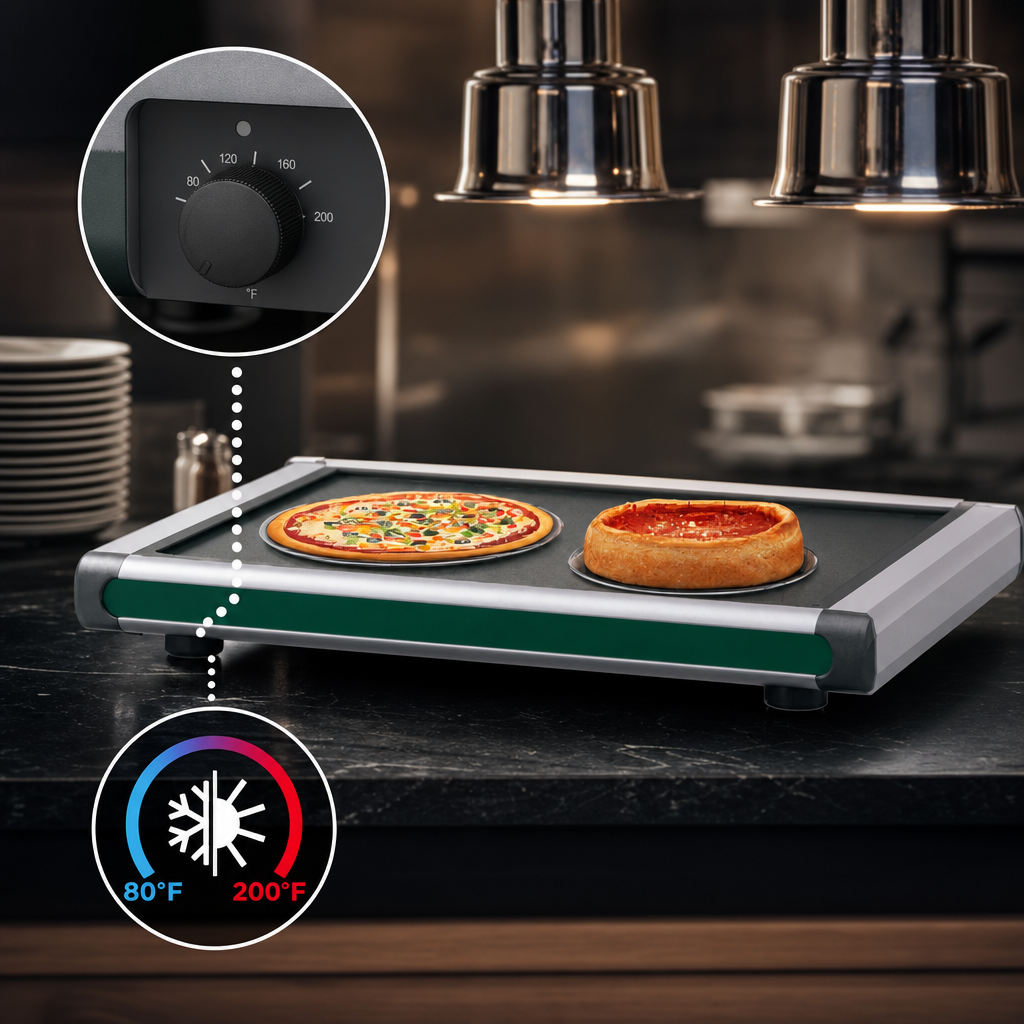

- Adjustable thermostat: 80 – 200 °F (27 – 93 °C) range lets you tailor the shelf to delicate pastries or hearty entrées.
- Hardcoat aluminum top: Durable, easy-clean surface resists scratches, stains and corrosion.

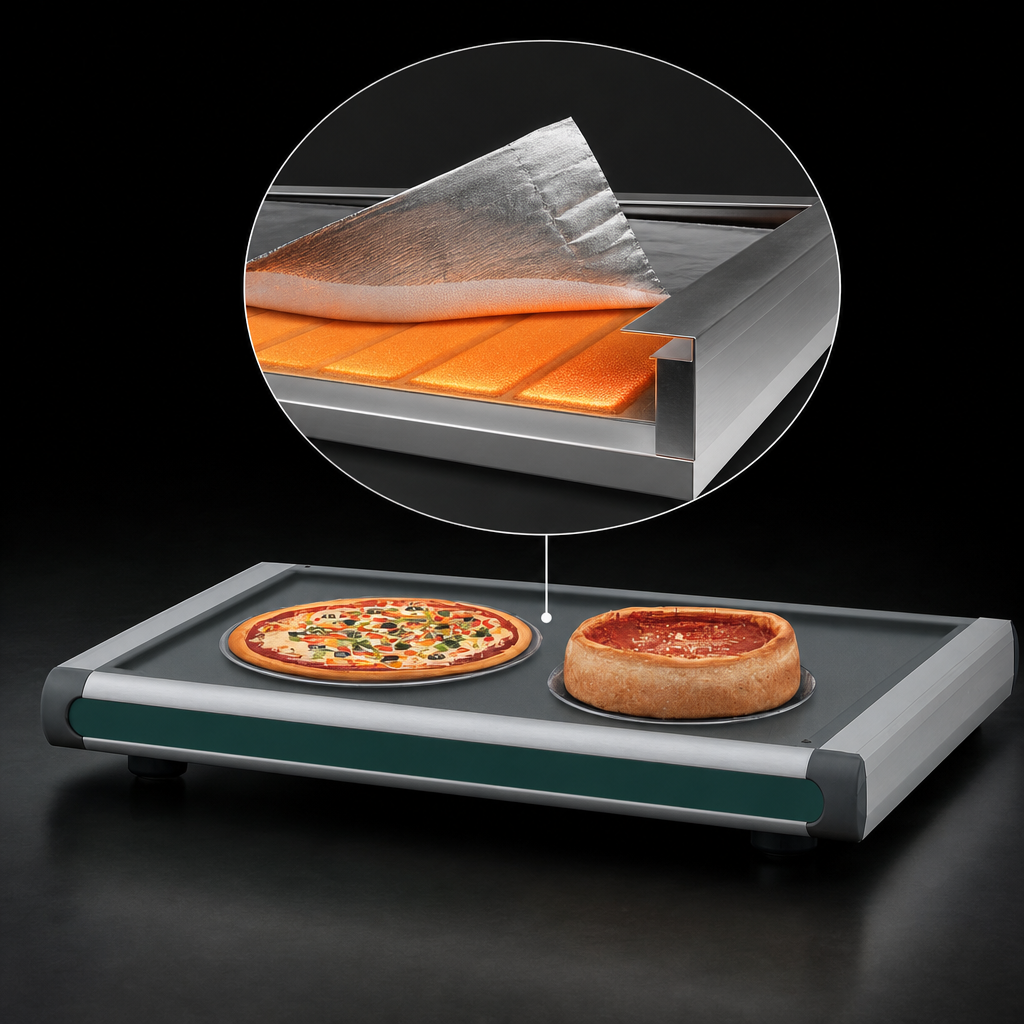

- Blanket-type foil element: Even, edge-to-edge heat distribution—no hot spots.
- Designer styling: Rounded corner caps and color-matched inset panels elevate any buffet, café or pass-through.
- 4" (102 mm) legs: Freestanding clearance simplifies sanitation and meets NSF guidelines.
- Plug-and-play: 6' (1829 mm) cord with NEMA 5-15P (120 V model) for instant installation.
- Certified safe: CE, cULus and UL EPH Classified for electrical and sanitation compliance.
Technical specifications
| Model | GR2S-66 |
|---|---|
| Pan capacity | (5) full-size 12" × 20" (324 × 527 mm) pans |
| Overall dimensions (W × D × H) | 72.25" × 27" × 7" (1835 × 686 × 178 mm) (height includes 4" legs) |
| Heated surface | 65.75" × 21.75" (1670 × 552 mm) |
| Temperature range | 80 – 200 °F (27 – 93 °C) – thermostatically controlled |
| Electrical | 120 V, 1000 W, 8.3 A • One-phase (220 V and 240 V models available – consult factory) |
| Cord & plug | 6' (1829 mm) cord with NEMA 5-15P (120 V) |
| Certifications | CE • cULus • UL EPH Classified |
| Shipping weight | ≈75 lb (34 kg) |
Available designer colors
Base, inset panels and corner caps ship in Standard Black unless one of the optional colors below is specified at the time of order (non-returnable).
- Warm Red
- Gray Granite
- White Granite
- Navy Blue
- Hunter Green
- Antique Copper
Perfect for
- Buffets & self-serve lines
- Grab-and-go cafés & coffee shops
- Hotel breakfast bars
- Catering & banqueting pass-throughs
- Convenience stores & delis
Tip: Add Hatco stainless-steel trivets or food pans to protect the heated surface and streamline portioning.
Backed by Hatco’s 24/7 parts & service assistance (U.S. & Canada). For installation and operating guidelines, download the full manual from the Hatco website.
