Hatco GR2AH-66D3 Glo-Ray® Heat Lamps
Description

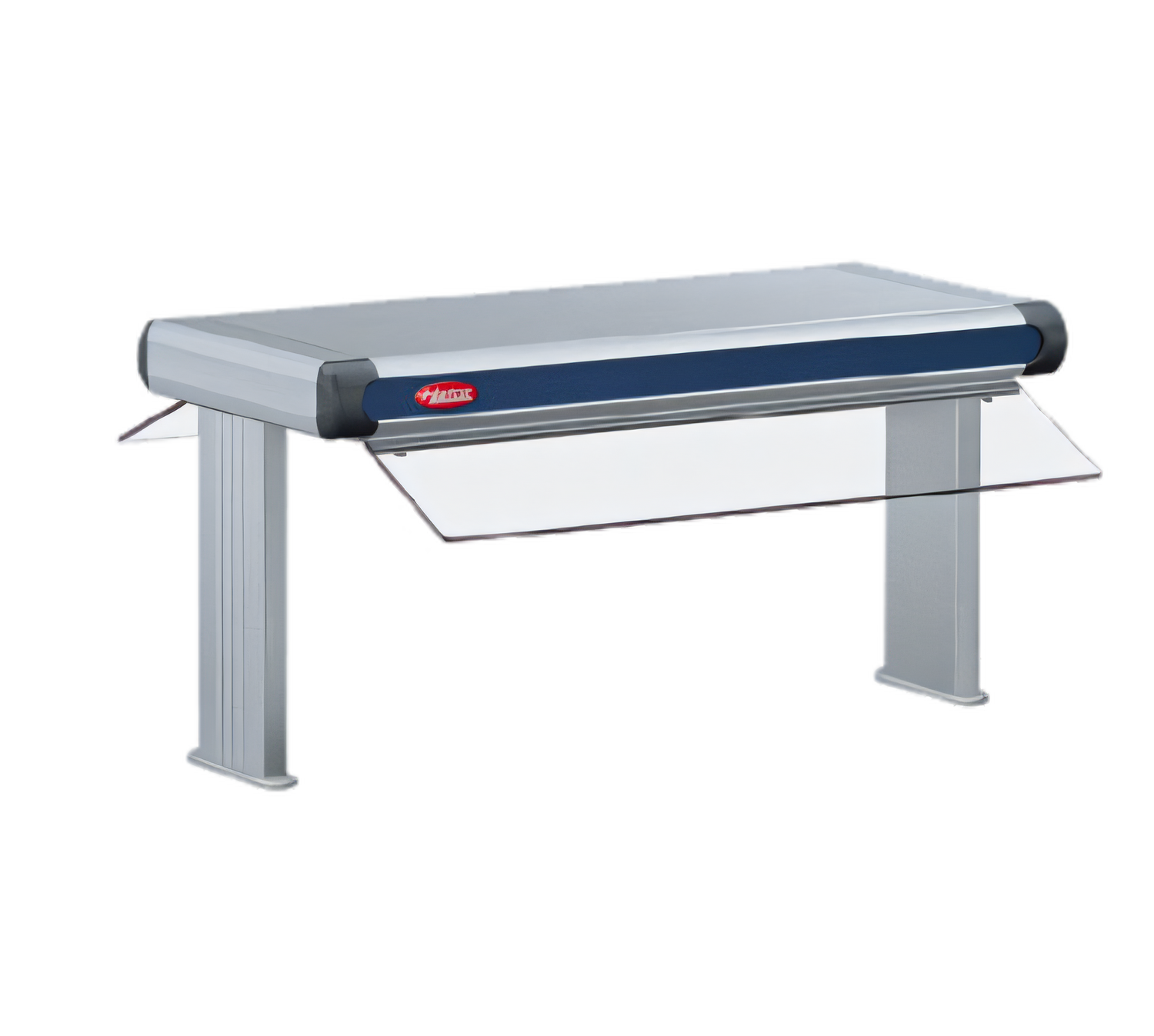

Hatco Glo-Ray® Designer Dual Infrared Strip Heater – 69 1/2" (GR2AH-66D)
High-Watt • 3" Spacer • 3120 W • Made in USAElevate your presentation and hold menu items at perfect serving temperatures. This 69 1/2-inch Glo-Ray® Designer Dual Strip Heater delivers powerful, even infrared heat for front-of-house displays, buffets and pass-through lines—without compromising on style.
Key Features

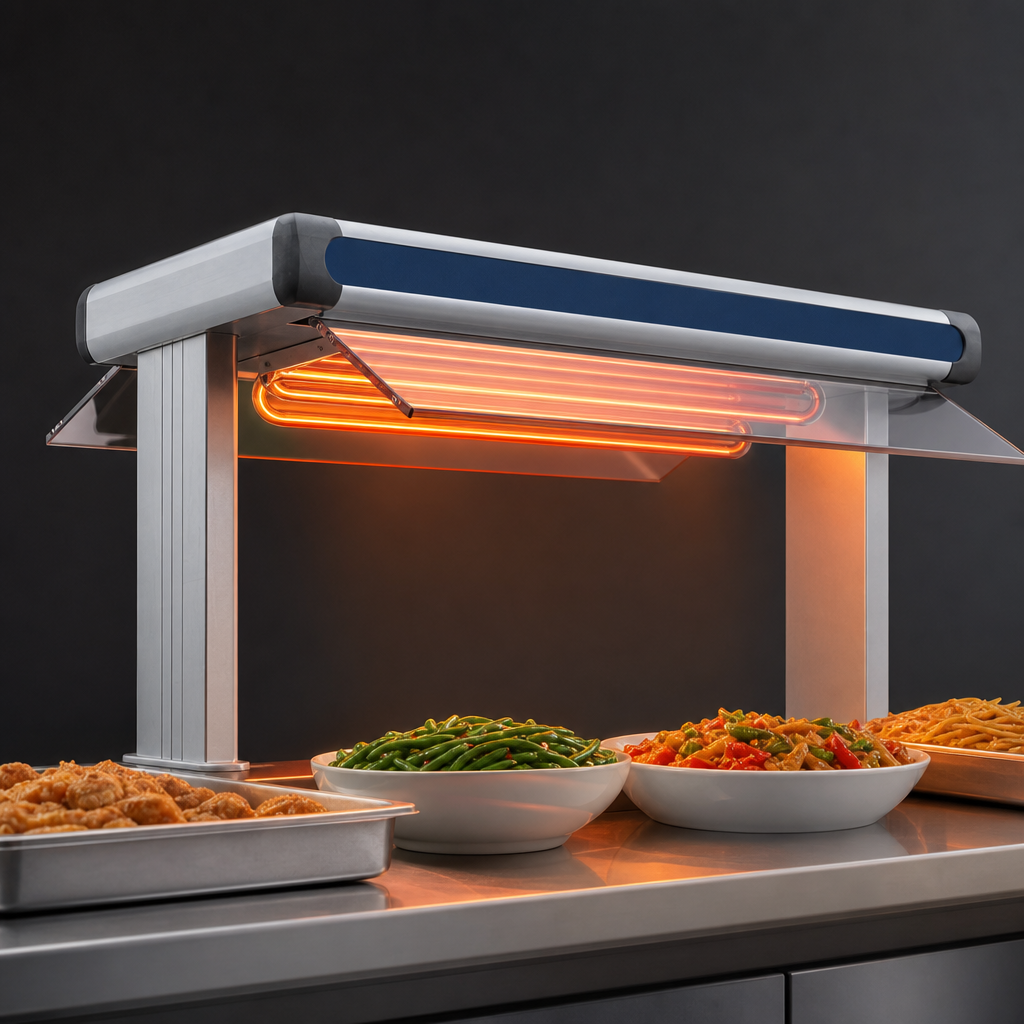

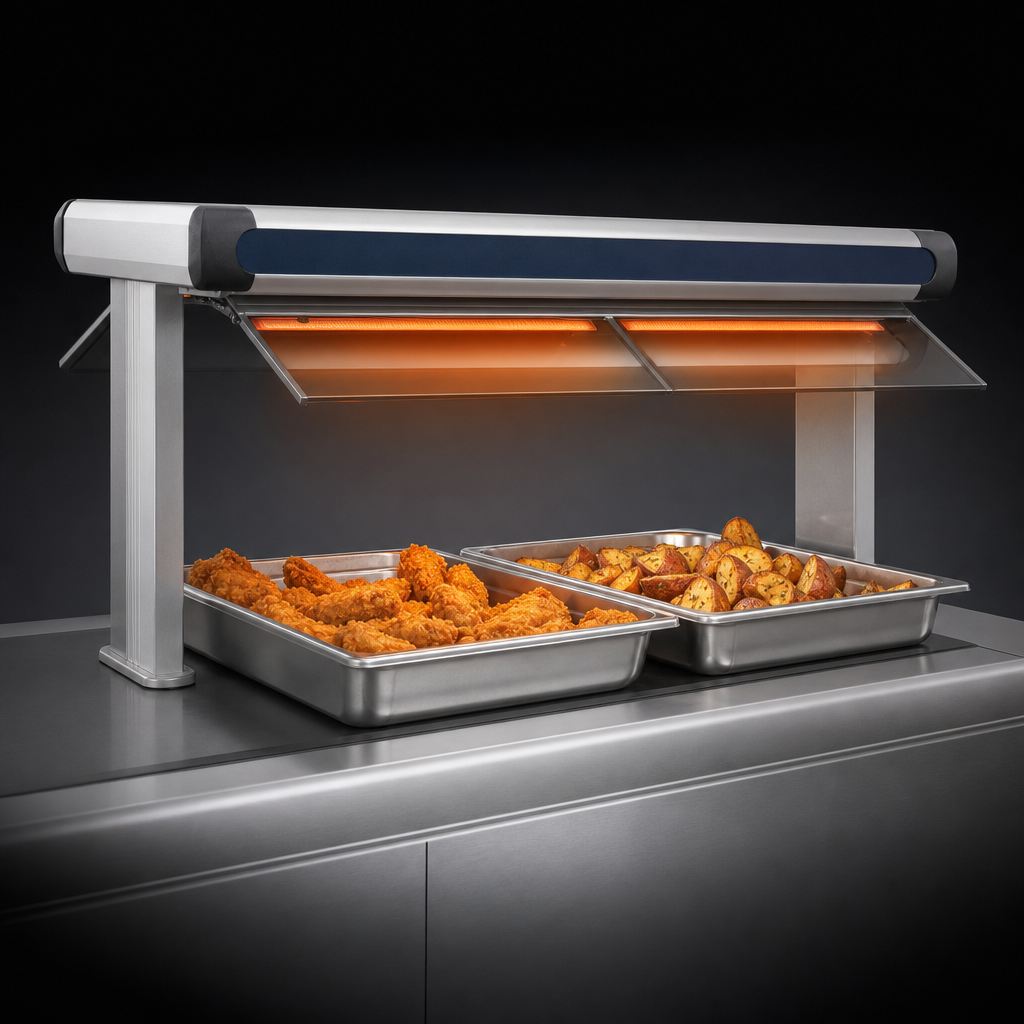

- Dual tubular metal heater rods with precision-angle reflectors blanket the full holding area in consistent heat.
- High-watt output (3120 W) keeps larger pans and deeper displays safely above 140 °F (60 °C).
- Designer aluminum housing is continuous-welded to prevent sagging over time.
- Standard 3" (76 mm) spacer optimizes distance between heater banks for maximum coverage.
- 14" (356 mm) non-adjustable Designer stands included—ideal for countertop use.
- Remote-mount control capability keeps switches out of the heat zone for longer life and easier access (RMB control box required, sold separately).
- Choose from Hatco’s antimicrobial Designer Color palette to perfectly match your décor (factory option at time of order).
What’s Included
- GR2AH-66D dual infrared strip heater
- (2) 14" fixed Designer legs
- 3" spacer kit (pre-installed)
- 6 ft (1.8 m) flexible conduit lead
- Installation & operating manual
Technical Specifications
| Overall Width | 69 1/2" (1765 mm) |
|---|---|
| Depth × Height* | 18" D × 3.5" H (455 mm × 89 mm) |
| Leg Height | 14" (356 mm) Designer stands |
| Heat Source | Dual tubular metal sheathed elements |
| Total Wattage | 3120 W (high-watt) |
| Voltage / Amps |
120 V / 26.0 A† 208 V / 15.0 A 240 V / 13.0 A |
| Shipping Weight | Approx. 107 lb (49 kg) |
| Certifications | cULus, UL EPH Classified, ANSI/NSF 4 |
| Country of Origin | Made in USA |
*Without legs: H = 3.5" (89 mm)
Perfect For
- Buffet carving or action stations
- Grab-and-go hot shelves & C-stores
- Quick-service pass-through windows
- Catering lines & cafeterias
†120 V high-watt units require additional switches and tandem (end-to-end) elements; not available in Canada.
Need sneeze guards, custom colors or extended power leads? Contact us—factory-installed options are available at the time of order.
Warranty: 24-month parts & labor (U.S. & Canada).
