Hatco  |  Glo-Ray®  |  SKU: GR2AH-36D3

Hatco GR2AH-36D3 Glo-Ray® Heat Lamps

$1,372.14
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Catalog brochure Owner's manual
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

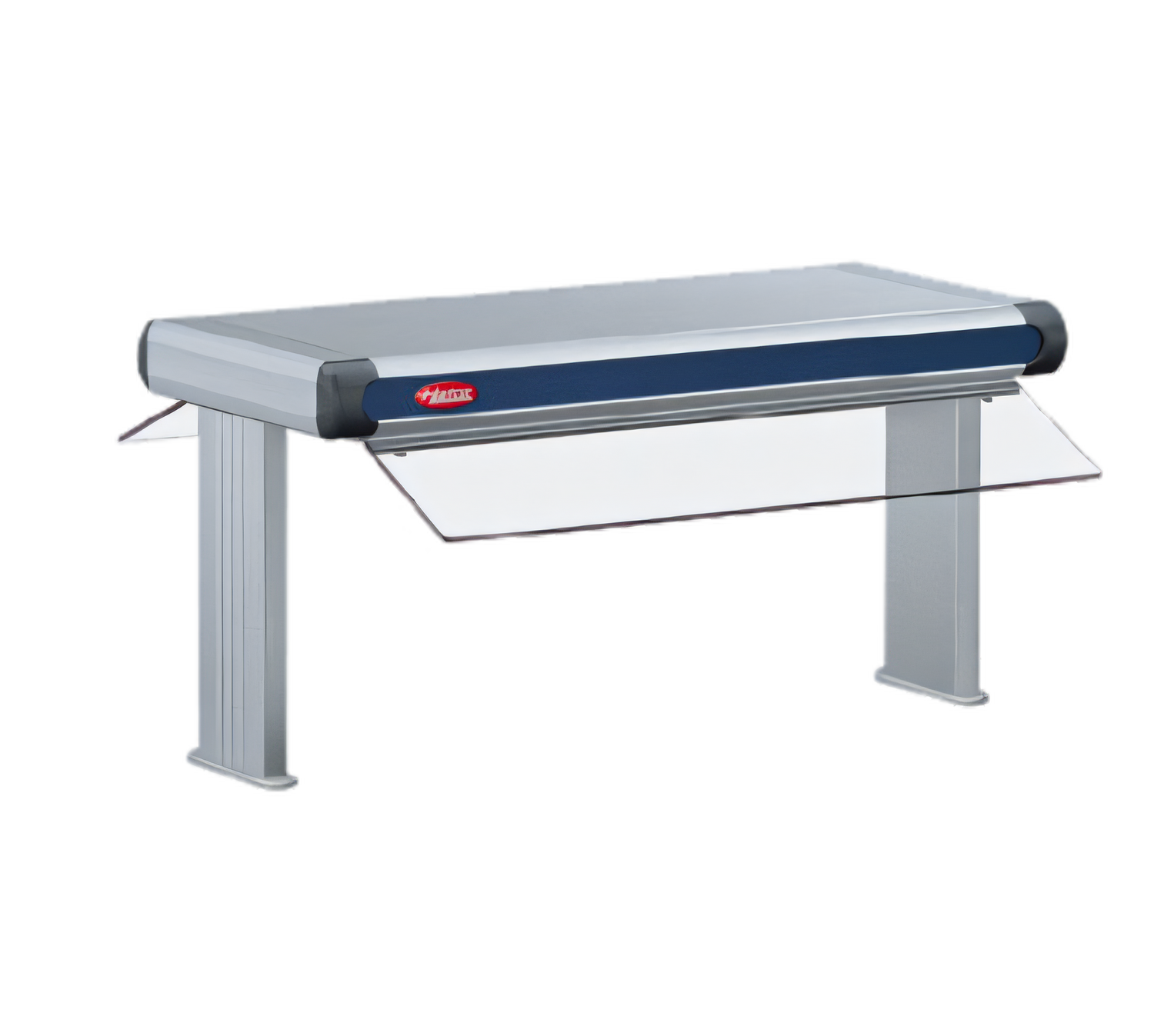

Hatco Glo-Ray® Designer Dual Infrared Strip Heater – 39-1/2″, High Watt

Model GR2AH-36D  |  1600 W • Dual Tubular Elements

Bring front-of-house style and back-of-house performance together with Hatco’s Glo-Ray® Designer Dual Strip Heater. The GR2AH-36D delivers powerful, pre-focused infrared heat that blankets a deeper holding area—keeping entrées, sides and plated dishes at safe, appetizing temperatures without drying or over-cooking.

Key advantages

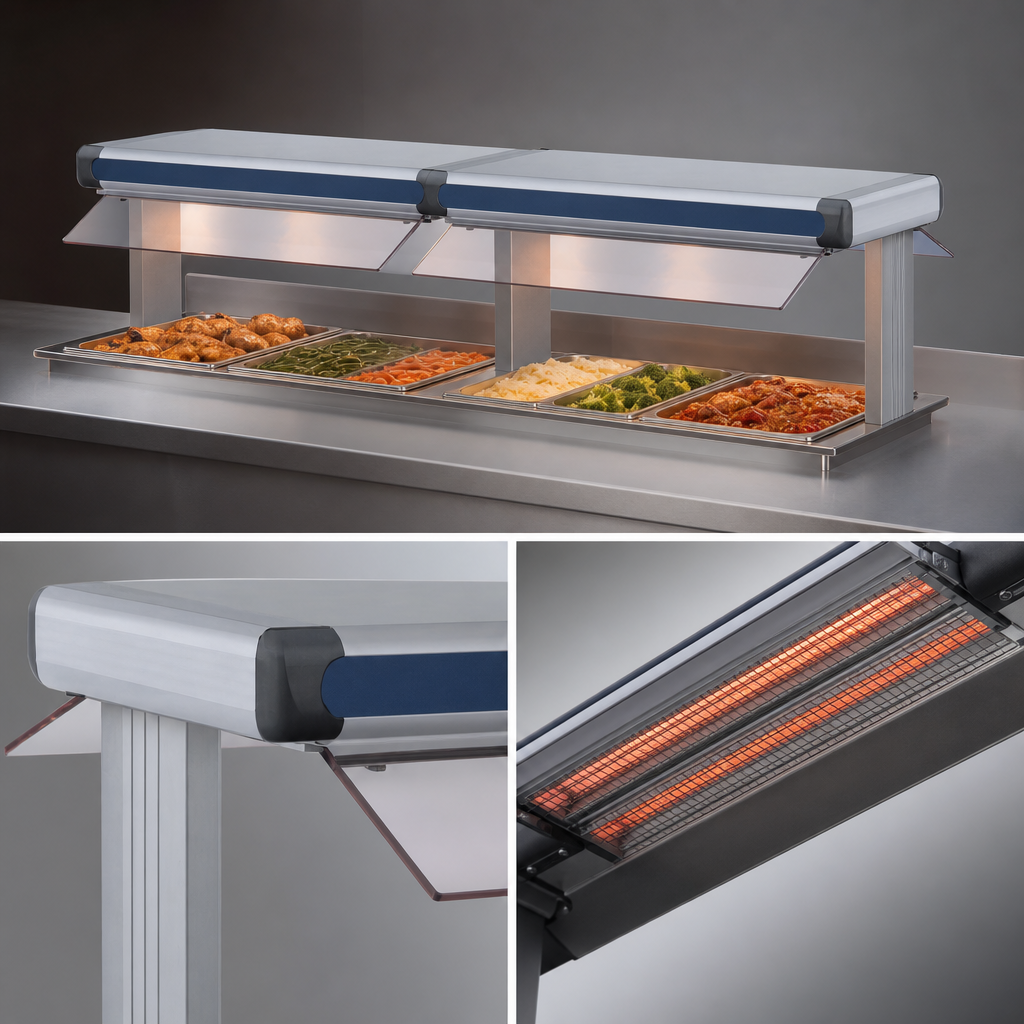

  • High-watt dual tubular metal heater rods (1600 W) provide fast heat-up and superior heat recovery.
  • Pre-focused infrared pattern evenly “bathes” the entire holding surface for consistent food quality.
  • 3″ (76 mm) built-in spacers create a deeper, more usable holding zone; 6″ spacers optional.
  • Designer aluminum housing and black corner caps offer a clean, contemporary look while eliminating sagging.
  • 14″ (356 mm) fixed Designer stands included—perfect for pass-through counters or buffet lines.
  • Remote control-box ready for flexible, out-of-heat-zone installation (control box sold separately).
  • Compatible with optional sneeze guards, color inset panels and extended power leads.
  • cULus listed, UL EPH Classified and NSF 4 compliant; proudly Made in the USA.

Specifications

Overall width 39.5″  (1003 mm)
Depth (with 3″ spacer) 18″  (455 mm)
Height (housing only) 3.5″  (89 mm)
Overall height (with 14″ stands) ≈17.5″  (445 mm)
Heating elements 2 × tubular metal rods
Wattage 1600 W (high-watt)
Voltage / phase 120 V 1Ø (13.3 A) | 208 V 1Ø (7.7 A) | 240 V 1Ø (6.7 A)
Standard spacer 3″ (76 mm) between heater banks
Recommended mounting height* 14″ – 18″ (356 – 457 mm) above holding surface
Ship weight 57 lb (26 kg)
Certifications cULus, UL EPH Classified, ANSI/NSF 4
Country of origin United States of America

*Follow the installation manual for exact element-to-food clearance requirements.

Remote control required: Each GR2AH-36D must be paired with a Hatco RMB series remote control box (sold separately). Mount the control box outside the heat zone to prevent damage.

Popular accessories (sold separately)

  • 7.5″ or 14″ tempered-glass sneeze guards – single or double-sided
  • 6″ spacers for extra-deep holding wells
  • Designer color housings & inset panels (Warm Red, Black, Gray Granite, White Granite, Navy Blue, Hunter Green, Antique Copper)
  • Extended power leads up to 20′ (6.1 m)

Need help selecting controls or accessories? Chat with our team or download Hatco’s Remote Box selector under “Resources” on hatcocorp.com.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, UL EPH Classified, Made in USA

Height

3.5in

Width

39.5in

Depth

18.0in

Shipping Weight

37.0lbs

Type of element

metal heating rod

Finish

aluminum

Size

double

Length

37 - 42"

Type

unlighted

Specifications

Glo-Ray® Designer Dual Strip Heater, 39-1/2" W, 3" spacing, infrared, high wattage, tubular metal heater rod, double heater rod housing, designer aluminum construction, 1600 watts, 14" high legs, cULus, UL EPH Classified, Made in USA
