Hatco  |  SKU: FTBX-S3

Hatco FTBX-S3 Refrigerated Prep Tables

$5,005.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Commercial Freezers Commercial Refrigeration Frost Tops Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

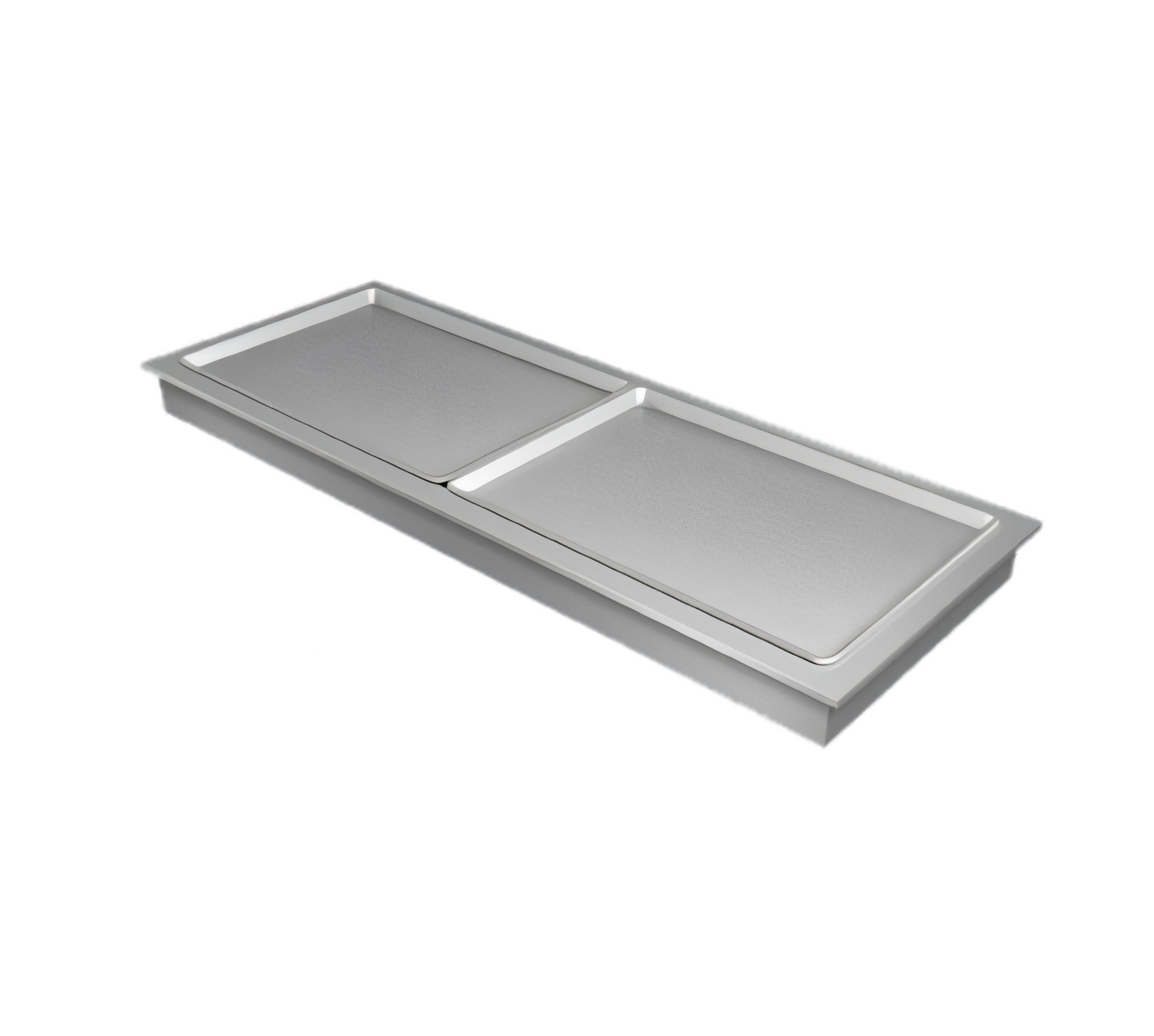

Hatco FTBX-S3 Remote Drop-In Slim Frost Top

80-13/16" | 3 Full-Size Sheet Pan Capacity | Remote Refrigeration

Give your buffet, cafeteria line, or grab-and-go station the wide, frosty display it deserves—without sacrificing valuable counter space. Hatco’s slim, three-pan Frost Top delivers consistent 34-40°F temperatures across the entire surface to keep pre-chilled beverages, starters and desserts icy-fresh and customer-ready.

Why you’ll love it

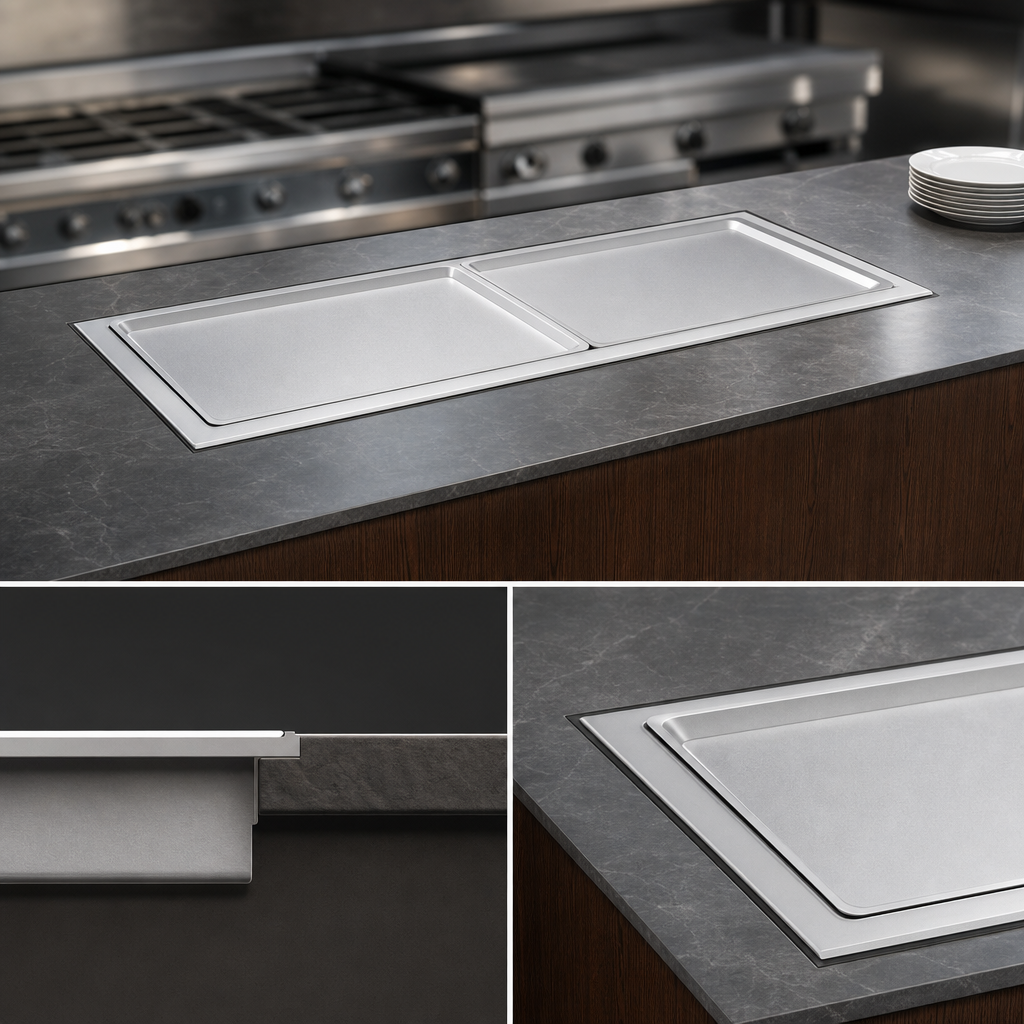

  • Slim-line profile (just 21" deep) increases customer reach and maximizes serving space in tight food shields.
  • Holds three full-size (18" × 26") sheet pans flush, creating a seamless, high-end presentation.
  • Cold-wall design with R-513A refrigerant chills from below without fan-driven air—no product dehydration.
  • Advanced electronic control with auto-defrost maintains set temps and eliminates manual ice scraping.
  • Control panel ships loose and can mount on either side of the unit or up to 4' (1.2 m) away for maximum design flexibility.
  • 1" NPT brass drain speeds clean-ups and end-of-day melt-off.
  • Matches Hatco Heated Wells for a clean, coordinated drop-in lineup.
  • cULus & NSF 7 listed, Made in the USA—built for demanding commercial kitchens.

Technical details

Model FTBX-S3 (Remote, Slim-Line)
Pan capacity (3) Full-size sheet pans, 18" × 26" (457 × 660 mm)
Overall dimensions 80.81" W × 21.06" D × 8.61" H
(2053 × 535 × 218 mm)
Counter cut-out Width: 79.19"-79.875" (2011-2029 mm)
Depth: 19.44"-20.125" (494-511 mm)
Temperature range 34-40 °F (1-4 °C) adjustable
Defrost Automatic, programmable via control panel
Drain 1" NPT brass drain (bottom-center)
Electrical (control circuit) 120 V or 220-240 V, 50/60 Hz, single phase
Field-select voltage when ordering

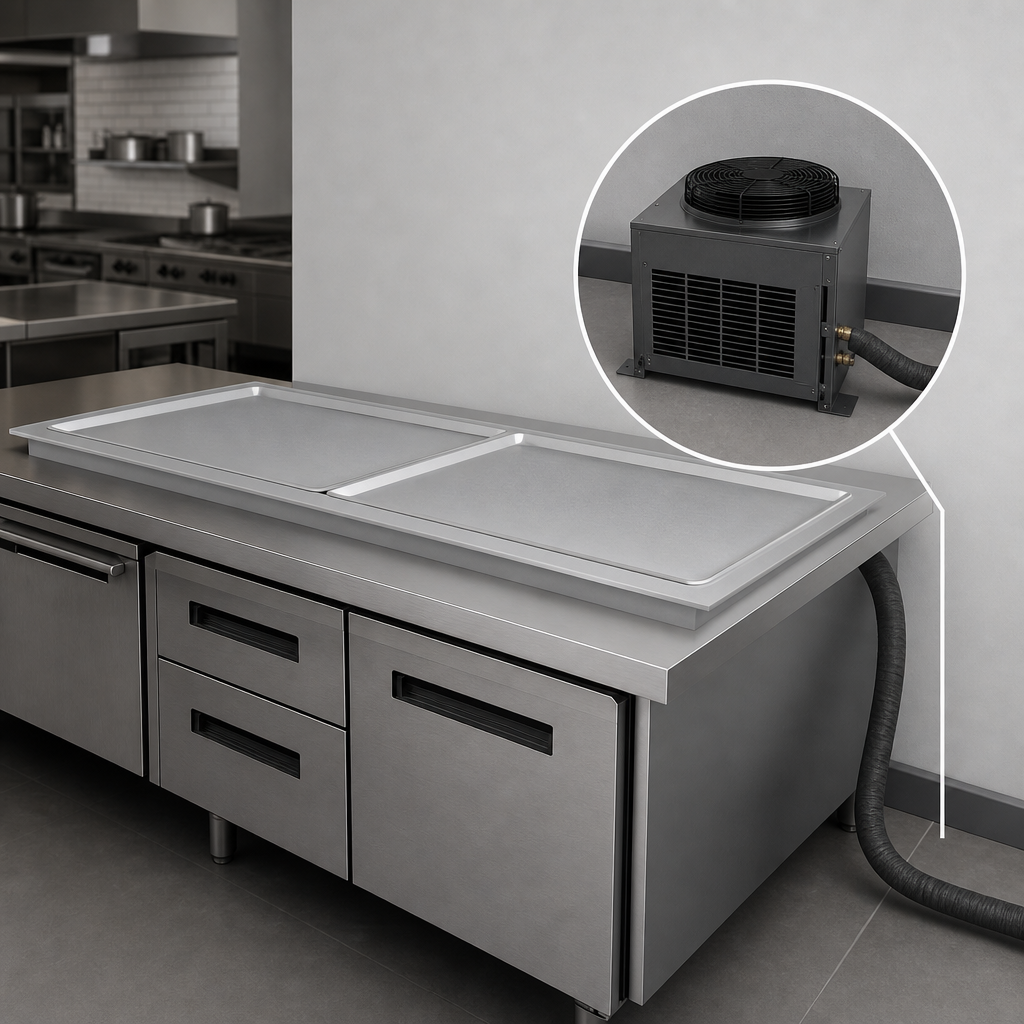

Refrigeration Designed for remote compressor (by others)
Factory-installed TXV & solenoid valve
Refrigerant: R-513A
Certifications cULus, NSF 7
Country of origin Made in USA
Heads-up: This model ships without a condensing unit. A qualified refrigeration contractor must supply and install a compatible remote compressor, piping and refrigerant charge to complete the system.

Need help building a mixed hot-and-cold serving line? Chat with our team—Hatco Frost Tops are engineered to align perfectly with our heated wells for a unified, professional look.

Features & Specs

Manufacturer

Hatco

Certifications

Made in USA

Height

8.63in

Width

80.81in

Depth

21.01in

Shipping Weight

182.0lbs

Depth (front - back)

21"

Width (side - side)

72 - 120 inches

Specifications

Drop-In Slim Frost Top, 80-13/16"L, accommodates (3) full size sheet pan, auto defrost, electronic adjustable temperature control can be mounted to either side of condensing unit or remotely up to 4' from unit, 1" NPT drain, with control panel (shipped loose), designed for remote refrigeration (condensing unit by others), utilizes R513a refrigerant, Made in USA, cULus, NSF
