Hatco  |  SKU: FTBX-S2

Hatco FTBX-S2 Refrigerated Prep Tables

$4,320.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Parts list Owner's manual
Related Searches
Commercial Freezers Commercial Refrigeration Frost Tops Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

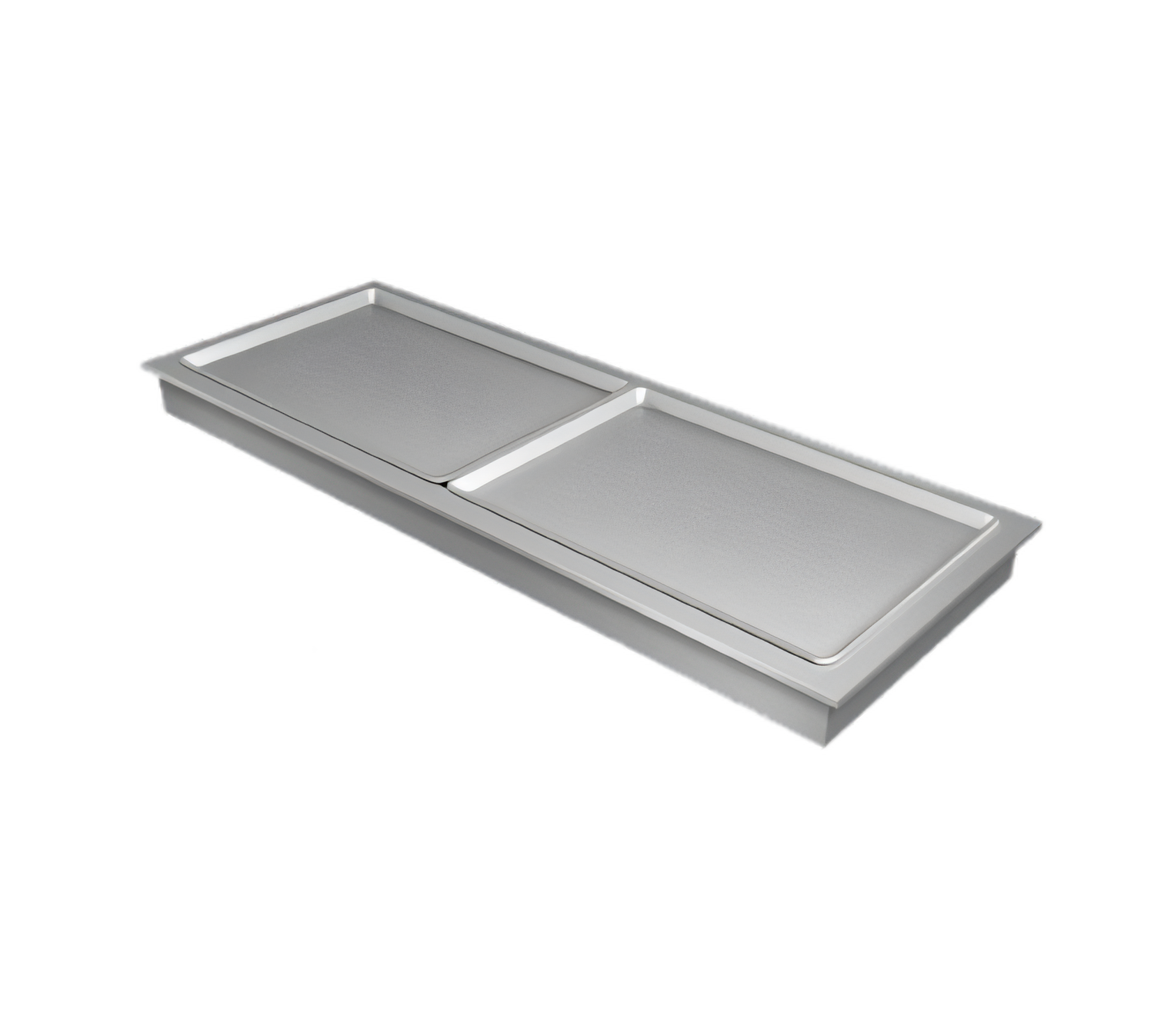

Hatco Slim Line Remote Drop-In Frost Top – 54 in / 2-Pan

Model FTBX-S2 • Remote refrigeration (condensing unit by others)

Give your cold menu offerings the crisp, fresh appearance they deserve with Hatco’s Slim Line Remote Drop-In Frost Top. Engineered for cafeterias, buffets, delis and concession counters where space is at a premium, this 54-inch unit keeps two full-size sheet pans perfectly chilled while providing guests a wider reach—no matter how bulky the sneeze guard.

Why You’ll Love It

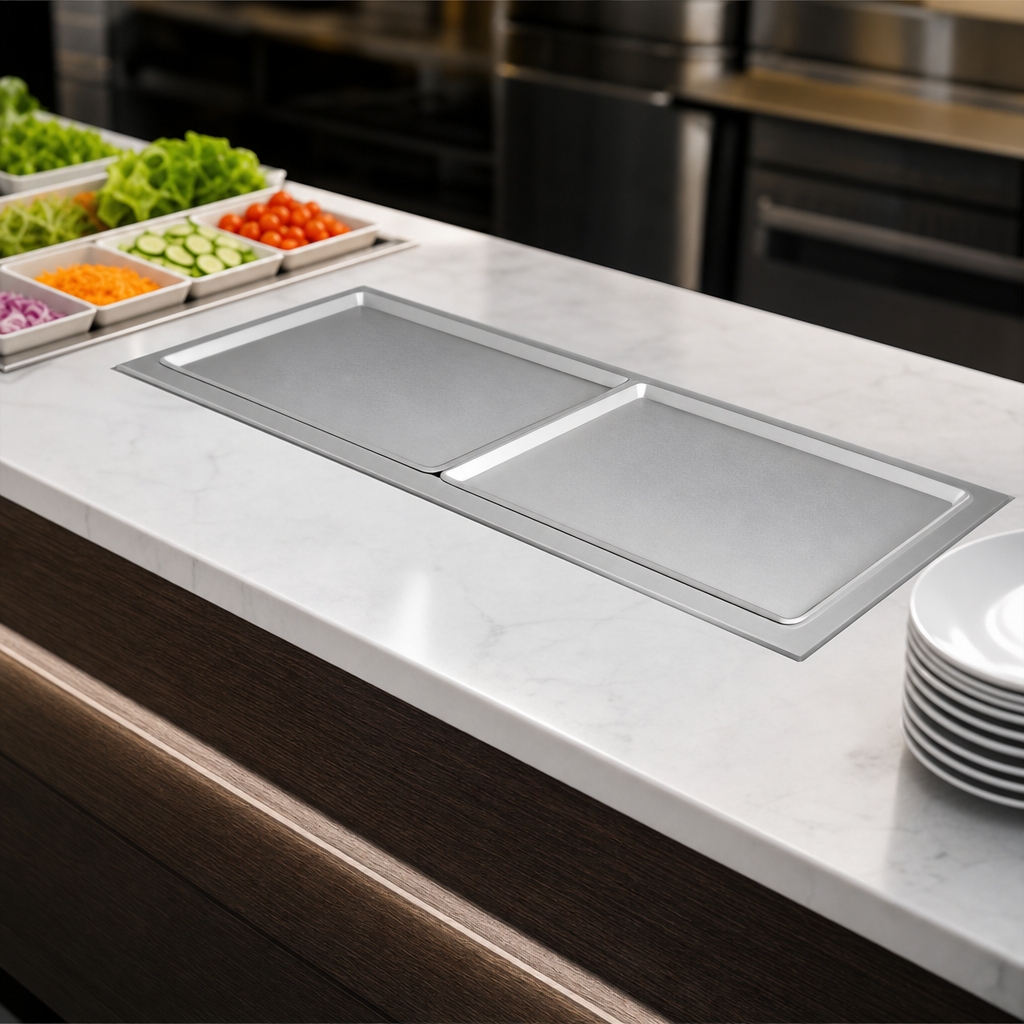

  • Slim Line profile – only 21 in (535 mm) front-to-back to maximize customer access.
  • Cold-wall cooling – NSF 7 listed design chills the entire surface without fans, so food stays cold and moist.
  • Electronic temperature control & auto-defrost – set and forget; the controller automatically activates defrost cycles for worry-free operation.
  • Flexible control mounting – factory-supplied control panel ships loose and may be mounted to either side of the well or remotely up to 4 ft (1.2 m) away.
  • 1 in NPT brass drain – simplifies end-of-day clean-up.

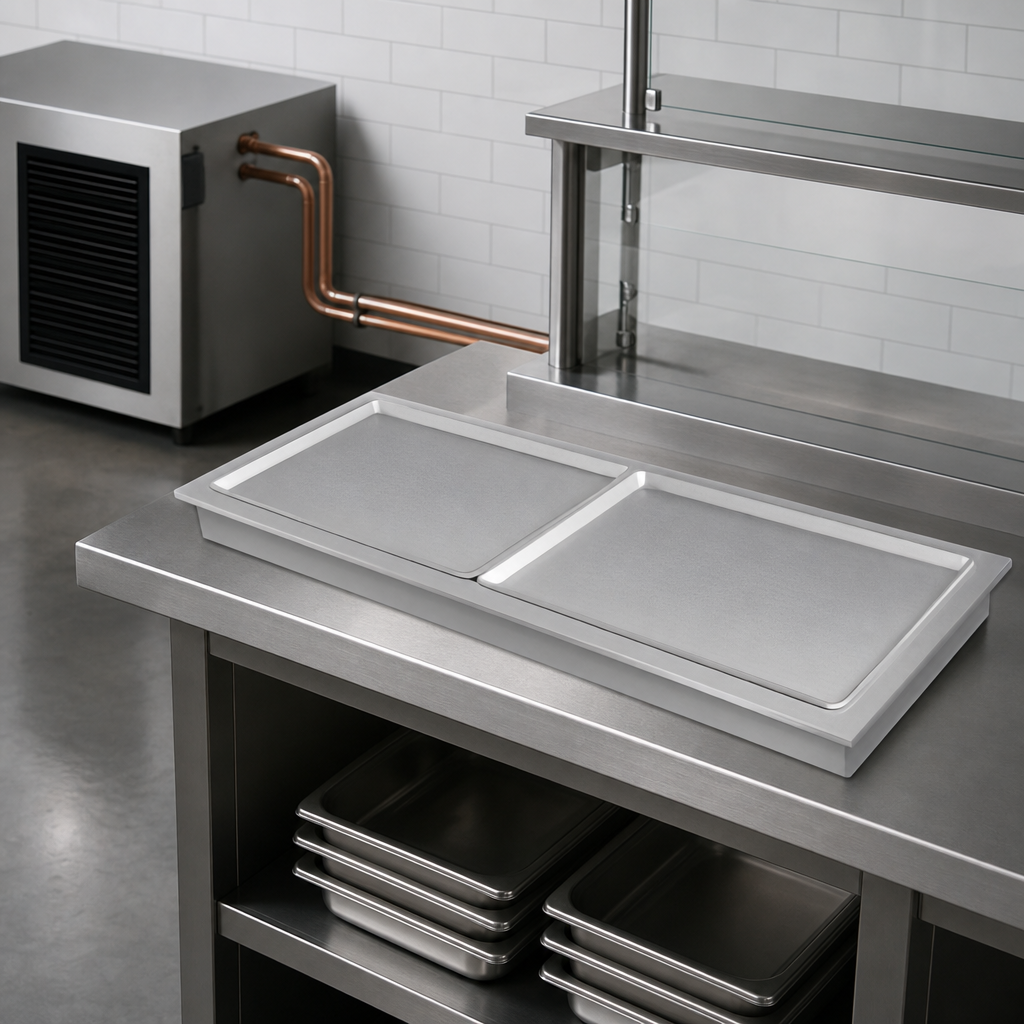

  • Remote refrigeration ready – includes solenoid & TXV valves; connect to your field-supplied condensing unit charged with eco-friendly R513A refrigerant.
  • Made in the USA – built by Hatco in Milwaukee, WI and backed by legendary service and support.

At-a-Glance Specs

Pan Capacity (2) Full-size 18 × 26 in sheet pans
Exterior Dimensions (L × W × H) 54.94 × 21.06 × 3.56 in (1395 × 535 × 90 mm)*
Cut-out (min/max) 53.31 / 54 in × 19.44 / 20.125 in (1354 / 1372 mm × 494 / 511 mm)
Refrigerant R513A (factory recommended)
Controller Lead Length 9 ft (2.7 m) probe & wiring harness
Drain Connection 1 in NPT
Certifications cULus, NSF 7
Country of Origin USA

*Overall height to the underside of the frost top deck. Evaporator tubes add up to 5.05 in (128 mm) beneath the counter.

Ideal Applications

  • Pre-plated desserts & pastries
  • Grab-and-go beverages or yogurt parfaits
  • Chilled hors d’oeuvres & tapas displays
  • Salad & fruit bars alongside Hatco heated wells for a unified line-up
Important: This is a remote refrigeration model. A properly sized condensing unit, refrigerant lines and initial charge (R513A) must be supplied and installed by a qualified refrigeration technician.

What’s in the Box

  • FTBX-S2 Slim Line Frost Top with integrated evaporator coil
  • Electronic control panel & mounting hardware (ships loose)
  • Solenoid valve & TXV valve (pre-installed)
  • Installation & operation manual

Peace-of-Mind Warranty

Hatco backs every Frost Top with 24/7 parts & service assistance across the U.S. and Canada, so you can serve confidently day after day.

Features & Specs

Manufacturer

Hatco

Certifications

Made in USA

Height

8.63in

Width

54.94in

Depth

21.01in

Shipping Weight

130.0lbs

Width (side - side)

50 - 71 inches

Depth (front - back)

21"

Specifications

Drop-In Slim Frost Top, 54-15/16"L, accommodates (2) full size sheet pan, auto defrost, electronic adjustable temperature control can be mounted to either side of condensing unit or remotely up to 4' from unit, 1" NPT drain, remote refrigeration, with control panel (shipped loose), designed for remote refrigeration (condensing unit by others), utilizes R513a refrigerant, Made in USA, cULus, NSF
