Hatco FTBX-1 Refrigerated Prep Tables
Description

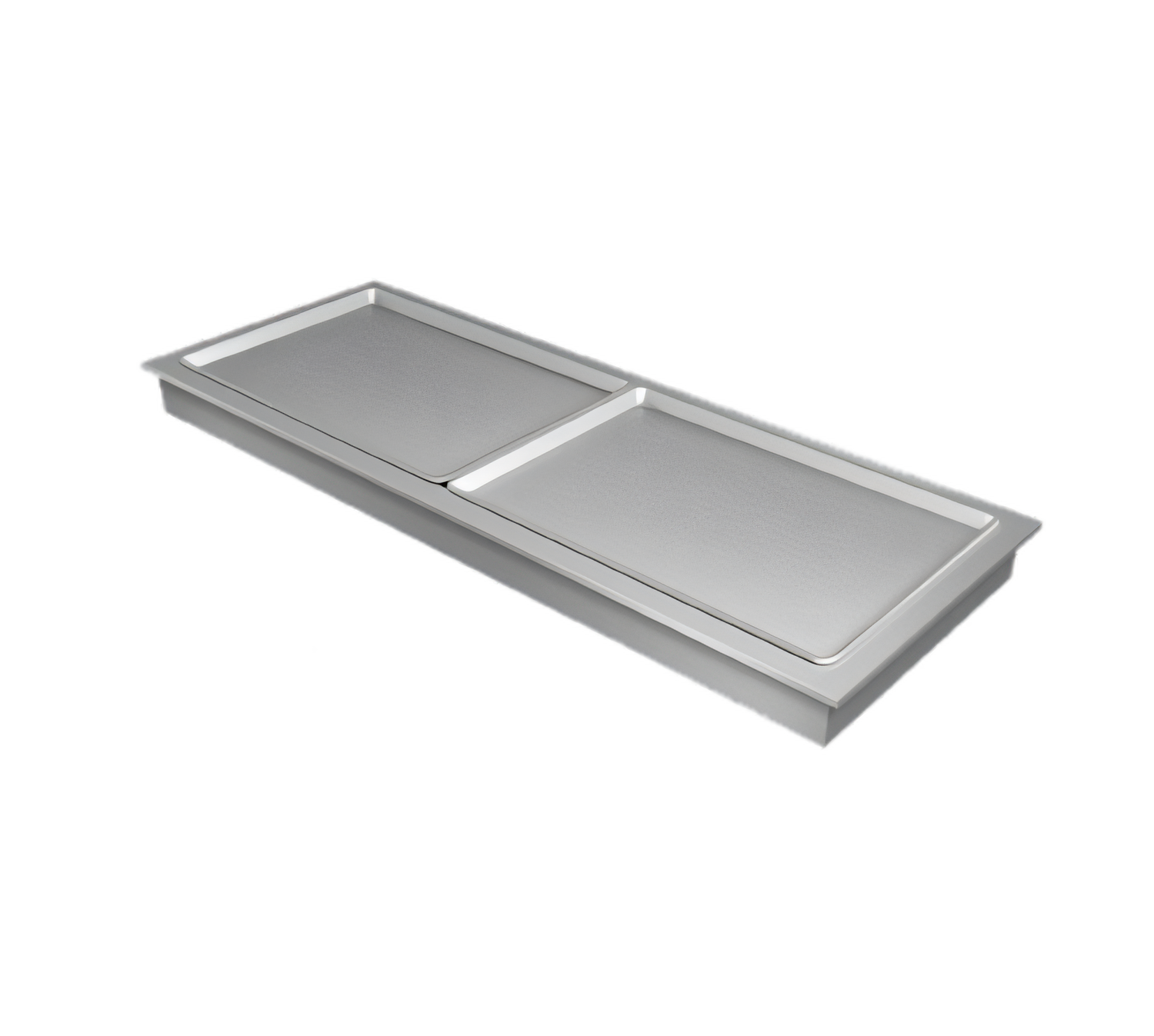

Hatco FTBX-1 Remote Drop-In Frost Top
1-Pan, 28 15/16" L counter insert for remote refrigerationGive your cold offerings the presentation they deserve—right in the serving line—without tying up precious floor space with a compressor. The Hatco FTBX-1 Drop-In Frost Top is purpose-built for remote refrigeration systems, delivering an even frost blanket that keeps pre-chilled beverages, appetizers and pastries at safe, appetizing temperatures for hours.
Why you’ll love it
- Capacity: holds one full-size sheet pan (18" × 26") flush with the counter for a clean, high-end look.
- Cold-wall plate construction is NSF 7 approved—keeps moisture in the food, not in the air.

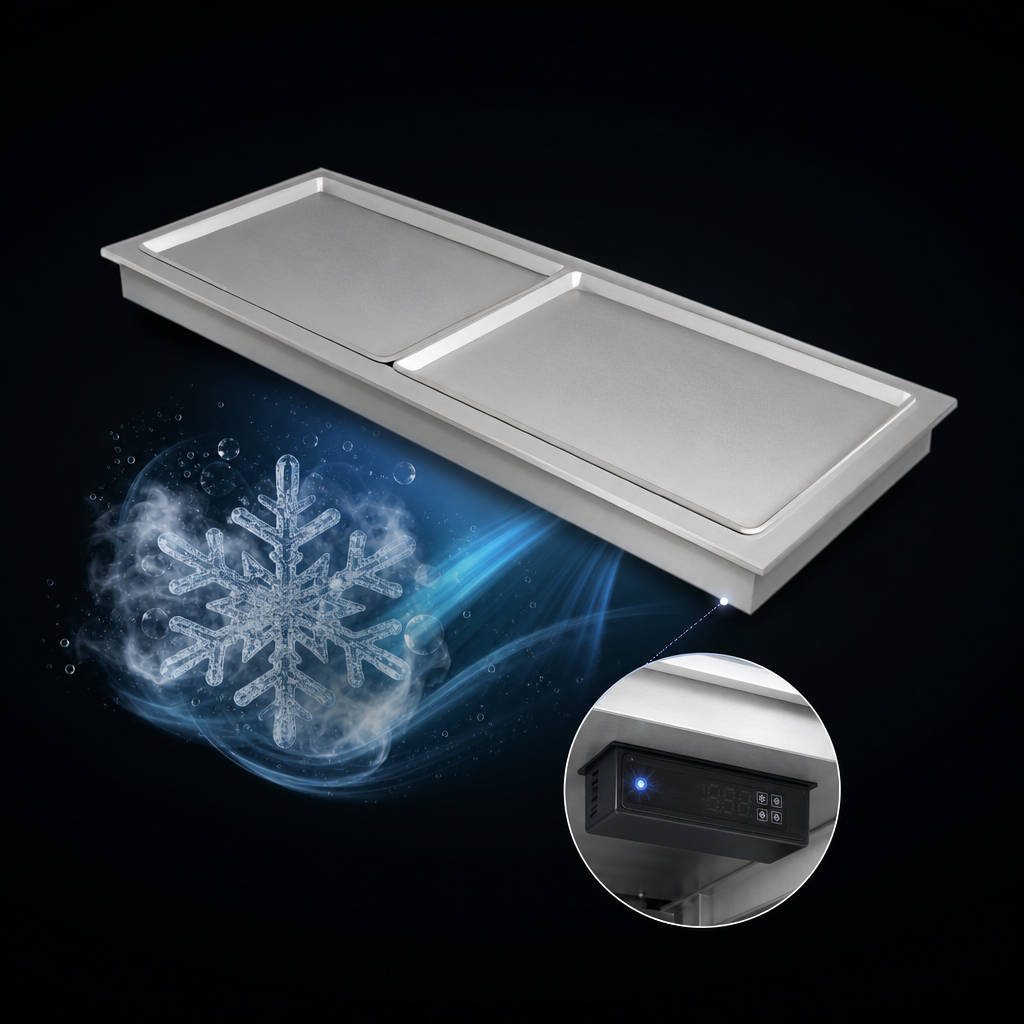

- Advanced electronic controller with auto-defrost prevents ice build-up and can be mounted on either side of the unit or remotely up to 9 ft (2.7 m).

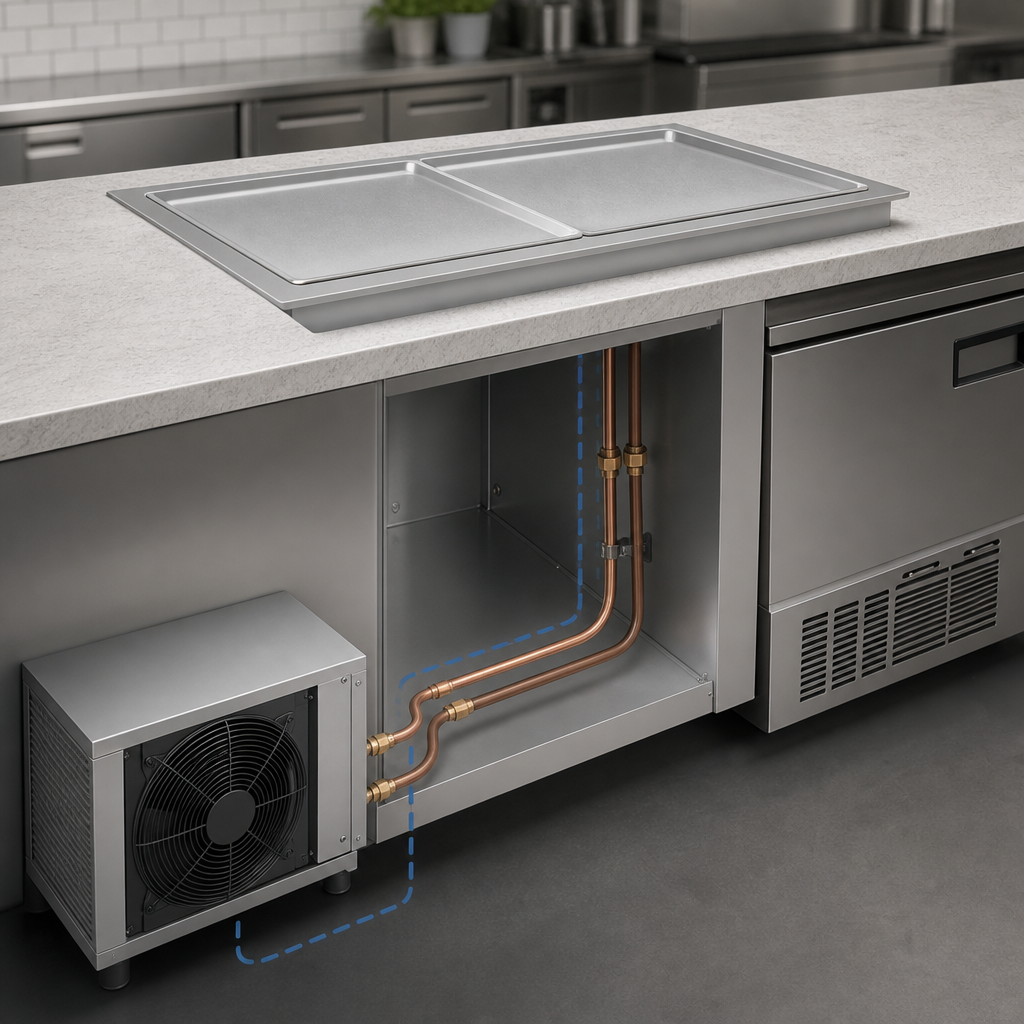

- Ships without a condensing unit so you can connect to a house system or multiplex rack (TXV & solenoid valve come pre-installed).
- Utilizes eco-friendly R-513A refrigerant for a lower global-warming potential vs. R-404A.
- Low-profile 3.56" (90 mm) pan deck maximizes product visibility and customer access.
- Made in the USA and fully certified (cULus, NSF).
Technical details
| Model | FTBX-1 (remote) |
|---|---|
| Pan capacity | (1) full-size sheet pan, 18" × 26" |
| Overall size (W × D × H) | 28.94" × 21.06" × 3.56" (735 × 535 × 90 mm) |
| Recommended cut-out | 27.44–28" W × 19.44–20.125" D |
| Evaporator load | 330 BTU/hr |
| Electrical (controls only) | 120 V or 220-240 V, single-phase |
| Refrigerant | R-513A (charge supplied by remote system) |
| Drain | Not required on 1-pan models |
| Ship weight | ≈ 85 lb (39 kg) |
| Certifications | cULus, NSF 7 |
Compatible accessories (sold separately)
- Full-size stainless steel sheet pans
- Half-size sheet pans for multi-item layouts
- Hatco Heated Wells – pair hot and cold wells side-by-side for a cohesive line-up
This FTBX-1 model is designed for connection to a remote condensing unit (by others). Ensure the refrigeration system is charged with R-513A and sized to meet the 330 BTU/hr evaporator load. Follow all local codes and Hatco’s installation manual for line-set design, superheat, and sub-cooling requirements.
24/7 parts & service assistance available in the U.S. & Canada through the Hatco Authorized Service network.
