Hatco FTBR-3 Refrigerated Prep Tables
Description
Hatco 57" Remote Drop-In Frost Top – 3-Pan
Model FTBR-3 (Remote Refrigeration & Control Panel Included)Give your cold display the professional edge it deserves. Hatco’s 57-inch Remote Drop-In Frost Top keeps pre-chilled beverages, desserts, hors d’oeuvres and grab-n-go items ice-cold without the mess of melting ice. Designed for high-volume counters, buffets and serving lines, this three-pan unit pairs dependable Hatco performance with the flexibility of a remote condensing package.

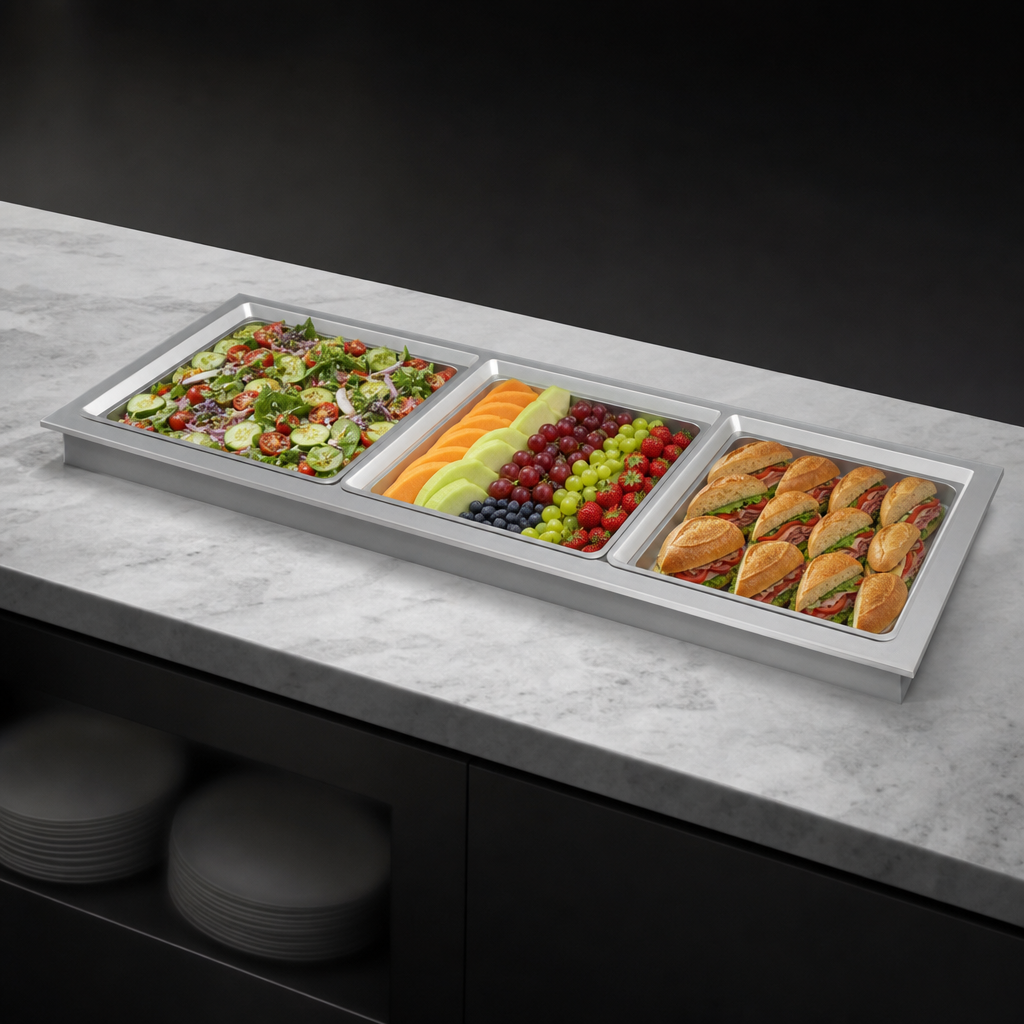

Why You’ll Love It- Room for three full-size 18" × 26" sheet pans on a single continuous frost surface.
- NSF 7 approved cold-wall construction keeps product cold without drying it out.
- Auto-defrost cycle is factory-programmed and adjustable from the electronic control.
- Electronic temperature control can be mounted on either side of the condenser or remotely up to 4 ft (1.2 m) from the unit for an uncluttered counter face.

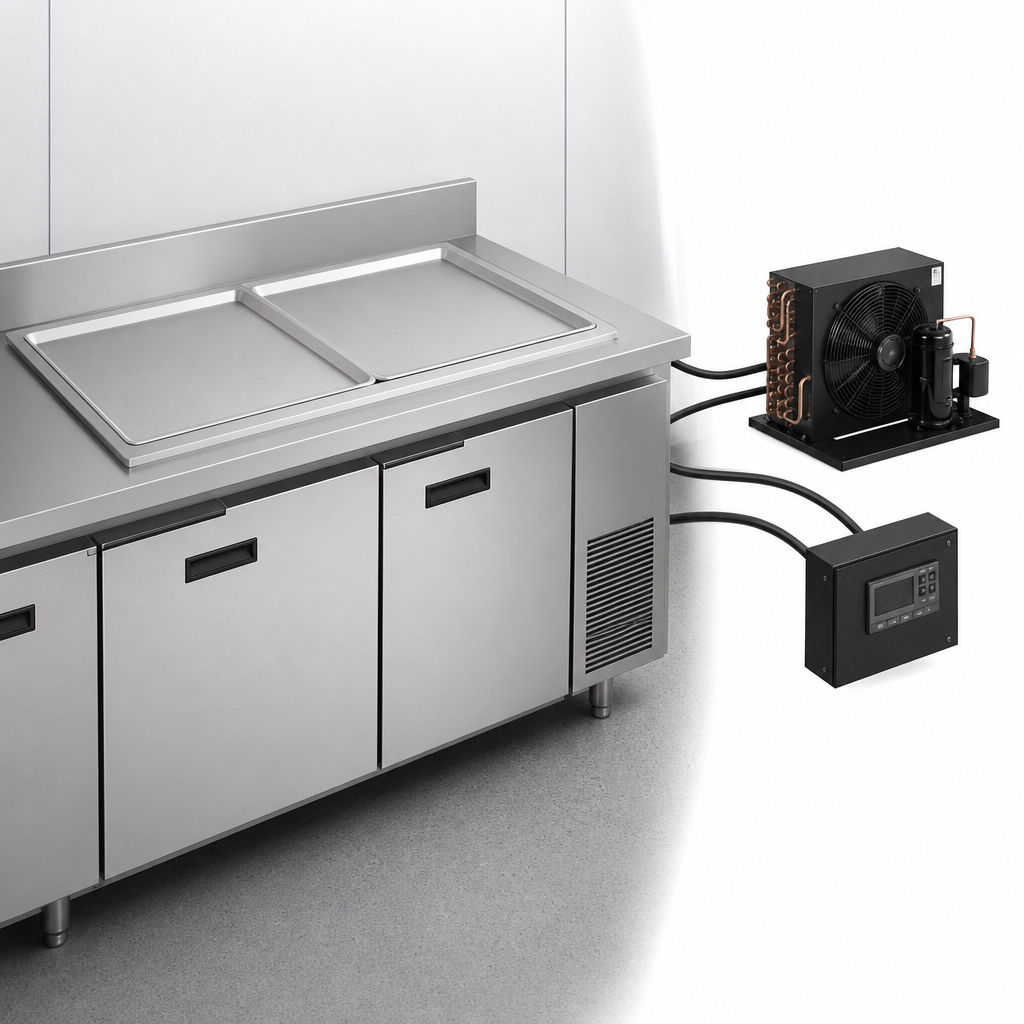

- Remote condensing unit (¼ HP) ships loose for field mounting; refrigerant lines can run up to 50 ft (15.2 m) for maximum design flexibility.
- Factory-charged for R-513A – an environmentally conscious, low-GWP refrigerant.
- 1" NPT brass drain simplifies daily cleaning and melt-water removal.
- Matches Hatco Heated Wells for a seamless hot-to-cold serving line.
- Certified cULus & NSF; proudly Made in the USA.
| Overall dimensions (W × D × H) | 57" × 28.94" × 3.56" (1448 × 735 × 90 mm) |
|---|---|
| Cut-out (min – max) | 55.38"–56" × 27.31"–28" (1407–1422 × 694–711 mm) |
| Pan capacity | 3 full-size sheet pans | 6 half-size sheet pans |
| Compressor | ¼ HP remote condensing unit (shipped loose) |
| Refrigerant | R-513A |
| Electrical | 120 V or 220-240 V, single phase (field wired) |
| Drain connection | 1" NPT brass |
| Control panel lead length | Up to 4 ft (standard) | 9 ft (max with optional wiring) |
| Agency listings | cULus, NSF 7 |
| Country of origin | USA |
- Frost Top assembly with 1" drain
- Remote condensing unit (¼ HP) with TXV & filter-drier
- Electronic temperature control panel with probe
- Installation & operating manual
- Full-size stainless sheet pans – 18" W × 26" D
- Half-size stainless sheet pans – 18" W × 13" D
- Additional 4-year compressor parts-only warranty (FTBR models)
Need a different size? 1- and 2-pan models, as well as Slim-Line configurations, are available on request.
