Description

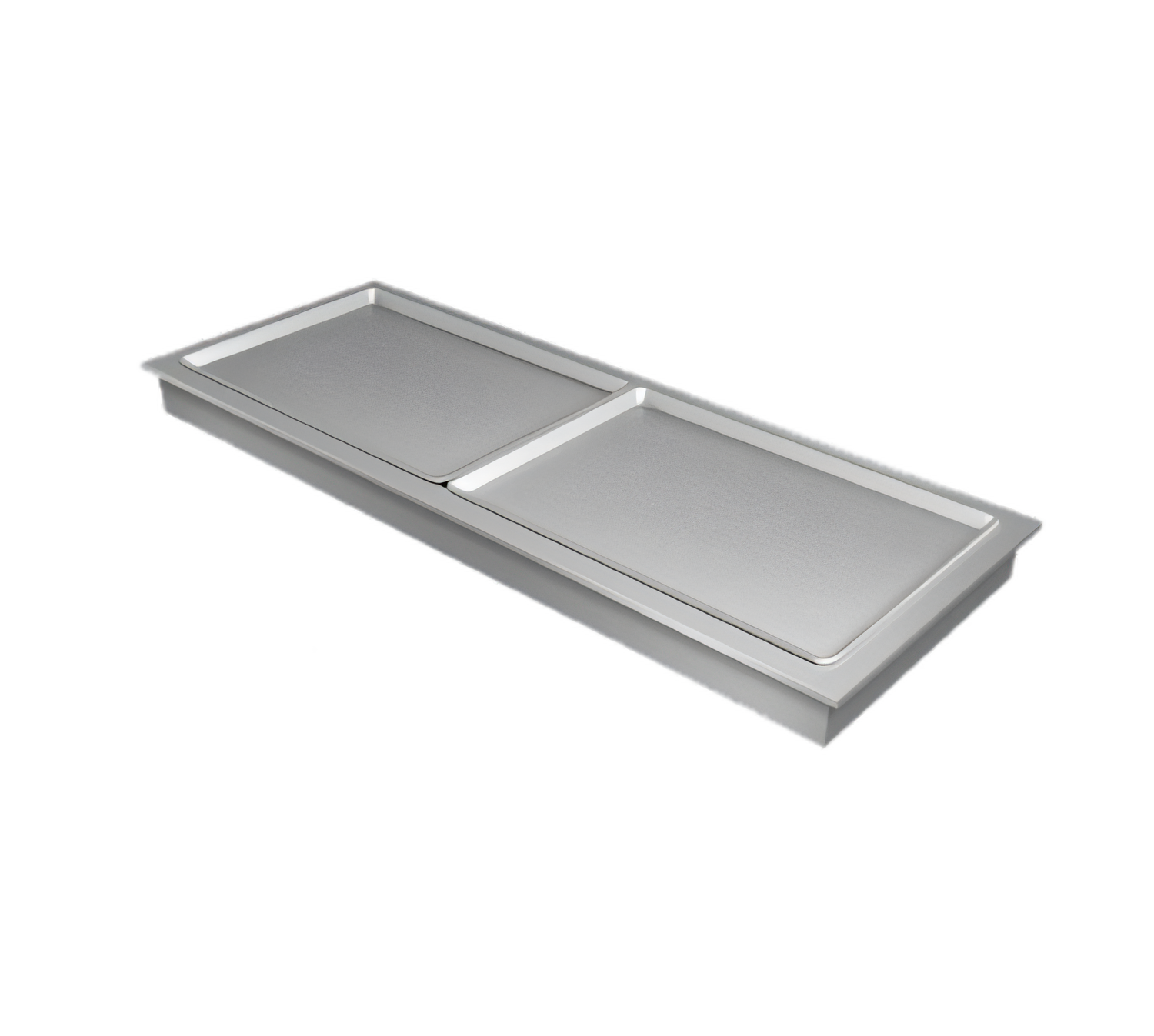

Hatco Remote Drop-In Frost Top – 1-Pan, 28-15/16″

Model FTBR-1 | R-513A | Remote Refrigeration

Present beverages, salads and plated desserts at the ideal chilled temperature without sacrificing valuable counter space. Hatco’s FTBR-1 sits flush in your countertop, holding a full-size sheet pan on an evenly frosted surface while the remote 1/4 HP condensing unit keeps heat and noise out of the customer zone.

Key Advantages

  • Cold-wall plate delivers uniform cooling across the entire pan – no fans, no product drying.
  • Electronic temperature control mounts on either side of the condensing unit or up to 4' (1.2 m) away for flexible layouts.
  • Automatic electronic defrost prevents ice build-up and maintains consistent holding temps.

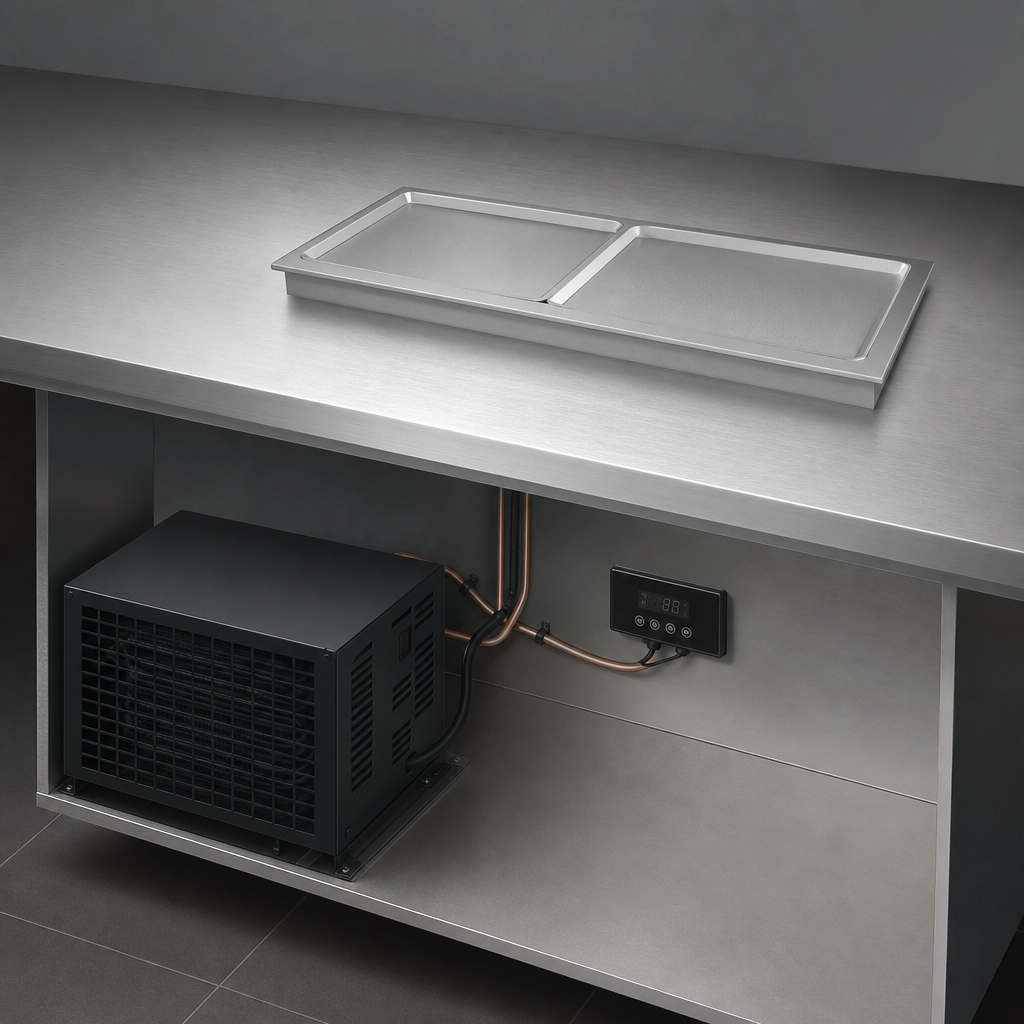

  • Remote 1/4 HP compressor (ships loose) can be installed up to 50' (15 m) from the frost top.
  • Eco-friendly R-513A refrigerant meets current sustainability standards.
  • NSF 7 & cULus listed, built in Wisconsin, USA.

Ideal Applications

  • Buffets & salad bars
  • Grab-and-go merchandising
  • Dessert & pastry displays
  • Hotel, c-store & cafeteria service lines

Included with Your Purchase

  • Drop-in frost top (28.94" W plate)
  • Remote 1/4 HP condensing unit (pre-charged for R-513A)
  • Electronic control panel with 9' (2.7 m) probe lead
  • Factory-installed TXV valve, filter-drier & sight glass

Specifications

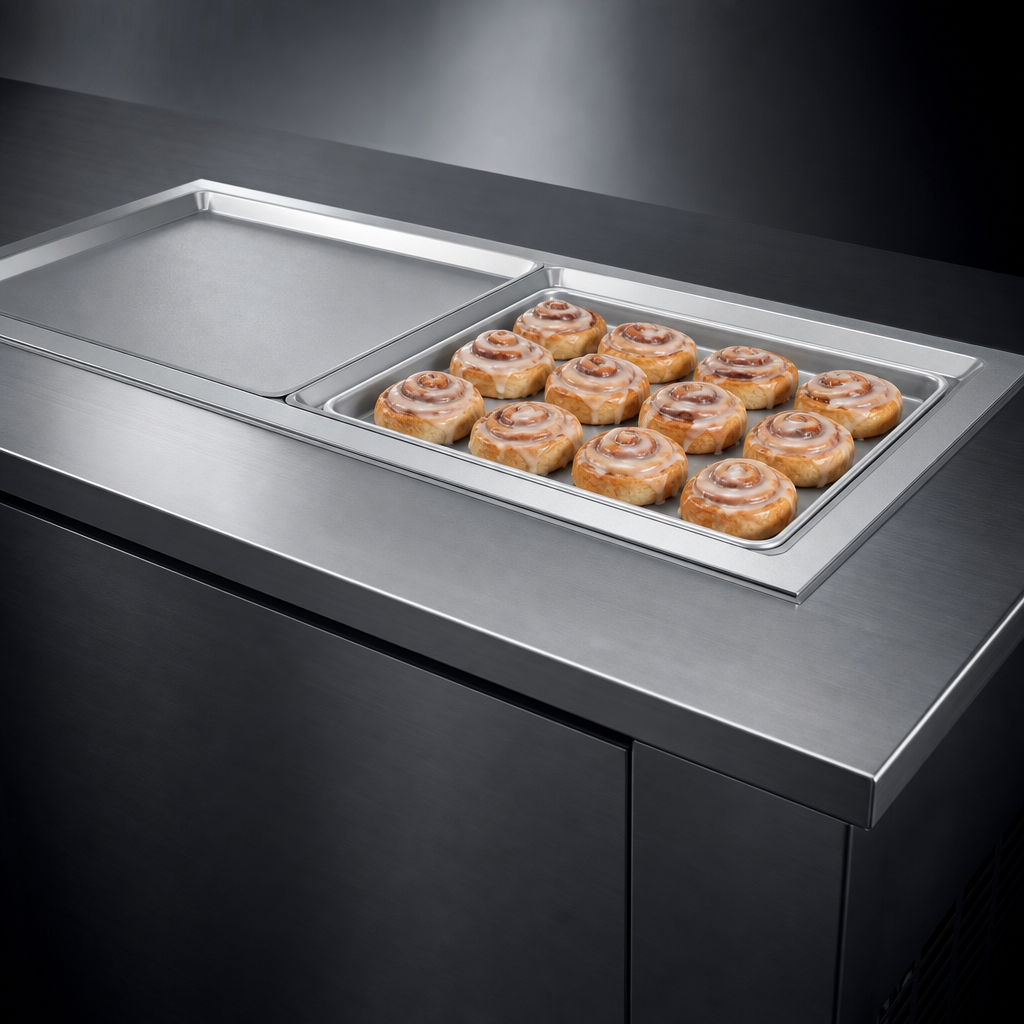

Pan Capacity (1) full-size 18" × 26" sheet pan
Plate Size 28.94" W × 21.06" D (735 × 535 mm)
Required Cut-Out 27.44–28" W × 19.44–20.125" D
Overall Height 3.56" (90 mm) – add 3.25" for evaporator tubes
Compressor Remote 1/4 HP
Refrigerant R-513A
Defrost Automatic electronic
Electrical 300 W, single phase, 120 V or 220–240 V, 50/60 Hz
Certifications NSF 7, cULus
Country of Origin Made in USA

Looking for multi-pan or slim configurations? Ask us about Hatco’s full FTBR/FTBX series lineup.

Installation Notice: The condensing unit ships loose and must be installed, piped and commissioned by a qualified refrigeration technician in accordance with local codes.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

3.56in

Width

28.94in

Depth

21.06in

Shipping Weight

125.0lbs

Width (side - side)

30 inches (and under)

Depth (front - back)

28"

Specifications

Drop-In Frost Top, 28-15/16"L, accommodates (1) full size sheet pan, auto defrost, electronic adjustable temperature control can be mounted to either side of condensing unit or remotely up to 4' from unit, remote refrigeration & control panel, R513a, 1/4 HP, cULus, Made in USA, NSF
