Hatco FTBP-3 Refrigerated Prep Tables
Description

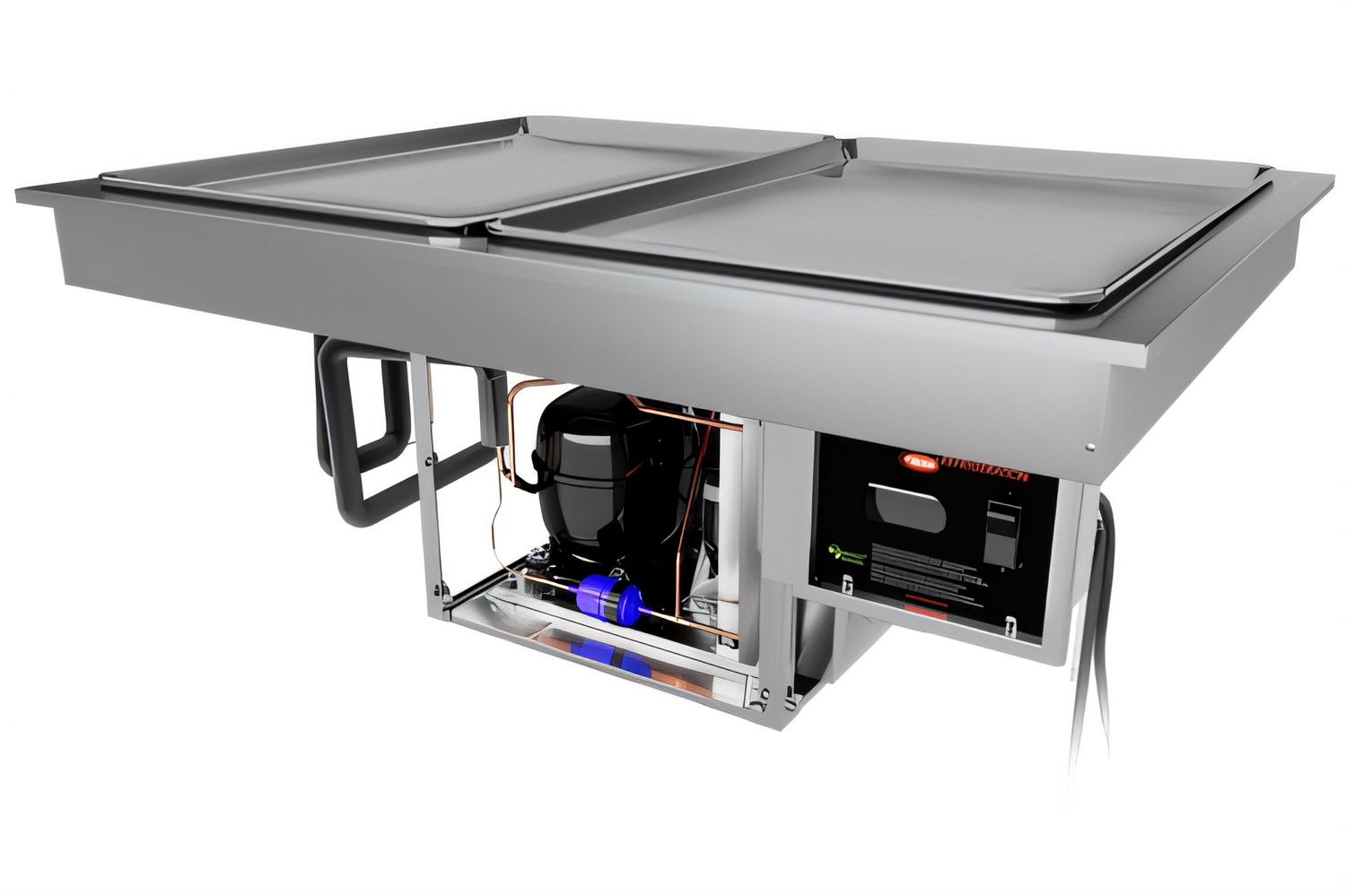

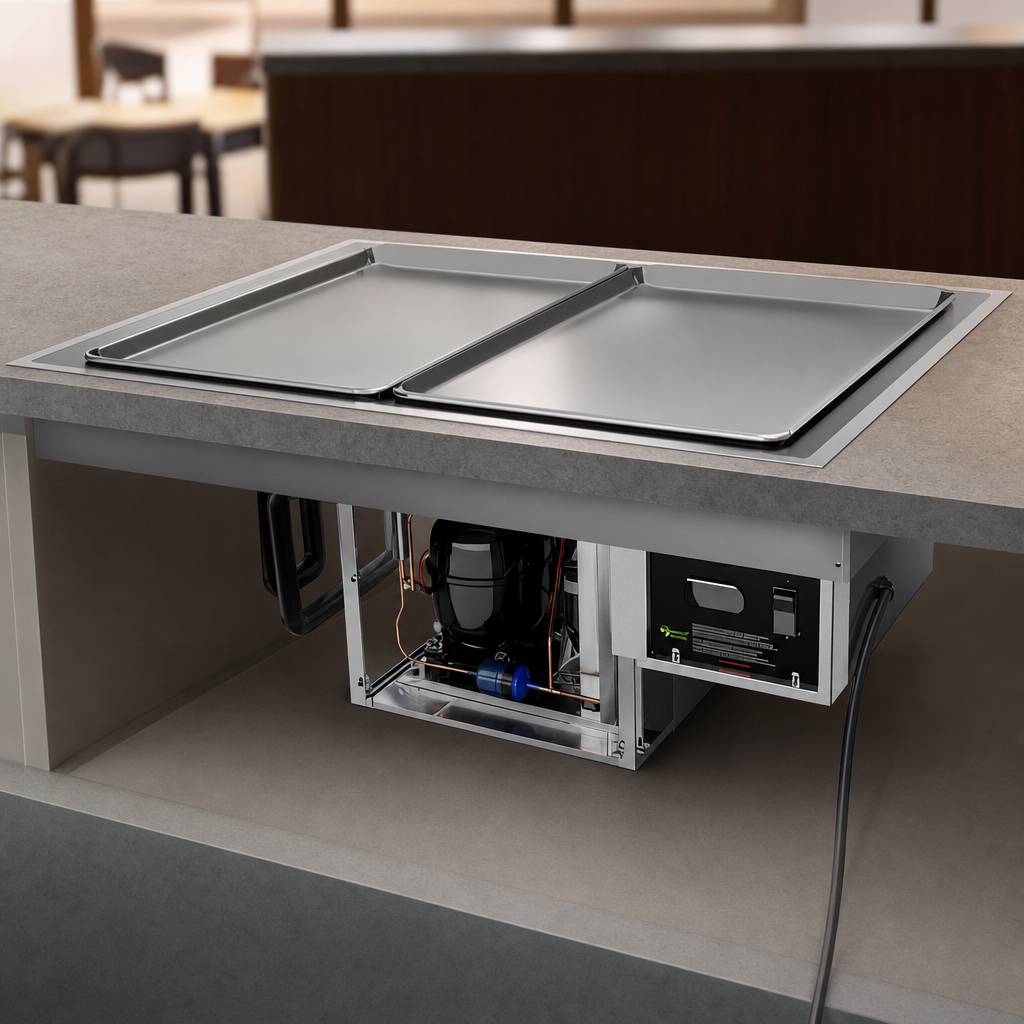

Hatco FTBP-3 Drop-In Frost Top – 57"
3-Pan | Self-Contained R-290 Refrigeration | Made in USAGive guests perfectly chilled beverages, hors d’oeuvres, desserts and more with the Hatco FTBP-3 Drop-In Frost Top. Designed to hold three full-size sheet pans in a single, easy-reach row, this 57 inch unit delivers reliable cold-wall performance without drying out product. A factory-charged R-290 refrigeration system, automatic defrost and a remote-mount electronic control make it the simplest, most eco-friendly way to add true frost-top merchandising to your counter line-up.
Why You’ll Love It

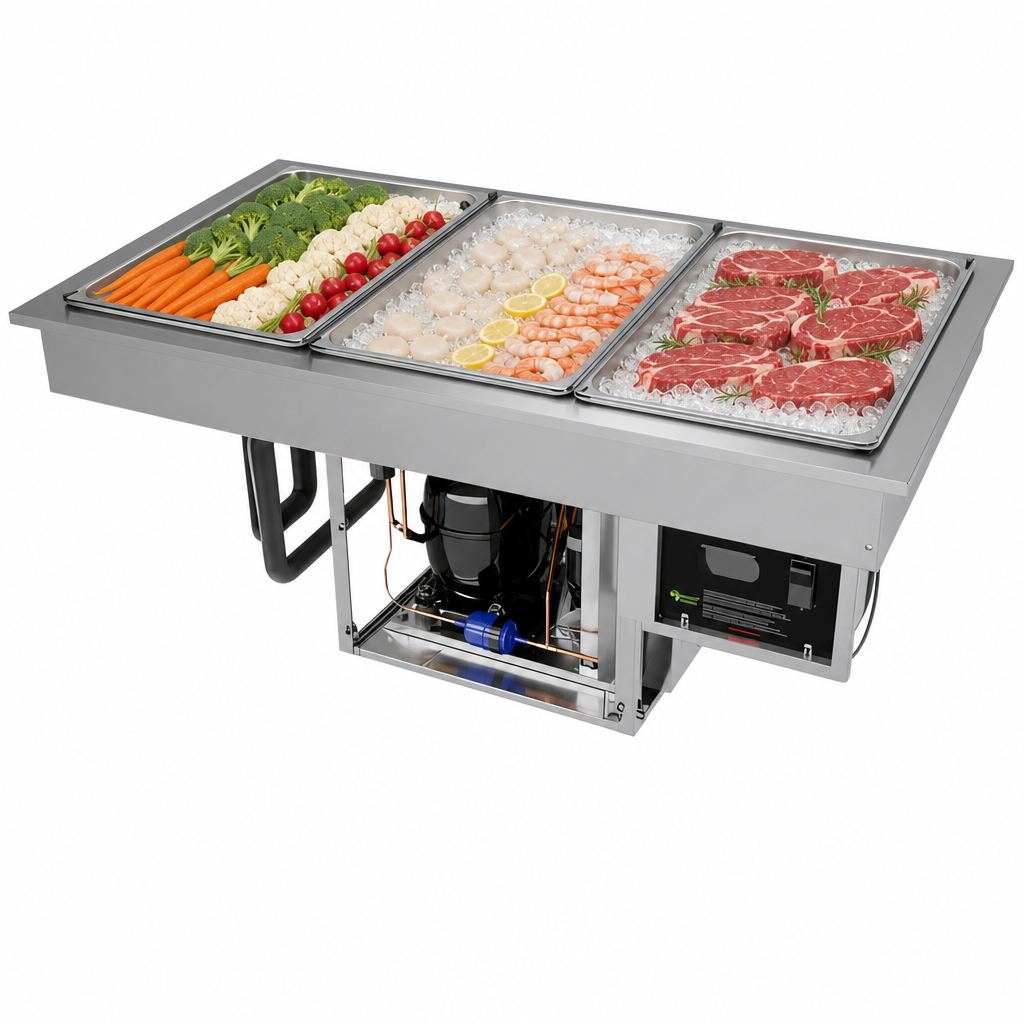

- Full 3-pan capacity – fits (3) 18" × 26" full-size sheet pans in a space-saving straight line.
- Cold-wall construction keeps food cold and moist; no forced air means no product dehydration.
- Eco-conscious R-290 refrigerant paired with a self-contained 1/5 HP compressor.
- Electronic temperature control can mount on either side of the condenser or up to 4' (1.2 m) away for ultimate flexibility.
- Automatic defrost cycle maintains peak performance with zero operator guess-work.
- Lighted on/off rocker switch provides instant power status at a glance.
- 1" NPT brass drain speeds daily clean-ups (hose not included).
- Factory-wired & factory-charged – drop it in, plug it in, and you’re chilling.
- cULus listed, NSF 7 component approved and proudly made in the USA.
Technical Specifications
| Model | FTBP-3 |
|---|---|
| Pan Capacity | (3) full-size 18" × 26" sheet pans |
| Exterior Dimensions (W × D × H) | 57" × 28.94" × 17.08" (1448 × 735 × 434 mm) |
| Recommended Cut-out (W × D) | 55.38–56" × 27.31–28" (1407–1422 mm × 694–711 mm) |
| Refrigerant / Charge | R-290, 4.6 oz (0.13 kg) |
| Compressor | 1/5 HP (120 V) | 1/3 HP (220–240 V) |
| Electrical | 120 V, 60 Hz, 345 W, 5.2 A, NEMA 5-15P 220/230/240 V, 50/60 Hz, 333-396 W, 3.0-3.3 A (lead only) |
| Total Heat of Rejection | 1921 BTU/hr (120 V) | 2095 BTU/hr (Int’l) |
| Drain Connection | 1" NPT brass |
| Approx. Shipping Weight | 213 lb (97 kg) |
| Certifications | cULus, NSF 7 (component) |
Accessories such as full-size or half-size sheet pans are sold separately.
Always allow proper ventilation for the condensing unit and follow the installation & operating manual for
ambient limits, defrost scheduling and sanitation procedures.
