Hatco FR2-6B Hydro-Heater Steam Tables & Food Wells
Description

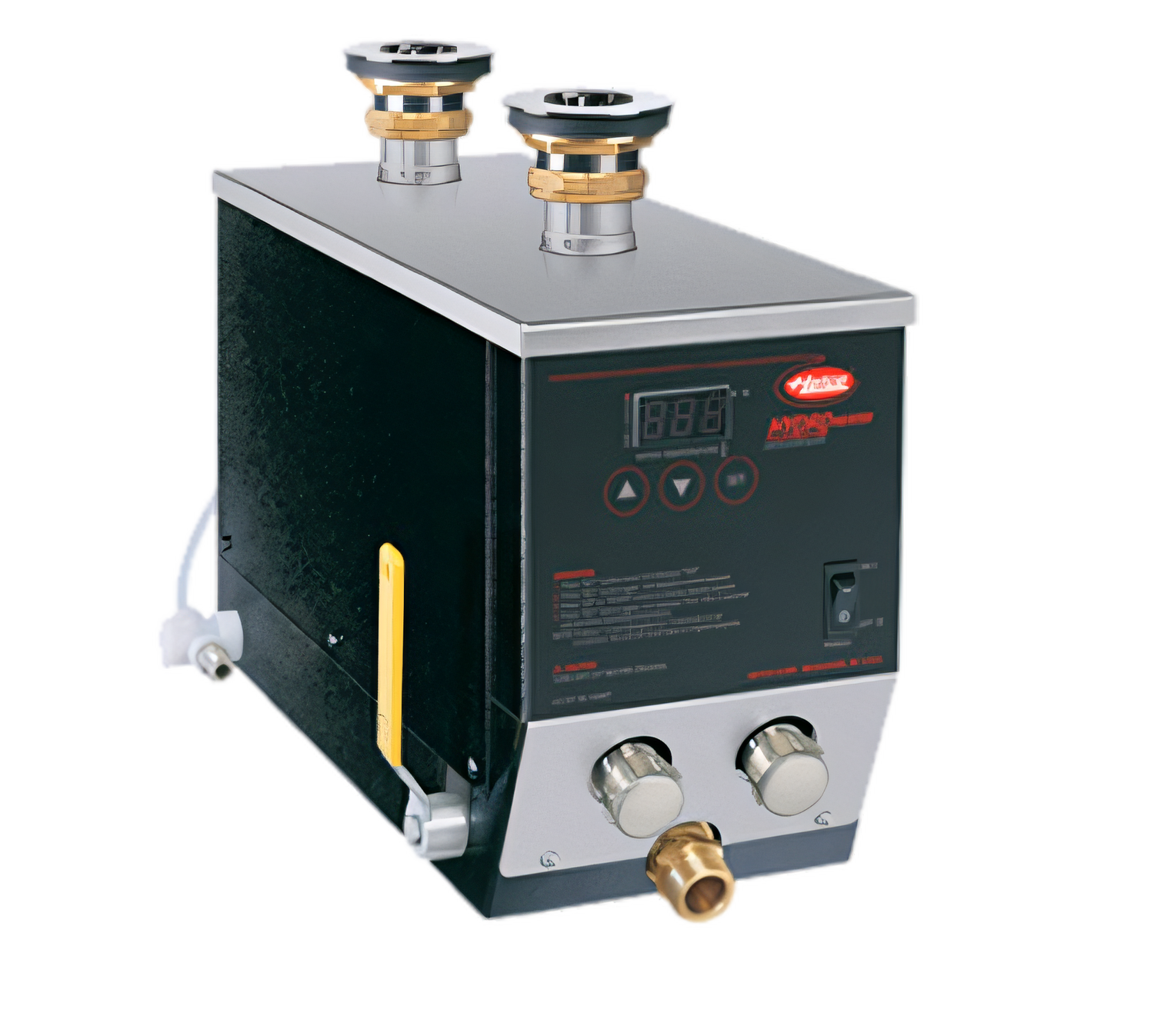

Hatco Hydro-Heater FR2-6B Food Rethermalizer / Bain-Marie Heater · 6 kW
Patented “free-flow” water heating — proudly made in the USABring chilled entrées back up to 165 °F fast, or hold soups and sauces at the perfect serving temperature all day. The Hatco Hydro-Heater FR2-6B mounts under a sink, rethermalizer well or steam table and delivers a continuous, precisely controlled supply of hot water with no hot spots or element burnout.
Key Benefits
- 6 kW balanced three-phase power for rapid heat-up and recovery.
- Patented free-flow tube keeps heating elements out of the water path, reducing lime build-up and extending element life.
- Electronic temperature controller with bright digital display—adjustable 140 °F-190 °F (60 - 88 °C).
- Low-water cut-off and electronic temperature monitor protect the unit and your product.
- Durable stainless steel front with powder-coated black hammertone body; optional all-stainless upgrade available.
- Front drain valve and twin clean-out caps simplify daily maintenance.
- cULus Listed and UL EPH Classified to NSF/ANSI 4 standards.
Ideal For
- Bain-marie or steam tables up to 6 ft (1829 mm)*
- Drop-in food rethermalizer wells
- Catering hot boxes & commissary production lines
- Ghost-kitchen or high-volume prep areas
*For vessels over 6 ft, use two Hydro-Heaters and install a perforated water baffle.
Performance Sizing Guide
| Application | Minimum Power Requirement |
|---|---|
| Bain-marie / steam table | 750 W per ft² (0.8 W/cm²) of vessel top |
| Food rethermalizer | 2 000 W per ft² (2.2 W/cm²) of vessel top |
Technical Specs
| Model | FR2-6B (Balanced) |
|---|---|
| Power | 6 kW • 208/240 V • 50/60 Hz • 3-Phase Balanced |
| Temperature Range | 140 °F – 190 °F (60 °C – 88 °C) |
| Dimensions (W × D × H) | 7.75″ × 17.06″ × 12.36″ (197 × 433 × 314 mm) |
| Approx. Ship Weight | 34 lb (15 kg) |
| Construction | Stainless front, powder-coated body, tubular water chamber with external spiral element |
| Safety & Listings | cULus • UL EPH Classified • NSF/ANSI 4 construction |
| Origin | Made in USA |
Factory Options (order-time only)
- SSBODY – all stainless steel body & base
- AUTOFILL – automatic water-level solenoid
- REMOTE – remote-mounted control panel
- HH-SECURITY – Torx® screws & lockable control cover
Accessories
- FR2-Flush Kit – flush hose, cleaning brush, stopper & adapter
24/7 parts & service assistance available in the U.S. and Canada.
