Hatco FR-9B Steam Tables & Food Wells
Description

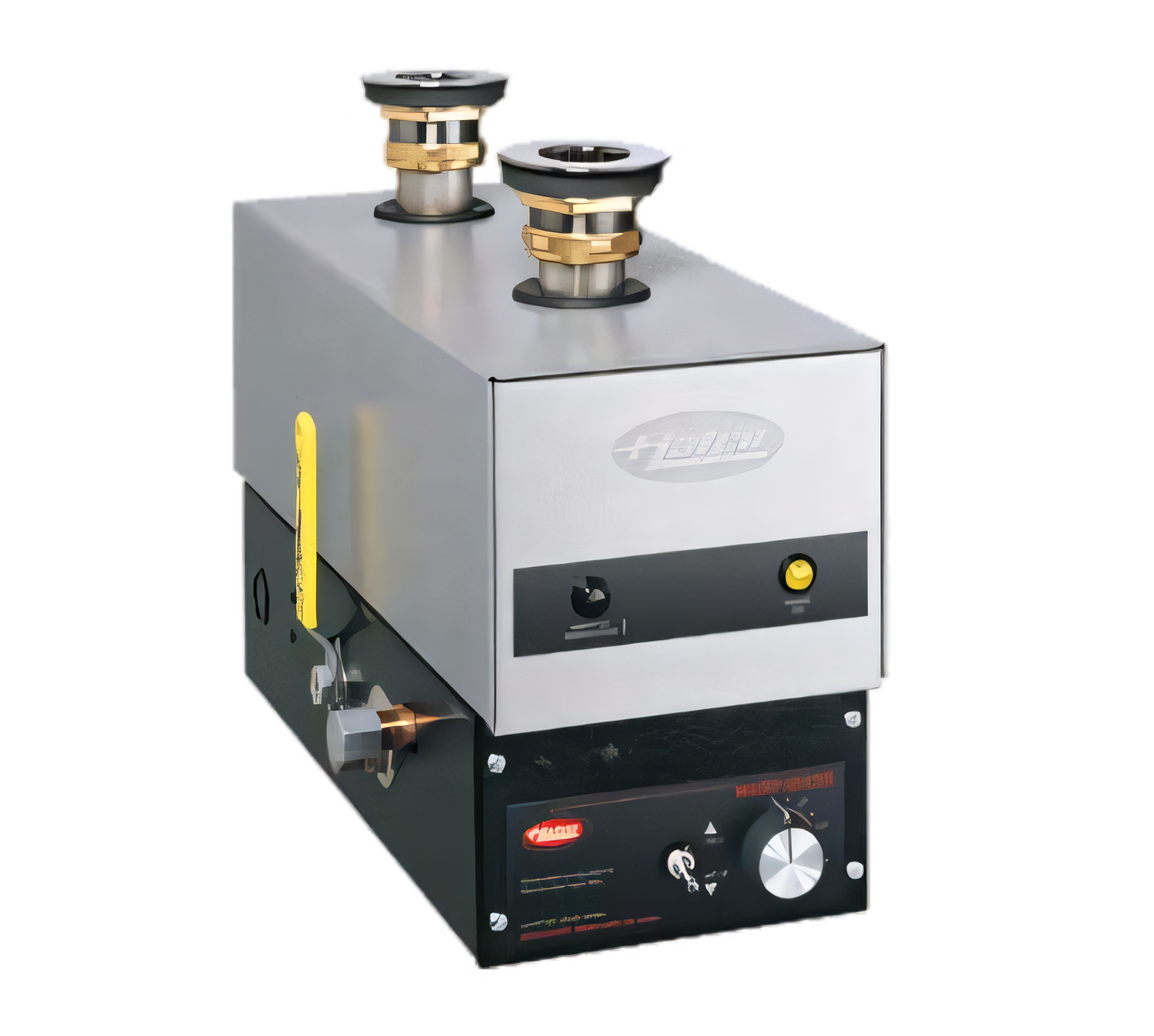

Hatco FR-9B Food Rethermalizer / Bain-Marie Heater – 9 kW
Balanced 3-Phase • Stainless-steel front • Silver-gray hammertone body • Black baseEngineered for high-volume kitchens, the Hatco FR-9B delivers a full 9 kW of balanced three-phase power to quickly heat or safely hold water between 140 °F (60 °C) and 190 °F (88 °C). Mounted beneath a Bain-Marie or rethermalizer well, it continuously circulates hot water to eliminate cold spots and keep foods at consistent, food-safe temperatures.
Key advantages
- Fast, even heating — 9 kW of power with balanced 3-phase loading for greater electrical efficiency and reduced line draw.
- Dual-reservoir stainless tank isolates sediment for easier cleaning and longer element life.
- Precise temperature control via external thermostat (140 °F – 190 °F) with ECO high-limit safety.
- Ready-to-install — includes 2 in. NPT plated-brass fittings, sump drain, heating-compartment drain and mounting hardware.
- Service-friendly design with separate drain ports and front-access controls.
- Five-year limited warranty backed by Hatco’s 24/7 parts & service support in the U.S. and Canada.
Certified performance
- NSF 4 listed
- UL & UL EPH Classified
- CSA & CE marked
- Manufactured in the USA
Technical specifications
| Model | FR-9B (Balanced 3-Phase) |
|---|---|
| Power output | 9 kW |
| Voltage / Amps (balanced 3ɸ) | 208 V ≈ 25 A | 240 V ≈ 22 A | 480 V ≈ 11 A |
| Temperature range | 140 °F – 190 °F (60 °C – 88 °C) |
| Overall dimensions (L × D × H) | 17.13 in. × 8.50 in. × 12.25 in. (435 mm × 216 mm × 311 mm) |
| Plumbing connections | 2 in. NPT (inlet / outlet) |
| Ship weight | ≈ 30 lb (14 kg) |
| Warranty | 5-year limited parts & labor |
Standard features
- Energy Cut-Off (ECO) to prevent over-temperature.
- Illuminated Power and Ready indicator lights.
- Front rocker On/Off switch for quick daily start-up.
- IFS antimicrobial powder coating on body panels.
For Bain-Maries longer than 6 ft (1829 mm) use two heaters. A perforated water baffle (supplied by fabricator) must be installed for proper water circulation.
