Hatco FR-9 Steam Tables & Food Wells
Description

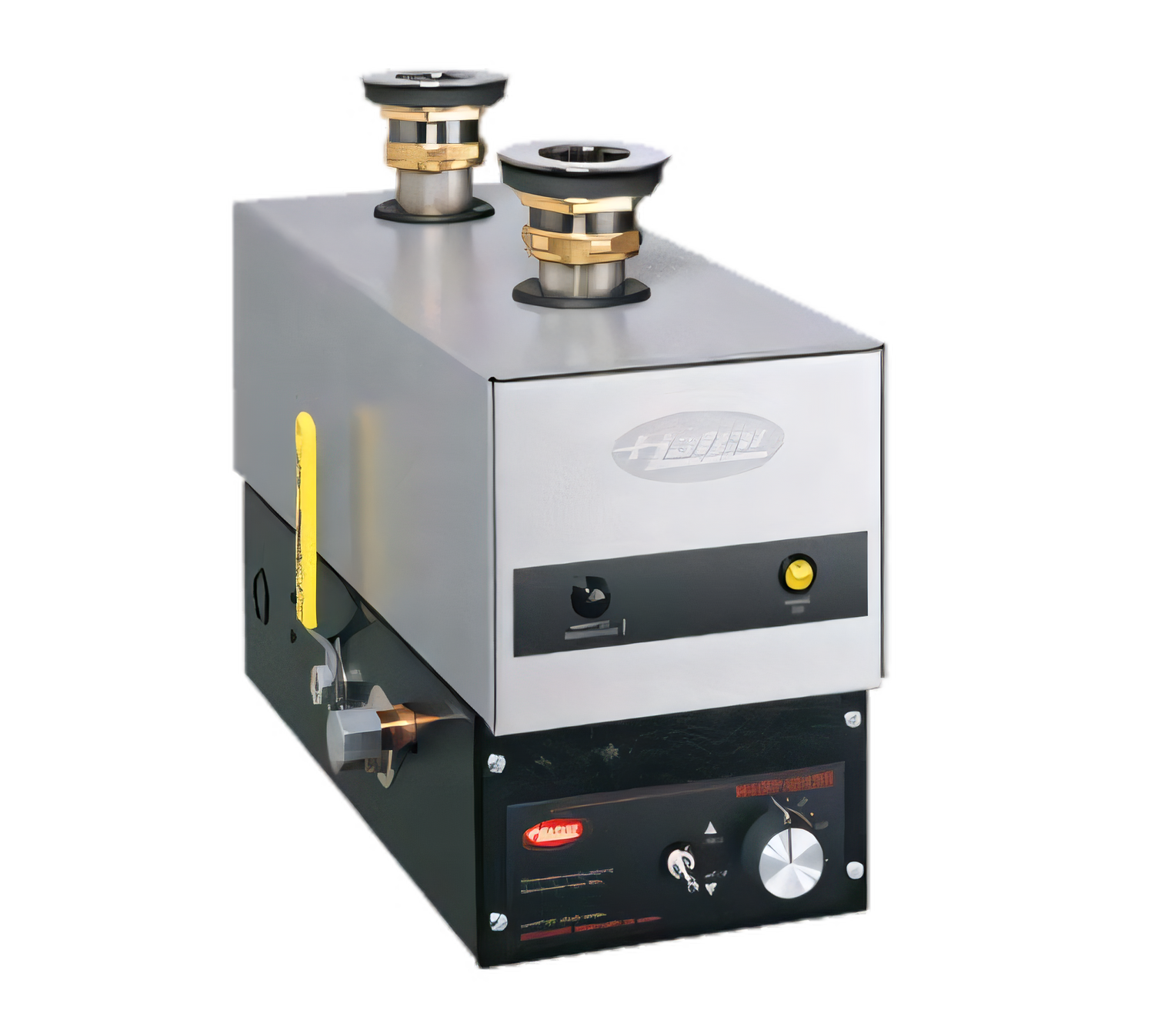

Hatco FR-9 Food Rethermalizer / Bain-Marie Heater — 9 kW
Powerful under-counter heating for fast, safe holding and rethermizingMount the Hatco FR-9 beneath your bain-marie or hot-water well and enjoy even, dependable temperatures from 140 – 190 °F (60 – 88 °C). With a rugged stainless-steel tank, 9 kW of electric heat and built-in safety controls, this Made-in-USA workhorse keeps soups, sauces and fully cooked foods at peak quality — shift after shift.
Why you’ll love it
- High-power performance: 9 kW element quickly recovers temperature during the busiest service periods.
- Precise thermostat: Dial-adjustable from 140 – 190 °F (60 – 88 °C) for perfect holding or rethermizing.
- Energy Cut-Off (ECO): Automatic over-temperature shut-off protects food and equipment.
- Dual-reservoir, stainless-steel tank: One chamber keeps the element submerged; a separate sump traps soil and drains easily.
- Two independent drains: Speed rinsing, cleaning and sanitizing at day’s end.
- Ready-to-install: Includes 2" (51 mm) plated-brass plumbing fittings and a lighted ON/OFF toggle switch.
- Durable exterior: Stainless-steel front, silver-gray hammertone powder-coated body with IFS antimicrobial finish, and a black base.
- Certified & compliant: NSF, UL, UL EPH Classified, CSA and CE listed.
- Peace of mind: 5-year limited warranty backed by 24/7 parts & service support (U.S. & Canada).
Technical details
| Model | FR-9 |
|---|---|
| Heat Output | 9 kW (≈31,000 BTU/hr equivalent) |
| Temperature Range | 140 – 190 °F (60 – 88 °C) |
| Electrical | 208 V, 240 V or 480 V • Single or 3-phase (select above) |
| Max Current Draw | 43.3 A @ 208 V (see spec sheet for all variations) |
| Overall Dimensions | 16.9" L × 8.5" W × 12.25" H (429 × 216 × 311 mm) |
| Shipping Weight | Approx. 28 lb (12 kg) |
| Construction | Stainless-steel tank & front panel; powder-coated steel body; black base |
| Certifications | NSF, UL, UL EPH, CSA, CE |
| Warranty | 5-year limited parts & labor |
Perfect for
- Bain-marie serving counters up to 6 ft (1.8 m)
- Soup & sauce kettles or wells
- Commissary rethermizing stations
- Catering, banquet or grab-and-go hot-hold setups
Need different power or output? Hatco FR models are available from 3 kW to 9 kW — just ask us about sizing.
