Hatco FR-9-240-1-QS Quick Ship Steam Tables & Food Wells
Description

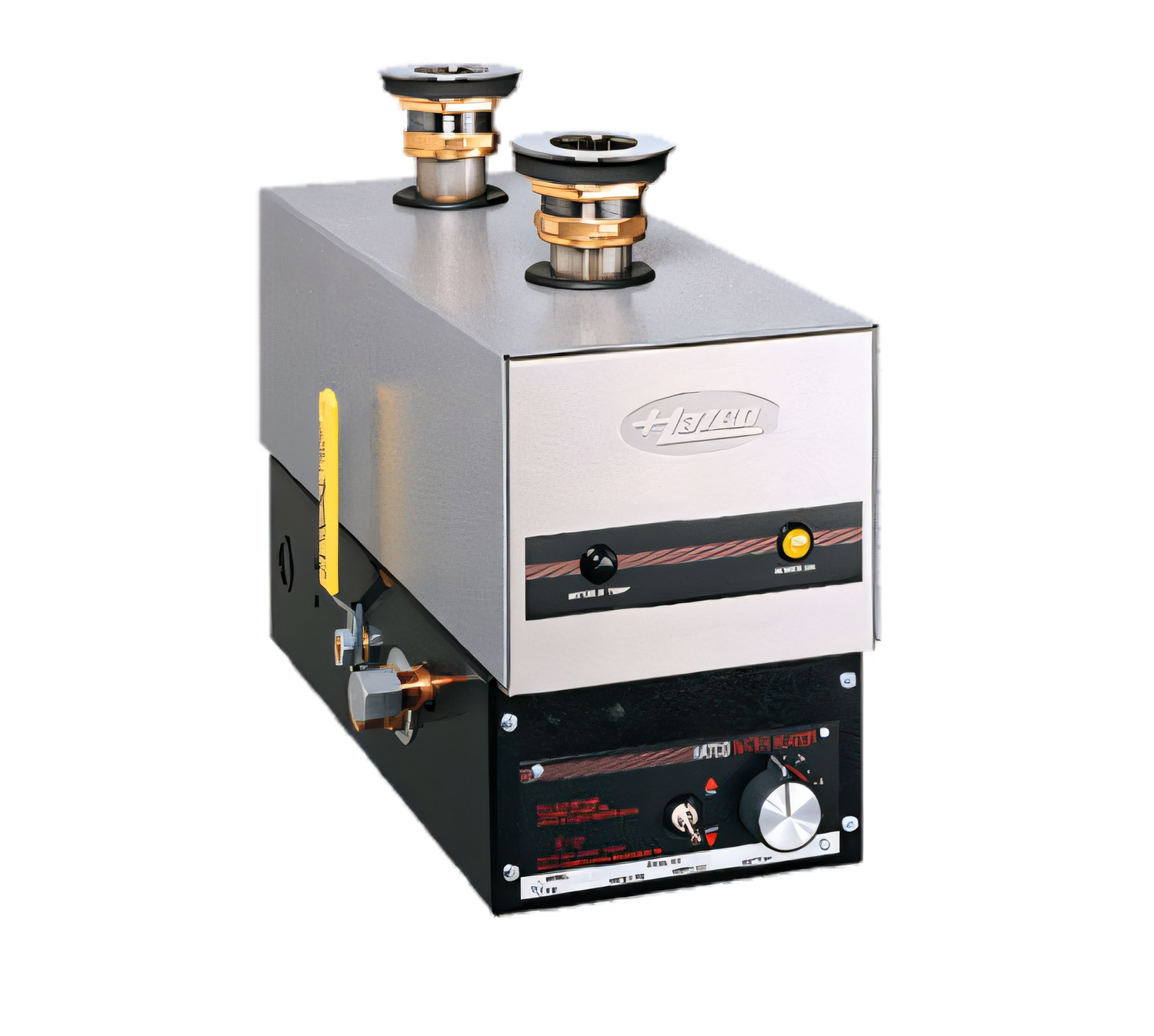

Hatco FR-9 “Quick Ship” Food Rethermalizer / Bain-Marie Heater
9 kW • 240 V / 60 Hz / 1-Ph • Stainless Front & Silver-Gray Hammertone BodyGet piping-hot menu items back to a safe serving temperature—fast. In-stock and ready to leave our warehouse, this Quick Ship configuration of Hatco’s legendary FR-9 heater mounts under your Bain-Marie or rethermalizer tank, circulating water at a consistent 140-190 °F (60-88 °C) without hot or cool spots.
Why You’ll Love It
- 9 kW of instantaneous heat restores chilled or frozen foods to 165 °F (74 °C) within two hours or less*
- Energy Cut-Off (ECO) automatically shuts down the element if water temperature climbs too high
- Rugged stainless-steel tank with a 5-year limited warranty
- Front-mounted adjustable thermostat plus “Power” and “Temperature Ready” indicator lights for at-a-glance status
- Separate drains for the sump and heating compartments simplify daily cleaning and sanitizing
- Ships factory-assembled with standard 2″ plated-brass plumbing unions—no special hardware to hunt down
- Premium finish: stainless front panel, powder-coated silver-gray hammertone sides, and black base look sharp and resist corrosion
Certifications & Compliance
- NSF 4 Listed
- UL & UL EPH Classified
- CSA • CE
- Made in the USA
Ideal Applications
- Cafeterias & buffets
- Supermarkets & delis
- Central kitchens & commissaries
- Catering lines and banqueting
At-a-Glance Specs
| Model | FR-9 (Quick Ship) |
|---|---|
| Heat Output | 9 kW |
| Electrical | 240 V • 60 Hz • 1-Phase |
| Amperage | 37.5 A |
| Recommended Circuit | 50 A, 6 AWG copper |
| Temperature Range | 140–190 °F (60–88 °C) |
| Overall Dimensions | 16.9″ L × 8.5″ W × 12.3″ H (429 × 216 × 311 mm) |
| Net / Ship Weight | ≈ 28 lb (12 kg) |
| Plumbing Fittings | 2″ NPT union (included) |
| Warranty | 5-year limited (tank) • 24/7 US/CA service hotline |
Protect Your Investment
Incoming water harder than 3 GPG (0.75 g/L) should be softened to prevent scale build-up. Damage caused by lime or sediment is not covered under warranty.
*Performance claims assume the vessel is sized per Hatco guidelines (minimum 2,000 W per ft² of tank top for rethermalizing).
