Hatco FR-4 Steam Tables & Food Wells
Description

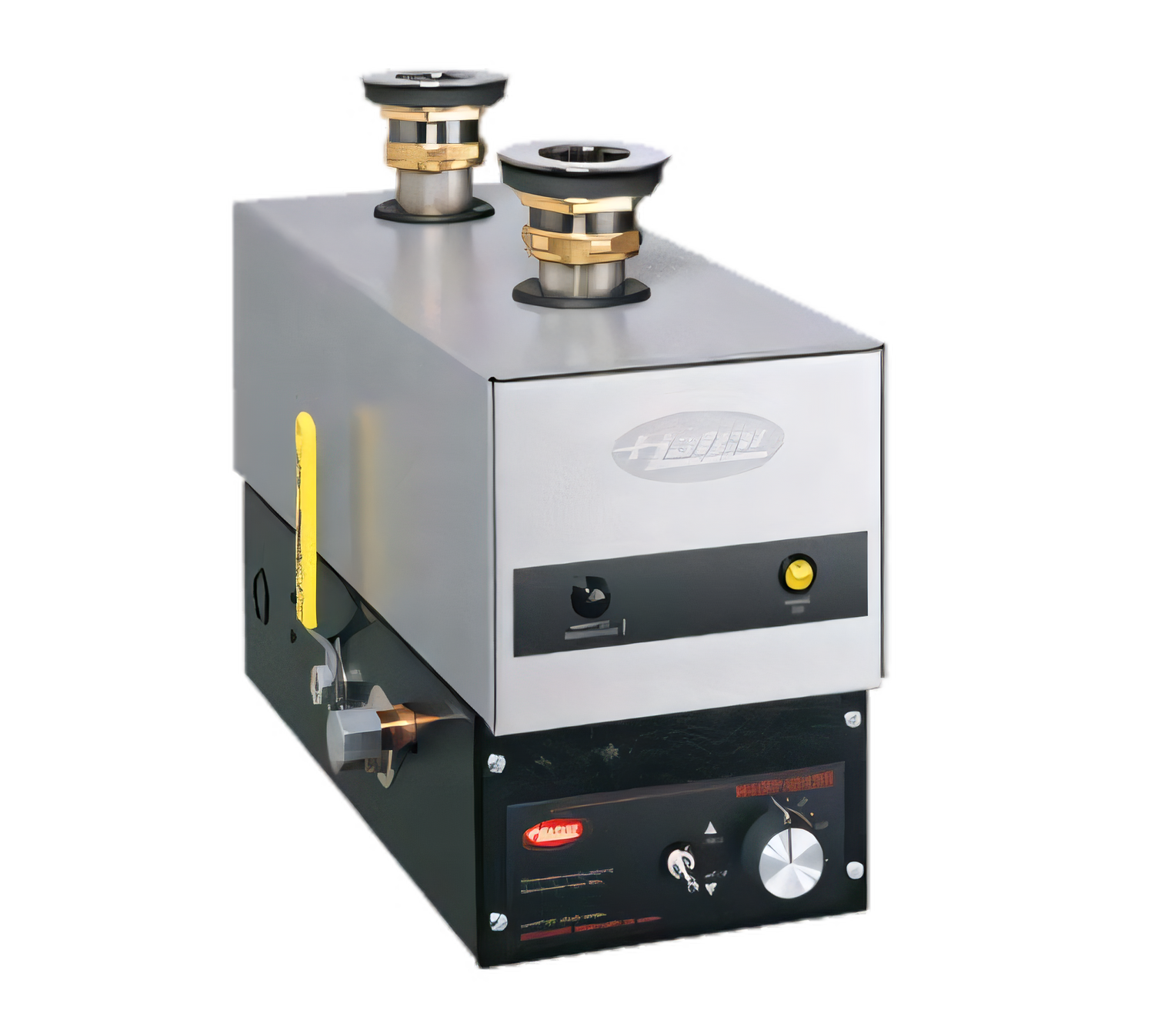

Hatco FR-4 Food Rethermalizer / Bain-Marie Heater – 4.5 kW
Stainless Steel Front · Silver-Gray Hammertone Body · Made in USABuilt for high-volume commercial kitchens, the Hatco FR-4 mounts directly beneath your Bain-Marie or food rethermalizer vessel to bring water up to safe-serving temperatures fast—and keep it there all day. 4.5 kW of power, rugged stainless construction and industry-leading safety controls make the FR-4 a dependable, space-saving solution for buffets, cafeterias, catering lines and more.
Key benefits
- 140 °F – 190 °F (60 °C – 88 °C) adjustable thermostat for precise holding or rethermalizing.
- Energy Cut-Off (ECO) automatically shuts down the elements if water temperature exceeds safe limits.
- Continuous water circulation eliminates “cold spots” and speeds recovery.
- Separate sump and heating-compartment drains simplify cleaning and sanitizing.
- Heavy-duty 2 in. plated-brass unions are factory-installed for quick connection to the holding tank.
- Power toggle switch with indicator lights for Power On and Water Up to Temp.
- Five-year limited warranty on the stainless steel tank plus 24/7 parts & service support (US & Canada).
Quick-look specifications
| Heat Output | 4.5 kW electric |
|---|---|
| Temperature Range | 140 °F – 190 °F (60 °C – 88 °C) |
| Standard Voltages | 208 V or 240 V, 1-phase | 208 V, 240 V or 480 V, 3-phase |
| Overall Dimensions | 16.88 in L × 8.50 in W × 12.25 in H (429 × 216 × 311 mm) |
| Plumbing Connections | 2 in. NPT unions (inlet & outlet) pre-installed |
| Approx. Ship Weight | 24 lb (11 kg) – single-phase | 32 lb (15 kg) – 3-phase |
| Construction | Stainless steel front, powder-coated silver-gray hammertone body, black base |
| Certifications | NSF 4, UL, UL EPH Classified, CSA, CE |
| Country of Origin | Made in USA |
Popular factory options
- All-stainless body & base for harsh or coastal environments.
- Low-Water Cut-Off (LWCO) to prevent element burnout.
- Security package with Torx® screws & tamper-resistant control cover.
- CSA wiring (Canada) or 480 V configuration.
Compatible accessory
- FR-Flush Kit – includes flush hose, stopper and adapter for effortless tank cleaning.
Need help sizing the right heater for your Bain-Marie or rethermalizer pan? Contact us—our foodservice equipment specialists are ready to assist.
