Hatco DHWBI-S4 Steam Tables & Food Wells
Description

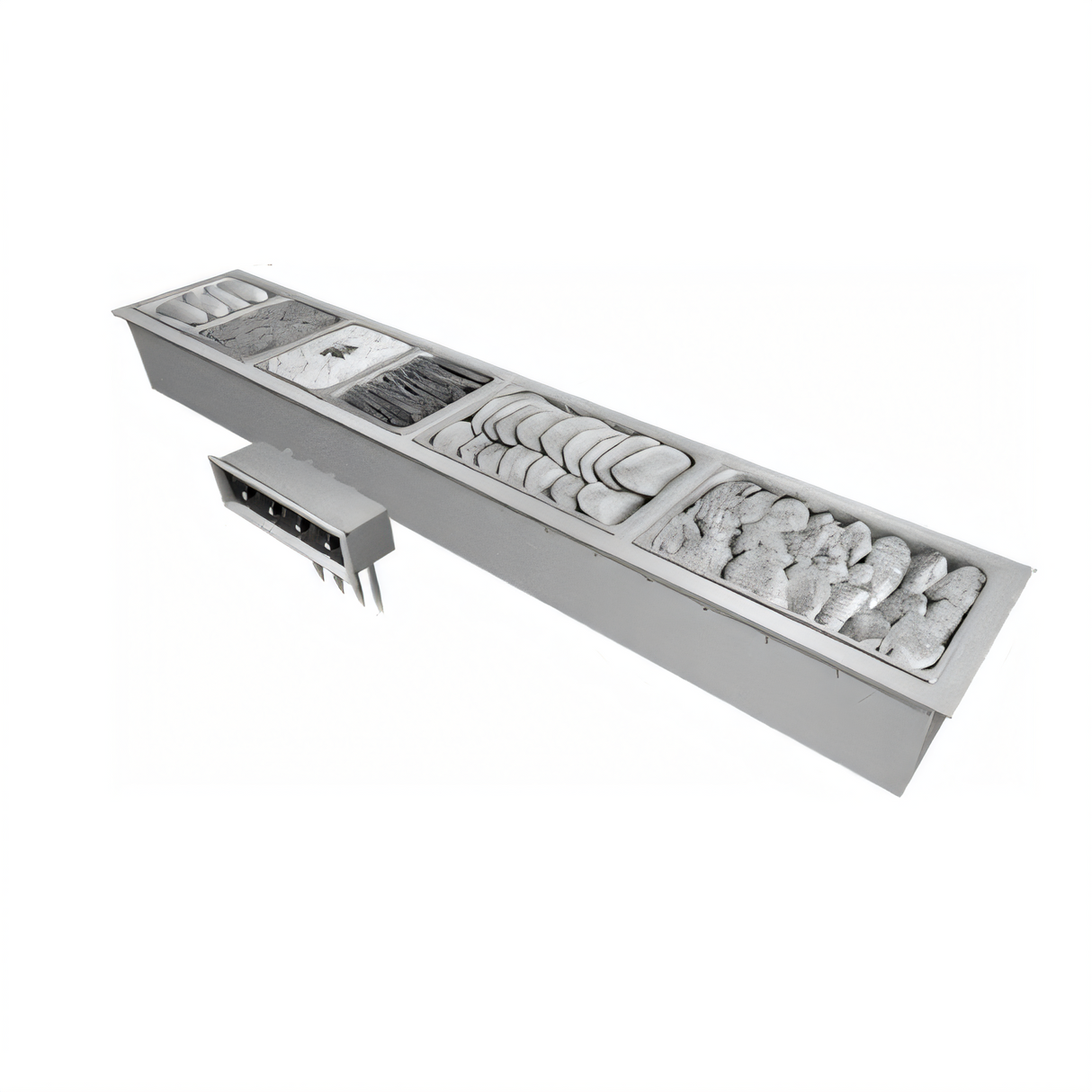

Hatco DHWBI-S4 Drop-In Modular Dry Slim Heated Well
4 × Full-Size Pan Capacity • Remote Thermostat • Made in the USAGive every guest a hot, fresh and food-safe experience with Hatco’s largest Dry Slim Heated Well. The DHWBI-S4 drops neatly into your counter, holds four full-size pans in a slim footprint, and delivers consistent convected heat—no water, plumbing or steam table headaches required.
Why You’ll Love It
- Dry convected heat wraps each pan in even, gentle air for optimal holding without dilution or sogginess.
- Independent precision – remote electronic thermostat plus a dedicated On/Off switch lets you dial in the perfect temperature and keep it there between service periods.
- 4 full-size wells arranged lengthwise for easy reach beneath sneeze guards and buffet shields.
- Insulated stainless & aluminized housing reduces heat loss and keeps surrounding surfaces cool.
- Easy clean-up – built-in ¾" NPT brass drain protects the fan and elements from accidental spills.
- Service friendly – top-mounted access and modular components speed up any maintenance.
- Simple installation – no water line; 6 ft (1829 mm) flexible conduit lets you position the control box where it works best.
- Certified & safe – cULus Listed, UL EPH Classified for sanitation, and proudly Made in the USA.
At-a-Glance Specs
| Model | DHWBI-S4 (single control) |
|---|---|
| Pan Capacity | 4 × Full-Size (12 in × 20 in) |
| Overall Dimensions | 89.5 in W × 15.625 in D × 12.64 in H (2273 mm × 397 mm × 321 mm) |
| Cut-Out (countertop) | 87.926 – 88.176 in W × 14.016 – 14.266 in D |
| Electrical | 120/208-240 V, 1 ph, 3840 W, 16 A Optional split controls (US only): two 1920 W zones |
| Standard / Optional Plug | Leads for hard-wire; NEMA L14-20P kit available |
| Drain | ¾" NPT brass spill drain with valve |
| Construction | Stainless steel top & bezel, aluminized steel body, fully insulated |
| Ship Weight | 177 lb (80 kg) |
| Certifications | cULus, UL EPH Classified |
| Country of Origin | USA |
Accessorize Your Well
- Stainless steel pans: 2.5", 4" & 6" depths
- Wire trivets (full- & half-size)
- Round pan adapters & 4 qt / 7 qt pans with hinged or notched lids
- 12" & 20" support bars for change-ups and merchandising
- Factory-installed gasket to eliminate field sealing
Please verify countertop cut-out and electrical requirements before ordering. For detailed instructions, refer to the Hatco Installation & Operating Manual.
