Hatco | SKU:
DHWBI-S3
Hatco DHWBI-S3 Steam Tables & Food Wells
$5,009.40
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco DHWBI-S3 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco DHWBI-S3 Steam Tables & Food Wells
$5,009.40
Unit price
/
Unavailable
Description

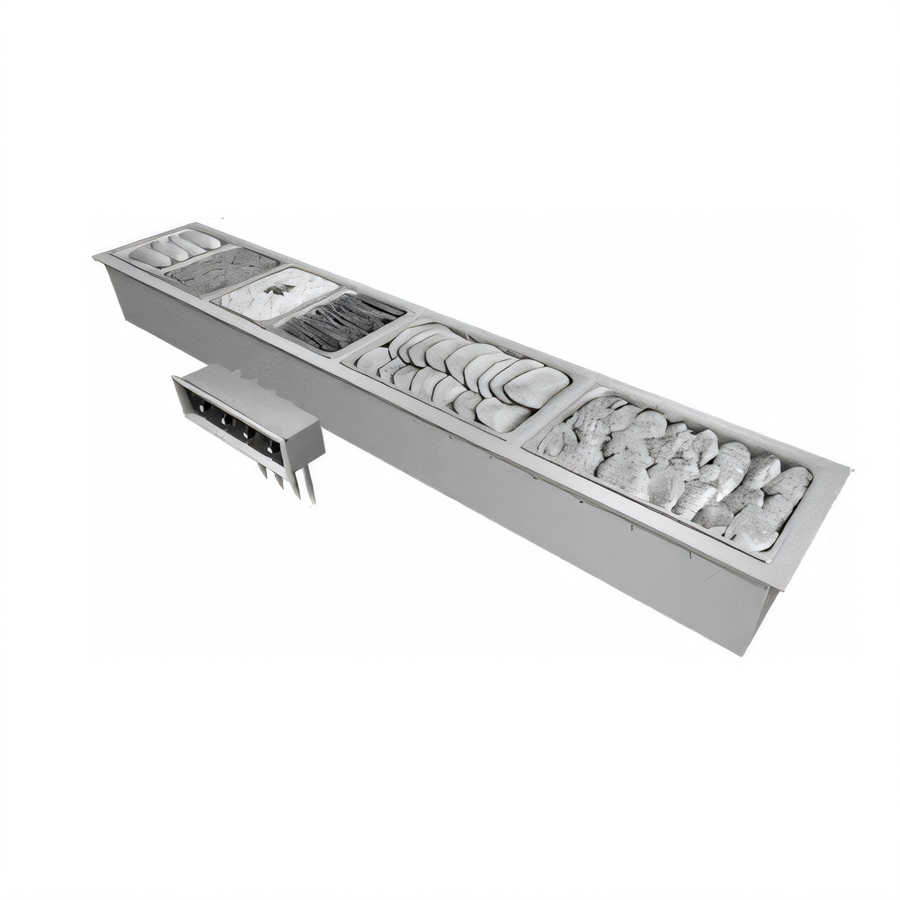

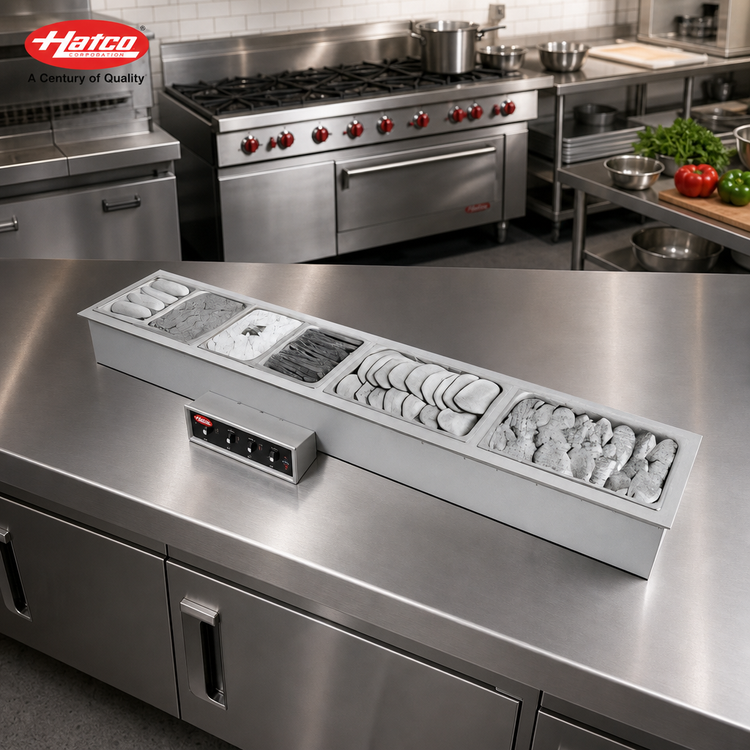

Hatco DHWBI-S3 Drop-In Modular Dry Slim Heated Well
(3) Full-Size Pan Capacity • Remote Control Box • Dry Convected HeatGive customers hot, fresh food with none of the water, plumbing, or maintenance headaches of traditional steam tables. The Hatco DHWBI-S3 is a top-mounted, fully-insulated dry well that holds three full-size pans in a slim, length-wise footprint—perfect for buffet lines tucked beneath sneeze guards.
Why You’ll Love It

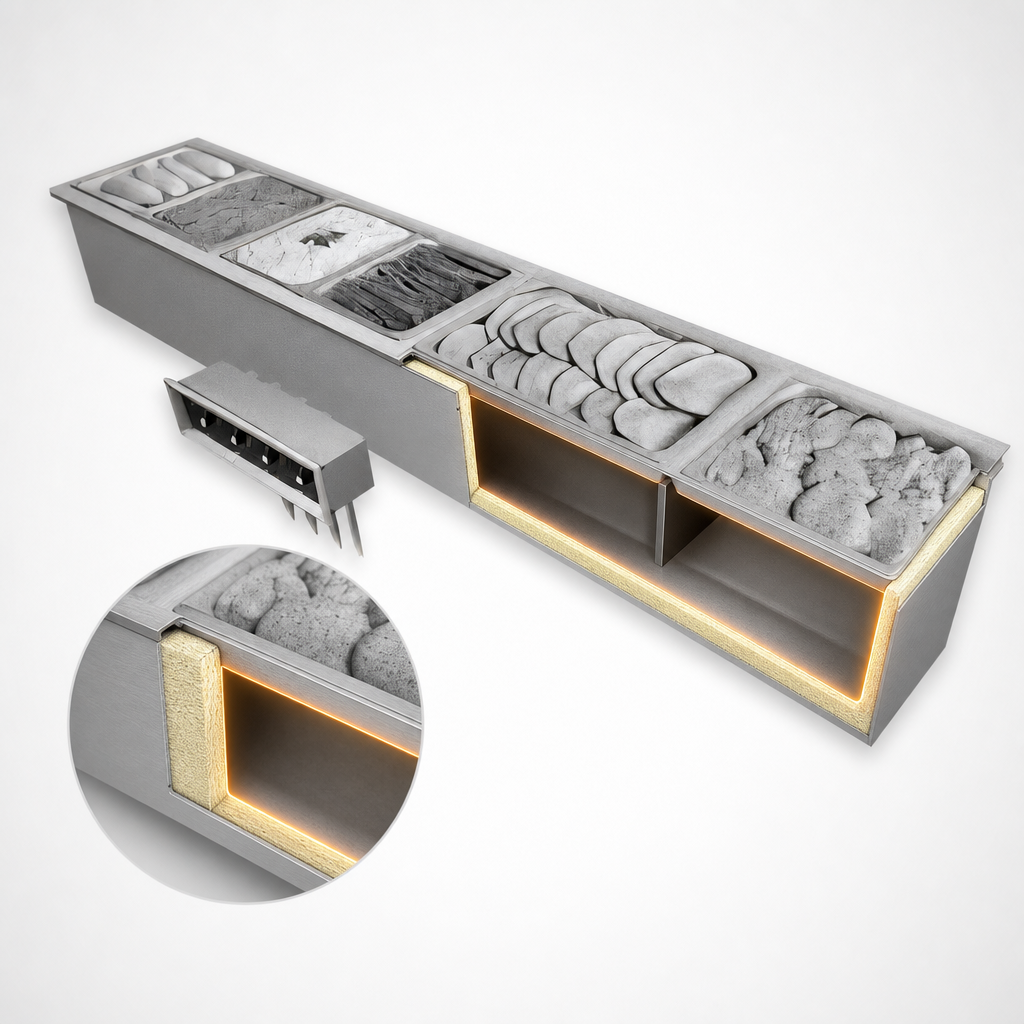

- Dry convected heat surrounds every pan for uniform, accurate holding temperatures—no refills or drains to baby-sit.
- Independent thermostats for each well plus a separate master On/Off switch keep your settings locked in between shifts.
- ¾" NPT brass drain speeds post-service clean-up and protects the fan/motor from accidental spills.
- Slim, modular design places all three pans within easy reach while maximizing counter space.
- Easy-service construction lets techs access elements from the top for fast maintenance.
- Rugged build & compliance—stainless & aluminized steel housing, cULus & UL EPH Classified, Made in the USA.
At-a-Glance Specs
| Model | DHWBI-S3 |
|---|---|
| Pan Capacity | 3 × Full-Size 12" × 20" (food pans sold separately) |
| Overall Dimensions | 67.5" W × 15.625" D × 12.64" H (1715 × 397 × 321 mm) |
| Countertop Cut-out | 65.926–66.176" W × 14.016–14.266" D (1675–1680 mm × 357–362 mm) |
| Voltage / Wattage | 120 V / 1920 W / 16 A | 120/208-240 V / 2880 W / 24 A |
| Control Box | Remote, single control (10.313" W) with 6' (1829 mm) flexible conduit |
| Drain Connection | ¾" NPT brass |
| Ship Weight | ≈ 146 lb (66 kg) |
| Certifications | cULus • UL EPH Classified |
| Origin | Made in USA |
Need plug-and-play convenience? See optional factory-installed cord & plug below.
Perfect For
- Full-service & self-service buffets
- University & corporate dining halls
- C-stores, delis, and grab-and-go stations
- Banquet lines & catering drop-ins
Factory Options & Accessories
- Attached cord & plug (120 V NEMA 5-30P or 208-240 V NEMA L14-20P)
- 18.94" deep bezel to align with Hatco Refrigerated Slim Drop-Ins for seamless hot/cold displays
- Factory-installed gasket (no field-applied silicone required)
- Stainless food pans, round pan adapters, hinged/notched lids, and wire trivets
- 12" & 20" support bars for pan stability
Installation Note: This unit is designed for permanent drop-in installation and must be hard-wired by a qualified electrician in accordance with local codes and the Hatco installation manual.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, UL EPH Classified, Made in USA
Height
12.64in
Width
67.5in
Depth
15.63in
Shipping Weight
146.0lbs
Controls
thermostatic controls
Construction
stainless steel top, corrosion resistant steel exterior
Insulated or Non-Insulated
insulated
Style
individual pans
Pan Capacity
(3) full size (12" x 20")
Drain
with drain
Wet or Dry operation
dry
Specifications
Drop-In Modular Dry Slim Heated Well, (3) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & aluminized construction, cULus, UL EPH Classified, Made in USA
