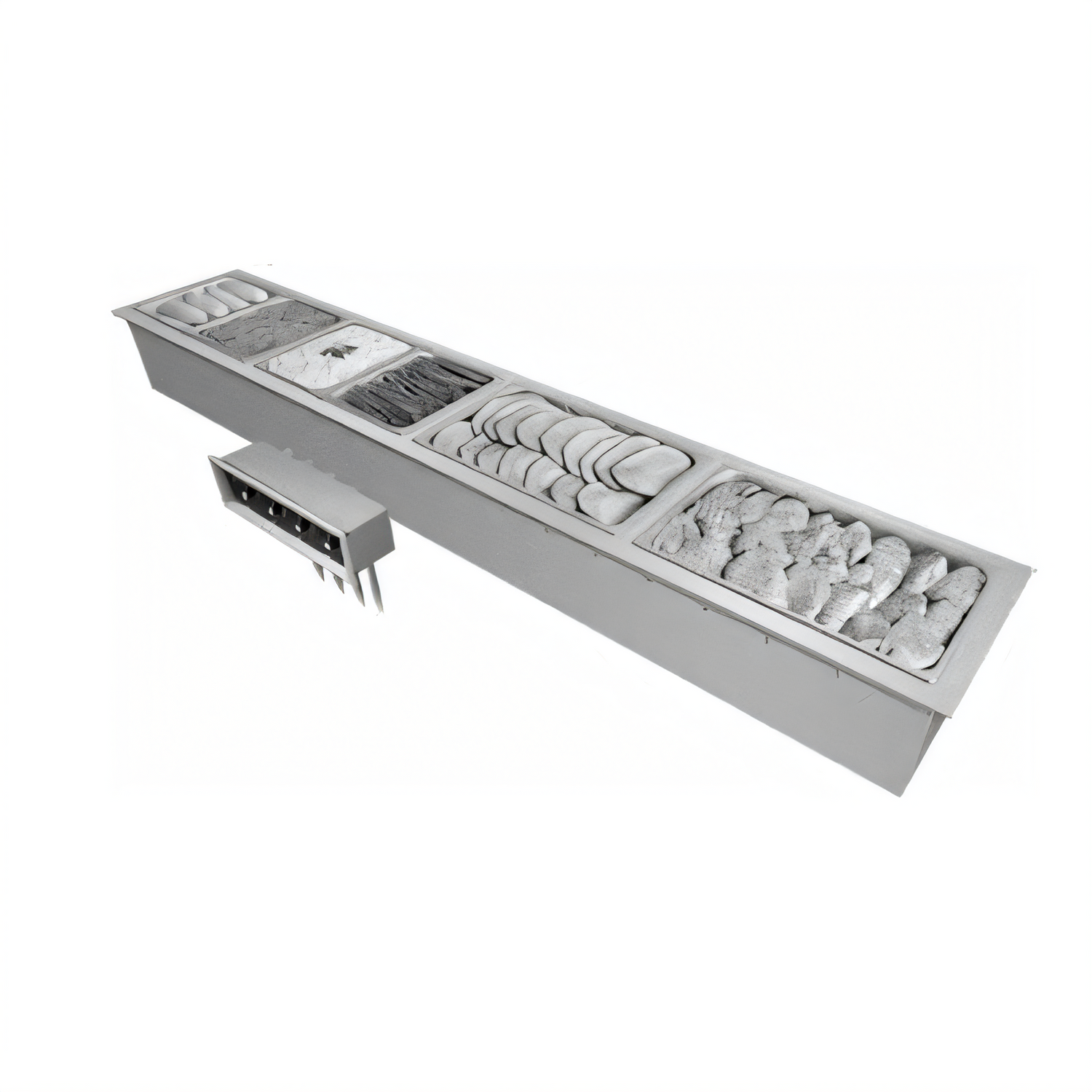

Hatco DHWBI-S2 Drop-In Modular Dry Slim Heated Well
2 Full-Size Pan Capacity • Top-Mounted • Made in the USAKeep signature entrées hot, appetizing and always within reach—without the hassles of water or plumbing. The Hatco DHWBI-S2 uses energy-efficient convected air to surround pans with uniform, dry heat, delivering precise holding temperatures in a space-saving 15 5/8″ footprint.
Why you’ll love it
- Holds two standard 12″ × 20″ hotel pans in a fully insulated, slim well.
- Dry convected heat means no water refills, lime scale or drain lines—just plug in and hold.
- Remote control box with an independent electronic thermostat for each well plus a master power switch.
- Consistent, wrap-around air flow keeps every corner of the pan at safe serving temperatures.
- ¾″ NPT brass drain makes cleaning fast and shields the fan/motor from spills.
- Top-serviceable design for quick element, fan or motor replacement.
- Durable stainless-steel interior with aluminized exterior housing built for heavy-duty foodservice use.
- cULus listed and UL EPH Classified for electrical & sanitation compliance.
- Manufactured in Wisconsin, USA with 24/7 parts & service support.
Perfect for
- Buffet and carving stations under tight sneeze-guard clearances
- C-stores, cafés and grab-and-go counters
- Banquet or catering lines looking to avoid steam table plumbing
Technical specifications
| Model | DHWBI-S2 |
|---|---|
| Pan capacity | 2 full-size pans (12″ × 20″) |
| Overall dimensions (W × D × H) | 45.5″ × 15.625″ × 12.64″ (1156 × 397 × 321 mm) |
| Countertop cut-out | 43.926–44.176″ W × 14.016–14.266″ D |
| Voltage options | 120 V or 120/208-240 V, 1 Ø |
| Power (120 V) | 1,920 W • 16 A |
| Standard plug (120 V) | NEMA 5-20P (with optional attached cord & plug kit) |
| Control box opening | 10.313″ W × 4.698″ H (262 × 119 mm) |
| Shipping weight | 94 lb (43 kg) |
| Certifications | cULus, UL EPH Classified |
| Construction | Stainless steel well, aluminized housing |
Available options & accessories
- Attached cord & plug kit (120 V single-phase)
- 18.94″ deep bezel to align with Hatco Refrigerated Slim Drop-In wells
- Factory-installed perimeter gasket—no silicone required
- Full-, half- & third-size stainless-steel pans (2.5″-6″ deep)
- Round pan adapters, 4-qt & 7-qt lids and wire trivets
- 12″ or 20″ support bars for custom pan layouts
Need more capacity? Three- and four-well models (DHWBI-S3 & DHWBI-S4) are also available.
Installation reminder: This is a built-in appliance. Confirm cut-out dimensions, electrical
requirements and local codes prior to purchase.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, UL EPH Classified, Made in USA
Height
12.64in
Width
45.5in
Depth
15.63in
Shipping Weight
94.0lbs
Controls
thermostatic controls
Style
individual pans
Insulated or Non-Insulated
insulated
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
dry
Drain
with drain
Pan Capacity
(2) full size (12" x 20")
Specifications
Drop-In Modular Dry Slim Heated Well, (2) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & aluminized construction, cULus, UL EPH Classified, Made in USA
