Description

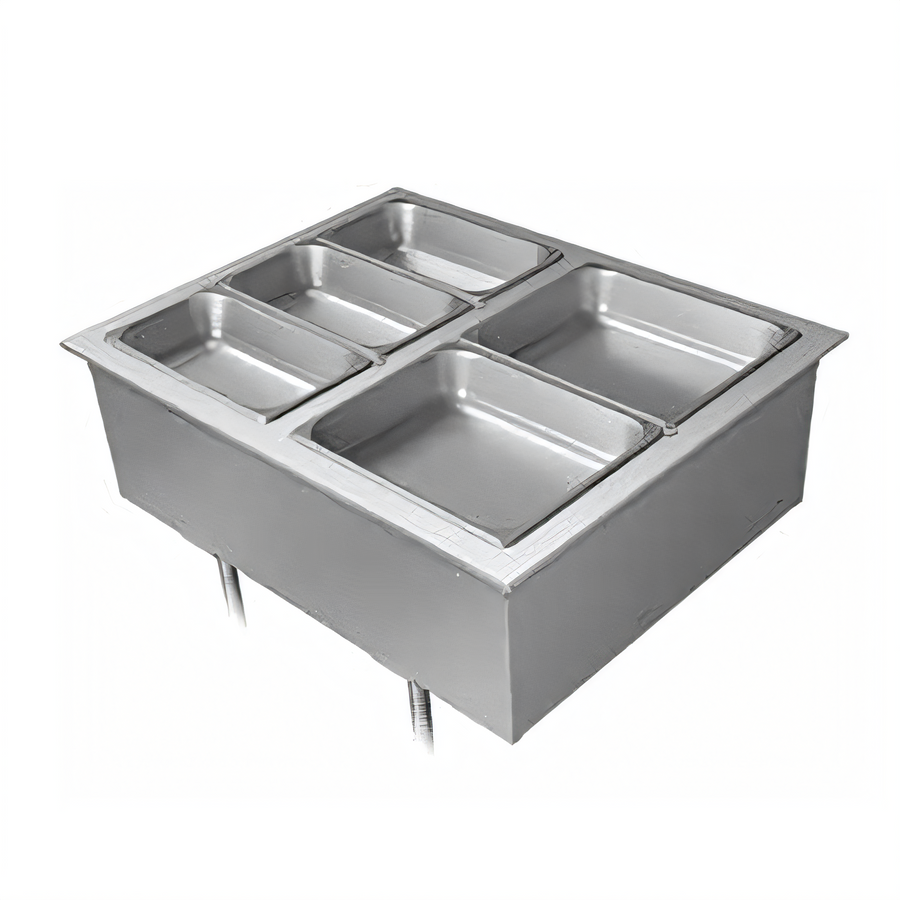

Hatco DHWBI-6 Drop-In Modular Dry Heated Well

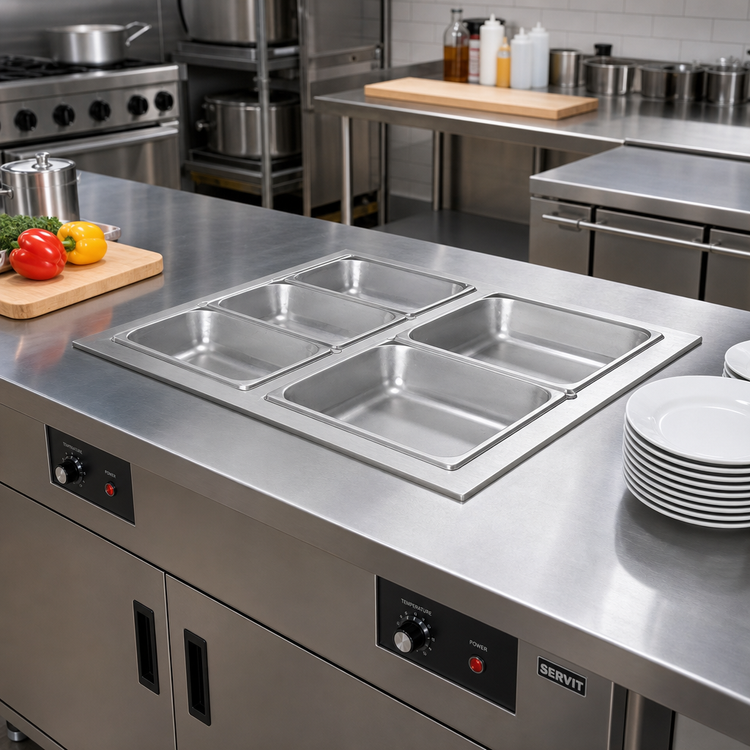

(6-Pan Capacity • Top-Mounted • Remote Thermostatic Controls)Give your serving line a clean, unified look while keeping foods hot and appetizing—no water, no hassle. Hatco’s DHWBI-6 replaces bulky steam tables with energy-efficient, dry convected heat across six full-size wells.
Key Features
- Six individual, insulated wells hold standard 12" × 20" pans for maximum menu flexibility.
- Dry convected heat eliminates plumbing, reducing installation costs and daily maintenance.
- Uniform forced-air circulation surrounds every pan for consistent, food-safe temperatures.
- Electronic thermostat for each well plus a master power switch—set it once, serve all day.
- ¾" NPT brass drain with valve makes quick work of accidental spills.
- EZ-service design allows element access from the top, minimizing downtime.
- Factory-wired 6' (1829 mm) conduit provides flexible placement of the remote control box (8' optional).

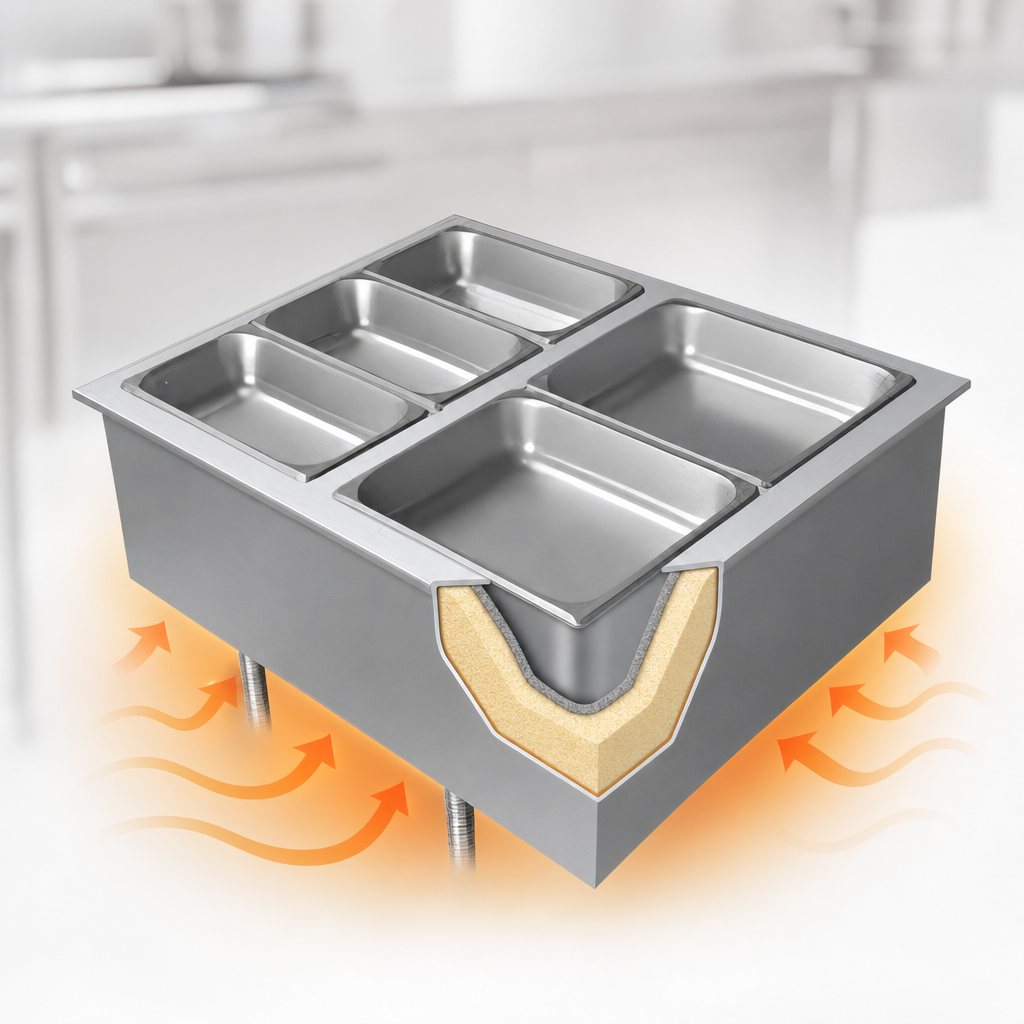

- Stainless steel top with aluminized & stainless housing—durable, easy to clean, and fully insulated.
- cULus & UL EPH Classified for safe, sanitary operation in commercial kitchens.
- Made in the USA and backed by Hatco’s 24/7 parts & service network.
Technical Specifications
| Model | DHWBI-6 |
|---|---|
| Pan Capacity | 6 full-size (12" × 20") pans |
| Overall Dimensions | 85.5" W × 23.625" D × 12.64" H (2172 × 600 × 321 mm) |
| Countertop Cut-Out | 84.125–84.375" W × 22.5" D (2137–2143 × 571 mm) |
| Voltage | 120/208–240 V, 1-phase |
| Power | 5,760 W | 24 A (single control box) |
| Drain | ¾" NPT brass with valve |
| Ship Weight | Approx. 233 lb (106 kg) |
| Certifications | cULus, UL EPH Classified |
| Country of Origin | United States |
Optional Accessories
- Stainless steel food pans in 2.5", 4", or 6" depths
- Round pan adapters with 4-qt or 7-qt pans, hinged or notched lids
- Full-size & half-size wire trivets
- 12" or 20" support bars for custom pan layouts
- Factory-installed gasket (eliminates field caulking)
- 8' (2438 mm) conduit for extended control-box reach
- 27" (686 mm) deep bezel—matches Hatco CWB cold wells for unified lines
Installation Note: This unit ships without a cord or plug and must be hard-wired by a qualified electrician.
Verify electrical and cut-out requirements prior to purchase.
Have questions? Hatco experts are available 24/7—visit hatcocorp.com for live support.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, UL EPH Classified, Made in USA
Height
12.64in
Width
85.5in
Depth
23.63in
Shipping Weight
233.0lbs
Insulated or Non-Insulated
insulated
Style
individual pans
Controls
thermostatic controls
Pan Capacity
(6) full size (12" x 20")
Drain
with drain
Construction
stainless steel top, corrosion resistant steel exterior
Wet or Dry operation
dry
Specifications
Drop-In Modular Heated Well, (6) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, cULus, UL EPH Classified, Made in USA
