Hatco DHWBI-5 Steam Tables & Food Wells
Description

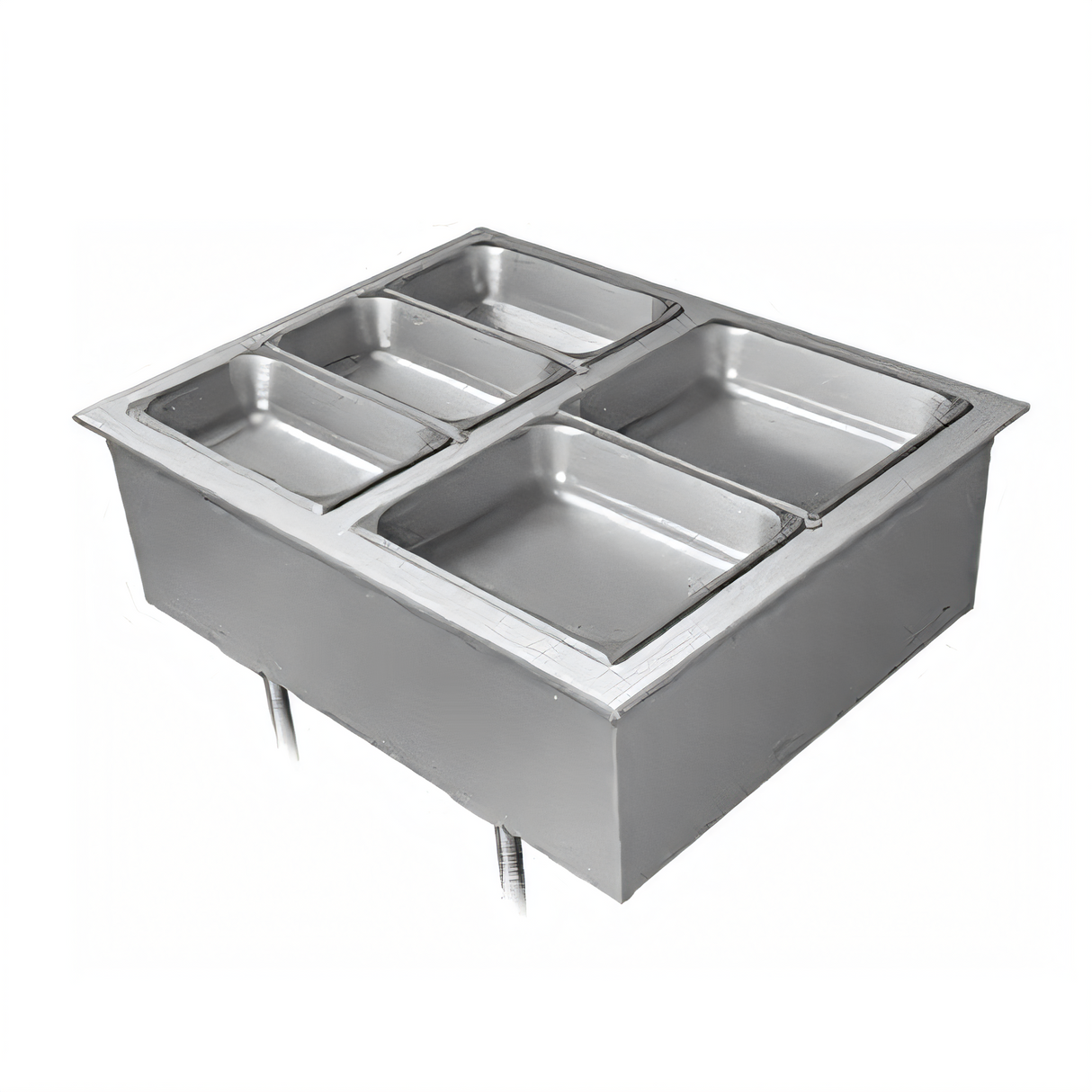

Hatco DHWBI-5 Drop-In Modular Dry Heated Well
Five-Pan | Dry Convected Heat | Made in USAGive your buffet, cafeteria line or grab-&-go station a consistent, water-free heat source with the Hatco DHWBI-5. This top-mounted, 5-well unit uses fan-assisted dry heat to surround each 12" × 20" pan with uniform temperature, so entrées stay fresh and appetizing without the hassles of a traditional steam table.
Why You’ll Love It
- Dry convected heat – no water pans, plumbing or scale build-up to worry about.
- Five individually insulated wells with dedicated electronic thermostats and separate lighted power switches.
- Uniform air flow blankets the entire pan for even holding temps from corner to corner.
- ¾" NPT brass drain catches spills and protects the fan motor for stress-free clean-up.
- 6' (1829 mm) flexible conduit lets you position the remote control box exactly where staff can reach it.
- Stainless steel top and aluminized steel housing stand up to busy commercial kitchens.
- Tool-free, top-side access makes element or fan replacement quick and simple.
- Certified cULus & UL EPH Classified for electrical safety and sanitation.
- Manufactured in Wisconsin, USA—backed by Hatco’s global 24/7 parts & service network.
Quick Specs
| Model | DHWBI-5 |
|---|---|
| Pan Capacity | 5 full-size (12" × 20") pans, up to 6" (152 mm) deep |
| Overall Size (W × D × H) | 71.5" × 23.625" × 12.64" (1816 × 600 × 321 mm) |
| Mounting | Top-mounted drop-in with 23.625" (600 mm) standard bezel |
| Heat Source | Fan-assisted dry convected air |
| Electrical | 120/208-240 V, 1-phase, 4,800 W, 24 A (hard-wire) |
| Controls | (5) remote electronic thermostats + (5) illuminated On/Off switches |
| Drain | ¾" NPT brass drain fitting |
| Construction | Stainless steel top & liner, aluminized steel body |
| Shipping Weight | ≈ 196 lb (89 kg) |
| Certifications | cULus, UL EPH Classified |
Compatible Accessories (sold separately)
- Stainless steel food pans – full, half & third size (2.5"–6" deep).
- 4- & 7-qt round pans with hinged or notched lids.
- Wire trivets, pan adapters and 12" or 20" support bars.
- 27" (686 mm) deep bezel kit for seamless pairing with Hatco CWB display warmers.
Pans, lids and other display items pictured are for demonstration only and are not included with the unit.
