Hatco DHWBI-3 Steam Tables & Food Wells
Description
Hatco DHWBI-3 Drop-In Modular Dry Heated Well (3 Full-Size Pan Capacity)
Eliminate water lines, lime scale and uneven holding temperatures with the Hatco DHWBI-3. This top-mounted, insulated module uses dry convected heat to surround three 12" × 20" pans with consistent, gentle warmth—perfect for buffets, cafeterias and grab-and-go programs that demand dependable food quality and quick, easy cleanup.
Key Advantages
- Dry convected heat – no plumbing, no refilling, no steam table headaches.
- Individual thermostat for each well plus a dedicated power switch to lock in settings after hours.
- Uniform air circulation keeps every corner of every pan at the ideal serving temperature.
- ¾" NPT brass spill drain protects the fan/motor and makes rinsing the well a breeze.
- 6' (1829 mm) flexible conduit lets you mount the remote control box exactly where staff need it.
- Top-serviceable elements, fan and motor reduce downtime when maintenance is required.
- Rugged stainless-steel top with aluminized steel body—built for high-volume kitchens.
- cULus & UL EPH Classified, Made in the USA.
Typical Uses
- Buffet or cafeteria serving lines
- Convenience-store self-service stations
- Back-of-house plating or pass-through areas
- Supermarket deli/hot bar counters
Specifications
| Pan Capacity | Three full-size 12" × 20" (305 × 508 mm) pans |
|---|---|
| Overall Dimensions | 43.5" W × 23.625" D × 12.64" H (1105 × 600 × 321 mm) |
| Counter Cut-Out | 42.125–42.375" W × 22.25–22.5" D (1070–1076 × 566–571 mm) |
| Electrical (single phase) |
120 V, 2880 W, 24 A – NEMA 5-30P (standard) 120/208-240 V option available (field wired) |
| Control Box Cut-Out | 14.313" W × 4.698" H (364 × 119 mm) |
| Drain | ¾" NPT brass fitting (valve optional) |
| Shipping Weight | Approx. 121 lb (55 kg) |

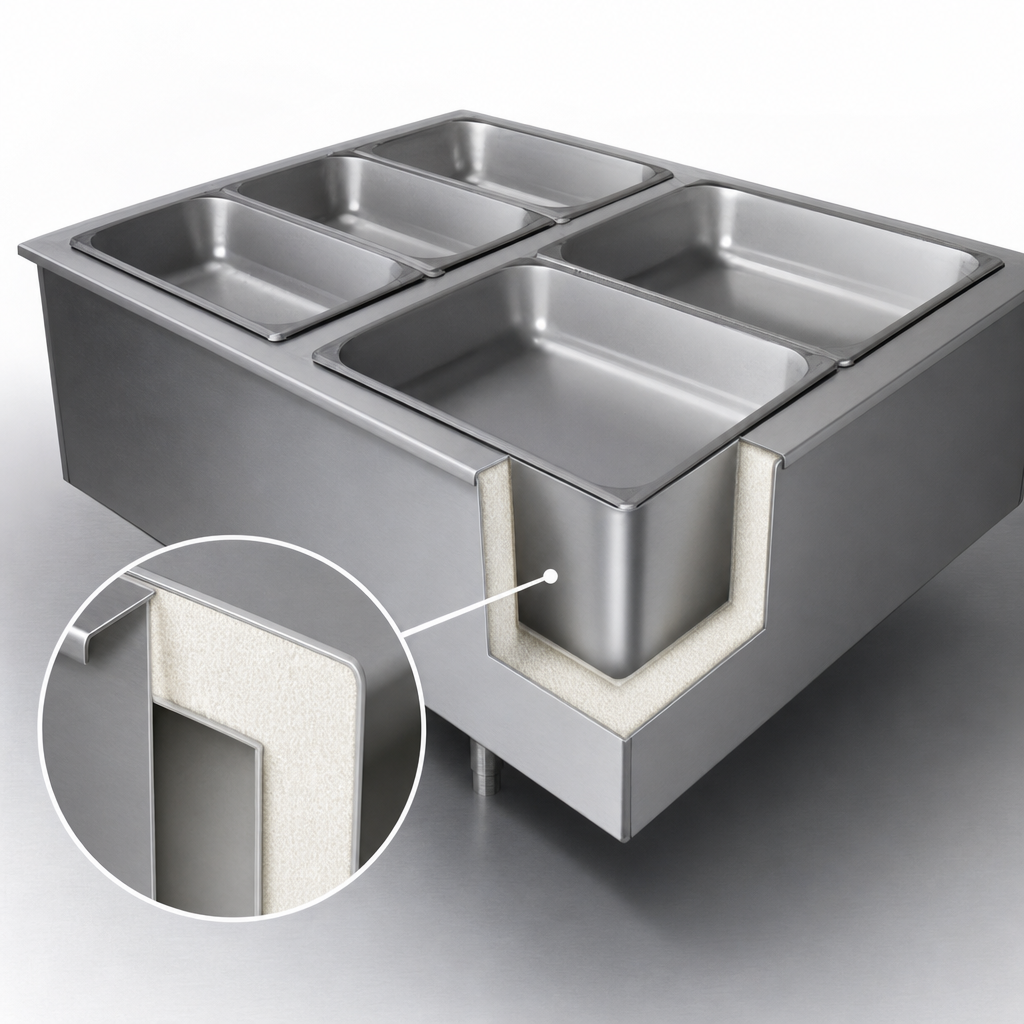

| Construction | Stainless-steel deck, aluminized steel body, fully insulated wells |
| Certifications | cULus, UL EPH Classified |
Optional Accessories
- Stainless pans – full, half & third size (2½", 4" or 6" depths)
- Round 4-qt & 7-qt pans with hinged / notched lids
- Round-pan adapters (2× 4 qt or 2× 7 qt)
- Stainless wire trivets – full or half size
- 12" and 20" support bars
- 27" deep bezel to align with Hatco CWB displays
- 8' (2438 mm) control-box conduit
- Factory-installed gasket (no field silicone required)
Have questions about voltage, cut-out sizing or accessories? Our team is ready to help you specify the perfect DHWBI-3 for your counter.
