Hatco  |  SKU: DHWBI-2

Hatco DHWBI-2 Steam Tables & Food Wells

$3,358.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

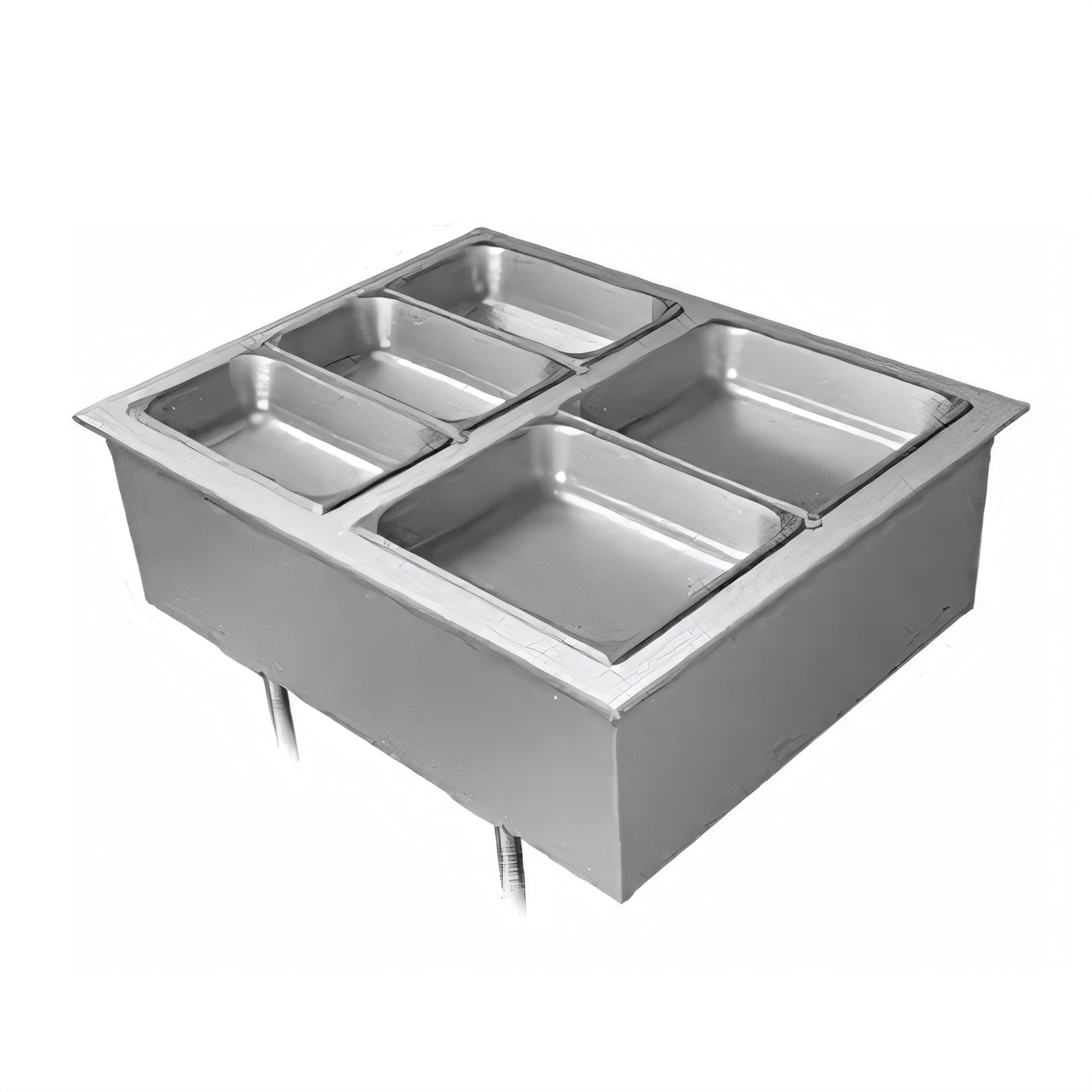

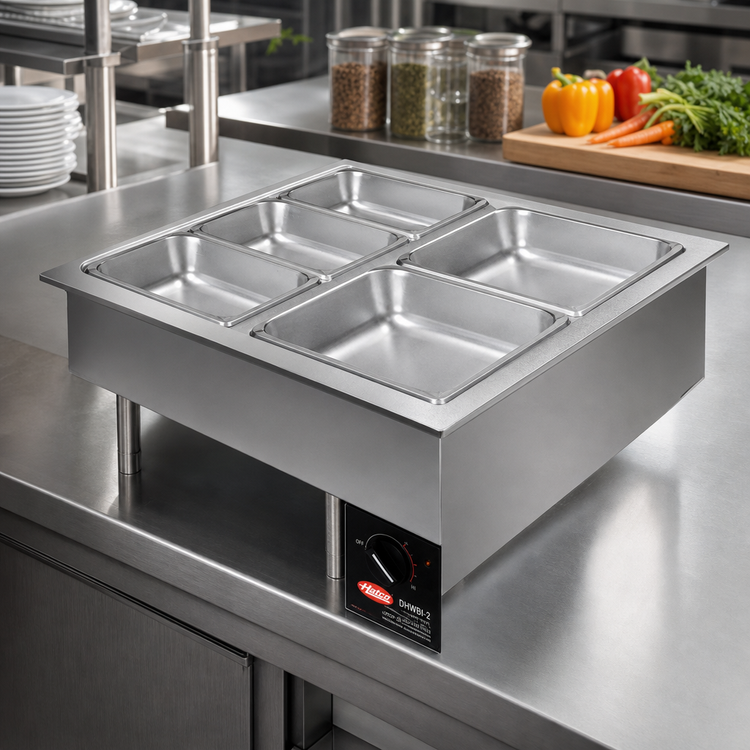

Hatco DHWBI-2 Drop-In Modular Dry Heated Well – 2 Full-Size Pans

Water-free holding power for a sleek, built-in buffet line

Give guests perfectly-held entrées without the hassle of water baths or plumbing. Hatco’s two-pan dry well delivers uniform convected heat, instant temperature control, and the clean, flush look designers love.

Why you’ll love it

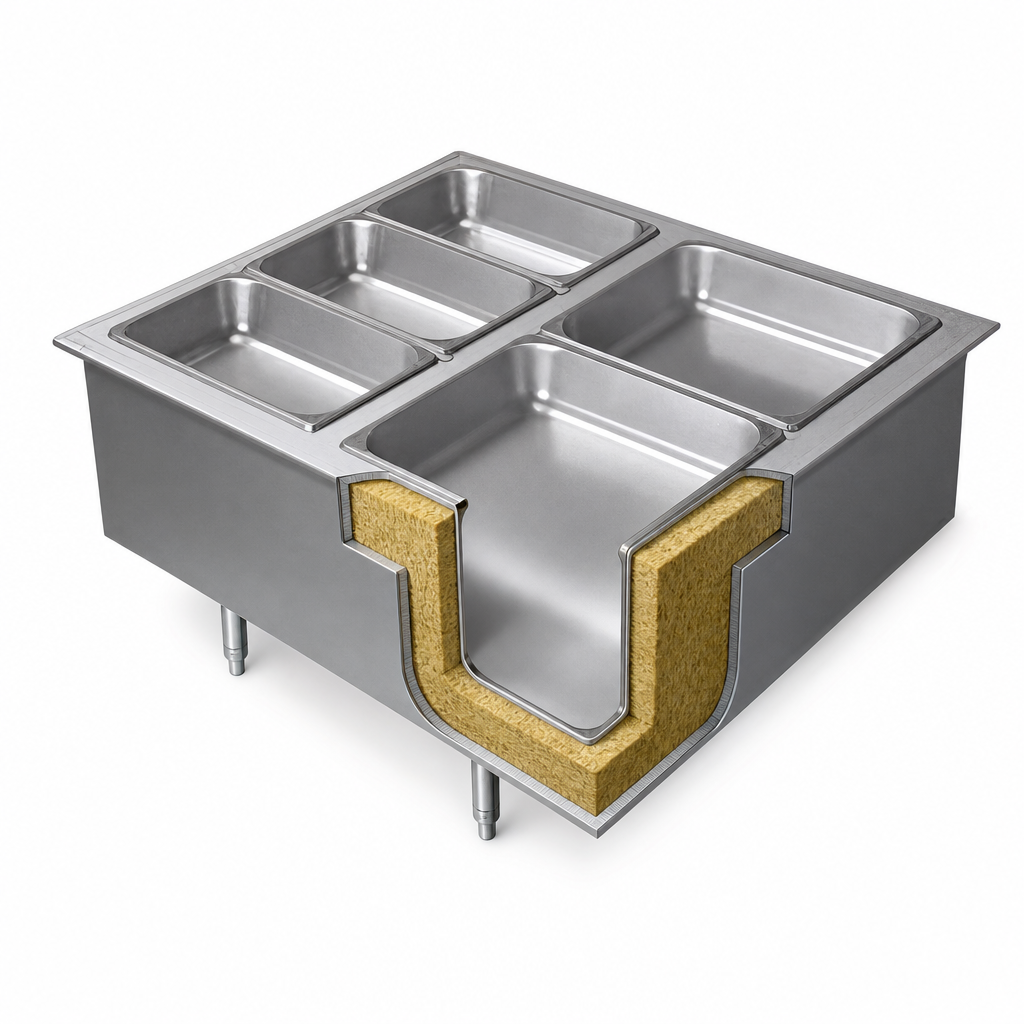

  • Holds two standard 12 × 20 in. pans in an insulated stainless-steel well.
  • Dry convected heat circulates evenly around each pan for consistent food temps.
  • Remote control box with precision thermostat and separate illuminated power switch.
  • ¾ in. NPT brass drain valve protects internal components and speeds cleanup.
  • Top-mounted, drop-in design installs flush for a seamless counter presentation.
  • Field-serviceable from the top—no crawling under counters to reach elements or fans.
  • 6 ft (1829 mm) conduit to the control box (8 ft/2438 mm optional) for flexible placement.
  • Energy-efficient performance; cULus and UL EPH Classified for sanitation & safety.
  • Proudly Made in the USA and supported by Hatco’s 24/7 service network.
Specifications
Model DHWBI-2
Pan capacity (2) full-size 12 × 20 in. (305 × 508 mm)
Overall dimensions 29.5 W × 23.625 D × 12.64 H in.
(749 × 600 × 321 mm)
Cut-out size 28.125 W × 14.375 D in. (715 × 365 mm) minimum
Electrical 120 V, 1920 W, 16 A, single phase (NEMA 5-20P)
208–240 V wiring available
Control style Single remote thermostat & On/Off switch
Drain ¾ in. NPT brass drain with valve
Construction Stainless-steel well, aluminized-steel housing
Shipping weight Approx. 98 lb (45 kg)
Certifications cULus, UL EPH Classified
Optional accessories
  • Full-size stainless pans – 2.5 in., 4 in., or 6 in. depths
  • Adapters for (2) 4-qt or (2) 7-qt round inset pans
  • Stainless steel wire trivets & support bars
  • 27 in. deep bezel to match Hatco CWB cold wells

Looking for additional wells? Single, 3-, 4-, 5-, and 6-pan configurations are also available.

Installation note: For use in non-combustible countertops only. Follow the supplied cut-out template and local electrical codes.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, UL EPH Classified, Made in USA

Height

12.64in

Width

29.5in

Depth

23.63in

Shipping Weight

98.0lbs

Insulated or Non-Insulated

insulated

Construction

stainless steel top, corrosion resistant steel exterior

Wet or Dry operation

dry

Style

individual pans

Pan Capacity

(2) full size (12" x 20")

Controls

thermostatic controls

Drain

with drain

Specifications

Drop-In Modular Dry Heated Well, (2) full size pan capacity, insulated, top mounted, remote thermostat with separate power switch, stainless steel & Aluminized construction, cULus, UL EPH Classified, Made in USA
