Hatco  |  SKU: CWBX-6

Hatco CWBX-6 Steam Tables & Food Wells

$5,076.37
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure Parts list
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

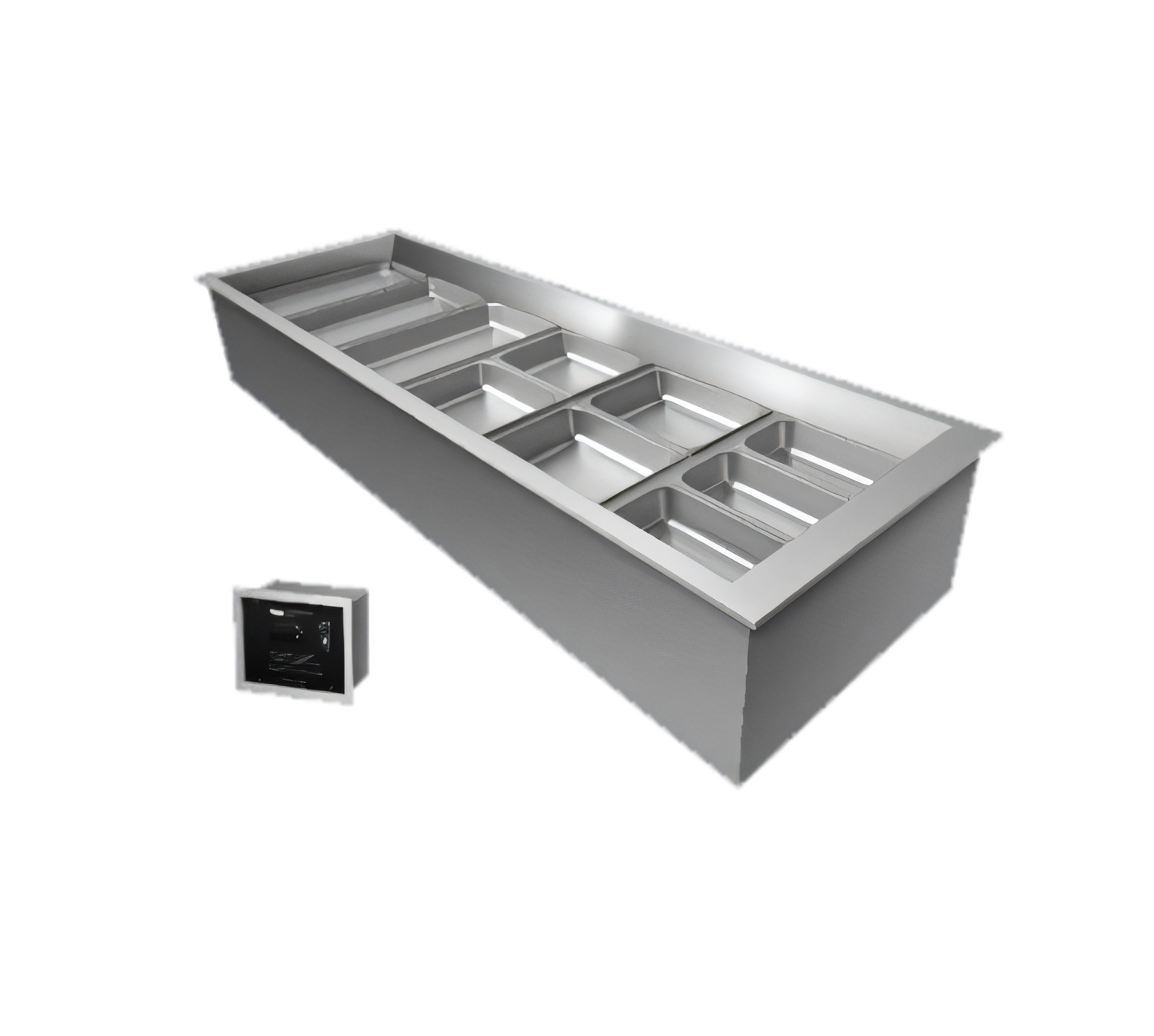

Hatco CWBX-6 Remote Refrigerated Drop-In Cold Well — 6 Full-Size Pans

Condensing Unit NOT Included

Serve crisp salads, chilled desserts and cold entrées with confidence. The Hatco CWBX-6 is a remote, top-mount refrigerated well that keeps six full-size pans at safe NSF 7 temperatures while letting you locate the refrigeration pack out of sight for a clean, quiet front-of-house.

Key features

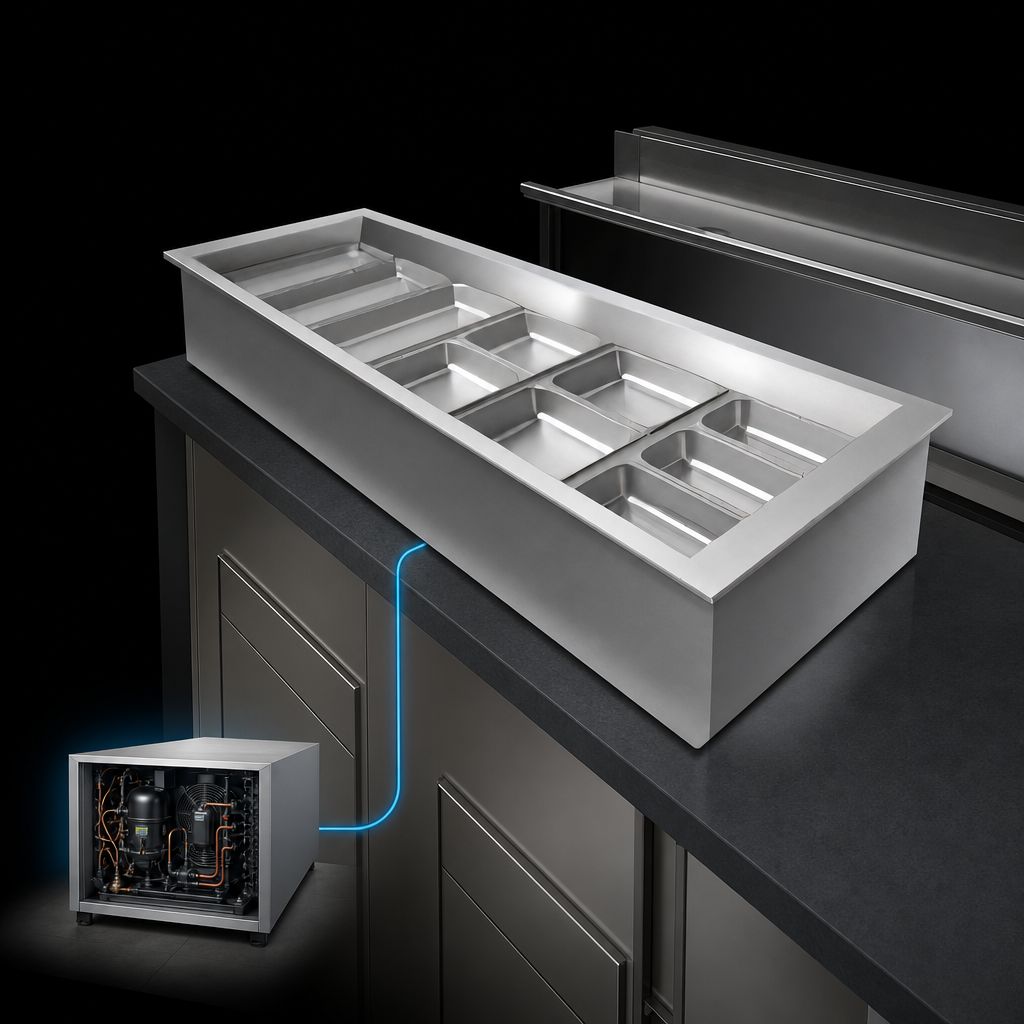

  • Remote cold-wall design — well ships with TXV and electronic control panel, ready to connect to your field-supplied condensing unit.
  • Angled interior walls blanket food with cold air, preventing product dry-out and improving visibility for guests.
  • Top-mount stainless-steel bezel delivers a seamless, professional counter finish.
  • Holds (6) full-size 12 × 20 in hotel pans (pan support bars included).
  • Advanced electronic temperature control with programmable auto-defrost.
  • Fully insulated aluminized-steel housing with 1 in NPT brass drain for fast clean-up.
  • NSF 7 listed, cULus certified and proudly Made in the USA.

Specifications

Model CWBX-6 (remote, no compressor)
Pan capacity 6 × full-size 12 × 20 in (305 × 508 mm)
Overall dimensions 84 in W × 27 in D × 17.1 in H (2134 × 686 × 433 mm)
Counter cut-out (min-max) 82.125–83 in W × 25.19–26 in D (2086–2108 × 640–660 mm)
Electrical (panel) 120 V / 60 Hz or 220-240 V / 50-60 Hz
Evaporator load 1 830 BTU / hr
Shipping weight ≈ 250 lb (113 kg)
Drain 1 in NPT brass (bottom-center)
Listings NSF 7, cULus
Origin Made in USA

What’s in the box

  • CWBX-6 drop-in cold well with pre-installed solenoid valve
  • Remote electronic control panel (loose) with 9 ft (2.7 m) temperature probe
  • TXV valve (loose) for field connection
  • (3) stainless pan support bars
  • Installation & operation manual
Important: This model requires a properly sized remote condensing unit, refrigerant line-set and electrical hook-up (all field supplied) for operation.

Need an all-inclusive solution? See Hatco CWBR-6 — it ships with a factory-matched condensing unit.

Features & Specs

Manufacturer

Hatco

Certifications

Made in USA

Height

17.05in

Width

84.0in

Depth

27.0in

Shipping Weight

250.0lbs

Layout

straight

Width (side - side)

79 - 84 inches

Finish

aluminum & stainless steel

Pan Qty

6-pan

Insulation

insulated

Style

remote refrigeration (no compressor)

Pan Size

full-size (12" x 20")

Specifications

Drop-In Refrigerated Well, (6) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, remote refrigeration, control panel & TXV valve (shipped loose), insulated with 1" drain, aluminized steel housing, stainless steel bezel, with control panel, WITHOUT condensing unit, cULus, Made in USA
