Hatco CWBX-5 Steam Tables & Food Wells
Description

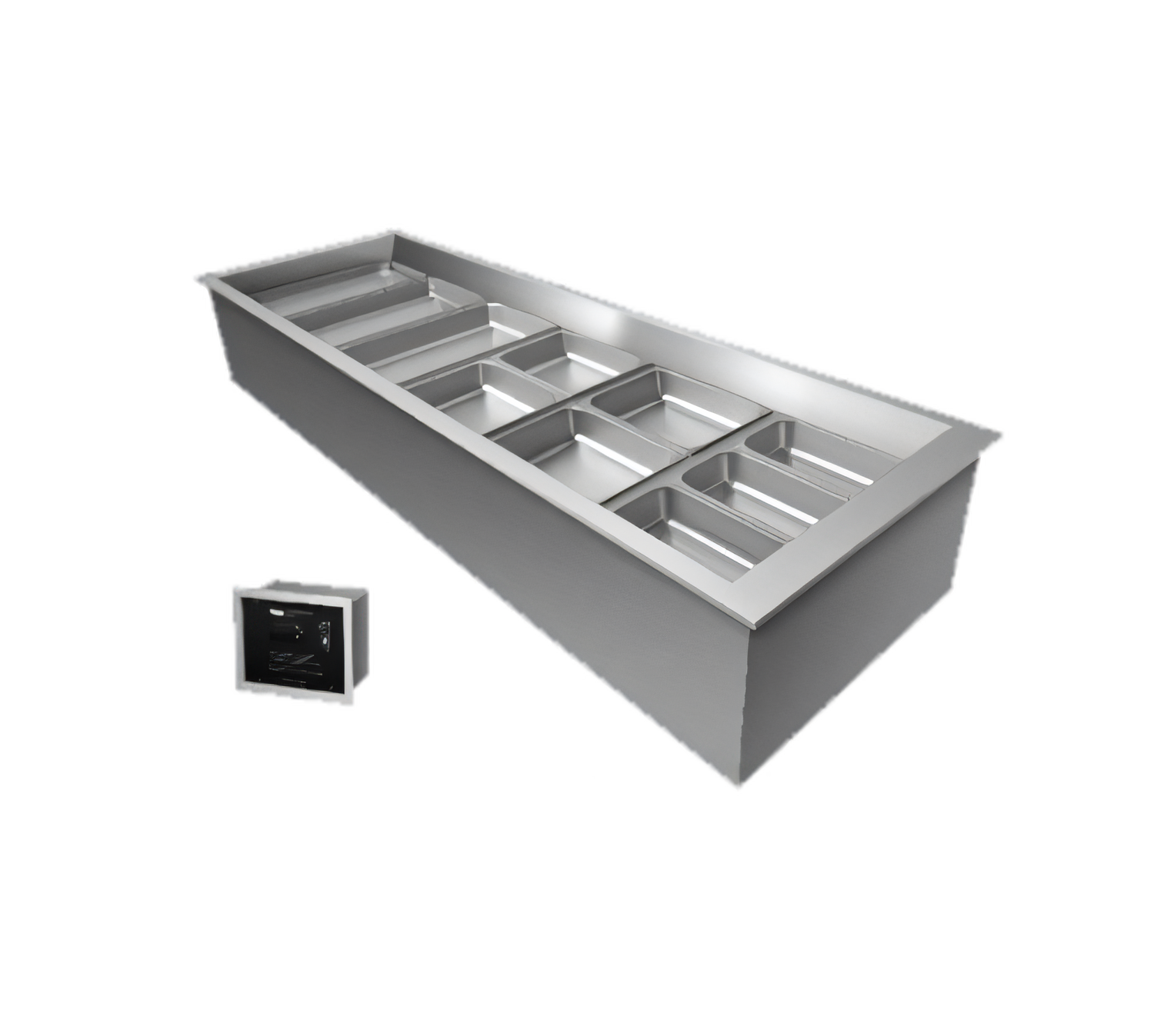

Hatco CWBX-5 Remote Refrigerated Drop-In Well – 5 Full-Size Pans
Includes control panel & TXV • Condensing unit not includedKeep salads, deli items, desserts and grab-and-go favorites safely chilled without cluttering your counter with a compressor. Hatco’s remote CWBX-5 drop-in well delivers consistent, NSF-7 cold holding for five full-size pans while giving you total flexibility to locate the condensing unit wherever it works best for your layout.
Why you’ll love it

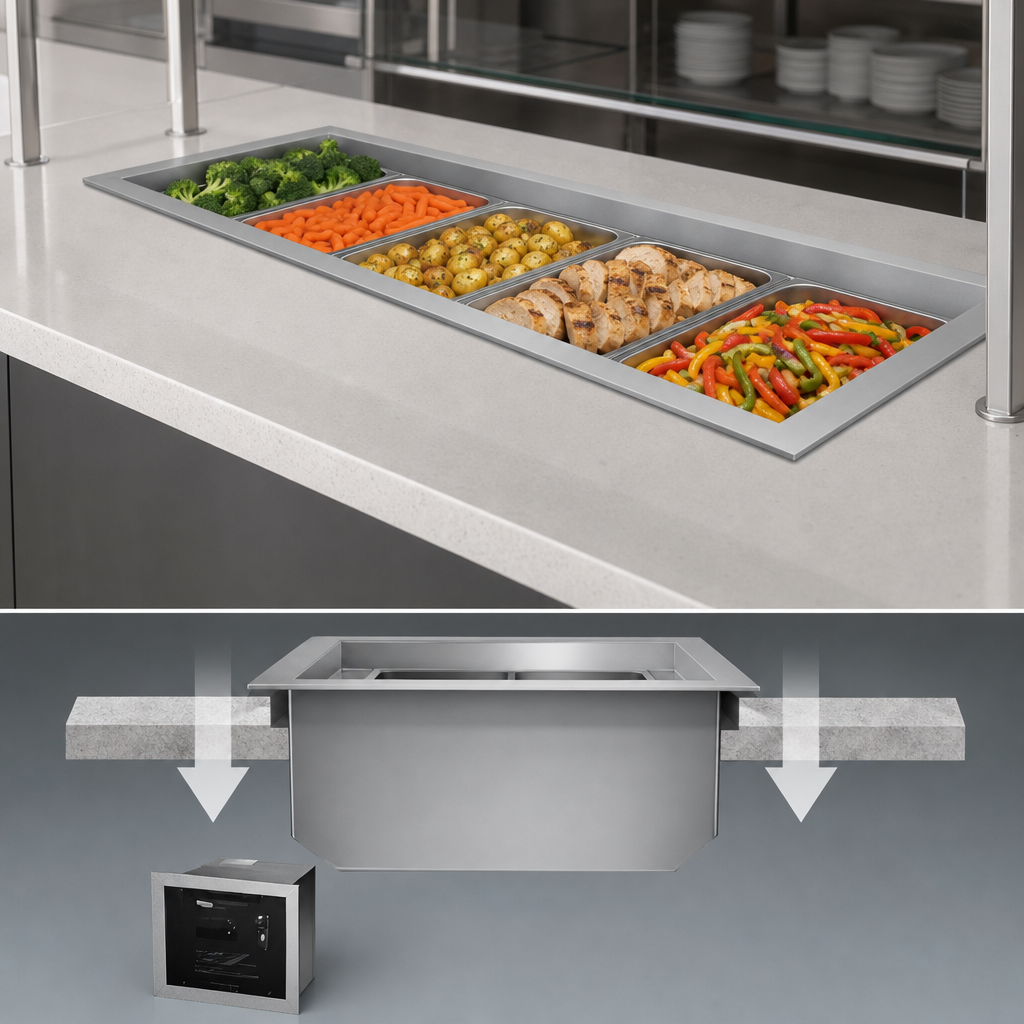

- Cold-wall, top-mount design with angled interior walls gently “blankets” product with cold air to maintain ≤ 41 °F (5 °C).
- Electronic temperature controller (ships loose) with 9 ft (2.7 m) probe wiring for convenient, eye-level installation.
- Automatic defrost cycle keeps performance consistent—no manual ice build-up removal.
- Pan support bars included; holds five standard 12 × 20 in (GN 1/1) pans up to 6 in deep.
- Remote refrigeration ready—TXV valve supplied so you can tie into a single or multi-well compressor rack.
- 1 in NPT brass drain simplifies end-of-day cleaning and melt-water removal.
- Stainless steel bezel and matching Hatco well profile create a seamless cold/hot line.
- Foamed-in-place insulation, aluminized-steel housing and rugged components for years of service.
- NSF 7 & cULus Listed; Made in the USA.
Perfect for
- Buffet and cafeteria cold bars
- Supermarket service & self-service islands
- C-store fresh food programs
- Hotel and resort banquet lines
Specifications
| Model | CWBX-5 (remote, no compressor) |
|---|---|
| Pan capacity | 5 × full-size 12 × 20 in (GN 1/1) |
| Overall dimensions | 71 in W × 27 in D × 10.75 in H (1803 × 686 × 273 mm) |
| Cut-out – minimum | 69.125 in W × 25.19 in D (1756 × 640 mm) |
| Cut-out – maximum | 70 in W × 26 in D (1778 × 660 mm) |
| Evaporator load | 1,530 BTU/hr (0.45 kW) |
| Electrical (control panel) | 120 V / 60 Hz or 220-240 V / 50-60 Hz, 1-phase, < 1 A |
| Drain connection | 1 in NPT (male) brass |
| Shipping weight | Approx. 211 lb / 96 kg |
| Included with well | Remote electronic control panel, temperature probe, TXV valve, full-size pan support bars |
Looking for another size? The CWBX series is also available in 1-, 2-, 3-, 4- and 6-pan configurations—contact us for a custom quote.
