Hatco CWBX-4 Steam Tables & Food Wells
Description

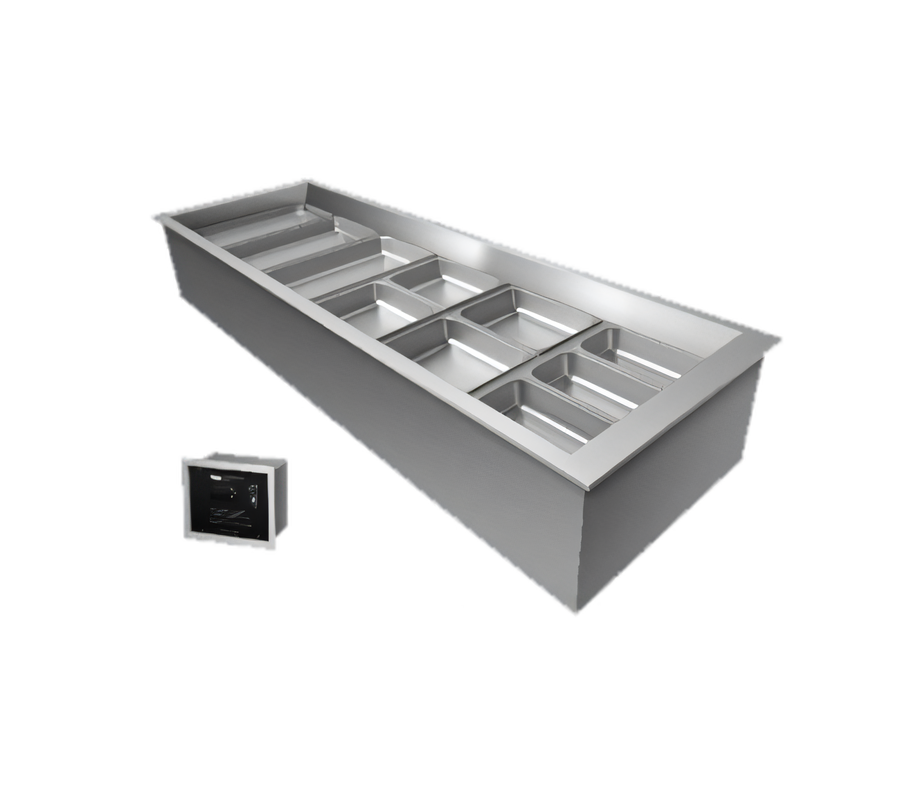

Hatco CWBX-4 Remote Drop-In Refrigerated Well
4 Full-Size Pan Capacity • Cold-Wall Holding • No Condensing UnitKeep salads, toppings and chilled entrées perfectly fresh without crowding your counter space. The Hatco CWBX-4 drops cleanly into any prep line while its remote-ready design lets you park the condensing unit wherever it fits best in your kitchen.
Key Benefits

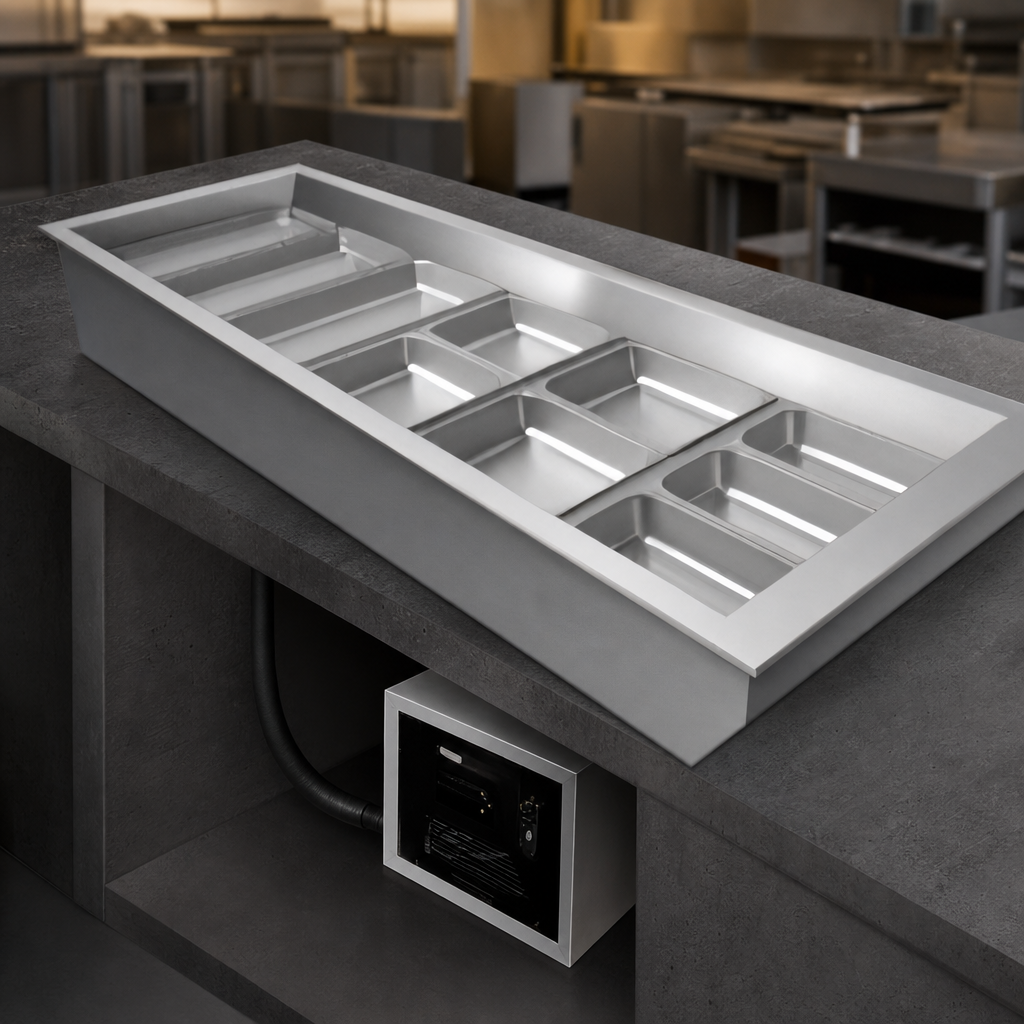

- Remote configuration – well, TXV valve and electronic control panel ship loose for connection to a compatible condensing unit (sold separately) up to 50' (15.24 m) away.
- Cold-wall technology with a unique angled interior wall blankets food with cold air, reducing product dehydration.
- Top-mount design supports four full-size 12 × 20" pans with included pan support bars.
- Advanced electronic temperature control with programmable auto-defrost for reliable, worry-free holding.
- Fully insulated aluminized-steel housing and stainless-steel bezel for long-lasting durability and a seamless counter finish.
- 1" NPT brass drain speeds up end-of-day clean-up.
- NSF 7, cULus listed and proudly Made in the USA.
At-a-Glance Specs
| Model | CWBX-4 (remote, no condensing unit) |
|---|---|
| Pan capacity | 4 × full-size 12" × 20" (305 × 508 mm) |
| Overall dimensions (W × D × H) | 58" × 27" × 10.5" (1473 × 686 × 267 mm) |
| Counter cut-out (W × D) | 56.125–57" × 25.19–26" (1425–1448 × 640–660 mm) |
| Electrical | 120 V / 60 Hz or 220/230/240 V / 50-60 Hz, 1-phase (control circuit only) |
| Evaporator load | 1,230 BTU ⁄ hr |
| Drain | 1" NPT, bottom-center |
| Shipping weight | ≈ 176 lb (80 kg) |
| Construction | Aluminized-steel housing, stainless-steel bezel & interior wall |
| Certifications | NSF 7, cULus |
What’s Included
- Cold well assembly with factory-installed TXV valve
- Remote electronic control panel (9' / 2.7 m probe lead)
- Pan support bars for full-size pans
- Installation & operating manual
Popular Accessories (sold separately)
- 5° slant kit for enhanced product visibility
- Factory-installed perimeter gasket – eliminates the need for silicone
- Perforated false bottoms, wire trivets and stainless-steel food pans
- Remote condensing unit & refrigerant line set
Need assistance sizing a condenser or planning multiple wells? Our refrigeration specialists are ready to help – contact us after checkout for free support.
