Hatco  |  SKU: CWBX-3

Hatco CWBX-3 Steam Tables & Food Wells

$3,887.19
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Owner's manual Catalog brochure
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

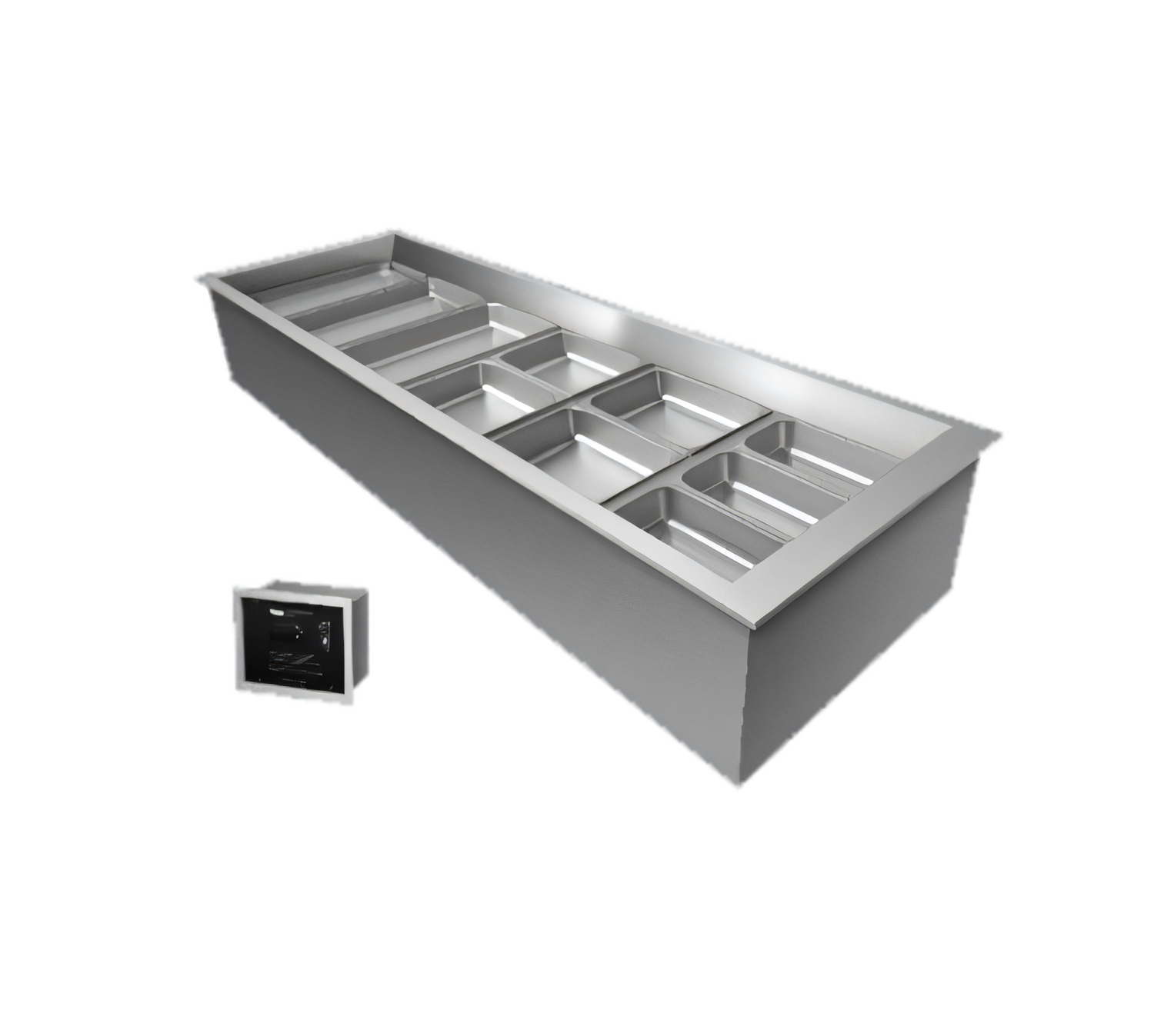

Hatco CWBX-3 Remote Refrigerated Drop-In Well

3-Pan • Top-Mount Cold Wall • Condensing Unit Not Included

Keep salads, toppings and grab-n-go items safely chilled without sacrificing counter space. The Hatco CWBX-3 drop-in well delivers remote-refrigerated performance for high-volume operations that prefer to locate the compressor out of sight.

Key Features
  • Holds (3) full-size 12 × 20 in. hotel pans (pans not included).
  • NSF 7 cold-wall design with angled inner walls that blanket food in cold air without drying it out.
  • Advanced electronic temperature control with automatic, programmable defrost.
  • Ships with remote control panel (9 ft probe lead), TXV valve and pan support bars for an easy, custom installation.

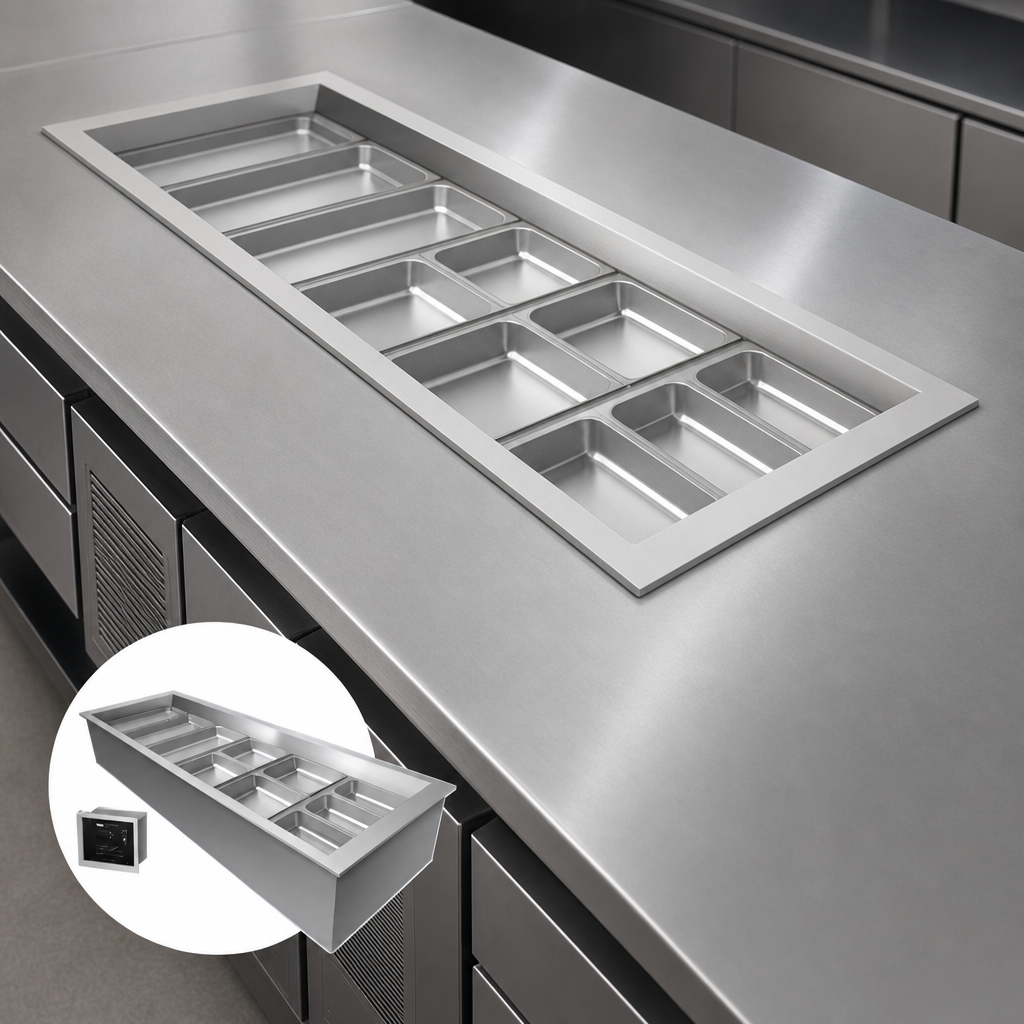

  • Top-mount stainless steel bezel delivers a seamless, flush counter finish.
  • Aluminized-steel housing, full foam insulation and 1 in. NPT brass drain for quick clean-up.
  • cULus listed, NSF certified and proudly Made in the USA.
Remote system required: This model is supplied without a condensing unit. Connect to a compatible remote condenser (≥ 930 BTU/h) and field-install refrigerant lines before use.
Specifications
Model CWBX-3
Pan capacity 3 full-size (12 × 20 in.) pans
Overall dimensions 45 in. W × 27 in. D × 10.5 in. H (1143 × 686 × 267 mm)
Counter cut-out 43.125–44 in. W × 25.19–26 in. D
Evaporator load 930 BTU/hr
Electrical 120 V / 60 Hz or 220-240 V / 50-60 Hz (select when ordering)
Drain 1 in. NPT brass
Refrigerant TXV supplied for R-513A (other refrigerants may require alternate TXV)
Shipping weight ≈ 150 lb (68 kg)
Certifications NSF 7, cULus
Origin USA
What’s Included
  • Hatco CWBX-3 drop-in refrigerated well
  • Remote electronic control panel
  • Thermostatic expansion (TXV) valve
  • Pan support bars
  • Installation & operation manual

Optional accessories—slant kits, false bottoms, wire trivets, stainless pans and factory-installed gasket—are available at the time of purchase. Contact us for details.

Features & Specs

Manufacturer

Hatco

Certifications

Made in USA

Height

17.05in

Width

45.0in

Depth

27.0in

Shipping Weight

150.0lbs

Pan Qty

3-pan

Layout

straight

Width (side - side)

43 - 48 inches

Finish

aluminum & stainless steel

Insulation

insulated

Style

remote refrigeration (no compressor)

Pan Size

full-size (12" x 20")

Specifications

Drop-In Refrigerated Well, (3) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, remote refrigeration, control panel & TXV valve (shipped loose), insulated with 1" drain, aluminized steel housing, stainless steel bezel, with control panel, WITHOUT condensing unit, cULus, Made in USA
