Hatco CWBX-2 Steam Tables & Food Wells
Description

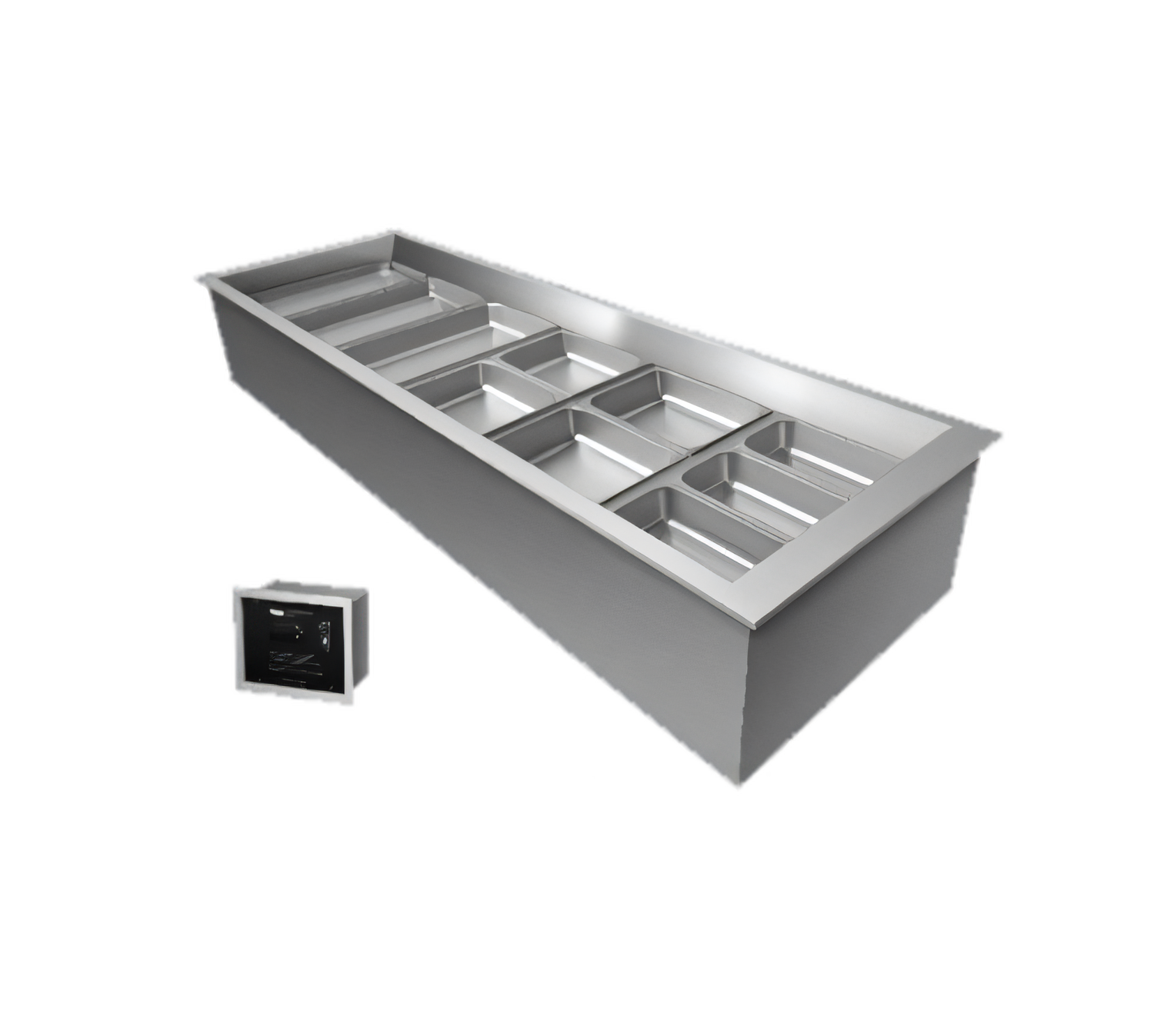

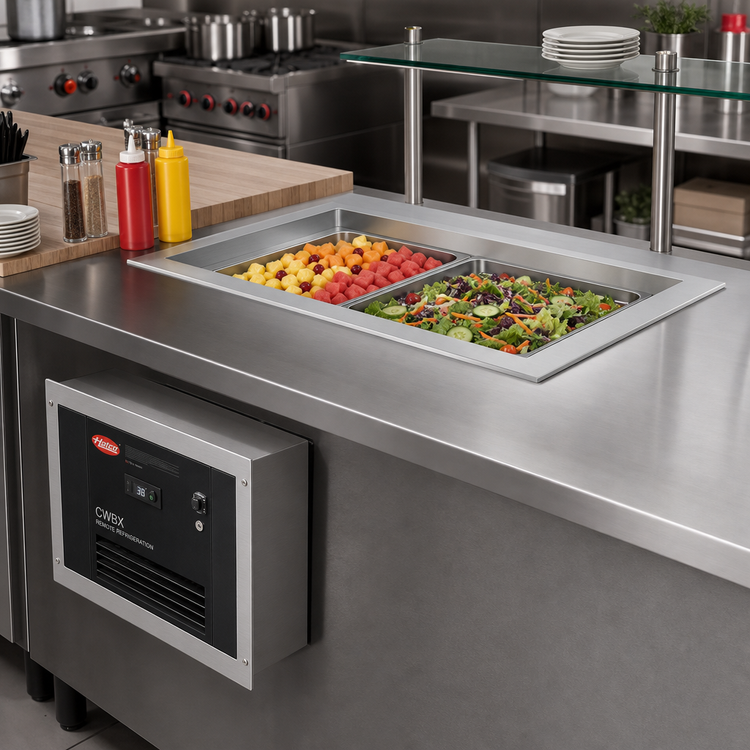

Hatco CWBX-2 Remote Drop-In Refrigerated Well
2 full-size pan capacity • control panel & TXV valve included • condensing unit NOT includedGive salads, cold entrées and desserts the perfectly chilled showcase they deserve—without sacrificing valuable under-counter space. The Hatco CWBX-2 is a top-mount, cold-wall drop-in that holds two 12" × 20" hotel pans at NSF-7 safe temperatures while its refrigeration components stay conveniently out of sight in a remote rack or condenser of your choosing.
Why You’ll Love It

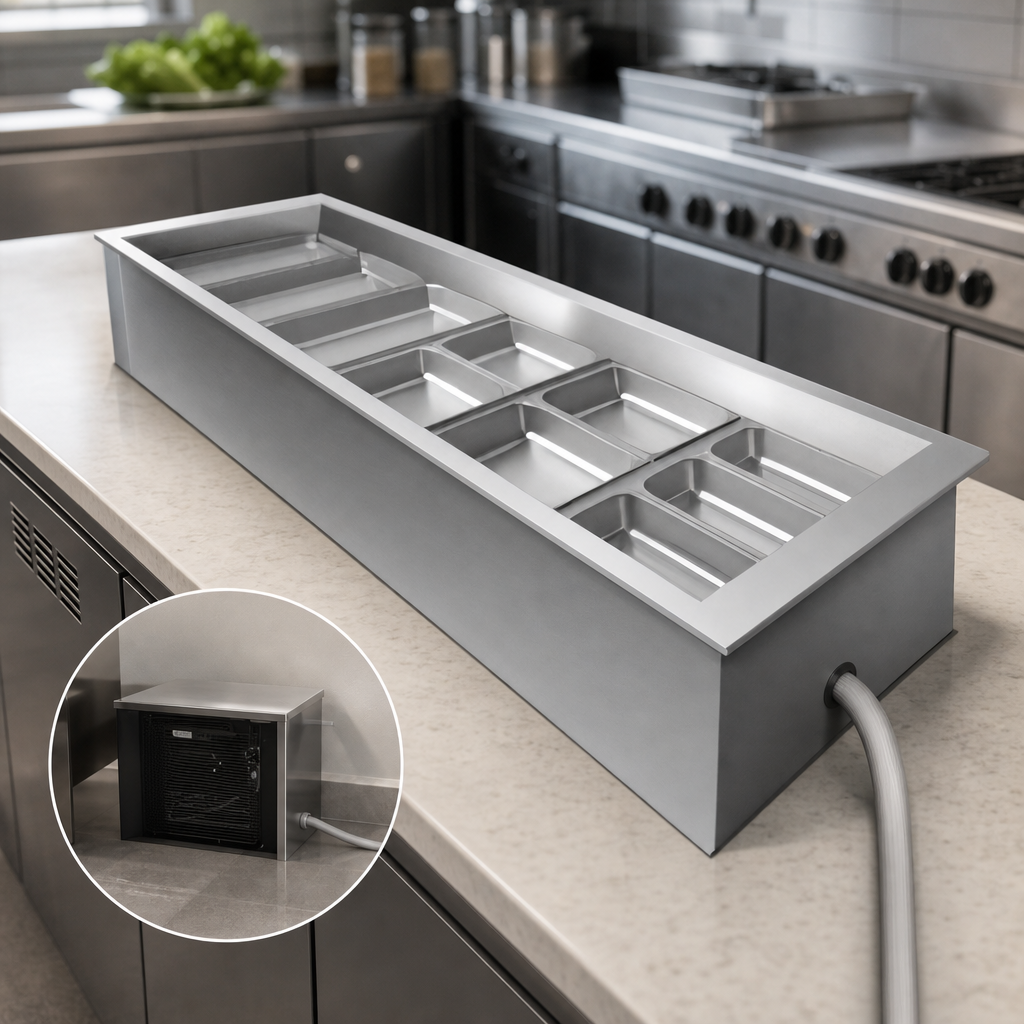

- Remote configuration keeps heat and noise away from the serving line—ideal for open kitchens or buffet islands.
- Angled interior walls blanket product with cold air for faster pull-down and longer holding without drying.
- Electronic temperature control with built-in auto-defrost arrives pre-wired in a separate panel (mount up to 9' / 2.7 m from well).
- Pan support bars for full-size pans included; accepts fractional pans with optional bars or false bottoms.
- Fully insulated aluminized-steel housing and stainless-steel bezel deliver durability and a clean, flush look.
- 1" NPT brass drain speeds cleanup—simply pull the plug, flush, and you’re done.
- cULus Listed, NSF-7 approved, and proudly Made in the USA.
Quick Specs
| Model | CWBX-2 (remote, without condenser) |
|---|---|
| Pan capacity | (2) full-size 12" × 20" (305 × 508 mm) pans, 6" (152 mm) max depth |
| Overall size | 32" W × 27" D × 17.05" H (813 × 686 × 433 mm) |
| Recommended cut-out | 30.125–31" W × 25.19–26" D (765–787 mm × 640–660 mm) |
| Drain connection | 1" NPT brass (bottom-center) |
| Electrical for control panel | 120 V / 60 Hz (220–240 V 50/60 Hz available) |
| Evaporator load | 630 BTU/hr – size your remote condensing unit accordingly |
| Ship weight | Approx. 123 lb (56 kg) |
| Certifications | NSF 7, cULus |
Included with Your Well
- Remote drop-in refrigerated well with attached temperature probe
- Electronic control panel (loose) with 9' probe lead
- Thermal expansion (TXV) valve – shipped loose for field connection
- (2) full-size pan support bars
- 1" NPT drain assembly & plug
Optional Accessories
- 5° Slant kit for enhanced product visibility
- Factory-installed perimeter gasket (no silicone required)
- False bottoms, stainless-steel pans, wire trivets & fractional support bars
Need a complete package with condenser? Check out Hatco’s CWBR series remote wells.
