Hatco CWBR-S4 Steam Tables & Food Wells
Description
Hatco Slim Drop-In Remote Refrigerated Well – 4 Pan (Model CWBR-S4)
Keep pre-chilled items fresh, visible and within easy reachDesigned for high-volume buffets, cafeterias and grab-n-go counters, the Hatco CWBR-S4 Slim Drop-In Well brings full-size cold holding performance to even the narrowest serving lines. Its unique length-wise orientation, remote refrigeration package and NSF 7 cold-wall technology deliver consistent food-safe temperatures without sacrificing valuable counter space.
Key Features & Benefits
- 4 full-size (12" × 20") pan capacity placed lengthwise for a slim 18.9" counter cut-out.

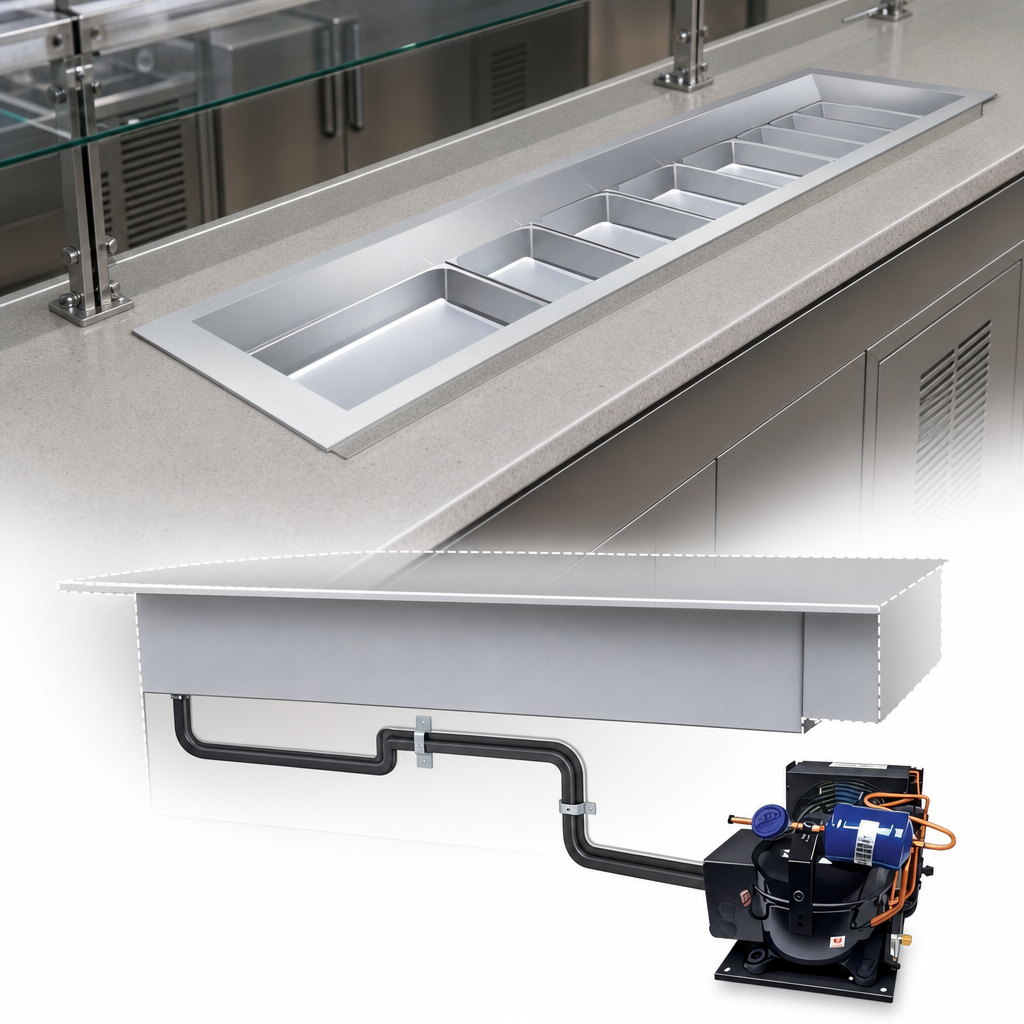

- Remote 5/8 HP condensing unit (ships loose) can be mounted up to 50' away for a quieter, cooler service area.
- Electronic temperature control with factory-programmed auto-defrost keeps food between 33-40 °F and minimizes ice-up.
- Cold-wall refrigerant coils and angled interior walls blanket product for superior cold holding without drying it out.
- Eco-friendly R-513A refrigerant reduces environmental impact and meets current regulations.
- Sight glass, service valves, TXV valve (ships loose) and filter-drier are included for fast start-up and simplified servicing.
- 1" NPT brass drain speeds daily cleaning; heavy foamed-in-place insulation maximizes efficiency.
- Durable aluminized steel housing with a sleek stainless steel bezel blends seamlessly into any counter.
- Field-replaceable control panel ships loose with 9' probe leads—mount it exactly where staff need it.
- NSF/ANSI 7 & cULus listed; proudly Made in the USA.
Technical Specifications
| Pan Capacity | (4) full-size 12" × 20" pans (pans sold separately) |
|---|---|
| Overall Well Dimensions | 90.25" W × 18.94" D × 12" H (2292 × 481 × 305 mm) |
| Recommended Cut-Out | Width: 88.38–89.22" (2245–2266 mm) Depth: 17.06–17.94" (433–456 mm) |
| Compressor | 5/8 HP, hermetic, remote-mount |
| Electrical | 120 V, 60 Hz, 1-ph, 8.7 A (208–240 V models also available) |
| Total Heat of Rejection | 3,954 BTU/hr |
| Refrigerant | R-513A | Factory charge: 2 lb 13 oz (1.276 kg) |
| Drain | 1" NPT brass |
| Construction | Aluminized steel well with stainless steel top bezel; foamed-in insulation |
| Agency Listings | NSF/ANSI 7, cULus |
| Shipping Weight | Approx. 235 lb (107 kg) |
Popular Options & Accessories
- 5° Slant Kit for improved product visibility
- Factory-installed gasket (eliminates the need for silicone)
- Perforated false bottoms, wire trivets & stainless food pans
- Additional 4-year compressor parts-only warranty (CWBR models, domestic voltages)
Need help configuring your line-up? Contact our foodservice specialists or your authorized Hatco rep for custom cut-out drawings, pan layouts and lead times.
