Hatco CWBR-S3 Steam Tables & Food Wells

Hatco CWBR-S3 Remote Refrigerated Slim Drop-In Well

Give guests crystal-clear views of fresh, chilled offerings while keeping your kitchen quieter and more flexible. Hatco’s CWBR-S3 Slim Drop-In Well blankets product with cold air, maintains NSF 7 holding temps and mounts lengthwise to fit today’s narrow serving counters.

Key benefits

• Remote refrigeration keeps noise and heat out of the servery—condensing unit can be mounted up to 50' (15 m) away.
• Electronic temperature control with automatic defrost for worry-free holding all day long.
• Cold-wall design and angled interior walls create an even “blanket” of cold air that won’t dry out delicate foods.
• Eco-friendly R-513A refrigerant paired with a high-efficiency 1/3 HP compressor.
• Rugged aluminized-steel well with a stainless-steel bezel for a seamless, sanitary top-mount installation.
• 1" NPT brass drain and fully insulated sides/bottom make cleanup fast and hold-time longer.
• Factory-installed sight glass, service valves and filter-drier plus a loose TXV valve for quick field connections.
• cULus listed, NSF 7 certified and proudly made in the USA.

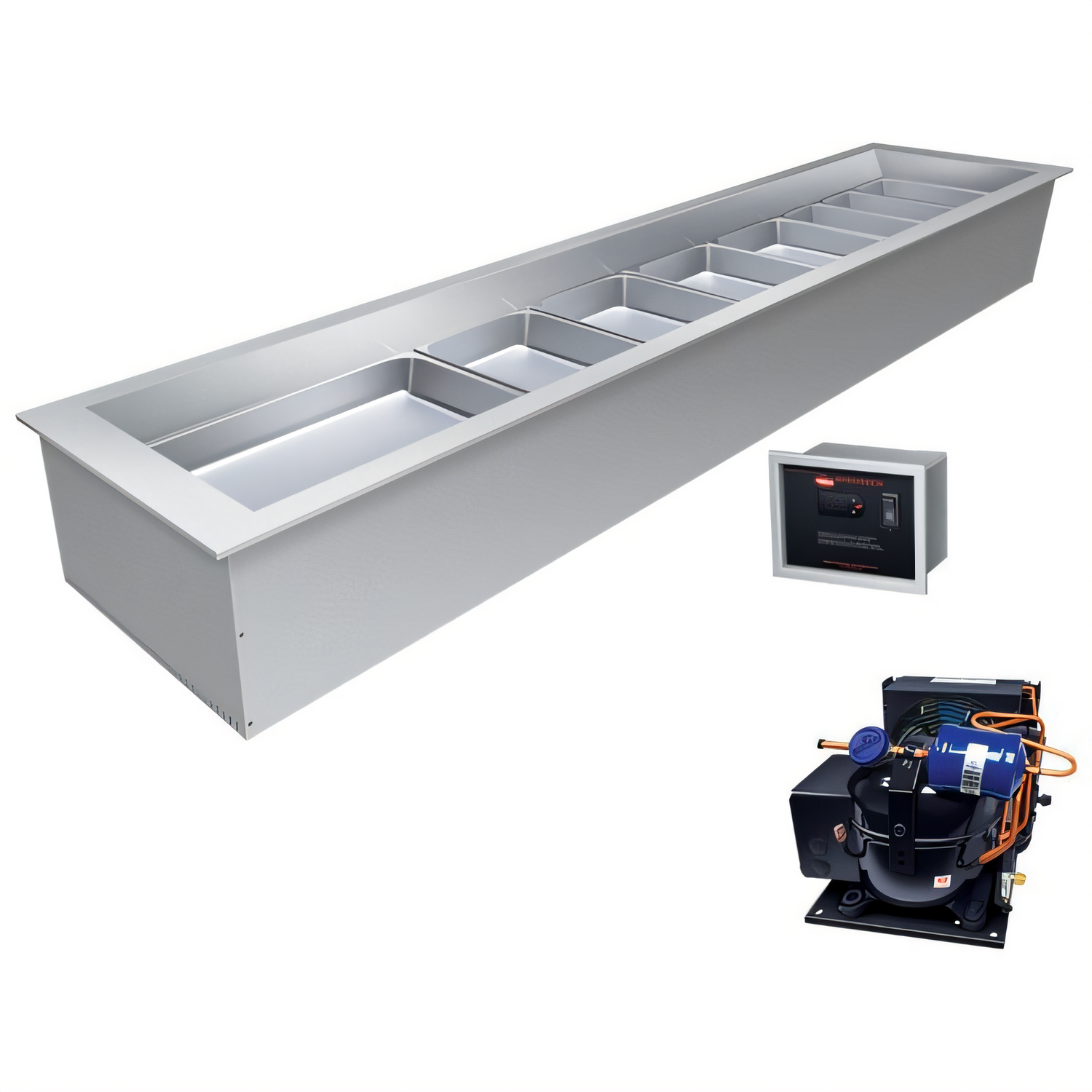

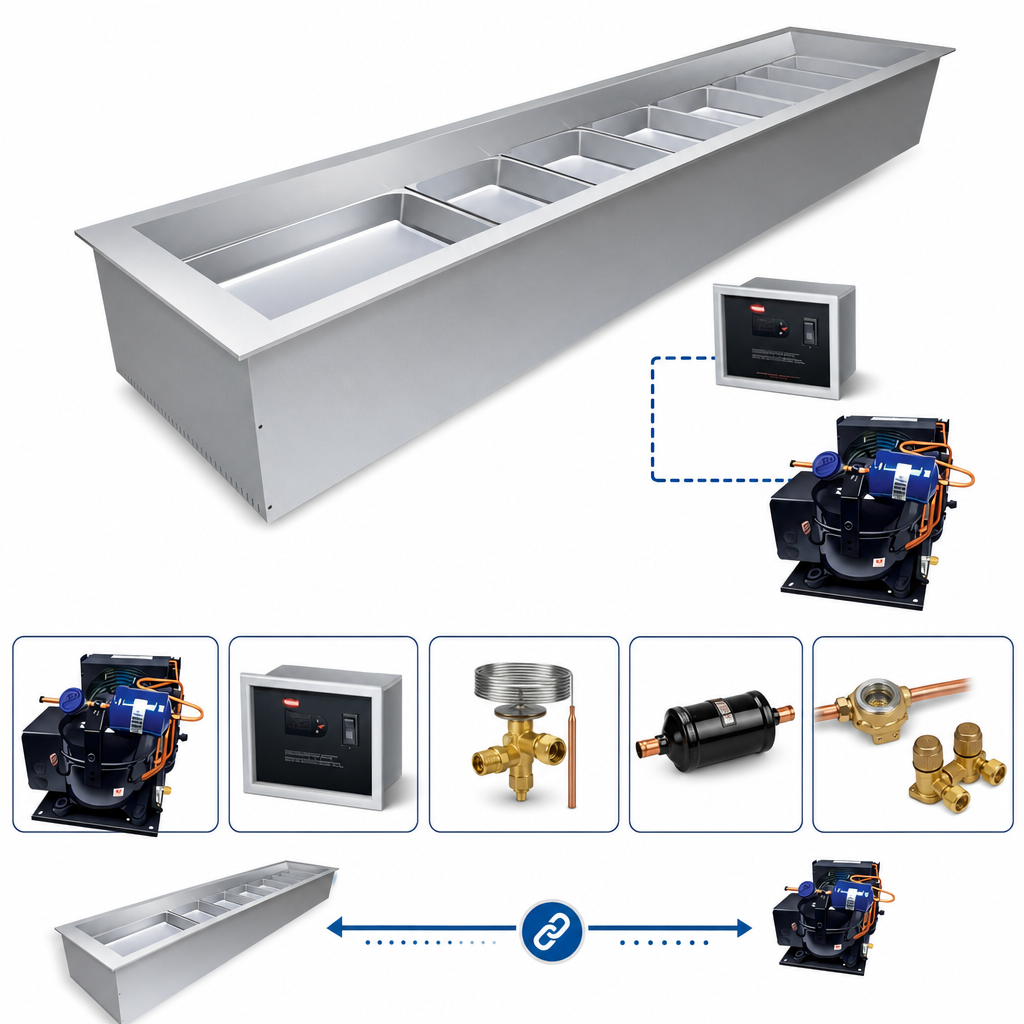

Included with every CWBR-S3

• Slim 3-pan refrigerated well (top-mount).
• Remote condensing unit (shipped loose).
• Remote control panel with 9' (2.7 m) probe lead.
• Filter-drier & TXV valve (shipped loose).
• Comprehensive installation & operating manual.

Technical specifications

Popular accessories (sold separately)

• Perforated false bottoms (maintains 8" / 203 mm ice depth).
• Stainless steel hotel pans – full, half and third sizes (2.5", 4" & 6" deep).
• Wire trivets and extra pan-support bars.
• Factory-installed gasket for silicone-free sealing.
• 5° slant kit for enhanced product visibility.
• Extended 4-year compressor parts-only warranty.

Need help planning your line? Contact your authorized Hatco representative or reach us at hatcocorp.com.
