Hatco

Hatco Slim Remote Refrigerated Drop-In Cold Well with Condensing Unit, 2 Full-Size Pans

SKU: CWBR-S2
$4,520.45
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hatco New Arrivals Restaurant Equipment Steam Tables & Food Wells

Hatco Slim Remote Refrigerated Drop-In Cold Well with Condensing Unit, 2 Full-Size Pans

Top-Mount, Full-Size Pan Layout, Electronic Control

A space-saving remote refrigerated well that keeps pre-chilled food fresh with electronic control, auto-defrost, and flexible remote mounting.

  • Holds 2 full-size pans placed lengthwise in a slim drop-in footprint.
  • Includes a remote condensing unit and control panel shipped loose for flexible installation.
  • Electronic temperature control with auto-defrost helps maintain consistent cold holding.
  • Insulated sides and bottom help retain temperature and preserve food quality.
  • Aluminized steel housing with a stainless steel bezel stands up to busy buffet service.
  • Uses R-513A refrigerant and includes sight glass, service valves, filter-drier, and TXV valve.
  • 1" NPT brass drain simplifies cleaning and maintenance.

Overall Dimensions:

48.13"W x 19.0"D x 15.88"H

Product Weight:

162.0 lb

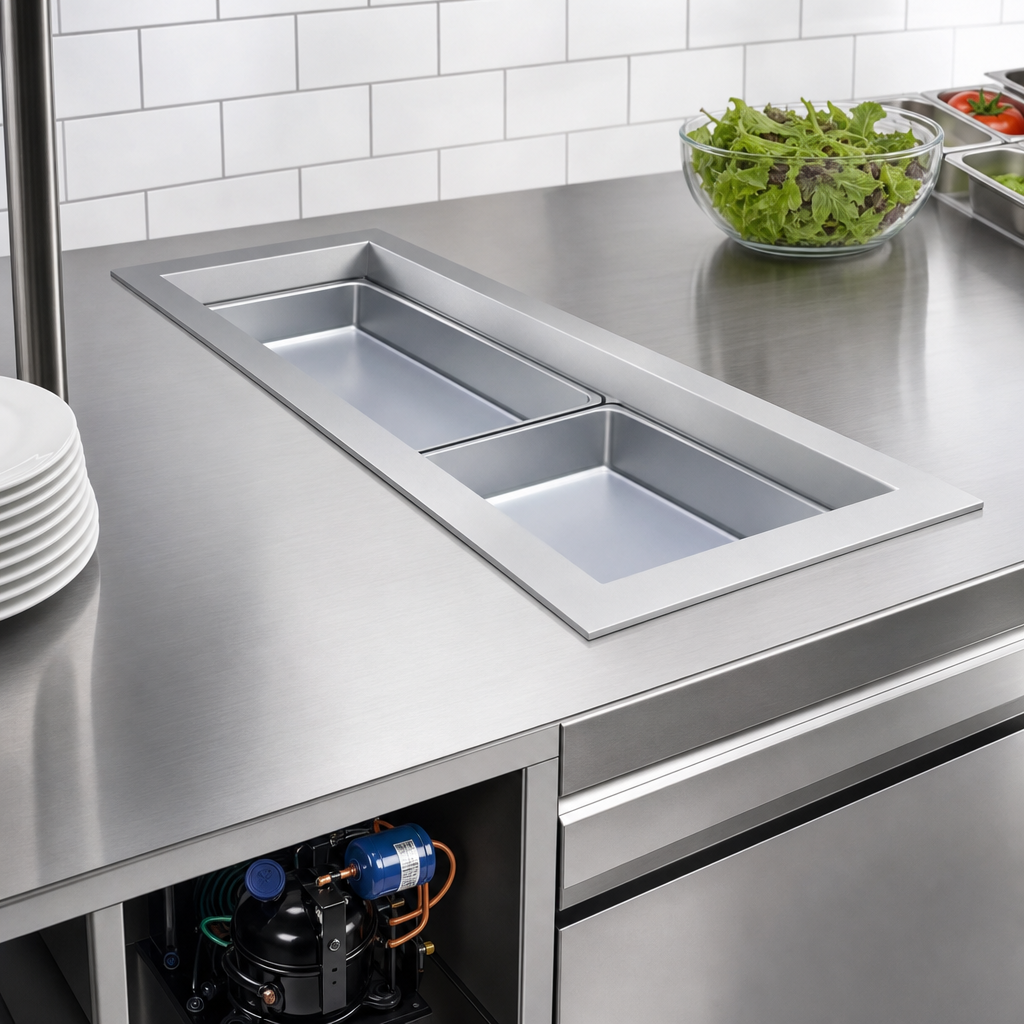

Slim Drop-In Layout

Designed for top-mount drop-in installation with a slim, lengthwise pan arrangement.

Two Full-Size Pan Capacity

Configured for 2 full-size 12" x 20" pans.

Remote Refrigeration System

Includes a condensing unit and remote control panel shipped loose for more flexible placement.

Electronic Temperature Control

Advanced electronic controller supports accurate temperature management and auto-defrost.

Insulated Cold-Wall Construction

Insulated sides and bottom help improve cold retention and reduce drying of food.

Aluminized Steel Housing With Stainless Steel Bezel

Durable body construction with a stainless steel bezel for a clean, professional look.

R-513A Refrigerant

Uses R-513A refrigerant for the remote refrigeration system.

Field-Mountable Condensing Unit

Condensing unit may be field mounted up to 50 feet from the well using tubing.

1 Inch NPT Brass Drain

Drain design simplifies cleaning and should be installed per local codes.

Type Cold Well
Style Slim
Installation Type Drop-In
Refrigeration Type Remote Refrigeration
Pan Capacity 2 Full-Size Pans
Pan Size Full-Size (12 Inches x 20 Inches)
Material Aluminized Steel
Finish Stainless Steel
Controls Electronic
Refrigerant Type R-513A
Drain Connection Size 1 Inch NPT
Horsepower 1/5 HP
Voltage 120 Volts
Amps 3.8 Amps
Watts 300 Watts
Hertz 60 Hz
Phase 1-Phase
BTU 1608 BTU/Hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 19 Inches
Shipping Height 16 Inches
Shipping Weight 162 lb.

Certifications & Compliance

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

It holds 2 full-size 12" x 20" pans placed lengthwise.
Yes. CWBR-S models include a condensing unit and control panel, both shipped loose.
Yes. The condensing unit may be field mounted up to 50 feet from the unit with tubing.
It uses R-513A refrigerant.
It includes electronic temperature control, auto-defrost, a 1" NPT brass drain, sight glass, service valves, and a filter-drier.
Available accessories include pan support bars, a slant kit, a gasket, stainless steel food pans, a false bottom, and stainless steel wire trivets.
