Hatco  |  SKU: CWBR-S1

Hatco CWBR-S1 Steam Tables & Food Wells

$4,046.72
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Catalog brochure
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

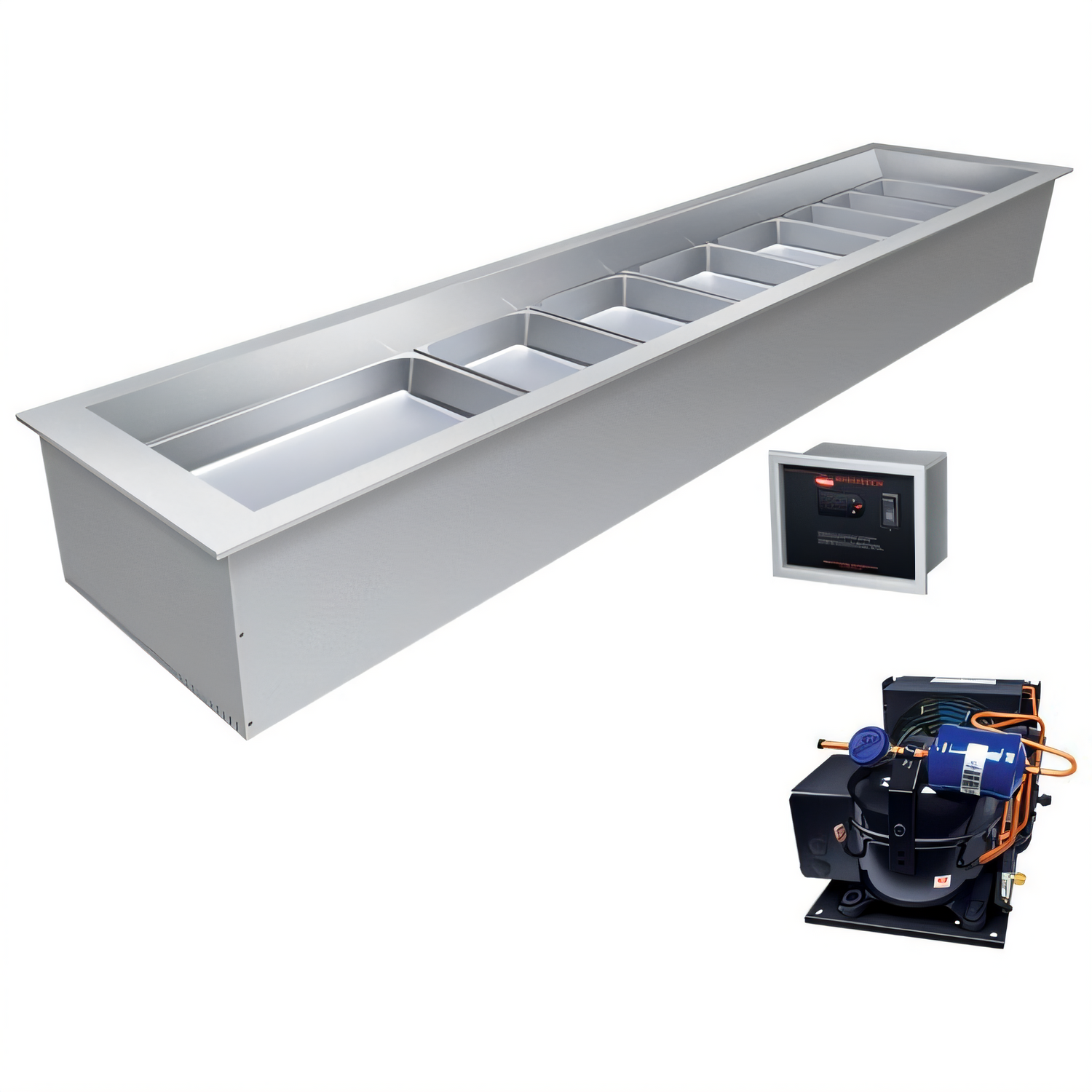

Hatco CWBR-S1 Slim Remote Refrigerated Drop-In Well

1 Full-Size Pan • Top-Mount • Complete Remote Refrigeration Package

Give guests fresh, perfectly chilled food without the mess of ice. Designed to fit narrow counters lengthwise, the CWBR-S1 blankets product with gentle cold-wall refrigeration, locking in colour, texture and taste for hours—all in a space-saving 27" footprint.

Why you’ll love it

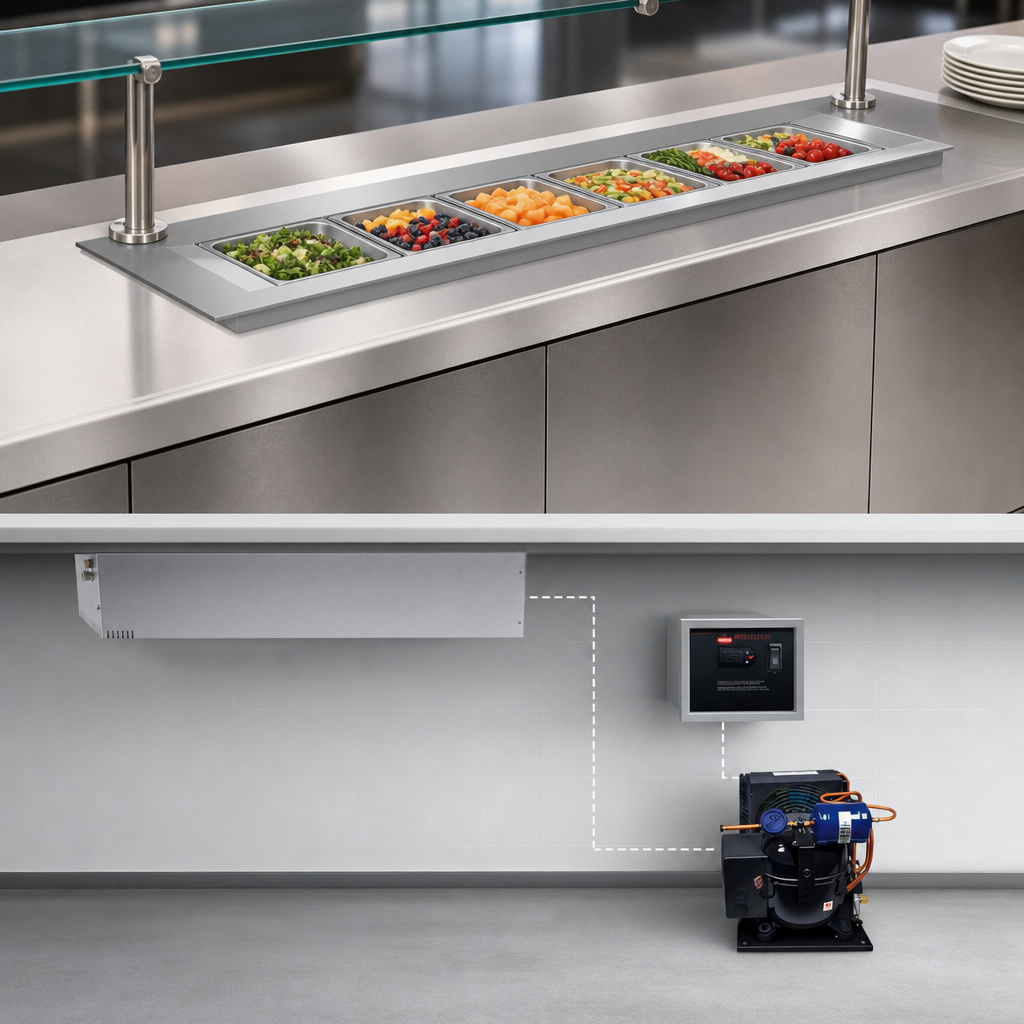

  • Factory-matched 1/5 HP condensing unit, TXV valve & control panel ship loose—mount the compressor up to 50' (15.24 m) away to free up cabinet space.
  • NSF 7-approved cold-wall construction keeps food moist and appetising—no drying or “cold spots.”
  • Electronic temperature controller with automatic defrost for set-and-forget operation.
  • Angled interior wall maximises coil surface area so cold air fully blankets the product and improves visibility.
  • 1" NPT brass drain plus smooth stainless bezel speed daily cleaning.
  • High-density, eco-friendly insulation on all sides and bottom holds temperatures and cuts energy use.
  • Built-in sight glass, service valves & replaceable filter-drier simplify maintenance and diagnostics.
  • cULus, NSF 7 listed and proudly Made in the USA for long-term, worry-free service.

Perfect for

  • Salad, sandwich & dessert stations
  • Hotel breakfast buffets
  • Grab-and-go merchandising
  • C-store & cafeteria serving lines

Specifications

Model CWBR-S1
Pan capacity 1 full-size (12" × 20") pan, placed lengthwise
Overall dimensions 27.06" W × 18.94" D × 12" H (687 × 481 × 305 mm)
Cut-out (min – max) 25.22"–26.06" W × 17.06"–17.94" D
Compressor 1/5 HP, hermetic (remote)
Refrigerant R-513A (low-GWP)
Electrical 120 V / 60 Hz / 1-ph, 300 W, 3.8 A (other voltages available)
Total heat of rejection 1,288 BTU/hr
Drain 1" NPT brass
Ship weight Approx. 131 lb (59 kg)
Certifications cULus, NSF 7
Country of origin USA

Need more capacity? 2-, 3- and 4-pan CWBR-S models are also available upon request.

Popular options & accessories

  • 5° Slant kit for enhanced product visibility
  • Factory-installed gasket—eliminates the need for field silicone
  • Extended four-year compressor parts-only warranty (USA & Canada)
  • Pan support bars, stainless hotel pans (⅓, ½, full) & perforated false bottoms
  • Wire trivets and adapter bars for custom layouts
Installation note: Condensing unit and control panel ship loose. Refrigeration lines (up to 50' / 15.24 m) must be field-supplied, installed and charged by a licensed refrigeration technician. Drain plumbing to be fitted per local codes.

Features & Specs

Manufacturer

Hatco

Certifications

cULus, Made in USA

Height

15.88in

Width

27.06in

Depth

19.0in

Shipping Weight

131.0lbs

Pan Qty

1-pan

Layout

straight

Style

remote refrigeration (with compressor)

Finish

aluminum & stainless steel

Insulation

insulated

Width (side - side)

19 - 24 inches

Pan Size

full-size (12" x 20")

Specifications

Slim Drop-In Refrigerated Well, (1) pan size, top mount, electronic temperature control, auto defrost, sight glass, service valves, dryer/filter, insulated with 1" drain, aluminized steel housing, stainless steel bezel, remote refrigeration, condensing unit, control panel, TXV valve (shipped loose) & filter-drier, utilizes R-513A refrigerant, 1/5 HP, cULus, Made in USA
