Hatco | SKU:
CWBR-6
Hatco CWBR-6 Steam Tables & Food Wells
$6,469.80
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco CWBR-6 Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco CWBR-6 Steam Tables & Food Wells
$6,469.80
Unit price
/
Unavailable
Description

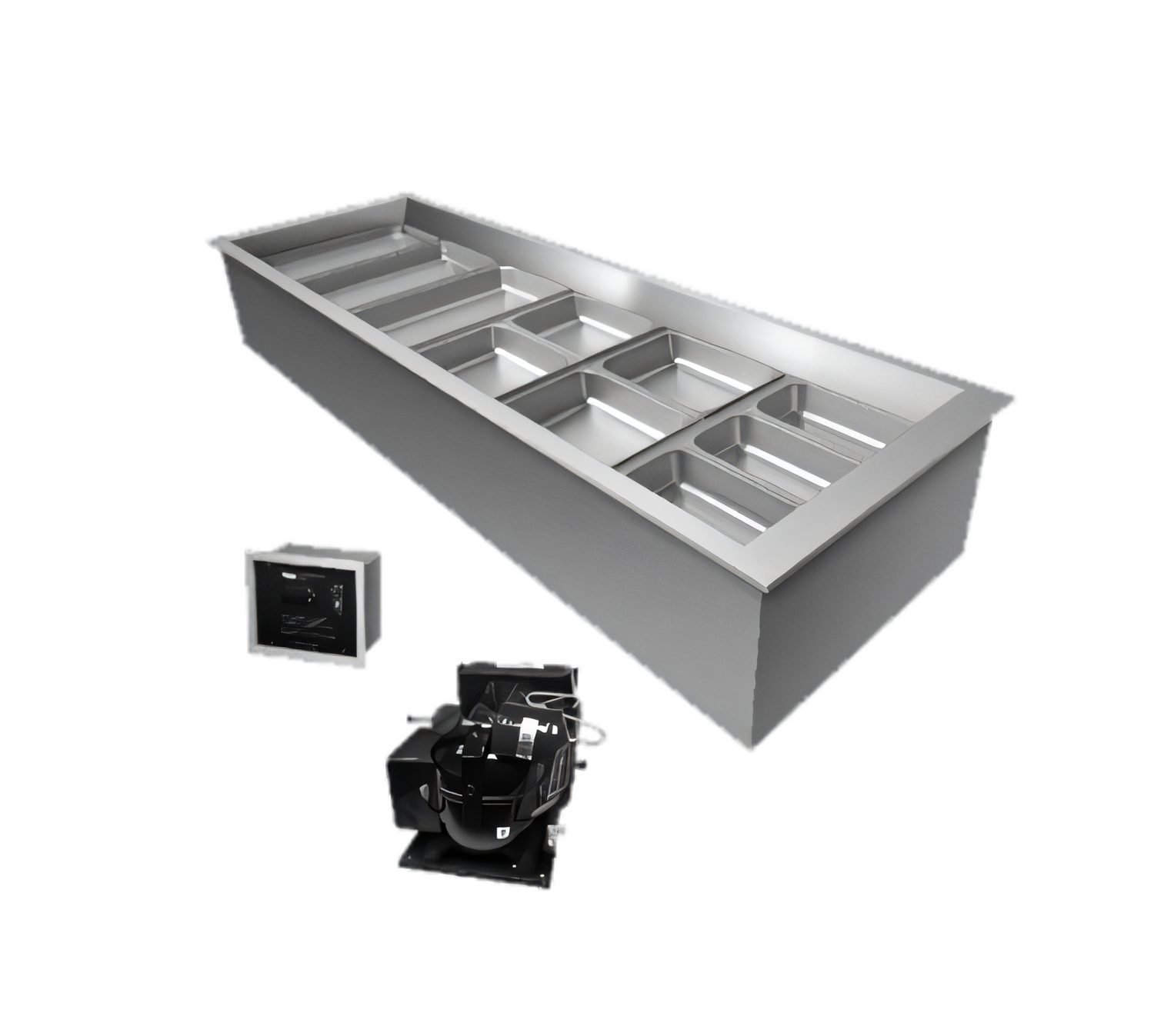

Hatco CWBR-6 Remote Refrigerated Drop-In Well

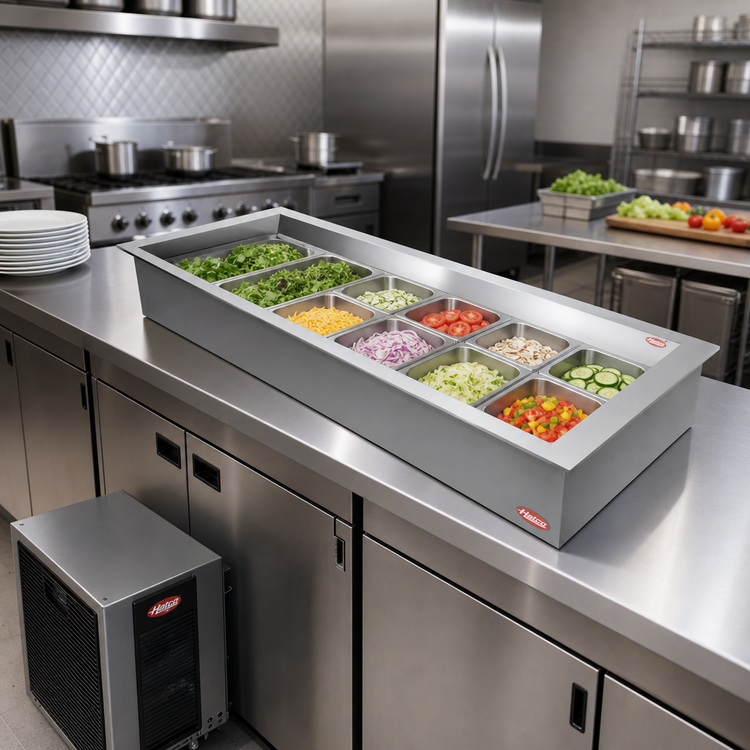

6-Pan | Cold-Wall | 5/8 HP | R-513A | Made in the USABuild the ultimate cold service line with Hatco’s largest remote drop-in well. The CWBR-6 keeps salads, deli items and grab-and-go favorites safely chilled while moving heat, noise and maintenance out of the customer zone.
Key features

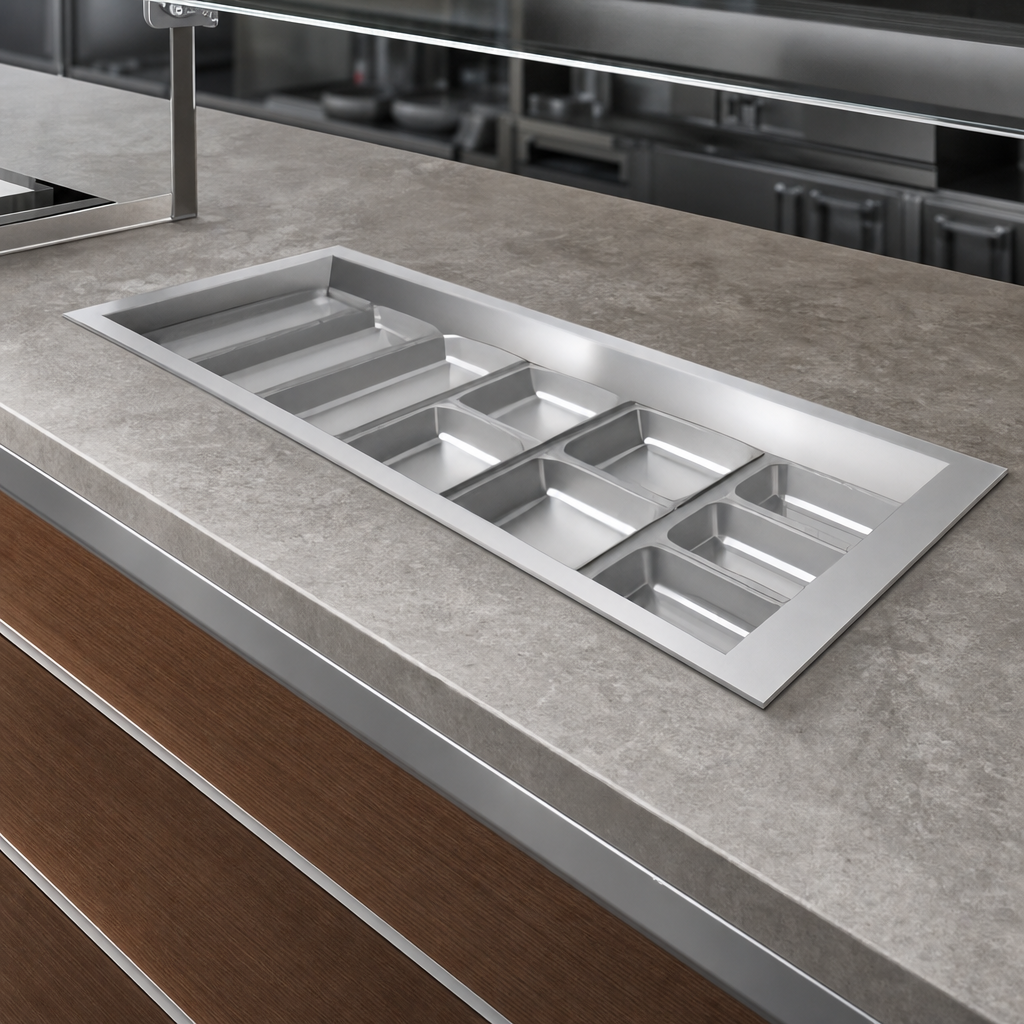

- Holds six full-size (12 in × 20 in) pans in an easy-access top-mount design.
- NSF 7-approved cold-wall construction gently blanket-cools product without drying it out.
- Angled interior walls increase coil surface area for faster pull-down and better visibility.
- Electronic temperature control panel (ships loose) with programmable auto-defrost.
- Remote 5/8 HP condensing unit mounts up to 50 ft (15.24 m) away for a quieter, cooler counter.
- Eco-conscious R-513A refrigerant with low global-warming potential.
- Ships complete with TXV valve, sight glass, service valves and filter-drier for straightforward hook-up.
- 1 in NPT brass drain, foamed-in insulation and aluminized-steel housing for sweat-free performance.
- Stainless-steel bezel matches Hatco hot wells for a cohesive serving line.
- Pan support bars for full-size pans included; false bottoms, trivets & 5° tilt kit available.
Specifications
| Model | CWBR-6 (well, remote condenser & control panel) |
|---|---|
| Pan capacity | 6 × Full-size 12 in × 20 in pans (2.5 in, 4 in or 6 in deep) |
| Well opening | 82.125 in W × 25.19 in D (83 in × 26 in max cut-out) |
| Well depth | 12 in (305 mm) |
| Compressor | 5/8 HP, remote-mount |
| Refrigerant | R-513A (factory dry-shipped; field charge required) |
| Electrical | 120 V 60 Hz -or- 220-240 V 50/60 Hz, 1-phase |
| Drain | 1 in NPT brass |
| Certifications | NSF, cULus |
| Approx. ship weight | 313 lb (142 kg) |
Looking for a different length? CWBR wells are available in 1- to 5-pan sizes.
Installation note: Unit ships in multiple cartons (well, condenser, control panel).
Field connection, evacuation and charging must be performed by a licensed refrigeration technician.
Features & Specs
Features & Specs
Manufacturer
Hatco
Certifications
cULus, Made in USA
Height
12.0in
Width
84.0in
Depth
27.0in
Shipping Weight
313.0lbs
Style
remote refrigeration (with compressor)
Layout
straight
Pan Qty
6-pan
Finish
aluminum & stainless steel
Width (side - side)
79 - 84 inches
Pan Size
full-size (12" x 20")
Insulation
insulated
Specifications
Drop-In Refrigerated Well, (6) pan size, top mount, electronic temperature control, auto defrost, pan support bars for full-size pans, sight glass, service valves, dryer/filter, insulated with 1" drain, aluminized steel housing, stainless steel bezel, remote refrigeration, condensing unit, control panel, TXV valve (shipped loose) & filter-drier, utilizes R-513A refrigerant, 5/8 HP, cULus, Made in USA
