Hatco CWBR-5 Steam Tables & Food Wells
Description

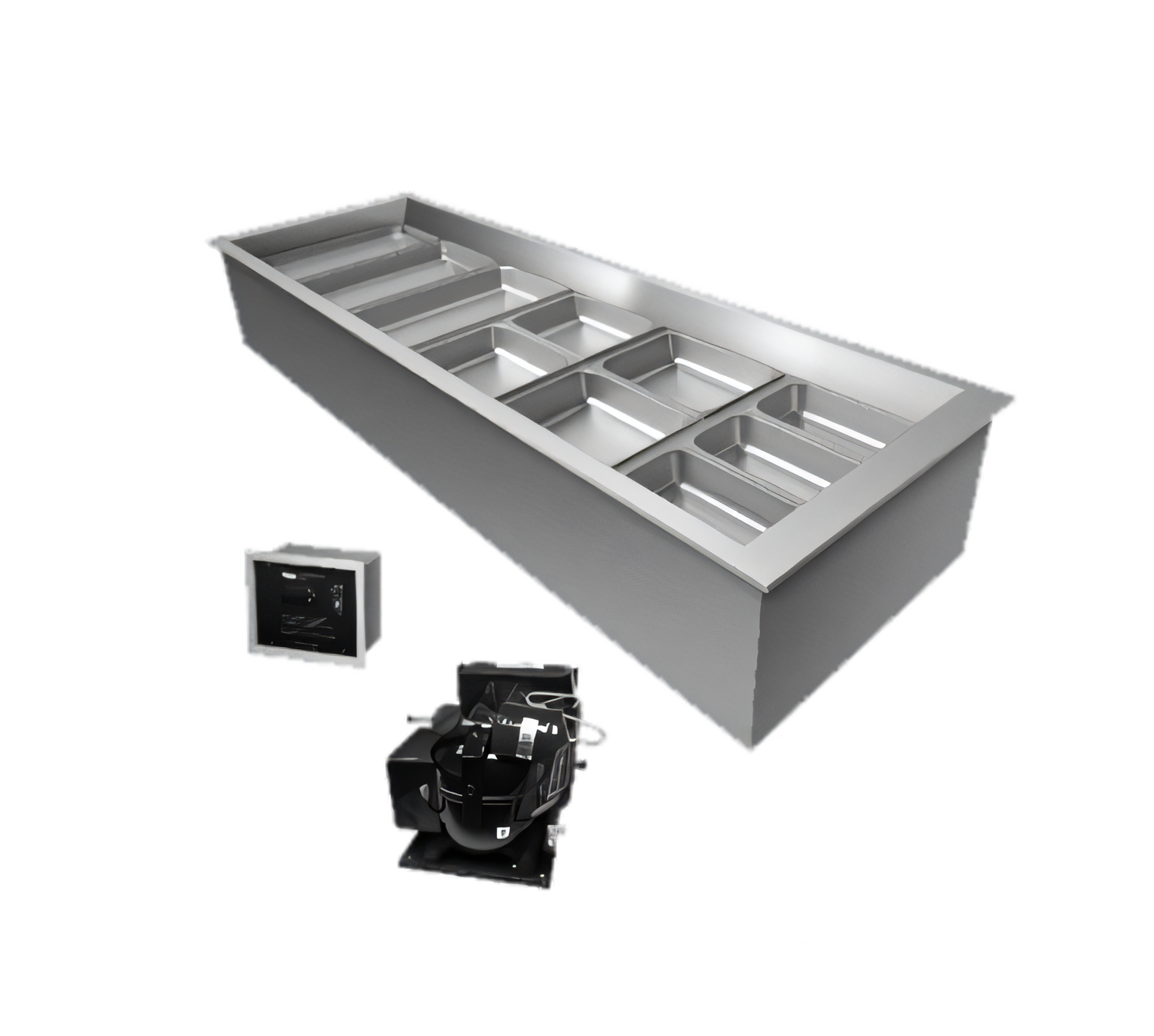

Hatco CWBR-5 Remote Refrigerated Drop-In Well
5 Full-Size Pan Capacity | 5/8 HP Compressor | R-513A RefrigerantKeep salads, desserts and grab-and-go favorites perfectly chilled without the noise and heat of a traditional under-counter unit. The Hatco CWBR-5 features a remote 5/8 HP condensing unit, advanced electronic controls and NSF-7 cold-wall construction that gently blankets product in safe, uniform cold air.
Key Features & Benefits
- Top-mount design holds five 12" × 20" full-size pans for easy drop-in installation.
- Angled interior walls increase coil surface area, delivering colder air to every corner of the pan.

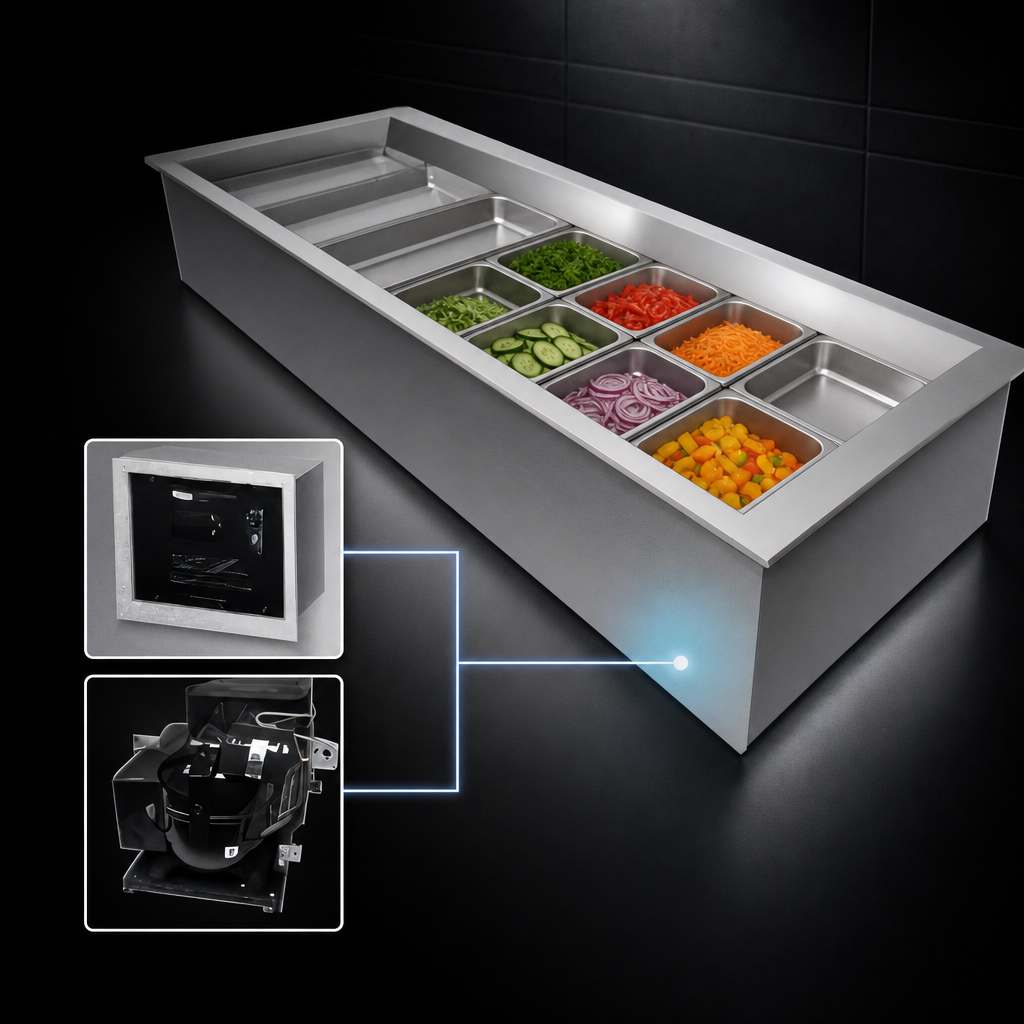

- Electronic temperature control with programmable auto-defrost keeps foods fresh and labor low.
- Remote condensing unit ships loose and can be installed up to 50 ft (15.24 m) from the well—reducing heat and noise at the serving line.
- Separate, wall-mount control panel (9 ft / 2.7 m lead) offers convenient access for daily operation.
- Eco-friendly R-513A refrigerant paired with a TXV valve & filter-drier (included) for efficient performance.
- Durable aluminized-steel housing is fully insulated and fitted with a 1" NPT brass drain for fast clean-up.
- Stainless-steel bezel matches other Hatco wells for a seamless, professional look.
- Includes pan support bars, sight glass, service valves and dryer/filter for quick diagnostics.
- cULus listed, NSF 7 certified and proudly Made in the USA.
Ideal Applications
- Buffets & cafeterias
- Supermarket prepared-food departments
- Convenience stores & delis
- Hotel breakfast bars
- Catering and banquet lines
Technical Specifications
| Model | CWBR-5 |
|---|---|
| Pan Capacity | 5 full-size (12" × 20") pans |
| Overall Well Dimensions | 71" W × 27" D × 12" H (1 803 × 686 × 305 mm) |
| Required Counter Cut-Out | 69.125"–70" W × 25.19"–26" D (1 756–1 778 × 640–660 mm) |
| Compressor | 5/8 HP remote condensing unit |
| Refrigerant | R-513A |
| Voltage | 120 V / 60 Hz or 220-240 V / 50-60 Hz, single phase |
| Power Consumption | 800 W (120 V) |
| Drain | 1" NPT brass |
| Construction | Aluminized-steel housing with stainless-steel bezel |
| Certifications | NSF 7, cULus |
| Country of Origin | USA |
Condensing Unit Dimensions (approx.): 17.5" W × 16.4" D × 12.1" H (444 × 415 × 306 mm). Control panel and TXV/filter-drier ship loose for field installation.
Upgrade your cold food presentation with the Hatco CWBR-5—engineered for efficiency, built for durability and designed to keep your menu items chilled, appetizing and ready for service.
